Description
Brand: 101 AV Inc
• 1. 23.6" Super HD 5MP/2592x1944 over Coax LED Security Monitor. Support up to 5MP/2592x1944 Super HD-TVI, HD-AHD, and 4MP HD-CVI.
• 2. Keeps video looking its best by preventing blurry or pixelated images. Preserve original high video quality without artifacts, signal loss, or distortion caused by digital processing and compression through a Digital Video Recorder or Distributor.

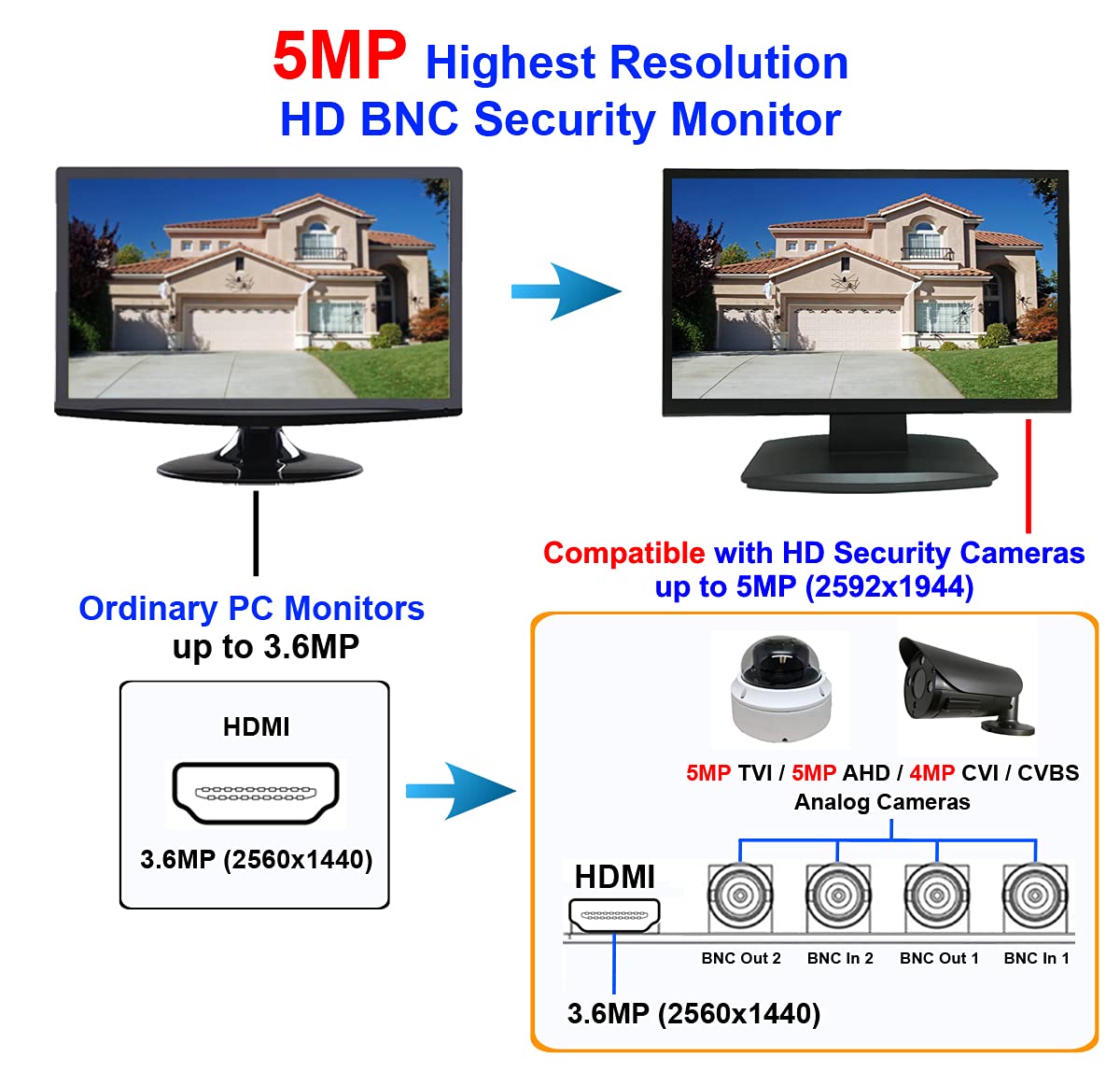

• 3. 1 HDMI & 2 Super HD BNC Video Inputs. BNC video-in port works directly with the new Super HD security cameras without going through any DVR or converters. It will allow security cameras send clear video by using a single Coax cable to the HD monitor, and it can prevent fuzzy or unclear images between the camera, recorder, and monitor. And 2 BNC Video Outputs for Second Monitor. Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors.
• 4. Super HD 5 megapixel (2592x1944) BNC resolution, which is 10 times higher than the Standard Definition (0.46MP/960H, 0.3MP/CVBS or VGA) BNC resolution from Normal CCTV/security monitors, and 1.4 times higher than the 3.68MP (2560x1440) HDMI resolution from Normal PC monitors.
• 5. One of the biggest advantages of using BNC connector for security cameras is that they allow you to install multiple viewing monitors in different rooms up to 1000ft away from the DVR and cameras. This is a great option for businesses and homes with large areas that need to be monitored in more than one location, as it allows you to keep an eye on everything from multiple locations.
• 6. Design for professional surveillance/security applications, 24/7/365. Need help? Don't hesitate to contact us by email. We're here to assist you with any questions or issues.
101 Audio Video Inc.
101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

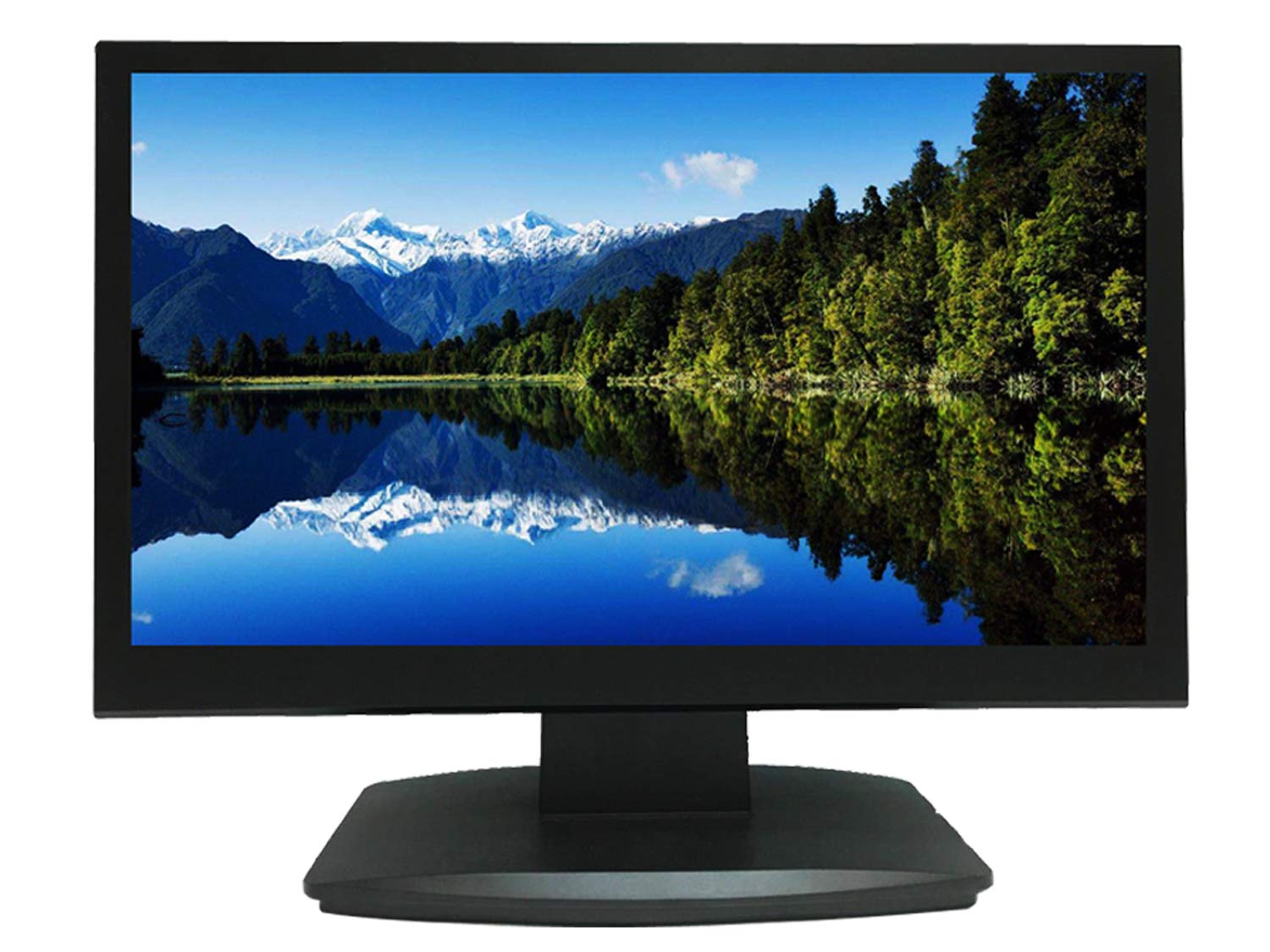

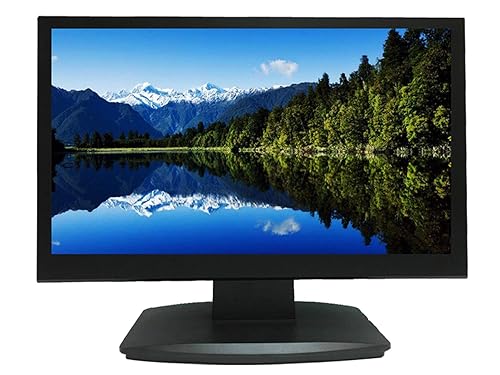

This is a 23.6" Professional Grade LED Security Monitor. Great reliability rating of for 24/7 security application requirements .Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation.US local support and service.
Specification
Model No.: MT-G236HD
Size: 23.6" 16:9 Wide Screen
5MP Super HD (2592x1944p)Max resolution on BNC Connector: 2592x1944
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Response Time: 5 ms
Colors: 16.7M
Viewing Angle: H:178°/V:178°
Video Inputs: 2 Super HD BNC Connector (TVI/AHD/CVI/CVBS), 1 HDMI
Video Outputs: 2 Super HD BNC Connector (TVI/AHD/CVI/CVBS)
1 HDMI input: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
Super HD BNC:
TVI: 5MP/2592x1944@20fps, 4MP/2560x1440@25fps, 3MP@18.75fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps , 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC/3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
Working Temperature: 0 ~ 40?
Work Humidity: 5% - 90%
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC , CE, and RoHS
What is in the box?
23.6" HD LED Security Monitor x 1; Power Cord, Adapter, Stand, User’s Guide, HDMI Cable
CCTV monitor, Security monitor, Security displays, BNC VGA monitor, CCTV Security screen, Security camera monitor, Analog monitor, DVR NVR monitor, Monitoring Remote viewing monitor• 1. 23.6" Super HD 5MP/2592x1944 over Coax LED Security Monitor. Support up to 5MP/2592x1944 Super HD-TVI, HD-AHD, and 4MP HD-CVI.
• 2. Keeps video looking its best by preventing blurry or pixelated images. Preserve original high video quality without artifacts, signal loss, or distortion caused by digital processing and compression through a Digital Video Recorder or Distributor.
• 3. 1 HDMI & 2 Super HD BNC Video Inputs. BNC video-in port works directly with the new Super HD security cameras without going through any DVR or converters. It will allow security cameras send clear video by using a single Coax cable to the HD monitor, and it can prevent fuzzy or unclear images between the camera, recorder, and monitor. And 2 BNC Video Outputs for Second Monitor. Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors.
• 4. Super HD 5 megapixel (2592x1944) BNC resolution, which is 10 times higher than the Standard Definition (0.46MP/960H, 0.3MP/CVBS or VGA) BNC resolution from Normal CCTV/security monitors, and 1.4 times higher than the 3.68MP (2560x1440) HDMI resolution from Normal PC monitors.
• 5. One of the biggest advantages of using BNC connector for security cameras is that they allow you to install multiple viewing monitors in different rooms up to 1000ft away from the DVR and cameras. This is a great option for businesses and homes with large areas that need to be monitored in more than one location, as it allows you to keep an eye on everything from multiple locations.
• 6. Design for professional surveillance/security applications, 24/7/365. Need help? Don't hesitate to contact us by email. We're here to assist you with any questions or issues.
