Brand: 101 AV Inc

101 Audio Video Inc.

101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.

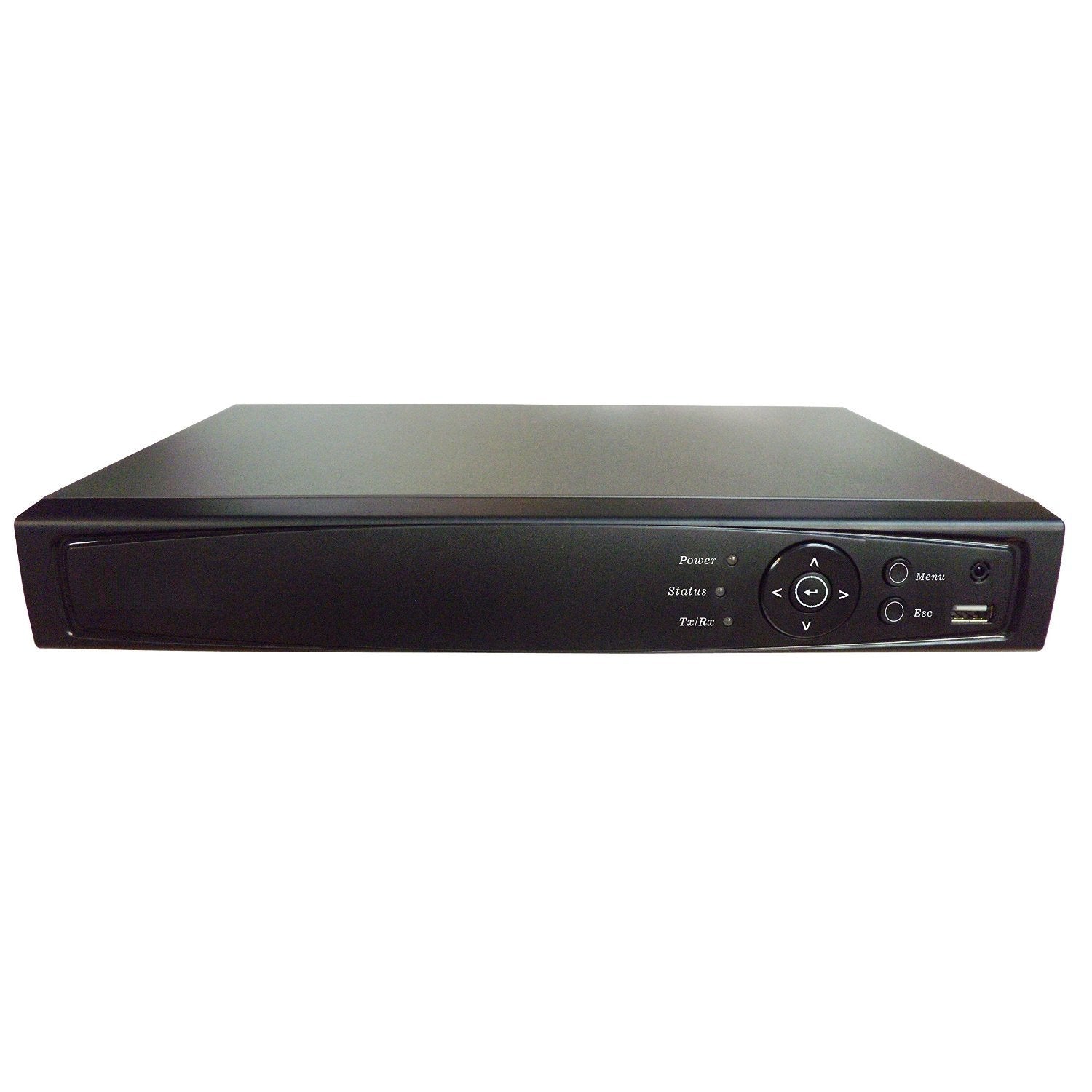

This model, LTD-16TCB4, 16ch HD-TVI/AHD/CVI True-HD DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI and VGA output mouse supported, CMS Software on PC to support with full remote control, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

Features

H.265/H.264 compression with low bit rate and better image quality

1080P HDMI, 1920x1024 VGA output, and BNC Video Output for multiple monitors, channel security by hiding live display and USB Mouse to make full control

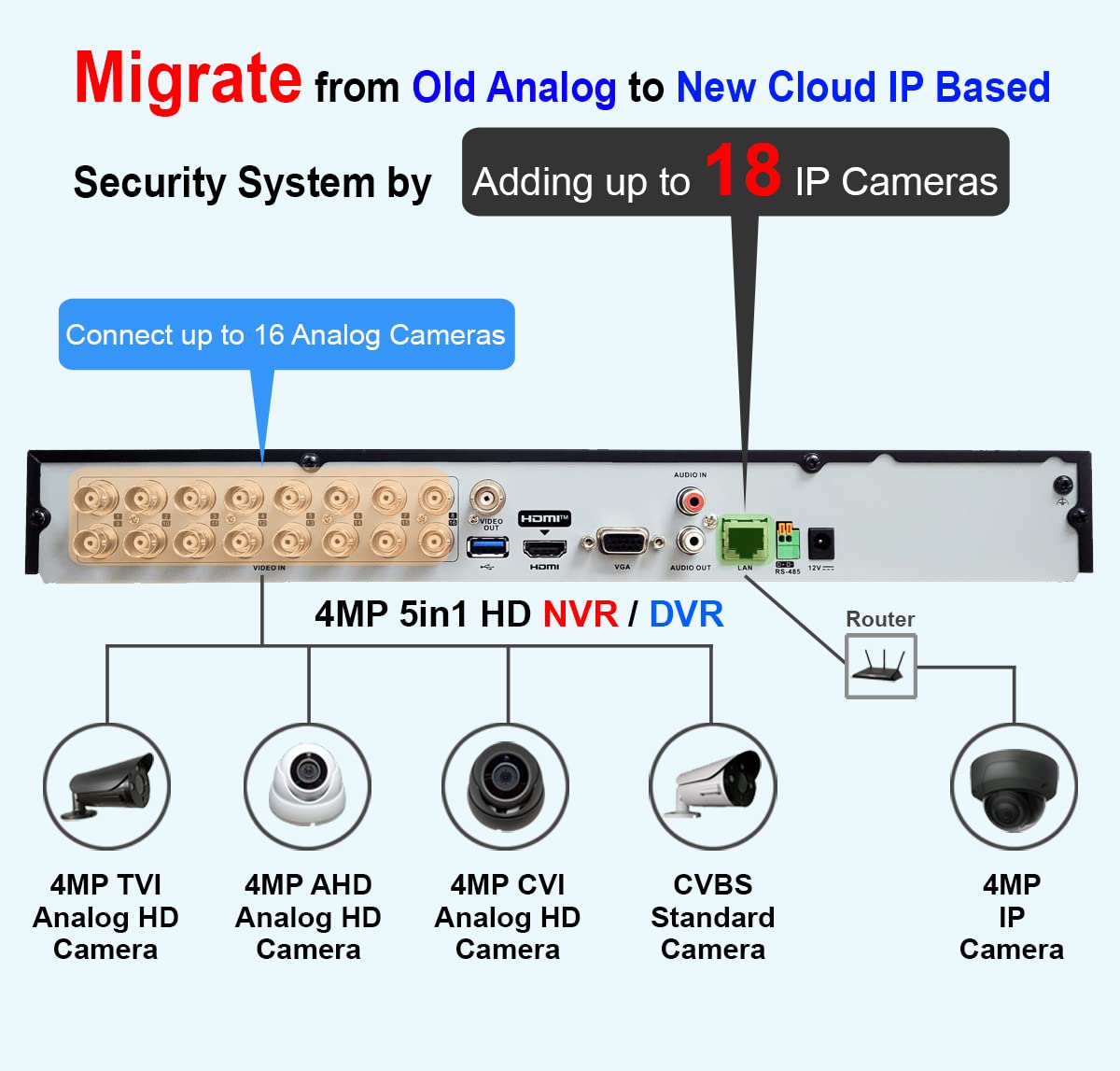

Combination of 18 total Analog or IP cameras; Supports 16 Analog + 2 IP cameras, 15 Analog + 3 IP cameras...or up to 18 IP cameras by IP address.

Support Two SATA HDD to record for a longer time without any limitation; Each HDD can up to 10TB storage (Without Hard Drive)

Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

Support schedule for motion detection, linked channels recording once motion triggered on certain channel

Support PELCO-D and PELCO protocol for PTZ control

Up to 16ch synchronous playback at 1080P

Support Cloud based cell Phone APPs for both Android and iPhone without confusing port forwarding

CMS to manage multi devices on internet

Support 3 Years Manufacturer Warranty

What's in the box?

16ch HD H.265/H.264 DVR without HDD and Accessories. (Power supply, Mouse, Remote).

• 16CH HD DVR/NVR without HDD. Combination of 18 total Analog or IP cameras; Supports 16 Analog + 2 IP cameras, 15 Analog + 3 IP cameras...or up to 18 IP cameras. Triplex: Live / Playback, Record, Network. Standard H.265/H.264 Video Compression with low bit rate and better image quality. Support 2 x SATA HDDs (Each HDD up to 10TB Storage Capacity). Exceptionally strong password and anti-hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
• User friendly setup instructions including QIG (Quick Installation Guide) for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. There are options to show 1, and 4 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.
• Pre-Alarm Recording and Motion Detection. Motion activated full screen alarm call up protection with optional audible warning. Dual-stream: network video and local recording. CMS and web-based remote monitoring software on PC. Up to 1080P HDMI, 1920 x 1024 VGA, and 700TVL BNC Video Output Resolution for multiple monitors. USB Backup and USB Mouse.
• HDMI/VGA default resolution is at 1080P (1920x1080) with 60Hz. If your monitor shows all black and says out of range, it means your monitor does not support 1080P/60Hz resolution. Please use the monitor which can support 1080P/60Hz resolution.

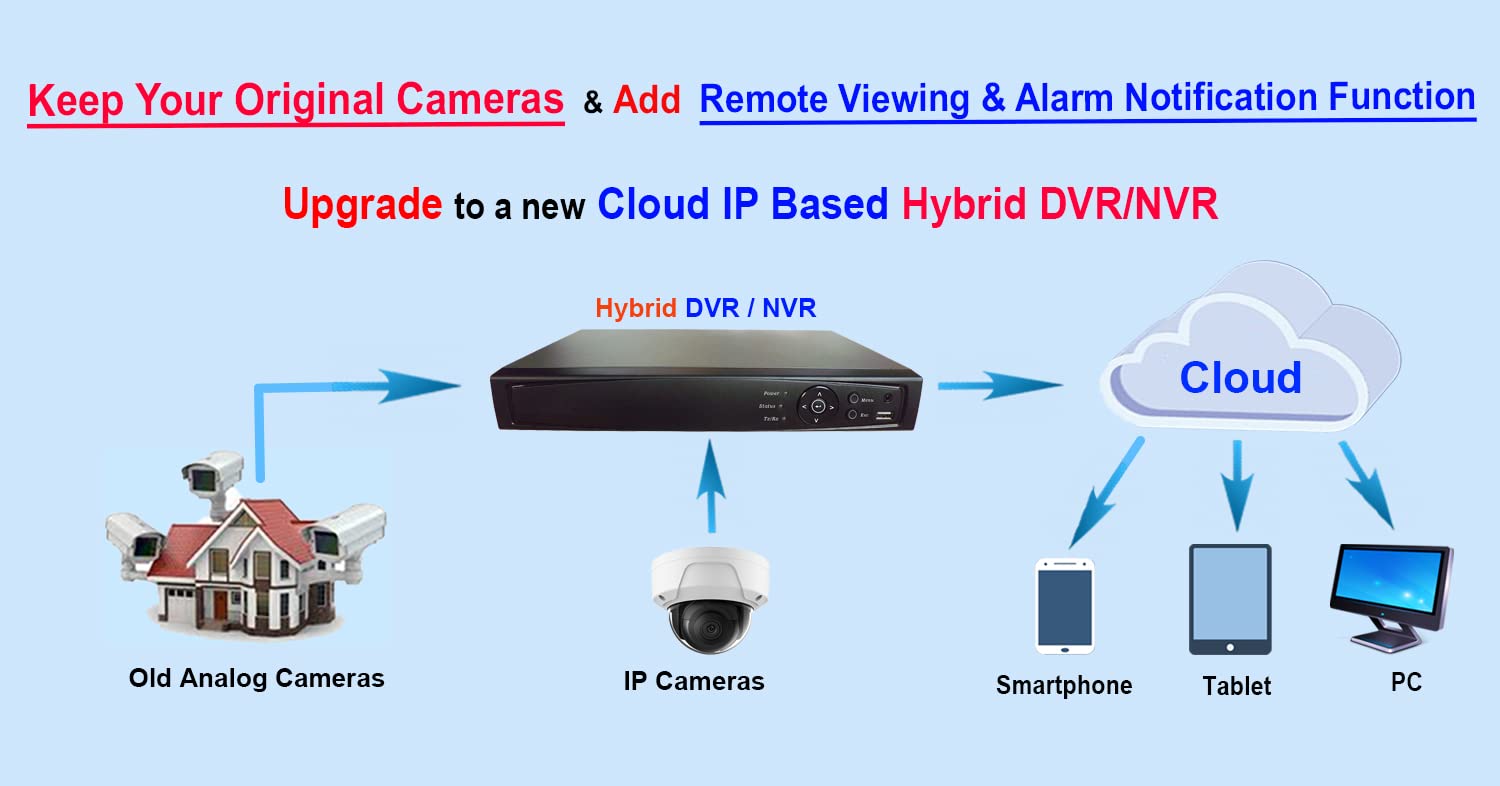

• Multiple video formats, Compatible with HD/TVI/CVI/AHD and SD/960H/composite video, and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. Multiple Video Out connectors for extra viewing needs including: BNC/HDMI/VGA/IP network video monitoring.
• Recording Resolution: Regular Mode: 4MP Lite (1280x1440), 3MP, and 1080P resolution up to 15FPS, 1080P Lite (960x1080) and 720P/under) can up to 30FPS.
