Description
Brand: 101 Audio Video Inc.
• 4 IN 1 HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images
• STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light

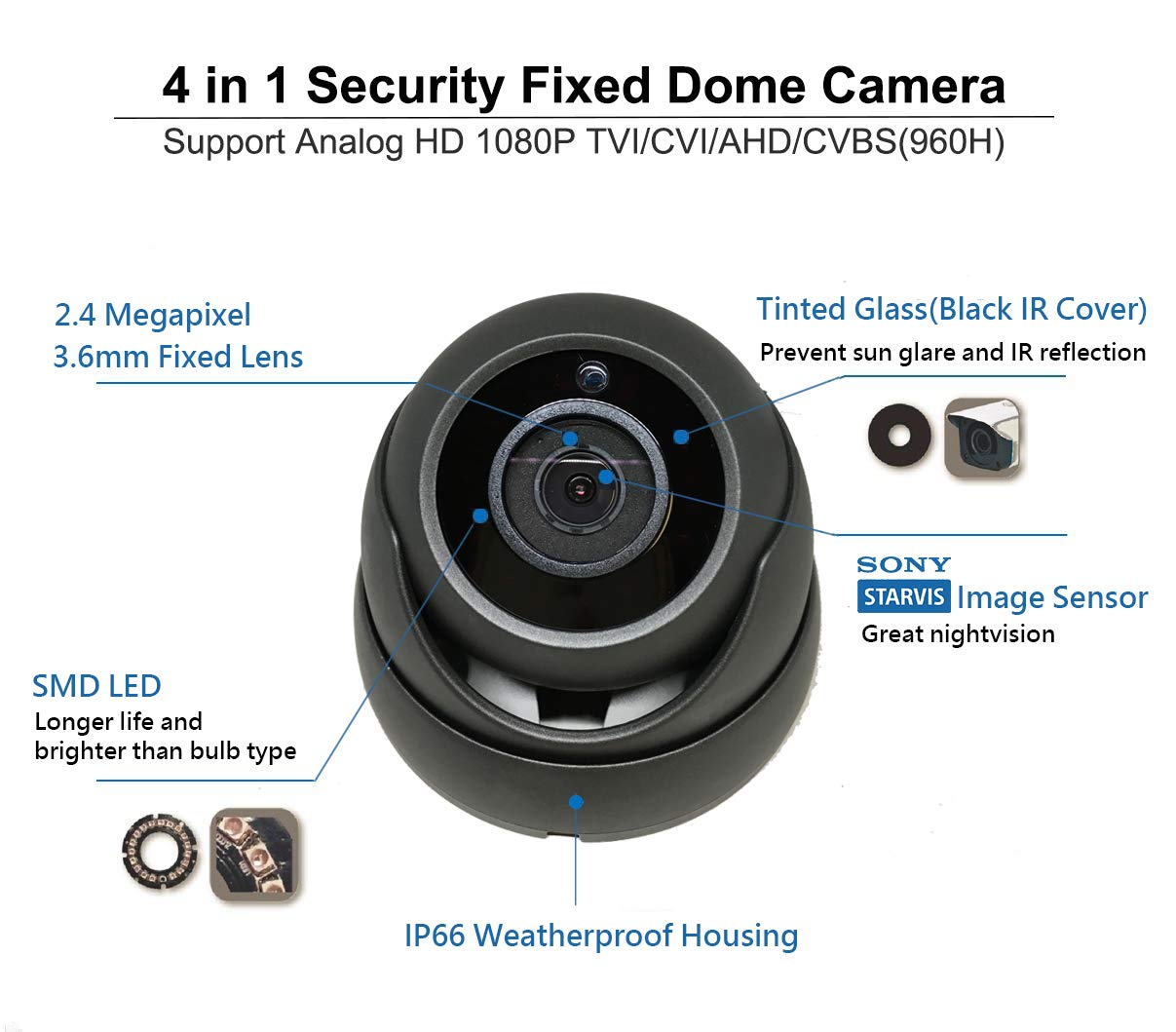

• 1/2.9? STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution; Multi-Axis for Wall or Ceiling Mounting. Built-in 3.6 mm Fixed Lens 20 meters IR range; 18pcs IR infrared LEDs; Day/Night; IP66 weatherproof; Vandal proof
• WDR (Wide Dynamic Range) Function; IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
Description:

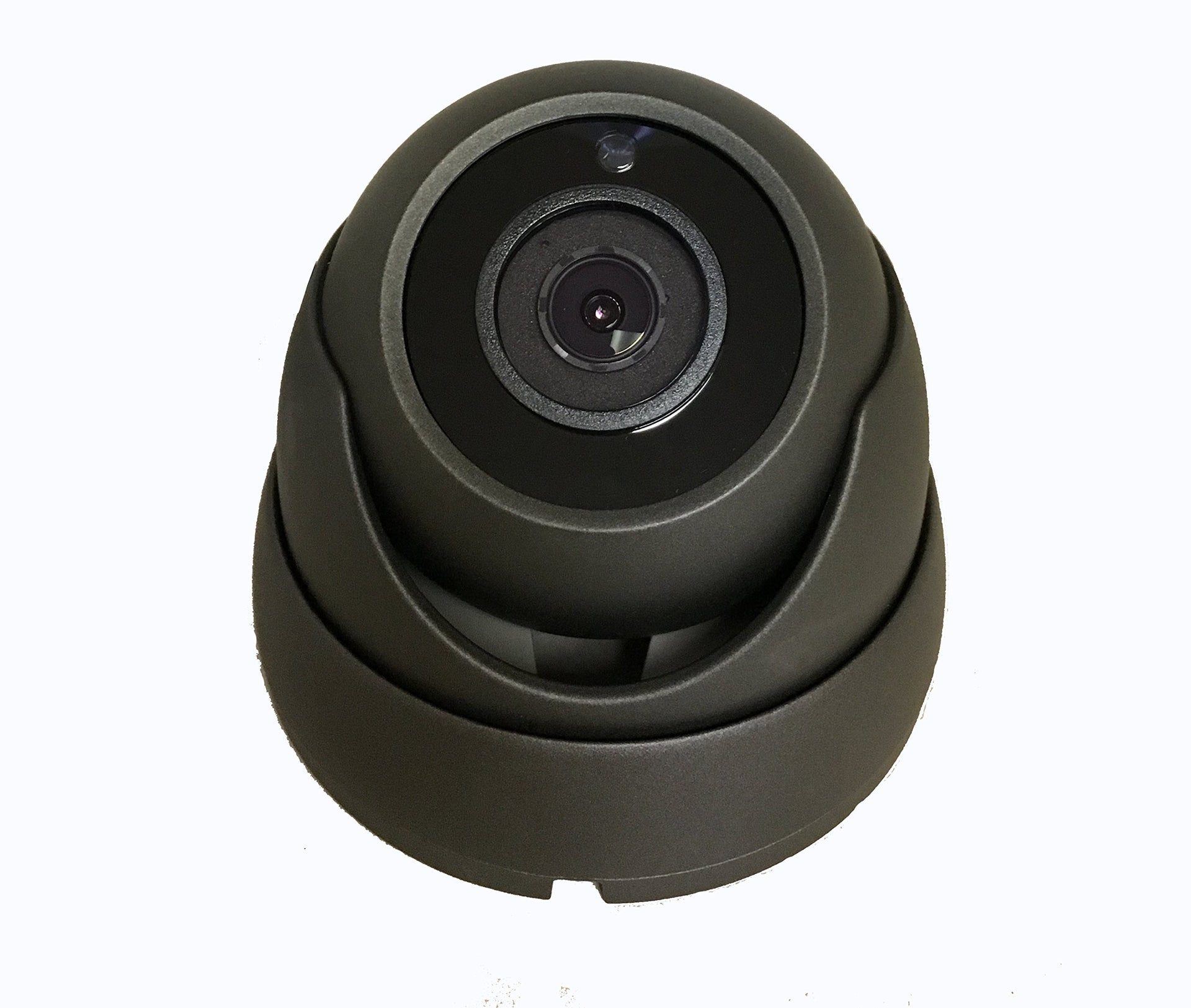

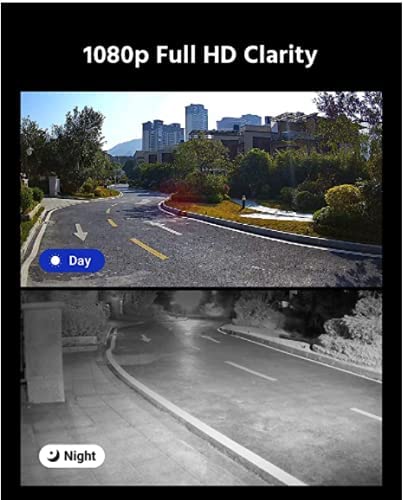

This 4in1 professional IR dome security camera employs 1/2.9? STARVIS CMOS Image Sensor with 2.4 MP Resolution and an advanced circuit design. It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS(700TVL) and adjust the video setting. It also has WDR function, built-in 3.6mm fixed lens, effectively extend your observation range. With 18 pcs IR infrared LEDs, it has 20 meters IR range, can change from color to black automatically and take clear picture during both day and night time.

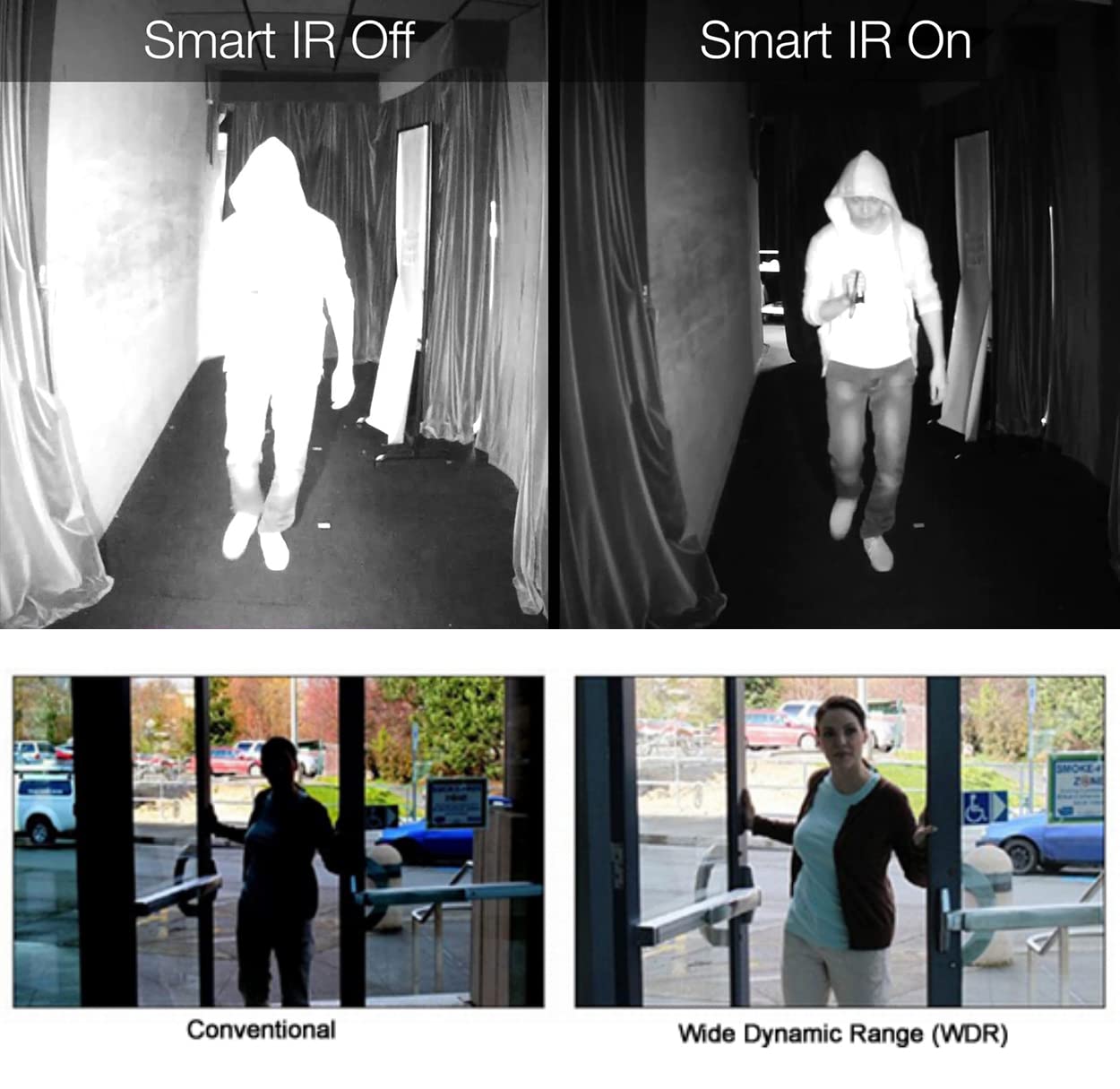

The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.
Camera default setting is HD-TVI. Please switch to the correct mode as your system does
Specification:
Model# FDT-36
Image Sensor: 1/2.9" 2.4 Megapixel STARVIS CMOS Sensor
Effective Pixels: 1930(H)x1088(V)
Signal System: NTSC
Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL)
Mini Illumination: 0.001 Lux / F1.2
Lens: 3.6mm Manual Zoom Lens
WDR: On/Off
White Balance / Gain Control: Auto
S/N Ratio: More than 50 dB
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
IR Power On: Photodiode AUTO Control
Weatherproof: IP66
Operation Temp: 14°F~122°F (-10°C~50°C)
Storage Temp: 14°F~140°F (-10°C~60°C)
Dimensions (mm): 94(W) x 69(H)
Power: DC12V/ 500mA
IR Range: 20m IR Range w/ 18pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF
Weight: 400g
What's in the box?
4 IN 1 True-HD IR Dome security camera x 1; Screws.
• 4 IN 1 HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images
• STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light
• 1/2.9? STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution; Multi-Axis for Wall or Ceiling Mounting. Built-in 3.6 mm Fixed Lens 20 meters IR range; 18pcs IR infrared LEDs; Day/Night; IP66 weatherproof; Vandal proof
• WDR (Wide Dynamic Range) Function; IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
