Description
Brand: 101 Audio Video Inc.
• This camera default setting is HD-TVI. If your system is not HD-TVI system, please switch the camera mode by joystick or OSD manual to the same mode (HD-AHD, HD-CVI, Analog CVBS) as your system. You can also find the instruction on the manual or contact us for technical support. Our technician will be very happy to assist you. Thank you!
• 1/2.9" 2.4Megapixel (1920x1080) STARVIS CMOS Image Sensor 1080P Resolution; Multi-Axis for Wall or Ceiling Mounting
• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images
• 2.8-12 mm Variable Focus Wide Angle Lens 30 meters IR range; 24pcs IR infrared LEDs; Day/Night; IP66 weatherproof; Vandal proof, IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
• STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light
Description:
This 4in1 professional IR dome security camera employs 1/2.9? STARVIS CMOS Image Sensor with 2.4 Megapixel Resolution and an advanced circuit design.
It adopts advanced image processing technology. The resolution is as high as 1080P, which ensures clear and bright pictures.
It has OSD Menu that can change the 4 different video output (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) and adjust the video setting. It also has WDR function.

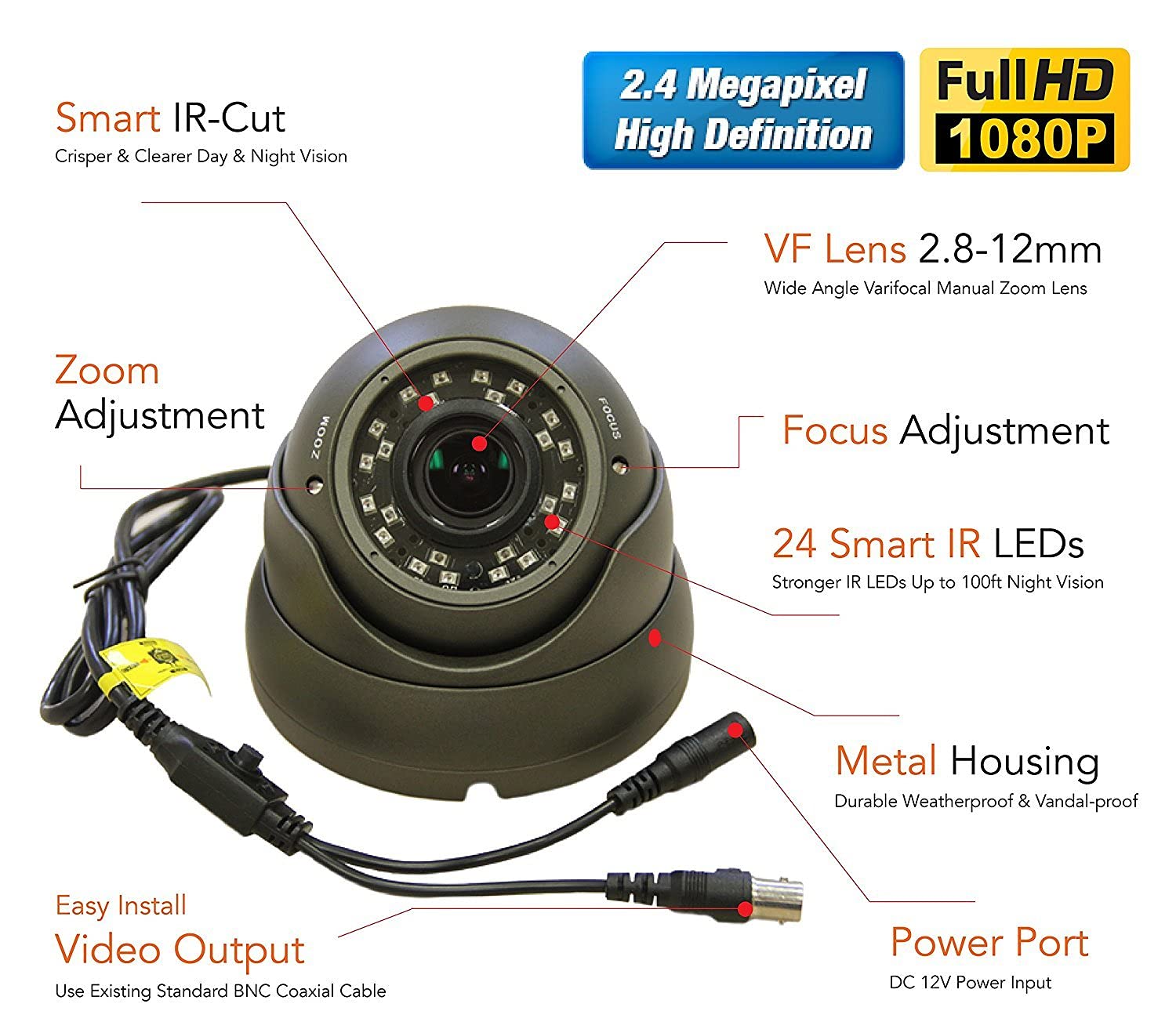

Built-in 2.8-12mm varifocal lens, effectively extend your observation range. With 24 pcs IR infrared LEDs, it has 30 meters IR range, can change from color to black automatically and take clear picture during both day- and night-time.
The Smart IR function also enables it to catch clear face picture during nigh time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.
Specification:
Model# VDT-2812
Image Sensor: 1/2.9" 2.4 Megapixel STARVIS CMOS Sensor
Effective Pixels: 1930(H)x1088(V)
Signal System: NTSC
Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL)
Mini Illumination: 0.001 Lux / F1.2
Lens: 2.8 - 12mm Manual Zoom Lens
WDR: On/Off
White Balance / Gain Control: Auto
S/N Ratio: More than 50 dB
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
IR Power On: Photodiode AUTO Control
Weatherproof: IP66
Operation Temp: 14°F~122°F (-10°C~50°C)
Storage Temp: 14°F~140°F (-10°C~60°C)
Dimensions (mm): 131(W) x 93(H)
Power: DC12V/ 700mA
IR Range: 100 ft (30m) IR Range w/ 24pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF
Weight: 1.8 lbs (800g)
What's in the box?
4 IN 1 True-HD IR Dome security camera x 8; Screws.
• This camera default setting is HD-TVI. If your system is not HD-TVI system, please switch the camera mode by joystick or OSD manual to the same mode (HD-AHD, HD-CVI, Analog CVBS) as your system. You can also find the instruction on the manual or contact us for technical support. Our technician will be very happy to assist you. Thank you!
• 1/2.9" 2.4Megapixel (1920x1080) STARVIS CMOS Image Sensor 1080P Resolution; Multi-Axis for Wall or Ceiling Mounting
• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images
• 2.8-12 mm Variable Focus Wide Angle Lens 30 meters IR range; 24pcs IR infrared LEDs; Day/Night; IP66 weatherproof; Vandal proof, IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
• STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light
