Brand: XRDS -RF

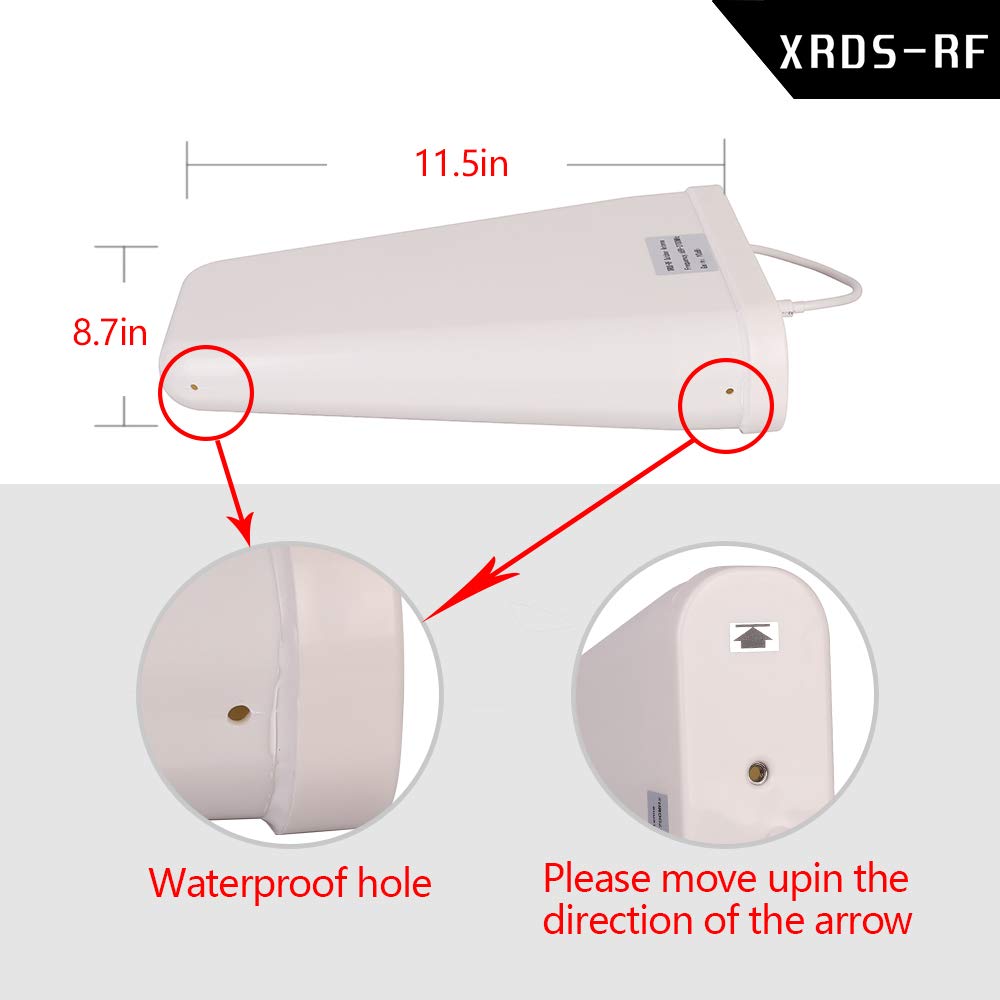

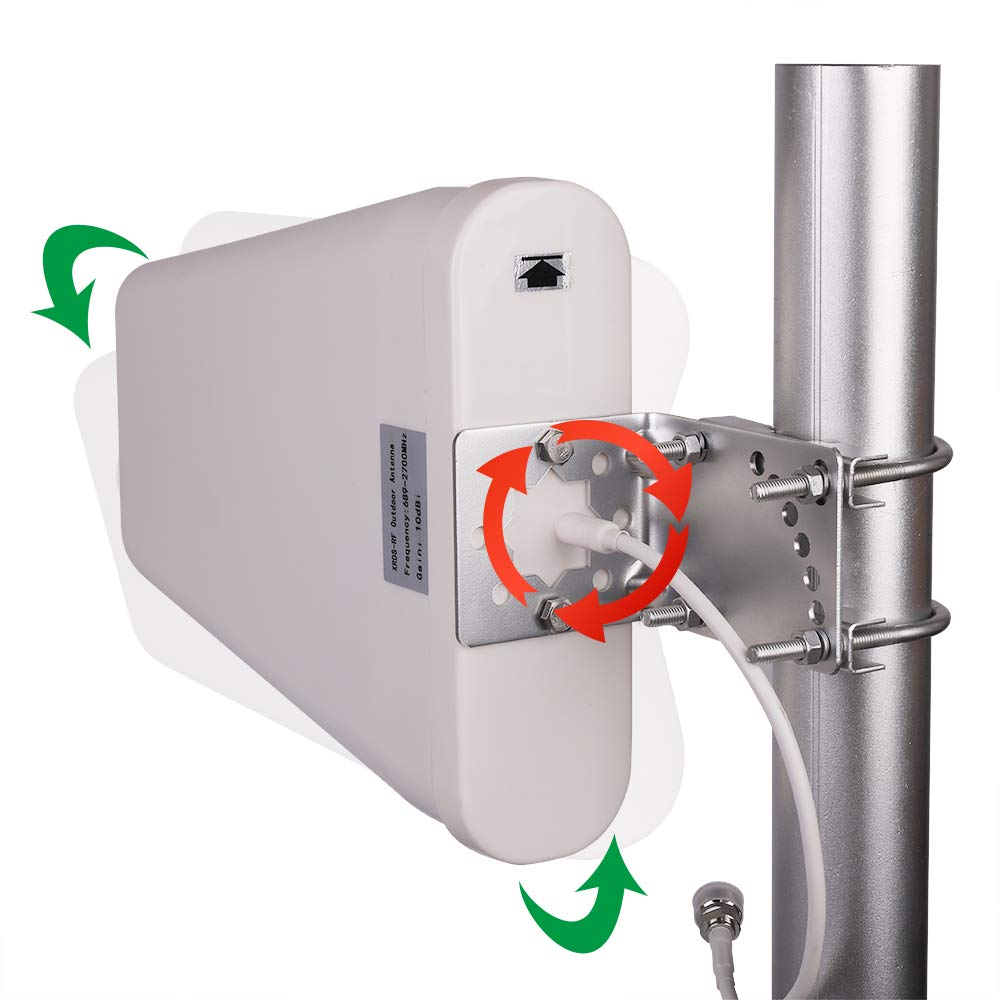

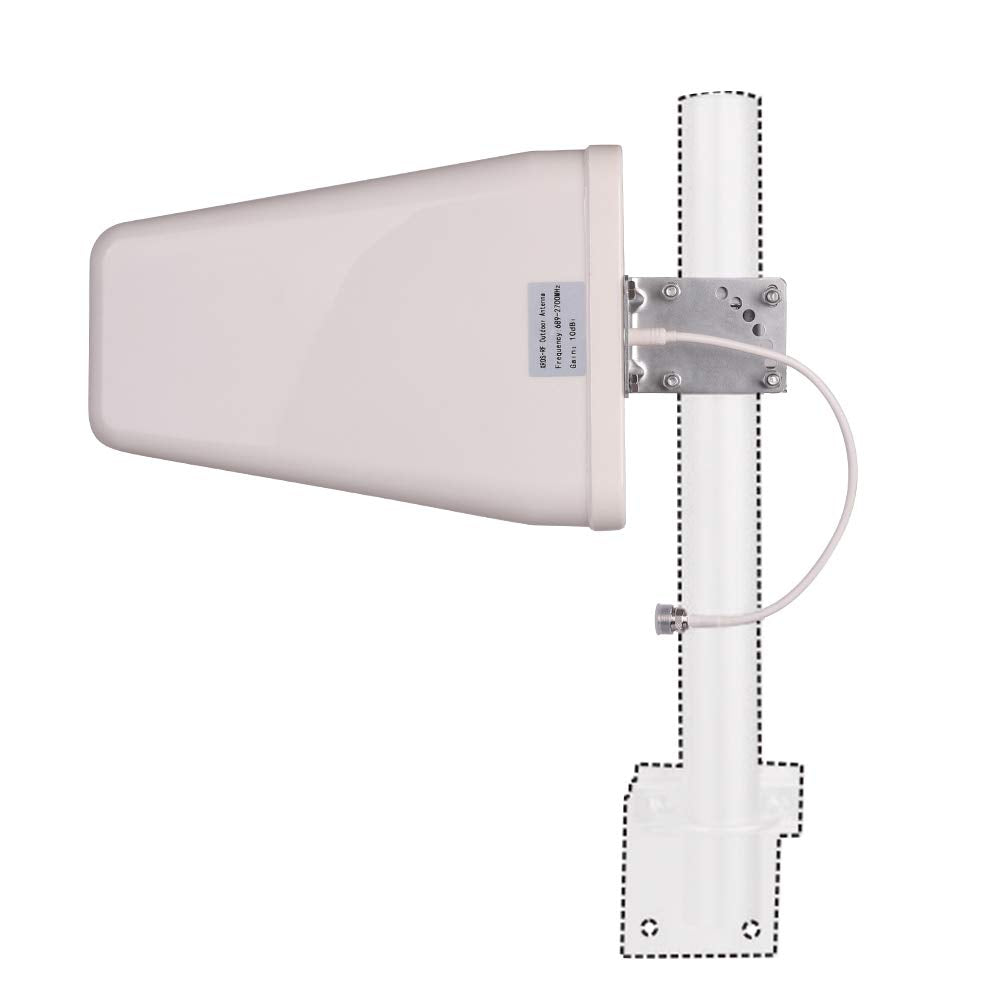

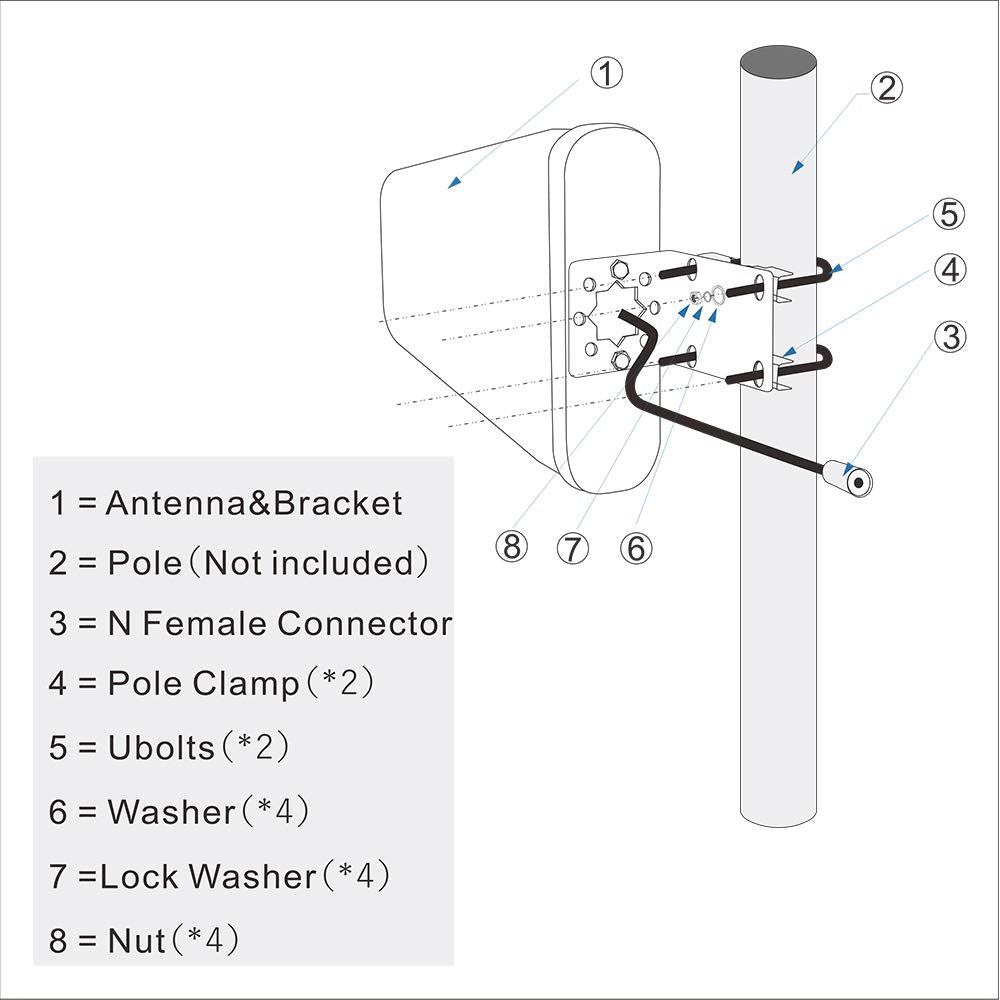

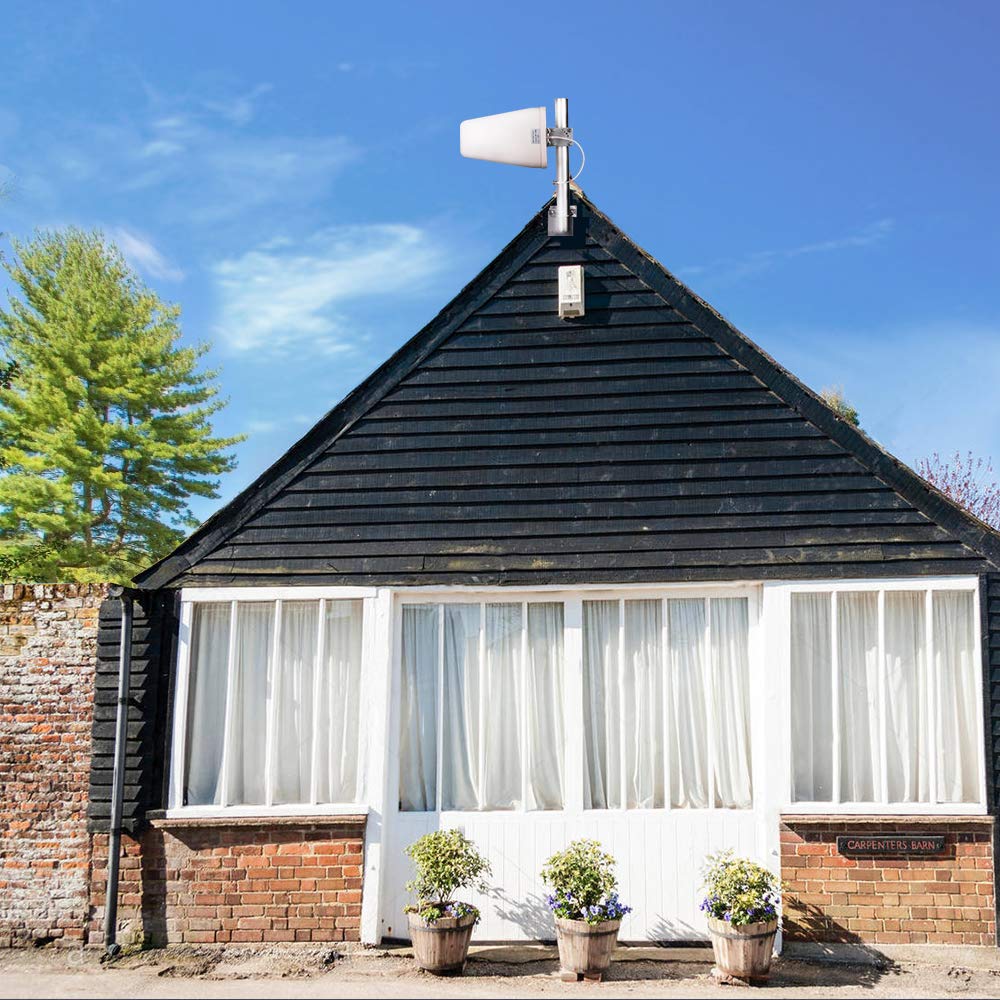

<br><b>Product Description</b> <br>XRDS-RF Log periodic antenna universal wide-band Yagi antenna is compatible with all 4G/LTE/xLTE data services from all major cellular service providers. Combined with pole mount (Need additional purchase) easy-to-install directional antenna improves transmit and receives signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices. <br> <br><b>Electrical Properties </b><br>Frequency Range: 700-2700 MHz <br>Impedance: 50 ohms <br> Gain: 10 dBi <br>Beam Width: Vert. 60/55 degrees, Horiz. 90/70 degrees <br>Polarization: Vertical <br>VSWR: ADGP < 1.5:1 <br>Max Input Power: 100 W <br><br><b>Mechanical Properties</b> <br>Connector: N Female connector <br>Material: ABS / Brass / Aluminum - RoHS compliant <br>Operation Temp.: -40C to +60C <br> Max Wind Load: 216 km/hr (134 mph) <br>Weight: 794 g (28 oz) <br>Dimensions: 290 x 200 x 120 mm (11.4 x 7.9 x 4.7 in) excluding 120 x 75 mm bracket <br>Mounting: Pole or Wall (2.0 in dia. U-bolts & bracket included) <br><br><b>Note</b> <br> Directional
• COMPATIBILITY: Our Directional Antenna is compatible with all US carriers including: AT&T/T-Mobile/Verizon/SPRINT/Straight Talk/U.S. Cellular and many more.Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
• HIGH GAIN: It features up to +10.6 dB gain.High gain increases signal strength and data speeds in areas with marginal coverage.
• PREMIUM QUALITY: This universal wide-band Yagi antenna is with N-Female connector that facilitates the transfer of high-frequency information. The female connector can quickly receive large amounts of data and works at radio frequencies in the multi-megahertz range.
• EASY TO INSTALL: Designed for exterior installation, the 4g antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements.
• NOTE: This directional antennas must be pointed toward a cell tower.The antenna does not come with mast pole mount
Color: White
<br><b>Product Description</b> <br>XRDS-RF Log periodic antenna universal wide-band Yagi antenna is compatible with all 4G/LTE/xLTE data services from all major cellular service providers. Combined with pole mount (Need additional purchase) easy-to-install directional antenna improves transmit and receives signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices. <br> <br><b>Electrical Properties </b><br>Frequency Range: 700-2700 MHz <br>Impedance: 50 ohms <br> Gain: 10 dBi <br>Beam Width: Vert. 60/55 degrees, Horiz. 90/70 degrees <br>Polarization: Vertical <br>VSWR: ADGP < 1.5:1 <br>Max Input Power: 100 W <br><br><b>Mechanical Properties</b> <br>Connector: N Female connector <br>Material: ABS / Brass / Aluminum - RoHS compliant <br>Operation Temp.: -40C to +60C <br> Max Wind Load: 216 km/hr (134 mph) <br>Weight: 794 g (28 oz) <br>Dimensions: 290 x 200 x 120 mm (11.4 x 7.9 x 4.7 in) excluding 120 x 75 mm bracket <br>Mounting: Pole or Wall (2.0 in dia. U-bolts & bracket included) <br><br><b>Note</b> <br> Directional
• COMPATIBILITY: Our Directional Antenna is compatible with all US carriers including: AT&T/T-Mobile/Verizon/SPRINT/Straight Talk/U.S. Cellular and many more.Also compatible with 2.4 GHz Wi-Fi and 900 MHz radio systems.
• HIGH GAIN: It features up to +10.6 dB gain.High gain increases signal strength and data speeds in areas with marginal coverage.
• PREMIUM QUALITY: This universal wide-band Yagi antenna is with N-Female connector that facilitates the transfer of high-frequency information. The female connector can quickly receive large amounts of data and works at radio frequencies in the multi-megahertz range.
• EASY TO INSTALL: Designed for exterior installation, the 4g antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements.
• NOTE: This directional antennas must be pointed toward a cell tower.The antenna does not come with mast pole mount
Color: White
