Brand: QSFPTEK

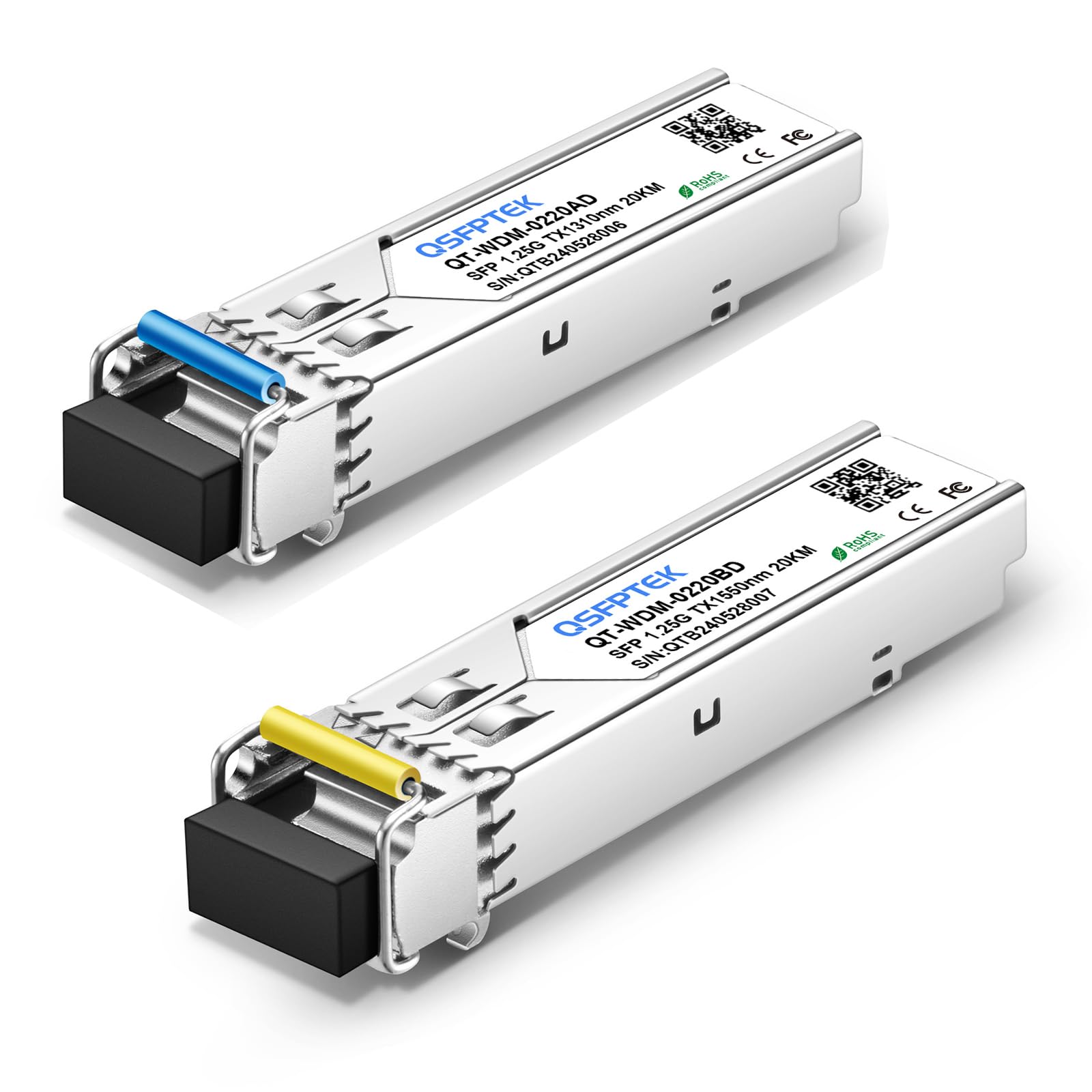

<br>1000BASE-BX BiDi SFP 1550nm-TX/1310nm-RX 20km Transceiver Module for Intel X710 and other Inter 1.25G SFP Series <br>SFP optical transceiver module is equipped with an LC simplex connector, reaching a link up to 20km. This 1G BiDi SFP transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 1G SFP optical transceiver is compliant with MSA, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Cisco devices. <br>Part Number: QT-WDM-0220ABD <br>Form Factor: SFP <br>Data Rate: 1.25Gbps <br>Wavelength: 1550nm-TX/1310nm-RX <br>Distance: 20km <br>Connector: LC Simplex <br>Cable Type: OS2 SMF <br>Transmitter: FP <br>Receiver Type: PIN <br>TX Power: -9~-3dBm <br>Receiver Sensitivity: <-22dBm <br>Power Consumption: <1W <br>Modulation Format: NRZ <br>DDM: Support <br>Bit Error Ratio (BER): 1E-12 <br>Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant <br>Warranty: 3 Years

Features:

• Feature: SFP Bidi Transceiver date rate 1.25Gb/s, Single LC connector.
• Wavelength: Up: TX1310nm/RX1550nm
• Down: TX1550nm/RX1310nm.
• Plug and Play: Supports hot swapping. Rotate the ring clip downwards by 90 degrees to unlock, then remove the optical module from the switch. It features low power consumption, low electromagnetic interference (EMI) and advanced electrostatic discharge (ESD) protection, work temperature: 0-70°C.
• Compatibility: Widely used in ethernet switches, media converters, routers, NIC, servers, or other fiber optic devices with 1G SFP ports. Compatible with Intel X710 and other Inter 1.25G SFP series devices.
• Aftersales terms: Each transceiver is individually tested before delivery. High Quality with CE, FCC, 30 days free return, 3 year warranty.

Product Details:

• Package Quantity: 1
