Description
Brand: EPLZON
Model: EP-TXS0-108

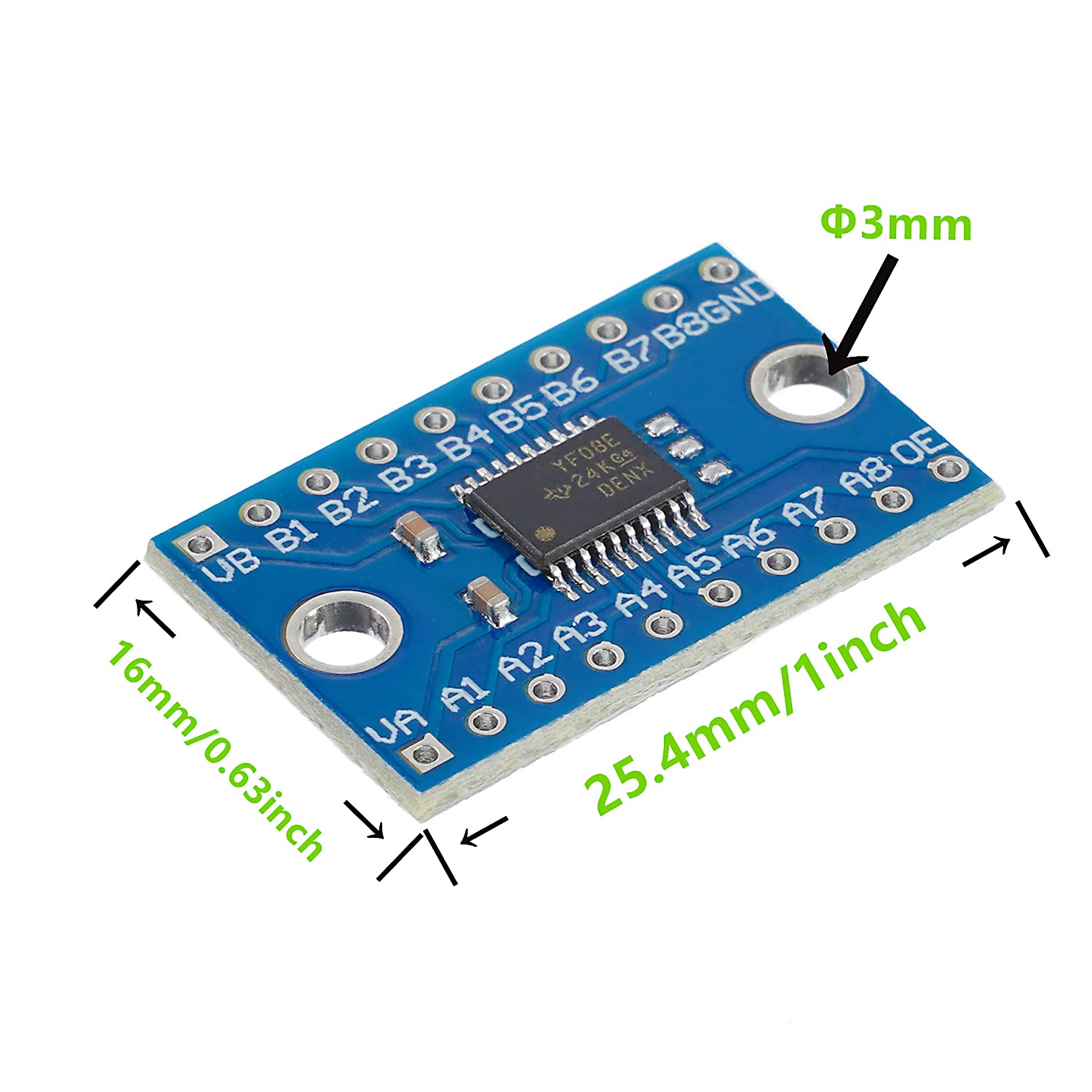

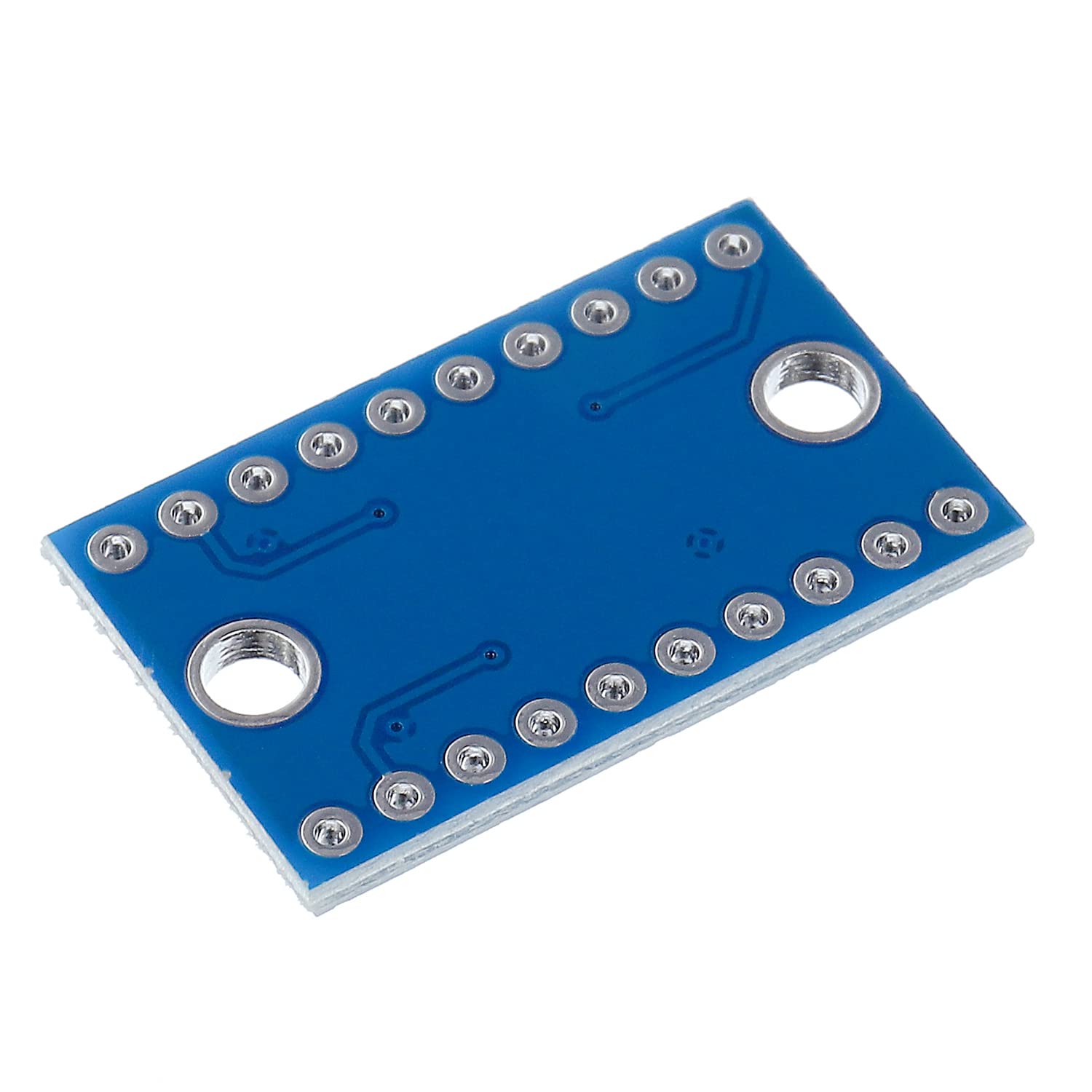

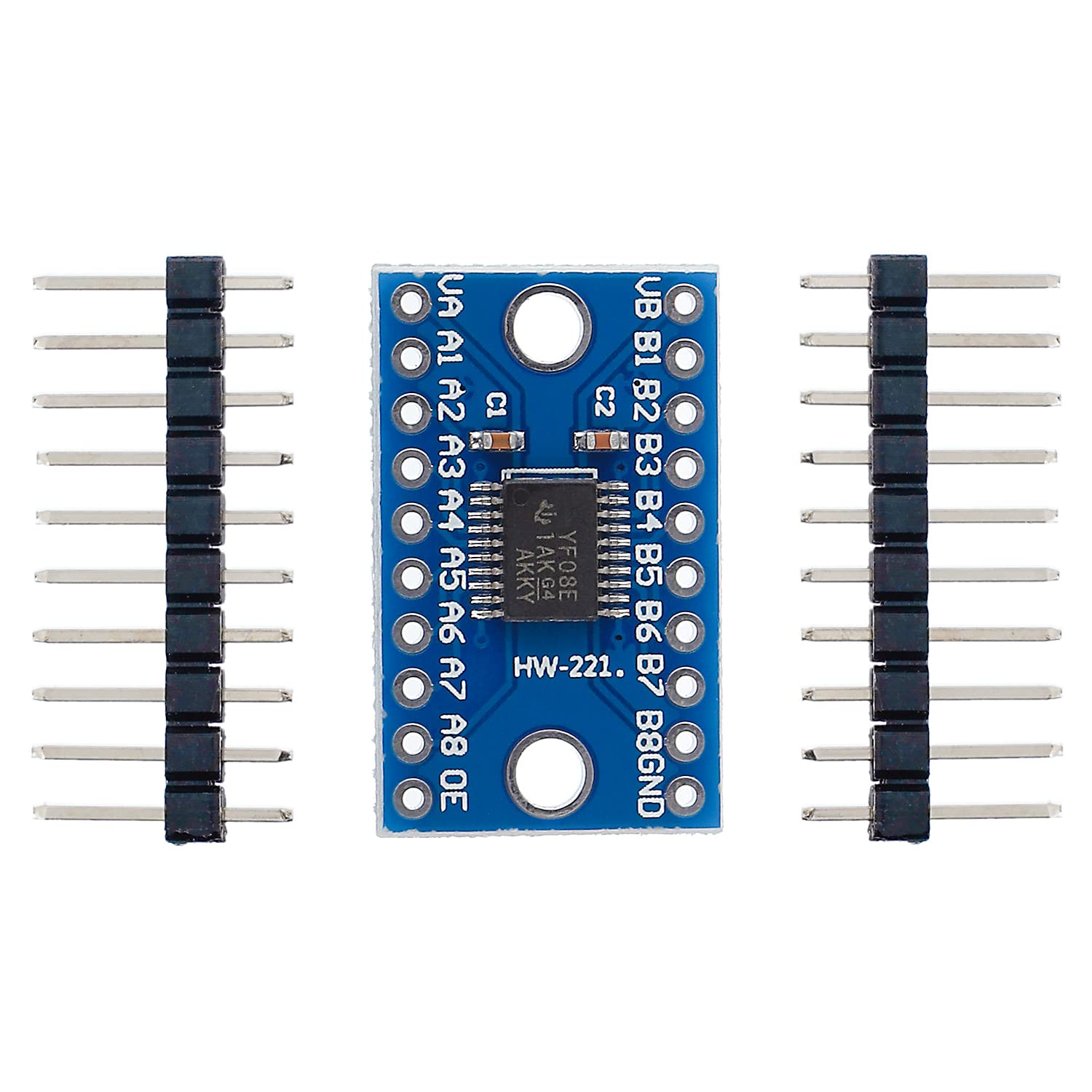

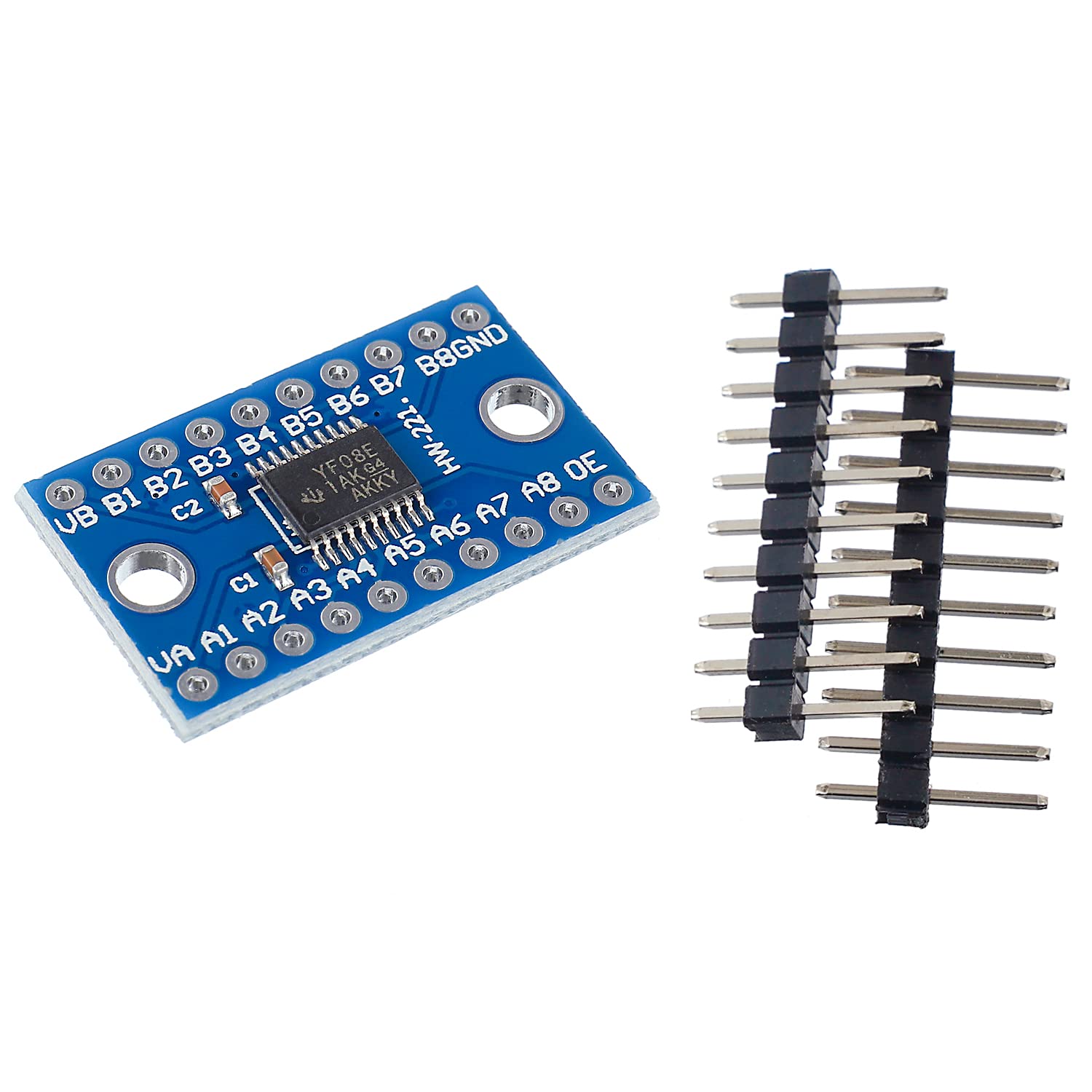

EPLZON TXS0108E High Speed Full Duplex Logic Level Converter
This module is a directionless voltage-level translator specifically designed for translating logic voltage levels.
While this device is designed for open-drain applications, the device can also translate push-pull CMOS logic outputs.
The TXS0108E device has two functional modes; enabled and disabled.
This 8-bit non-inverting translator uses two separate configurable power-supply rails.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state
Feature:
Provide two-way communication capability
VCCA side support voltage: 1.2V-3.6V
VCCB side support voltage: 1.65v-5.5v
Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability
No Direction-Control Signal Needed
No Power-Supply Sequencing Required - Either VCCA or VCCB Can Be Ramped First
Main applications:
5V and 3.3V MCU module
3.3V and 5V MCU module
Compatible and other communications support
MCU and SD card communication level conversion
SCM、I²C、SPI serial device level converter
OE active high enable IO recommended by a low voltage side of the IO port
Package included:

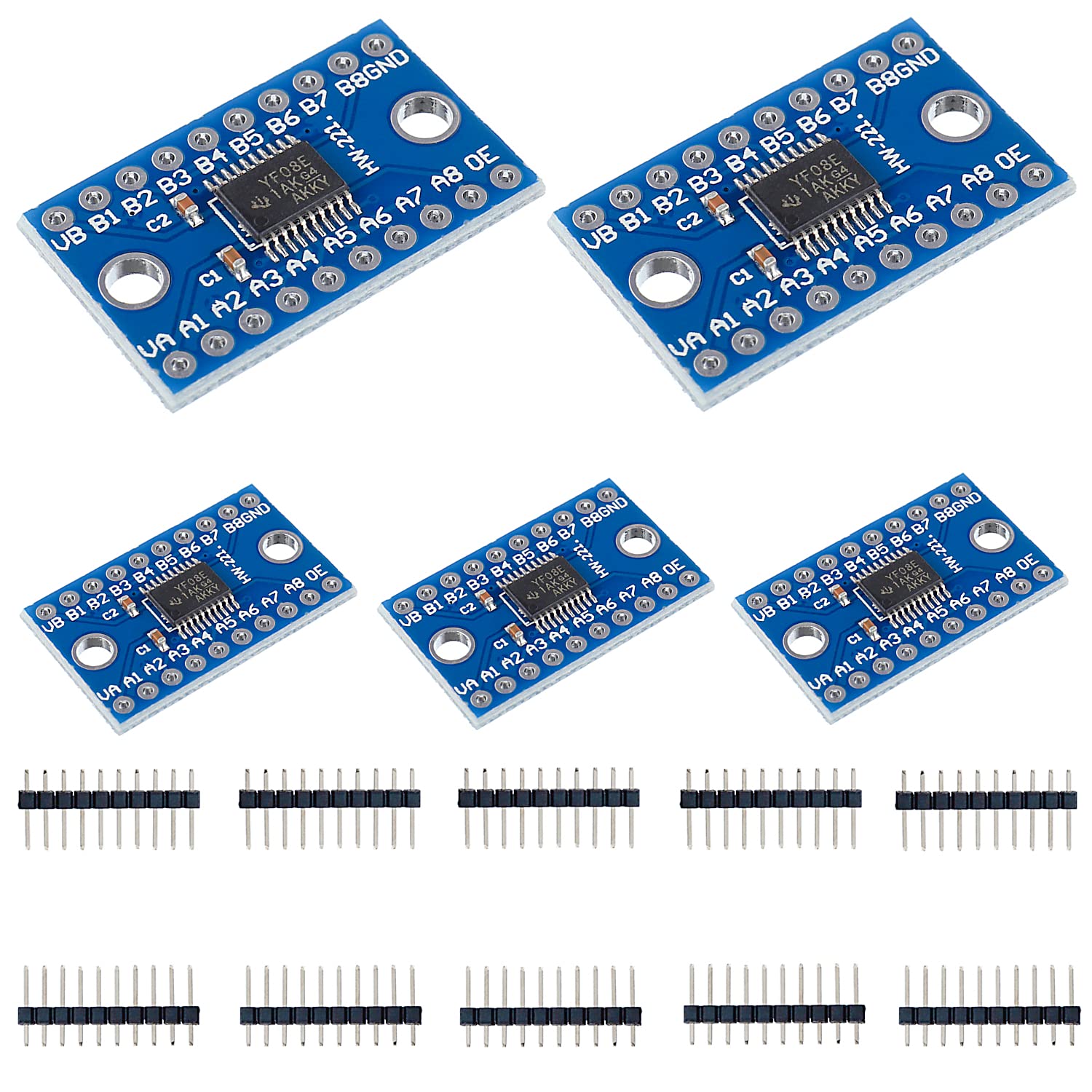

5set*TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
• Provide two-way communication capabilities,OE active high enable IO recommended by a low voltage side of the IO port.
• Supply voltage VA:1.2V to 3.6V - VB: 1.65V to 5.5V.
• Allows the use of 5V modules on 3.3V microcontrollers, or 3.3V modules on 5V microcontrollers.
• Supports SCM, I²C, SPI.
• Widely used in the MCU and SD card, MCU and serial devices,MCU and 5V/3V module communiction.
Model: EP-TXS0-108
EPLZON TXS0108E High Speed Full Duplex Logic Level Converter
This module is a directionless voltage-level translator specifically designed for translating logic voltage levels.
While this device is designed for open-drain applications, the device can also translate push-pull CMOS logic outputs.
The TXS0108E device has two functional modes; enabled and disabled.
This 8-bit non-inverting translator uses two separate configurable power-supply rails.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance (Hi-Z) state
Feature:
Provide two-way communication capability
VCCA side support voltage: 1.2V-3.6V
VCCB side support voltage: 1.65v-5.5v
Can provide 3.3-5V, 1.8-3.3v and other common level conversion capability
No Direction-Control Signal Needed
No Power-Supply Sequencing Required - Either VCCA or VCCB Can Be Ramped First
Main applications:
5V and 3.3V MCU module
3.3V and 5V MCU module
Compatible and other communications support
MCU and SD card communication level conversion
SCM、I²C、SPI serial device level converter
OE active high enable IO recommended by a low voltage side of the IO port
Package included:
5set*TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Module
• Provide two-way communication capabilities,OE active high enable IO recommended by a low voltage side of the IO port.
• Supply voltage VA:1.2V to 3.6V - VB: 1.65V to 5.5V.
• Allows the use of 5V modules on 3.3V microcontrollers, or 3.3V modules on 5V microcontrollers.
• Supports SCM, I²C, SPI.
• Widely used in the MCU and SD card, MCU and serial devices,MCU and 5V/3V module communiction.
