Brand: Alinan

Model: others

Feature:
Balance Voltage for Each Single Cell: 4.2V
Balance Current for Each Single Cell: 66mA
Size: 25mm*22mm(L*M)

Note:
The balance board is suitable for the li-ion battery pack BMS WHICH without balance function,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.
The balancing board must need BMS to use together,and the BMS is without balancing function.
Battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma.
Cut-off Voltage is according to the BMS setting.

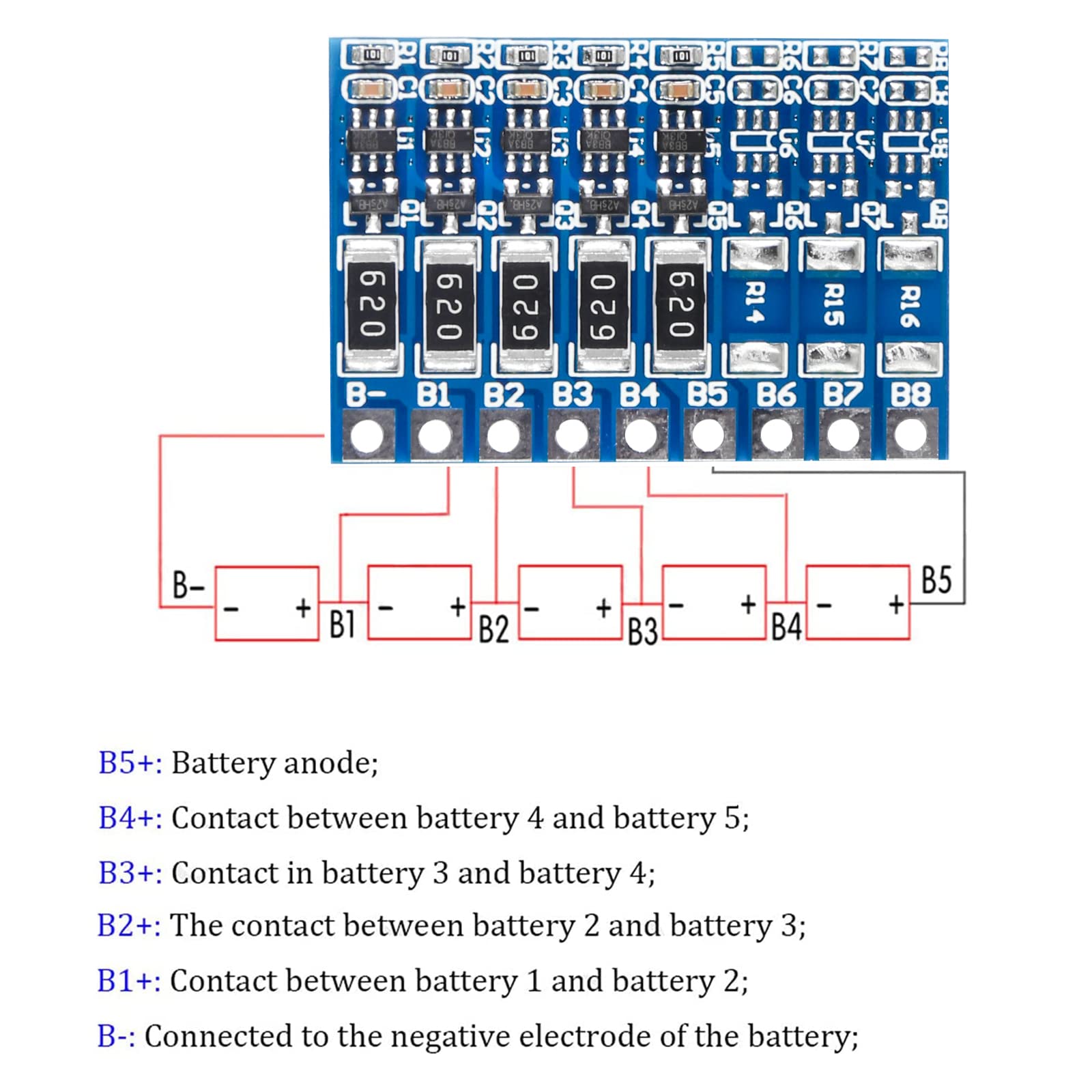

Balancer is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
The balancer starts balancing when the one cell get 4.2V, The Cut-off Voltage is according to the BMS setting,but the bms cut-off voltage needs more than 4.25V which is much better.

• ★Balance Voltage for each single cell: 4.2V
• Balance current for each single cell: 66mA.
• ★Balancer is just a Auxiliary function, the balancing means when the battery charging, each series battery need with the same voltage. when ONE cell voltage get 4.2V, the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.
• ★The balance board is suitable for the li-ion battery pack BMS WHICH without balance function,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.
• 【Mulitiple Protection】: Integrated output overvoltage protection, short circuit protection, overload protection
• Integrated over-charge and over-discharge protection.
• 【Application】: The protection board is suitable for electric car, electric power assistant car, skateboard car, inverter, etc.

Color: 5S

Power/Wattage: 5S
