Brand: TOPINCN

Features:
The board is for 10 series cell Li-ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries.
Charging connector and discharging connector are separated, discharging current is 35A.
Stable various protective functions for charging and discharging, such as overcharge , over-discharge and short circuit .
It has balance function which would ensure each battery cell being fully charged at same time.
Choosing the correct board and applying it appropriately is to the longevity your batteries.

Specifications:
DischargeContinuous Discharge Current35A
Momentary Discharge Current100A
ChargeCharge Voltage42V
Current8A(.)
Overcharge ProtectionOvercharge Detection Voltage4.28±0.05V
Overcharge Delay100mS
Overcharge Cancel Voltage4.08±0.05V
BalanceBalance Detection Voltage4.2±0.025V
Balance Cancel Voltage4.2±0.05V
Balance Current56±5mA
Over-discharge ProtectionOver-discharge Detection Voltage2.55±0.08V
Over-discharge Detection Delay50mS
Over-discharge Cancel Voltage3.0±0.1V
Overcurrent ProtectionOvercurrent Detection Voltage150mV
Overcurrent Detection Delay15mS
Overcurrent Current120±5A
Cancel ConditionDisconnect Load
Short Circuit ProtectionShort Circuit ConditionOutside Load Short Circuit
Short Circuit Detection Delay200uS
Cancel ConditionDisconnect Load
Internal ResistanceMain Circuit Conduction Internal Resistance15m?
Self Power ConsumptionWorking Current50uA
Sleeping Current(Battery Over-discharge)10uA
Operating Temperature
-30~+80

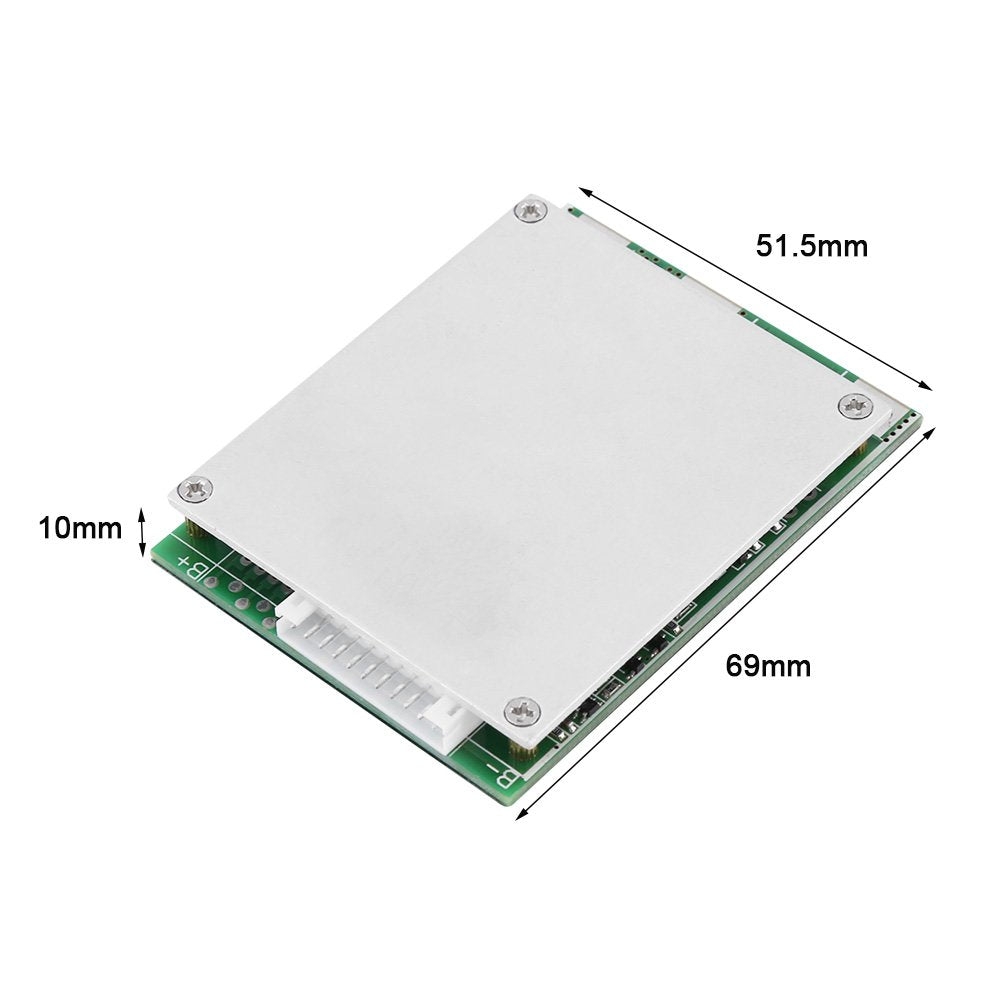

Size
69*51.5*10mm/2.71*2.02*0.39"

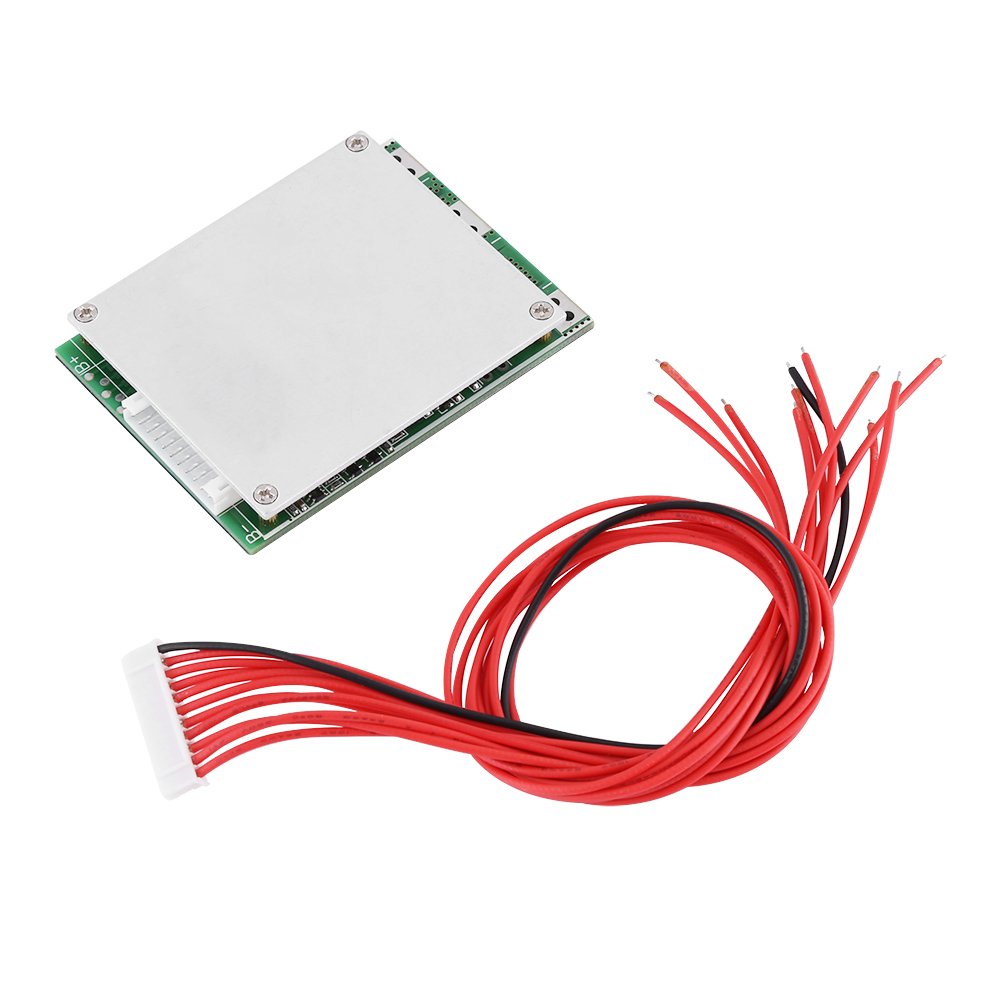

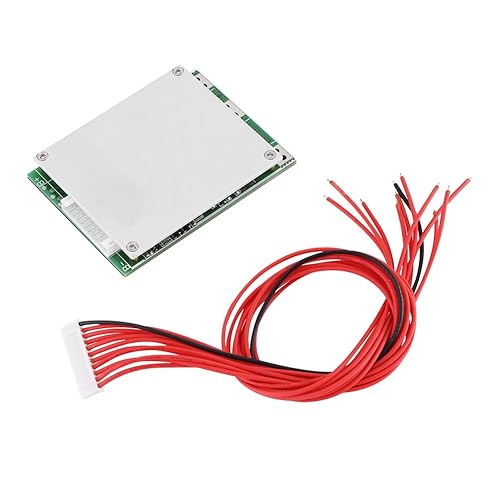

Package Includes:
1 x Board
1 x Cable





• 【Scope of application】The board is suitable for 10 series cell Li-ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries.
• 【Scope of application】The board is suitable for 10 series cell Li-ion batteries, it can be used for ternary batteries, manganese batteries and cobalt batteries.
• 【35A Discharge Current】Charging connector and discharging connector are separated.The continuous discharge current is 35A. Instantaneous discharge current is 100A. It has a balancing function that ensures that each battery unit is fully charged at the same time.

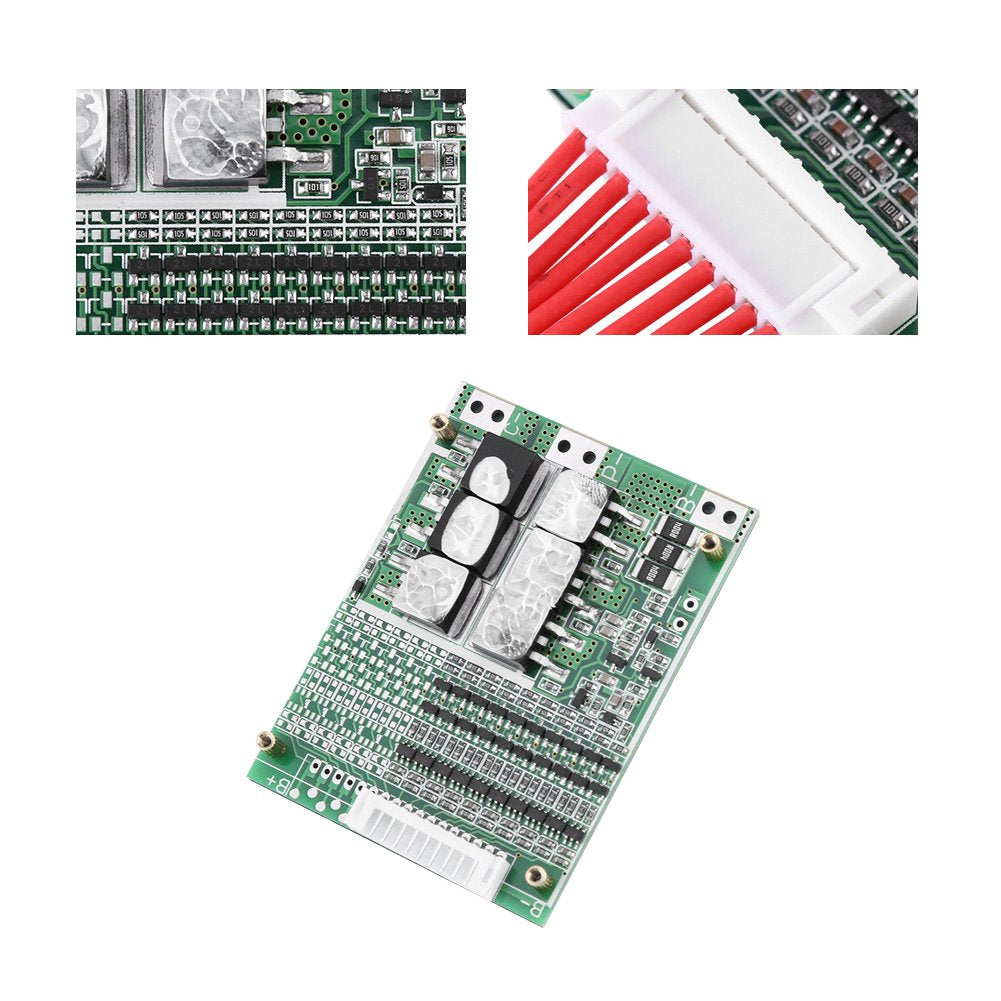

• 【Unique design】Wiring is neat, avoiding right-angled lines and curving the edges
• reduce vias to avoid distortion and cross interference
• the wiring identifications clear and easy to understand avoid misconnection.
• 【Stable Protective Functions】Multiple protective functions including overcharge , overdischarge and short circuit .This board provides stable various charging and discharging functions such as overcharge , overdischarge , overcurrent and short circuit .

Color: popular

Power/Wattage: normal
