Description
Brand: Ruimou
Model: HF528-01
Specifications:
Typ: BMS 4S 30A LiFePo4
Continuous discharge current: 30A (Max)
Instantaneous discharge current: 56A
Maximum charging voltage:12.8V-14.8V
Charging current: 20A (Max)
Overcharge detection 3.75±0.05V
Protection delay 1300MS
Overcharge release 3.60±0.05V
Detection voltage: 3.60±0.05V
Release voltage: 3.59±0.05V
Balance current: 58mA
Overdischarge detection: 2.1±0.08V
The overdischarge detection delay is 145S
Release voltage: 2.3±0.1V
Detection voltage: 200mV
Detection delay: 20 ms
Current detection: 56±10A
Release condition: Cut off the load
Internal resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (overdischarge) : ≤20uA
Operating temperature range: -30+80 degrees

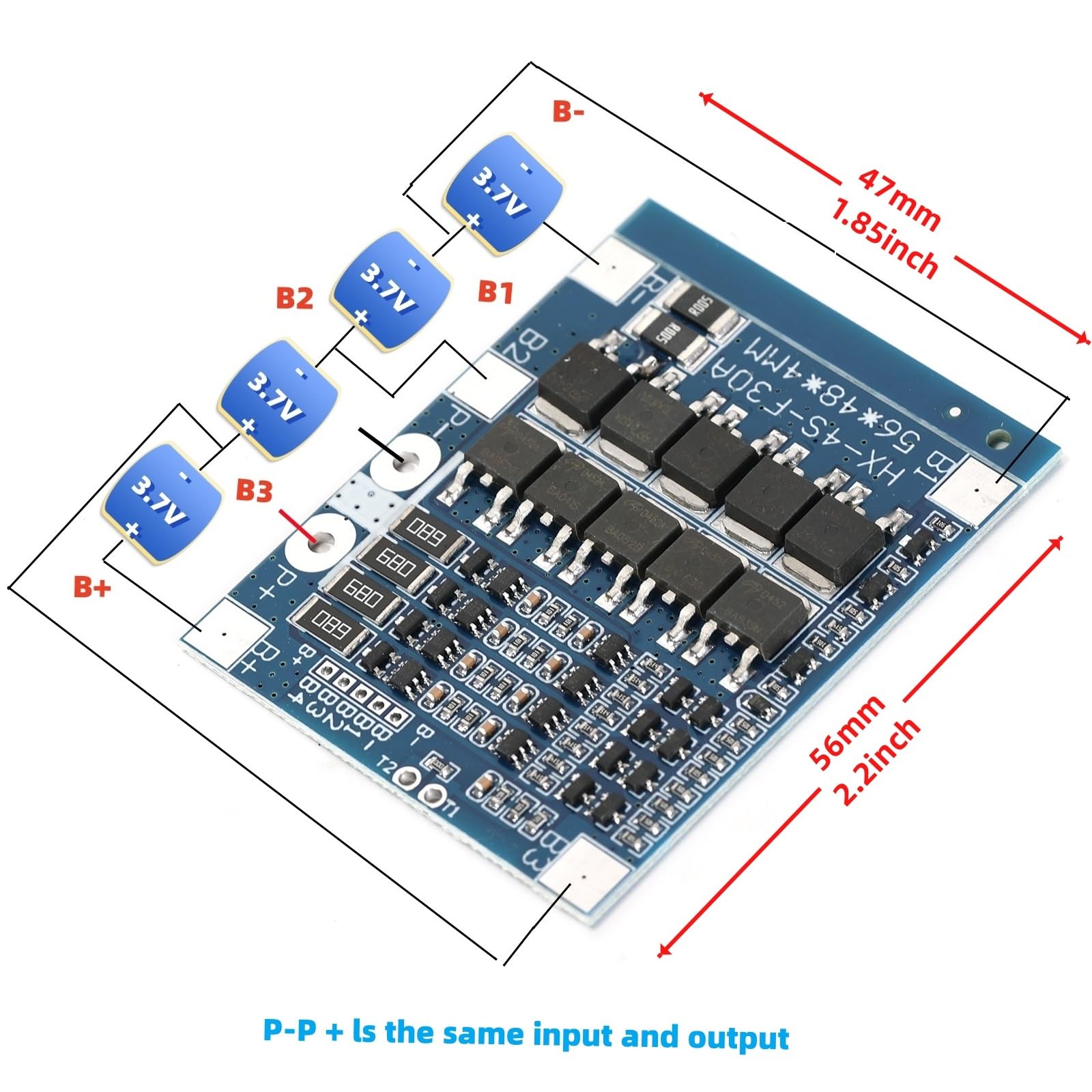

PCB Board Size: 56x47mm/2.2x1.85"
Package:

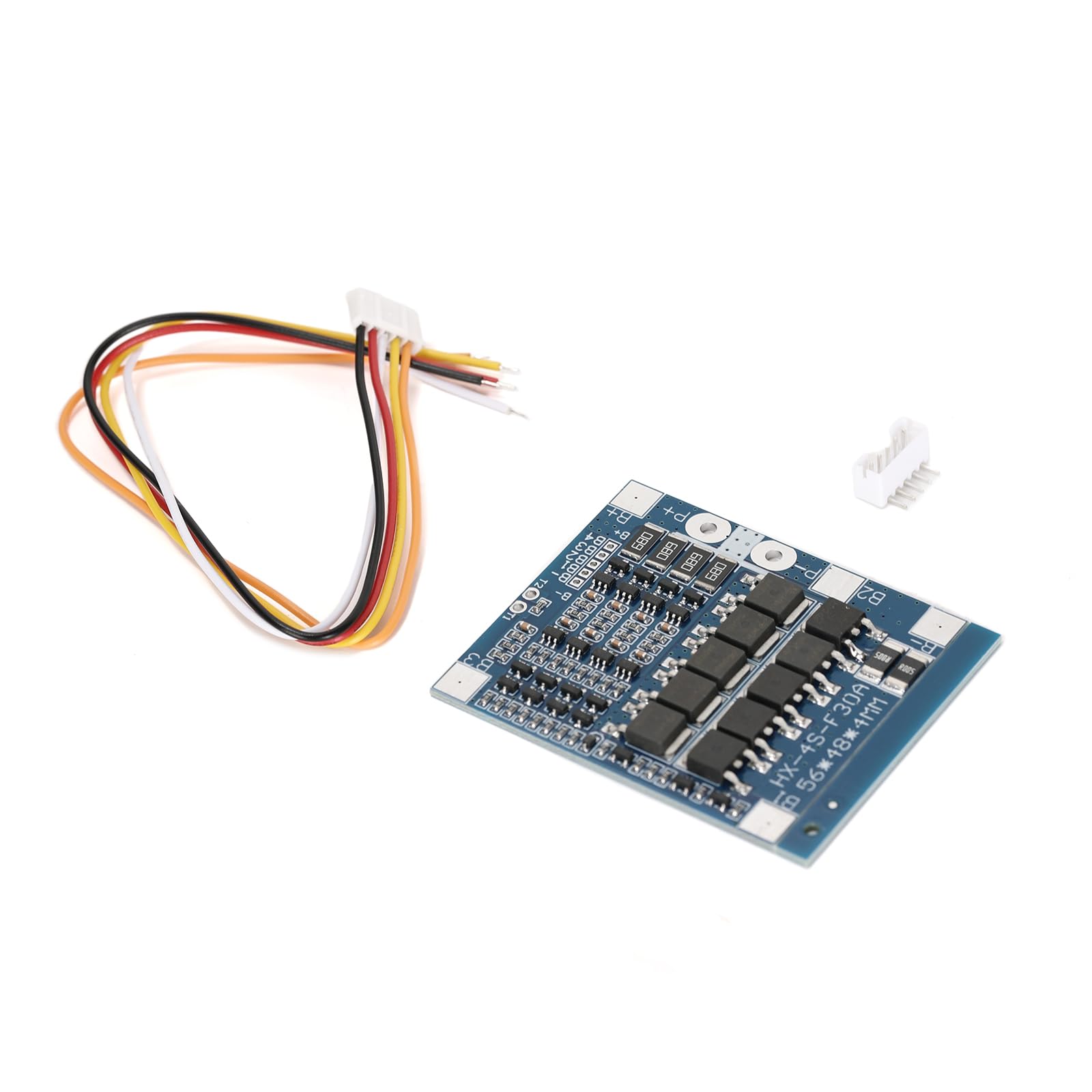

2pcs x 4S LiFePo4 18650 Battery BMS Balancing Charging Circuit PCB Protection Board

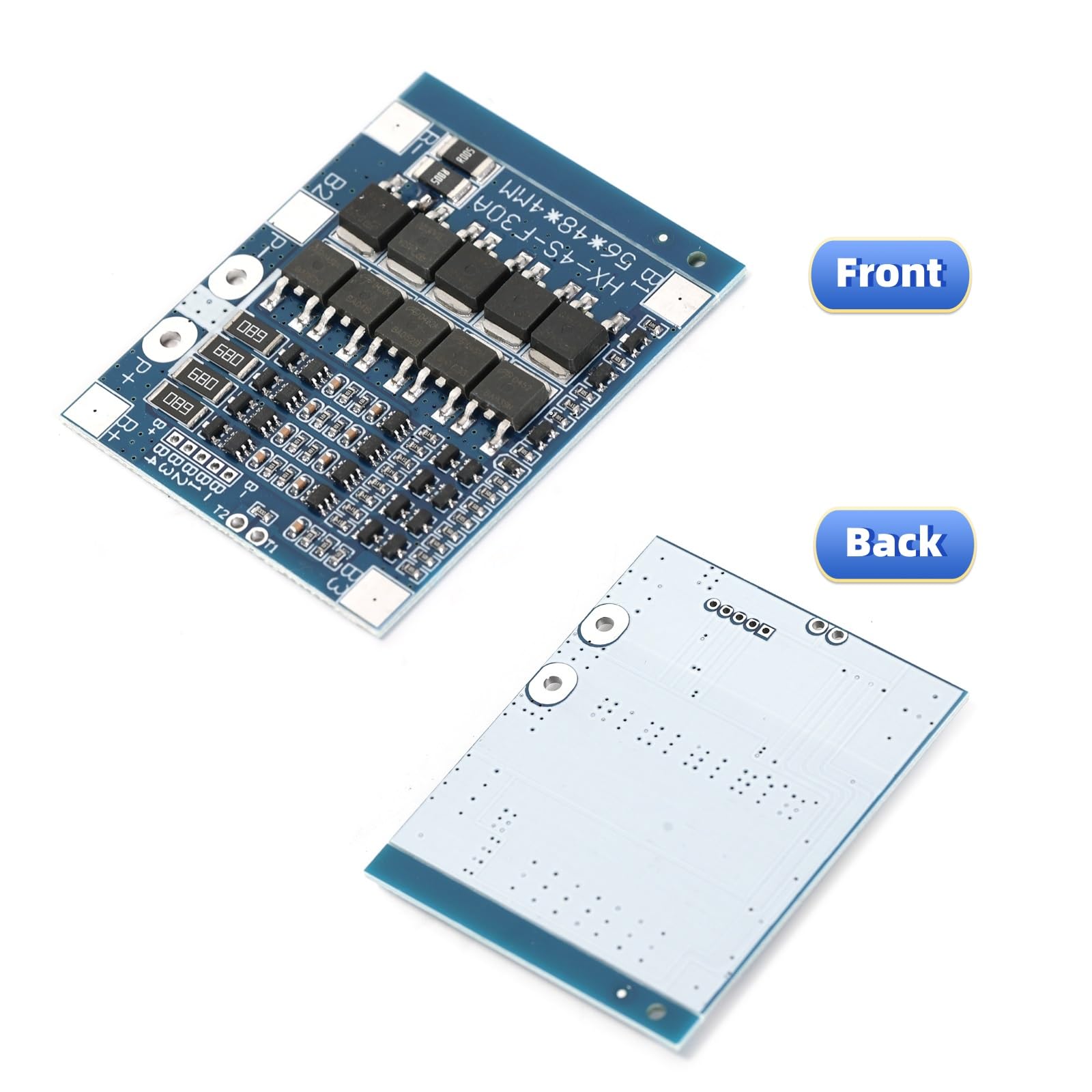

• 1.Parameter: This board is 4 string 12.8V Lithium iron phosphate battery protection board

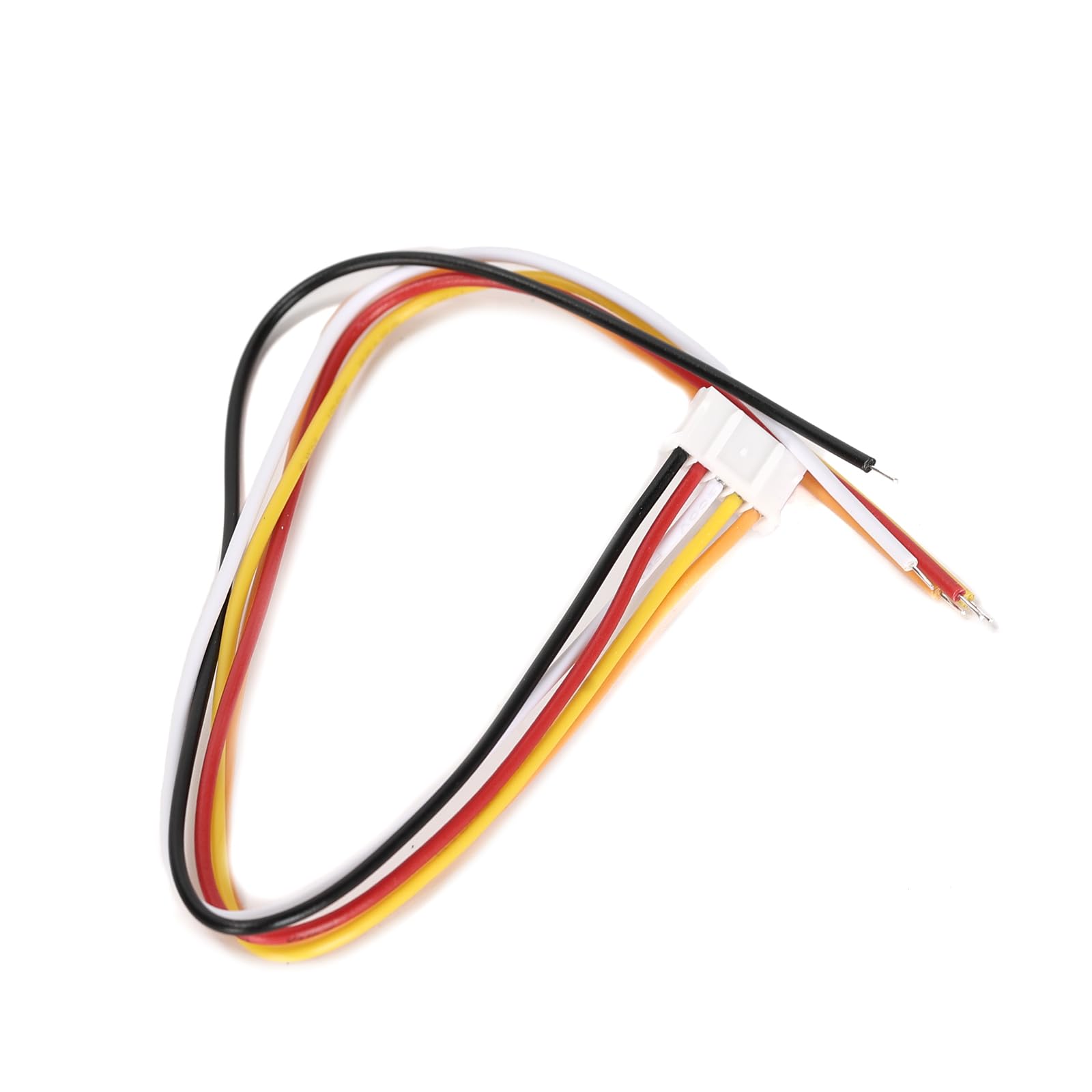

• High current protection board, continuous 30A current, with balance circuit, The board comes with cable.PCB Board Size: 56x47mm/2.2x1.85inch.
• 2.Function: The main function of this protection board is to protect and manage the battery pack. It has a balancing function and can prevent overcharging,overcurrent, and short circuits,ensure the safety of the battery and extend the service life.
• 3.High Quality: Compact size and lightweight
• High-accuracy voltage detection circuit
• fine workmanship and durable
• stable performance.
• 4.Application: massager battery pack, LED lamp backup power supply, 12V electronic products, solar street lamp battery pack, monitoring backup power supply, and other products.
• 5.Package included: 2pcs 4 string 12.8V 30A Battery Charging Protection Board.
Color: blue
Model: HF528-01
Specifications:
Typ: BMS 4S 30A LiFePo4
Continuous discharge current: 30A (Max)
Instantaneous discharge current: 56A
Maximum charging voltage:12.8V-14.8V
Charging current: 20A (Max)
Overcharge detection 3.75±0.05V
Protection delay 1300MS
Overcharge release 3.60±0.05V
Detection voltage: 3.60±0.05V
Release voltage: 3.59±0.05V
Balance current: 58mA
Overdischarge detection: 2.1±0.08V
The overdischarge detection delay is 145S
Release voltage: 2.3±0.1V
Detection voltage: 200mV
Detection delay: 20 ms
Current detection: 56±10A
Release condition: Cut off the load
Internal resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (overdischarge) : ≤20uA
Operating temperature range: -30+80 degrees
PCB Board Size: 56x47mm/2.2x1.85"
Package:
2pcs x 4S LiFePo4 18650 Battery BMS Balancing Charging Circuit PCB Protection Board
• 1.Parameter: This board is 4 string 12.8V Lithium iron phosphate battery protection board
• High current protection board, continuous 30A current, with balance circuit, The board comes with cable.PCB Board Size: 56x47mm/2.2x1.85inch.
• 2.Function: The main function of this protection board is to protect and manage the battery pack. It has a balancing function and can prevent overcharging,overcurrent, and short circuits,ensure the safety of the battery and extend the service life.
• 3.High Quality: Compact size and lightweight
• High-accuracy voltage detection circuit
• fine workmanship and durable
• stable performance.
• 4.Application: massager battery pack, LED lamp backup power supply, 12V electronic products, solar street lamp battery pack, monitoring backup power supply, and other products.
• 5.Package included: 2pcs 4 string 12.8V 30A Battery Charging Protection Board.
Color: blue
