Description
Brand: Ruimou
Model: 48V Li-ion battery
Product parameters:
Type: BMS 13S 48V lithium battery PCB charging protection board
Overdischarge protection voltage: 2.7V ± 0.05V
Overdischarge recovery voltage: 3.0V ± 0.05V
Continuous operating current: 4MOS=15A, 6MOS=20A
Instantaneous protection current: 4OS=65A, 6MOS=80A
Overcurrent recovery conditions: Charging recovery or disconnecting the load
Short circuit recovery conditions:Charging recovery or disconnecting the load
Overcharge protection voltage: 4.25V ± 0.015V
Overcharge recovery voltage: 4.15V ± 0.015V
Continuous charging current: 4MOS=15A, 6MOS=20A
Charger voltage: 56V (recommended)
Same port/split port activation: can be activated by charging
Temperature control over temperature protection
Charging over temperature: -5 ℃ to 50 ℃
Discharge over temperature: -30 ℃ to 70 ℃
Self-consuming power consumption during operation: <40uA
Internal resistance of main circuit conduction:< 15mQ
Working temperature range: -40 to+80 ℃
Wire breakage protection: Yes

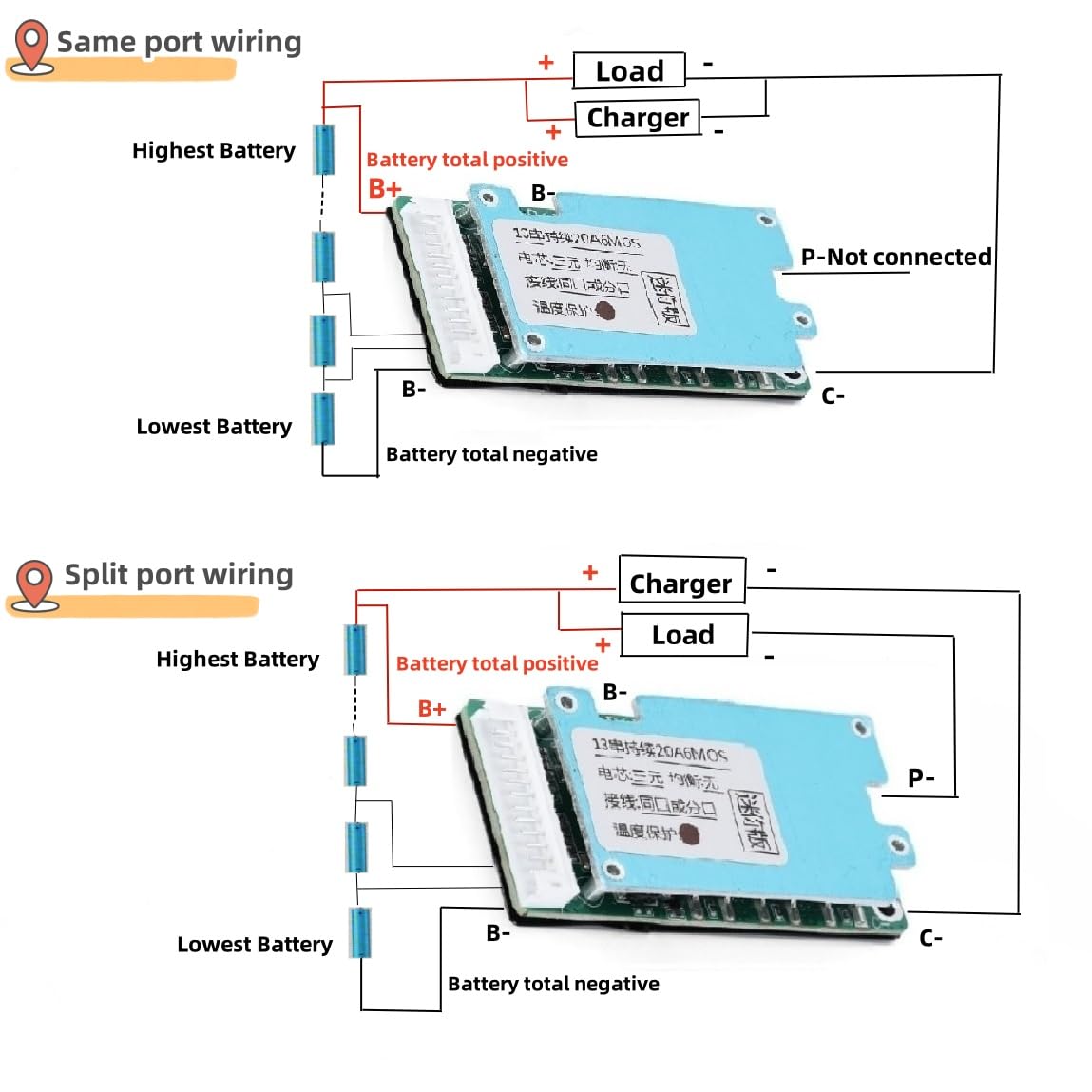

Same port wiring: B - connected to the negative terminal of the battery, C - connected to the negative terminal of charging and discharging, P - not connected
Split connection: B-connected to battery negative pole, C-connected to charging negative pole, P-connected to discharging negative pole
packing:

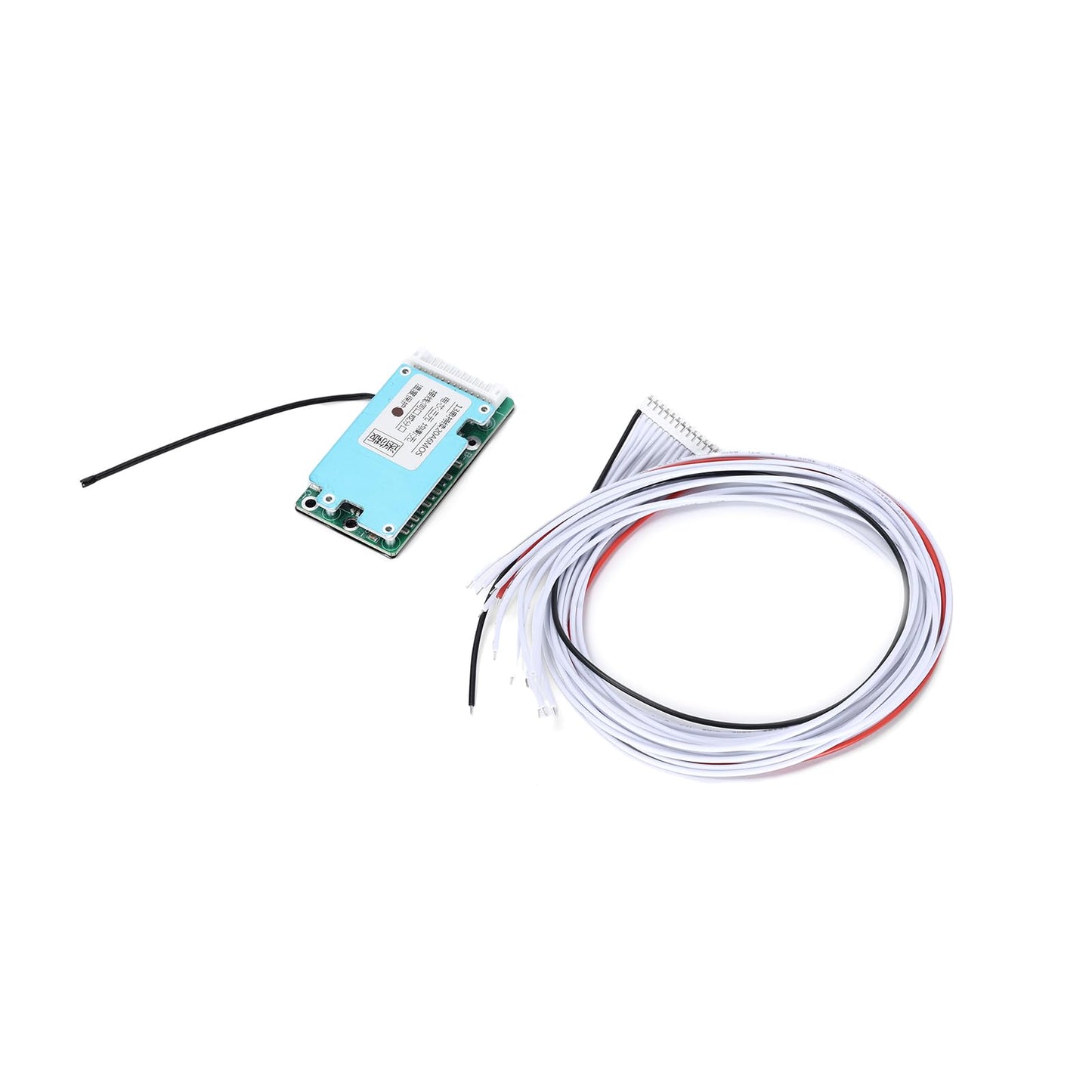

1pcs x BMS 13S 48V lithium battery PCB charging protection board
• 1.Application: Widely used in electric bicycles, electric motorcycles, and various energy storage devices.

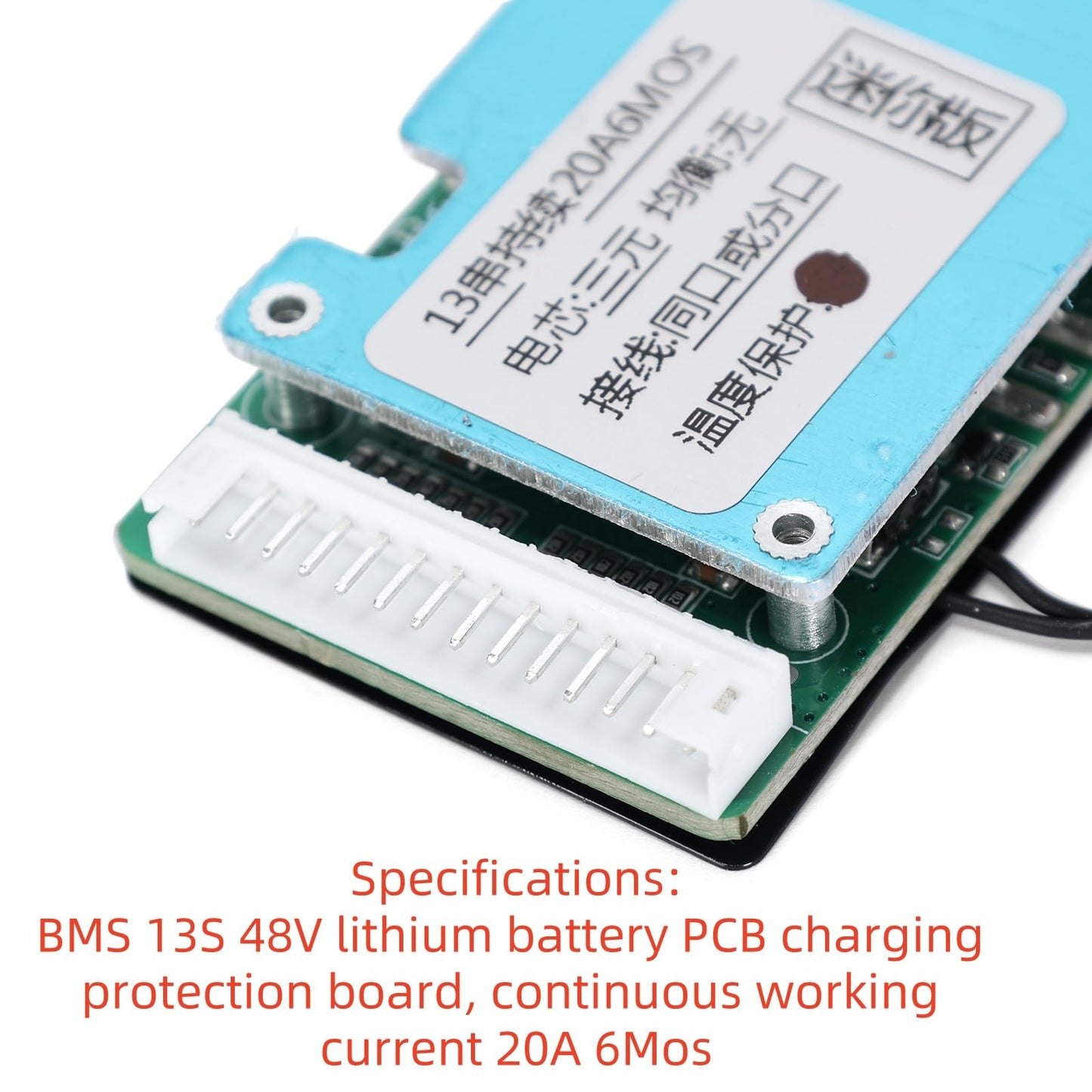

• 2.Specifications: BMS 13S 48V lithium battery PCB charging protection board, continuous working current 20A 6Mos.

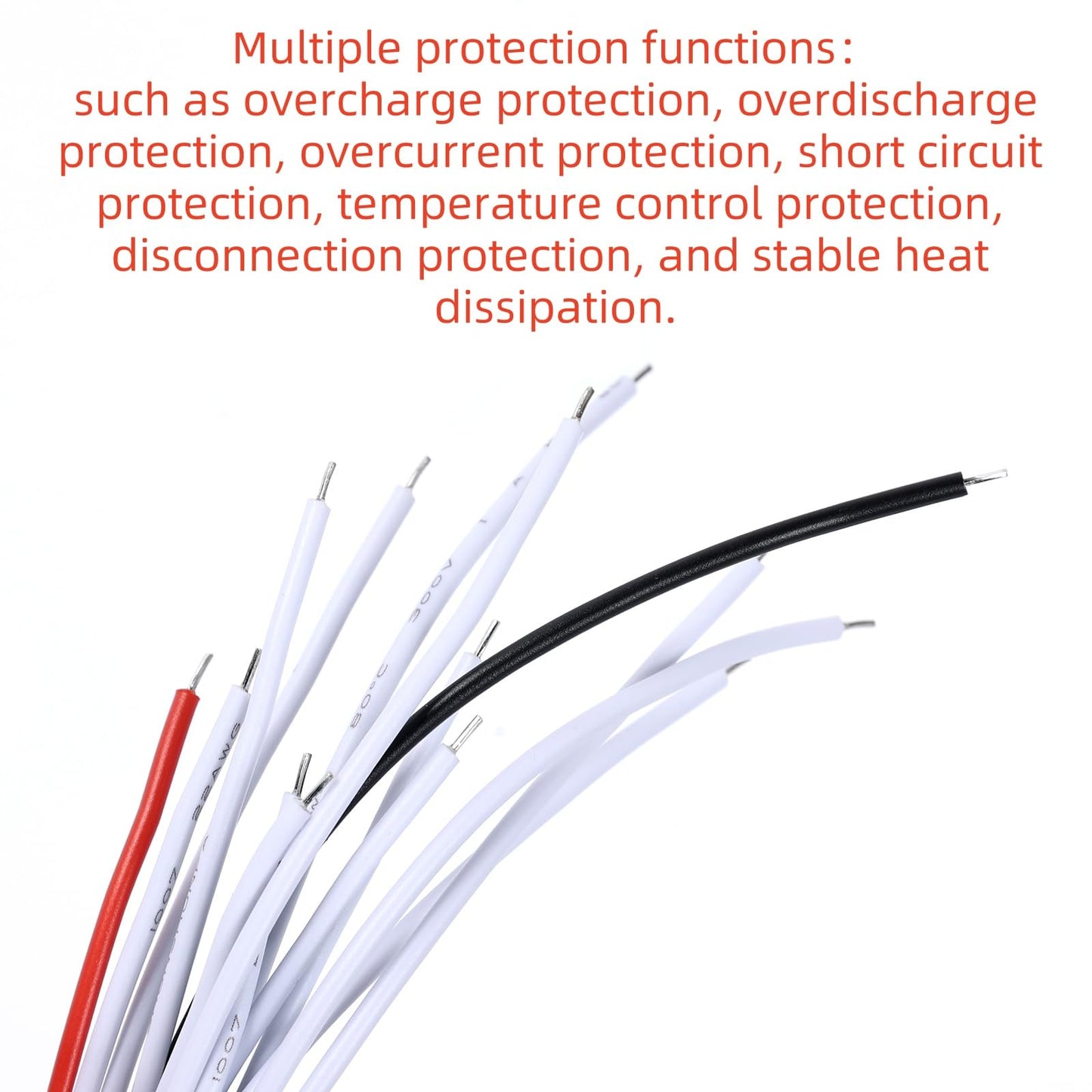

• 3.Function:The BMS 13S 48V lithium battery PCB charging protection board has multiple protection functions, such as overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, temperature control protection, disconnection protection, and stable heat dissipation.
• 4.Wiring method: Wiring on the same port/Wiring on separate ports.

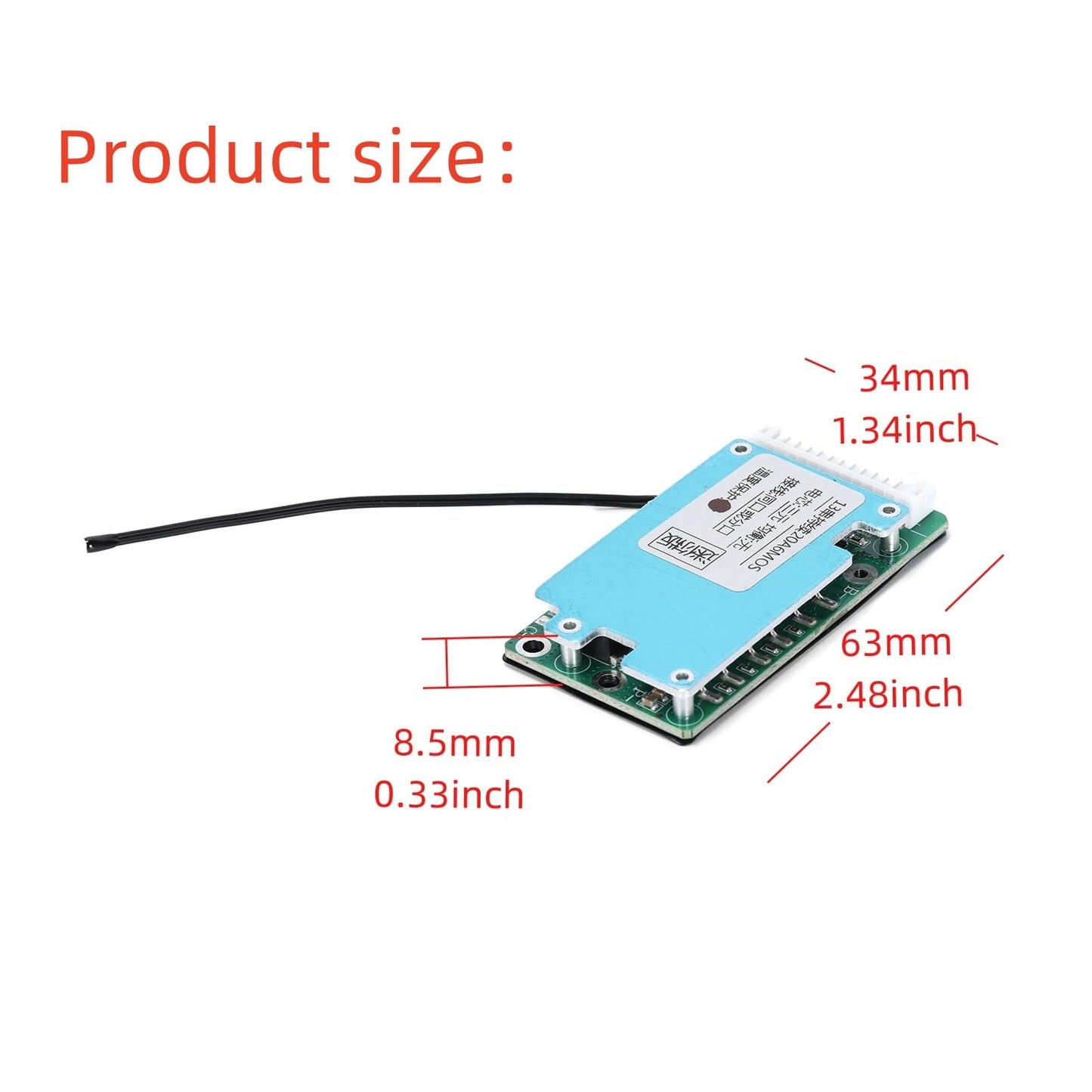

• 5.Product size: BMS 13S 48V lithium battery PCB charging protection board size: 63mmx34mmx8.5mm/2.48inchx1.34inchx0.33inch.This product has 14 lines, with a thickness of 1.6mm/0.06inch and a length of 400mm/15.75inch.
Color: blue，white
Model: 48V Li-ion battery
Product parameters:
Type: BMS 13S 48V lithium battery PCB charging protection board
Overdischarge protection voltage: 2.7V ± 0.05V
Overdischarge recovery voltage: 3.0V ± 0.05V
Continuous operating current: 4MOS=15A, 6MOS=20A
Instantaneous protection current: 4OS=65A, 6MOS=80A
Overcurrent recovery conditions: Charging recovery or disconnecting the load
Short circuit recovery conditions:Charging recovery or disconnecting the load
Overcharge protection voltage: 4.25V ± 0.015V
Overcharge recovery voltage: 4.15V ± 0.015V
Continuous charging current: 4MOS=15A, 6MOS=20A
Charger voltage: 56V (recommended)
Same port/split port activation: can be activated by charging
Temperature control over temperature protection
Charging over temperature: -5 ℃ to 50 ℃
Discharge over temperature: -30 ℃ to 70 ℃
Self-consuming power consumption during operation: <40uA
Internal resistance of main circuit conduction:< 15mQ
Working temperature range: -40 to+80 ℃
Wire breakage protection: Yes
Same port wiring: B - connected to the negative terminal of the battery, C - connected to the negative terminal of charging and discharging, P - not connected
Split connection: B-connected to battery negative pole, C-connected to charging negative pole, P-connected to discharging negative pole
packing:
1pcs x BMS 13S 48V lithium battery PCB charging protection board
• 1.Application: Widely used in electric bicycles, electric motorcycles, and various energy storage devices.
• 2.Specifications: BMS 13S 48V lithium battery PCB charging protection board, continuous working current 20A 6Mos.
• 3.Function:The BMS 13S 48V lithium battery PCB charging protection board has multiple protection functions, such as overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, temperature control protection, disconnection protection, and stable heat dissipation.
• 4.Wiring method: Wiring on the same port/Wiring on separate ports.
• 5.Product size: BMS 13S 48V lithium battery PCB charging protection board size: 63mmx34mmx8.5mm/2.48inchx1.34inchx0.33inch.This product has 14 lines, with a thickness of 1.6mm/0.06inch and a length of 400mm/15.75inch.
Color: blue，white
