Brand: Acxico
Model: 682559873597

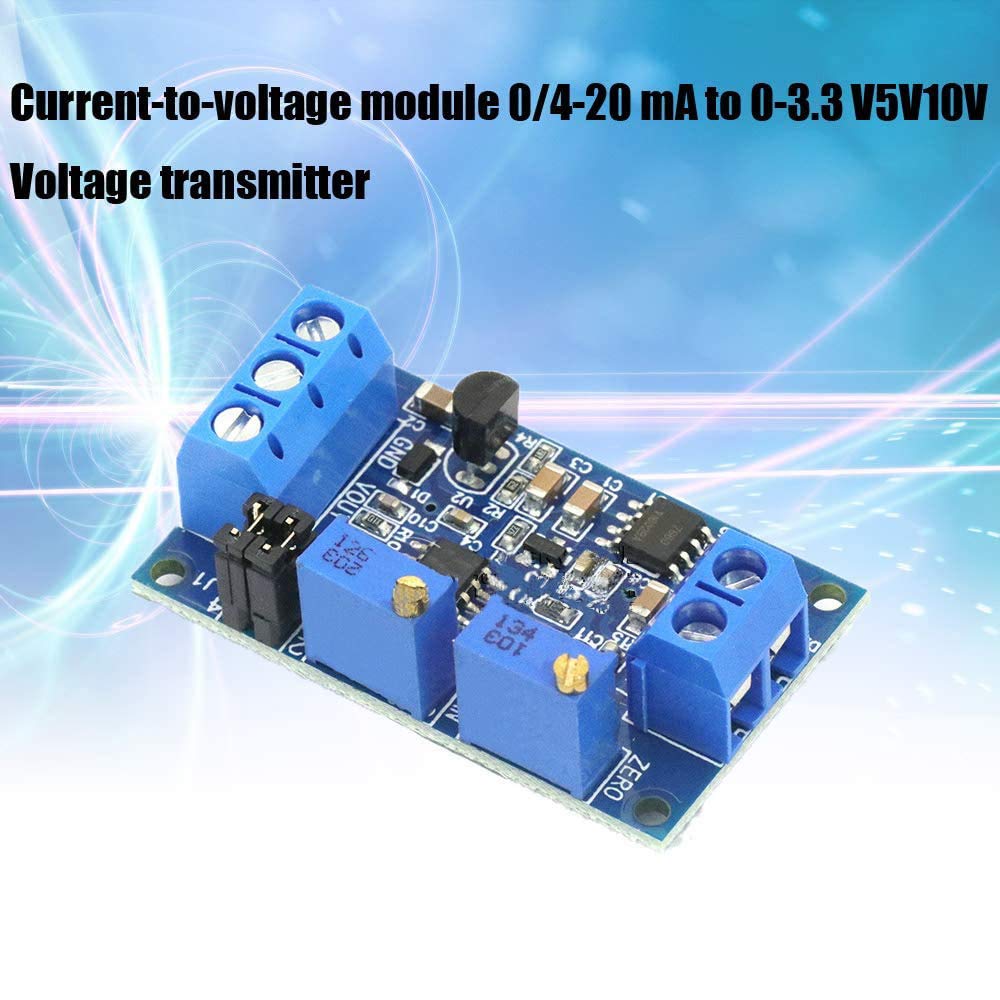

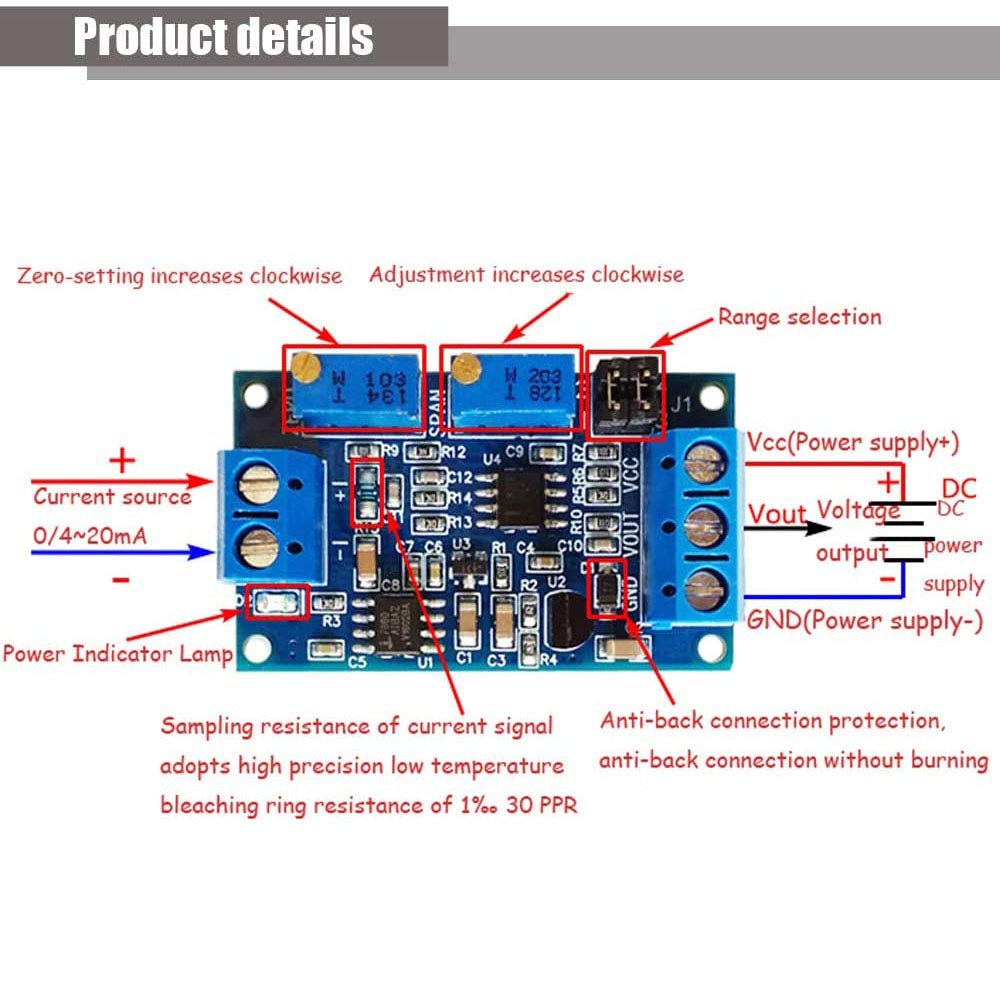

Instructions for use:The module is wired as defined, and the supply voltage is 7-36V (if the output is to 10V, the supply voltage must be greater than 12V).After power-on, the D2 light should be on, otherwise check the line connection. The board is reversely protected, and the reverse connection does not burn.When the current input is at the minimum value (0 mA or 4 mA), adjust the ZERO potentiometer to make the VOUT output the minimum value (0.0V or other voltage).When the current input is at the maximum value (20mA), adjust the SPAN potentiometer to make the VOUT output the maximum (3.3V or 5V or 10V, when the input is 4-20ma, the output can be as small as 2.5V).According to your needs, select the appropriate range through the jumper cap:4 20ma:0 2.5V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 3.3V range: J1 1, 2 feet are disconnected, 3, 4 feet are disconnected0 5.0V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 10.0V range: J1 1, 2 feet shorted, 3, 4 feet disconnected0 20ma:0 3.3V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 5.0V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 10.0V range: J1 1, 2 feet shorted, 3, 4 feet disconnectedNote:Light shooting and different displays may causethe color of the item in the picture a little different from the real thing.The measurement allowed error is+/-1-3cm.We highly appreciate all custome rsopinions to improvethe selling, also if anything you unsatisfied, please contact us for probable best solution. Thank youPackage Included:4PcsCurrent to Voltage Converter Module 0/4-20mA to 0-3.3V 0-5V 0-10V Voltage Transmitter Signal Conversion Conditioning Board(If there are any problems with the product, please send us pictures.Tell us more details about this problem)

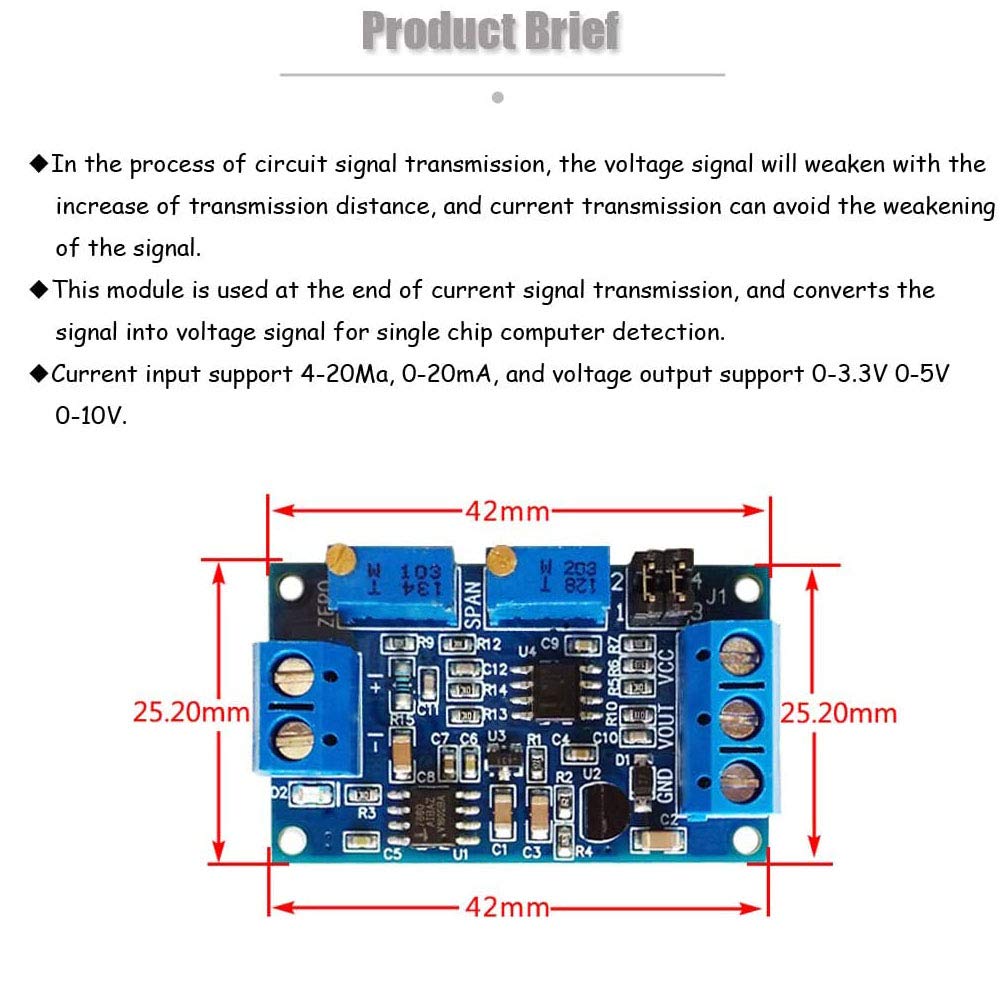

• This module is used for the end of the current signal transmission, and converts the signal into a voltage signal for detection by the single chip microcomputer. The current input supports 4-20Ma, 0-20mA, and the voltage output supports 0-3.3V 0-5V 0-10V.

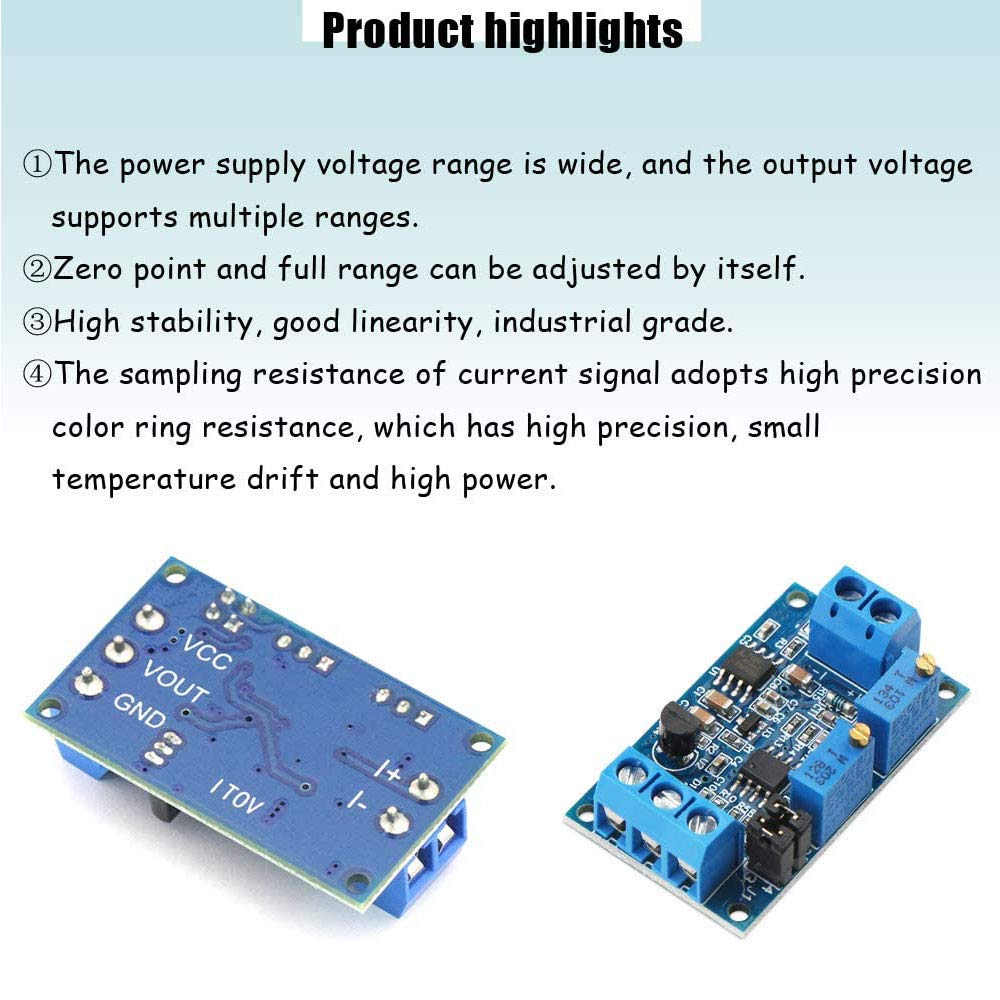

• Wide supply voltage range, output voltage support multiple ranges, zero and full scale can be adjusted.The current signal sampling resistor adopts high-precision color ring resistance, high precision, small temperature drift and high power.
• During the transmission of the circuit signal, the voltage signal will become weaker as the transmission distance increases. The current transmission can avoid the weakening of the signal.High stability, good linearity, industrial grade.

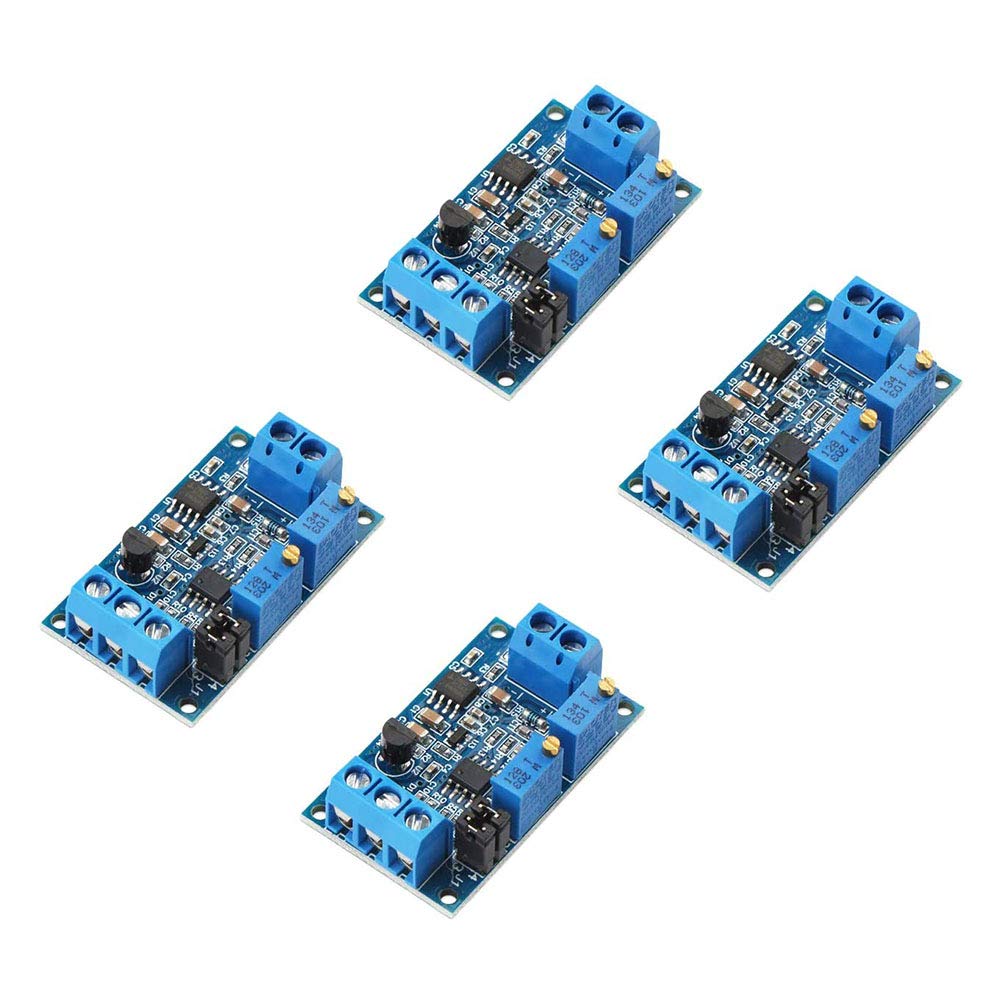

• Package Included:4Pcs Current to Voltage Converter Module 0/4-20mA to 0-3.3V 0-5V 0-10V Voltage Transmitter Signal Conversion Conditioning Board(If there are any problems with the product, please send us pictures. Tell us more details about this problem.)
• Thank you so much for your purchasing from our store.Any question ,please feel free to contact us.
Color: blue,silver,black
Model: 682559873597
Instructions for use:The module is wired as defined, and the supply voltage is 7-36V (if the output is to 10V, the supply voltage must be greater than 12V).After power-on, the D2 light should be on, otherwise check the line connection. The board is reversely protected, and the reverse connection does not burn.When the current input is at the minimum value (0 mA or 4 mA), adjust the ZERO potentiometer to make the VOUT output the minimum value (0.0V or other voltage).When the current input is at the maximum value (20mA), adjust the SPAN potentiometer to make the VOUT output the maximum (3.3V or 5V or 10V, when the input is 4-20ma, the output can be as small as 2.5V).According to your needs, select the appropriate range through the jumper cap:4 20ma:0 2.5V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 3.3V range: J1 1, 2 feet are disconnected, 3, 4 feet are disconnected0 5.0V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 10.0V range: J1 1, 2 feet shorted, 3, 4 feet disconnected0 20ma:0 3.3V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 5.0V range: J1 1, 2 feet shorted, 3, 4 feet shorted0 10.0V range: J1 1, 2 feet shorted, 3, 4 feet disconnectedNote:Light shooting and different displays may causethe color of the item in the picture a little different from the real thing.The measurement allowed error is+/-1-3cm.We highly appreciate all custome rsopinions to improvethe selling, also if anything you unsatisfied, please contact us for probable best solution. Thank youPackage Included:4PcsCurrent to Voltage Converter Module 0/4-20mA to 0-3.3V 0-5V 0-10V Voltage Transmitter Signal Conversion Conditioning Board(If there are any problems with the product, please send us pictures.Tell us more details about this problem)
• This module is used for the end of the current signal transmission, and converts the signal into a voltage signal for detection by the single chip microcomputer. The current input supports 4-20Ma, 0-20mA, and the voltage output supports 0-3.3V 0-5V 0-10V.
• Wide supply voltage range, output voltage support multiple ranges, zero and full scale can be adjusted.The current signal sampling resistor adopts high-precision color ring resistance, high precision, small temperature drift and high power.
• During the transmission of the circuit signal, the voltage signal will become weaker as the transmission distance increases. The current transmission can avoid the weakening of the signal.High stability, good linearity, industrial grade.
• Package Included:4Pcs Current to Voltage Converter Module 0/4-20mA to 0-3.3V 0-5V 0-10V Voltage Transmitter Signal Conversion Conditioning Board(If there are any problems with the product, please send us pictures. Tell us more details about this problem.)
• Thank you so much for your purchasing from our store.Any question ,please feel free to contact us.
Color: blue,silver,black
