Description
Brand: Y.D.F

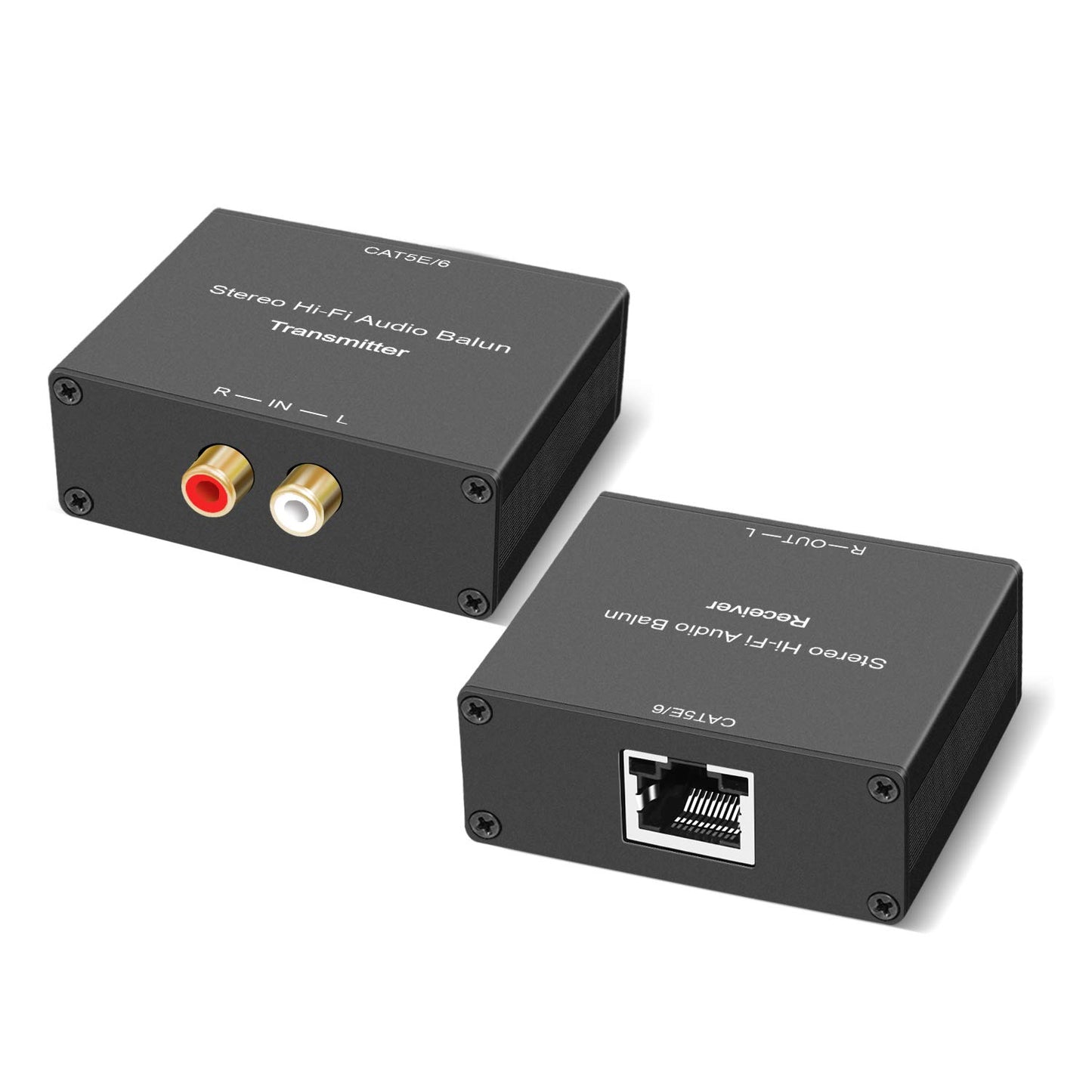

Stereo Hi-Fi Audio Balun Over Ethernet
The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.
The Stereo Hi - Fi Audio Balun allows one Analog Stereo Hi-Fi Audio to be transmitted Via Cat5/5e/6 Cable, up to 1000 foot-- 1600 foot in a point - to - point connection.
It is built in surge suppressor to protect audio equipment against damaging voltage spikes.
Its integrated ground loop isolation prevents annoying "hum-bars" common noise with long distance installations.
Analog Audio Extender Applications
Boardroom Systems, Classroom training, Auditoriums, Custom home installations, Intercom systems ect
Sound Link Audio
Maximum Input: 2V RMS
Audio Source Impedance: 100 ohms maximum
Audio Receiver Impedance: 10 k ohms minimum
3dB Bandwidth 20 Hz to 20 KHz over the distance range
Insertion Loss per balun pair Less than 3 dB over the frequency range.
Common Mode Rejection Greater than 60 dB @ 1KHz Greater than
40 dB over the frequency and distance range
THDMaximum 0.007% @ 1 KHz over distance range

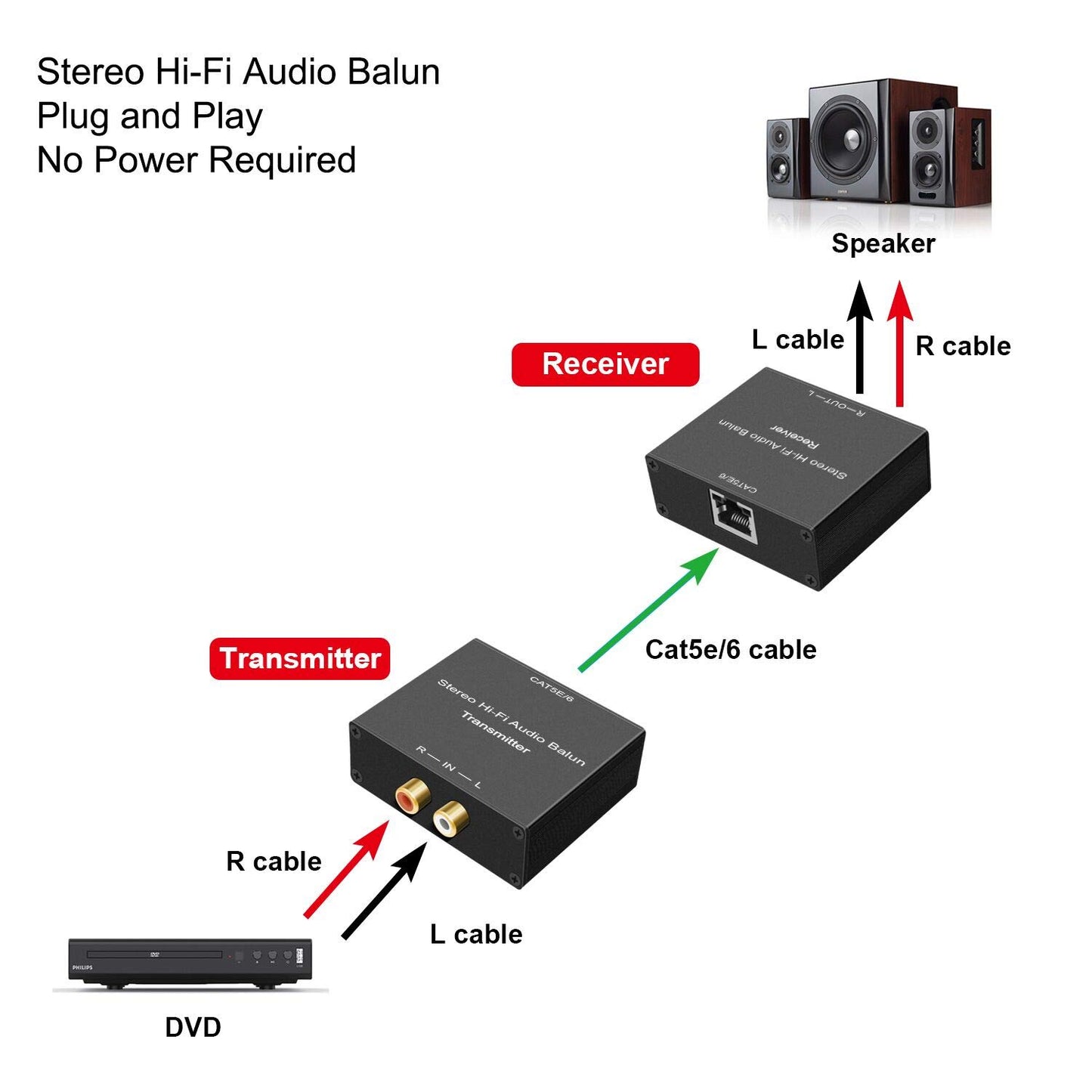

Plug and Play:

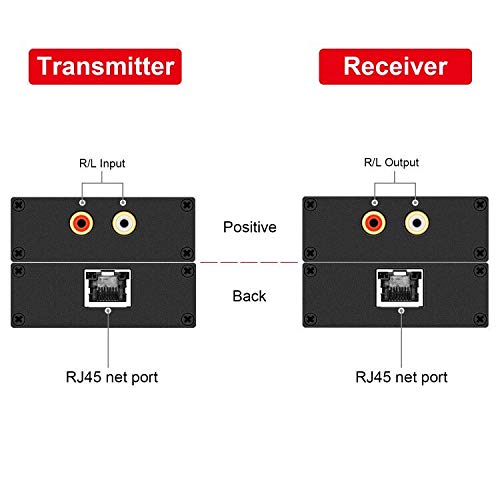

Left (White) and Right (Red) stereo audio RCA connectors
Transmission Balun into the HI-FI audio output of the source component
Receive Balun into your desired input component.
Insert the Cat5e/Cat6 cable into both ends of the Baluns.
NOTE:
Usually use the length of 1000 foot--1650 foot.
It can be up to 3280 foot, but there will be slight crosstalk.
• Stereo Hi-Fi Audio Balun: 2-CH Stereo Hi-Fi Audio Long Distance Transmission, Up to 1000 foot-- 1600 foot via Cat5e/Cat6
• Plug and Play Convenient and Fast, No power required.
• Audio Extender 3dB Bandwidth 20 Hz to 20 KHz over the distance range
• Audio Extender built in surge suppressor to protect audio equipment against damaging voltage spikes.
• Analog Audio Extender for DVD Players, Satellite Receivers, MPEG Players, Laptops, Hi-Fi Stereo Audio Amplifiers, Audio Switchers, AV Monitors, Powered Subwoofer other line level audio equipment
Stereo Hi-Fi Audio Balun Over Ethernet
The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.
The Stereo Hi - Fi Audio Balun allows one Analog Stereo Hi-Fi Audio to be transmitted Via Cat5/5e/6 Cable, up to 1000 foot-- 1600 foot in a point - to - point connection.
It is built in surge suppressor to protect audio equipment against damaging voltage spikes.
Its integrated ground loop isolation prevents annoying "hum-bars" common noise with long distance installations.
Analog Audio Extender Applications
Boardroom Systems, Classroom training, Auditoriums, Custom home installations, Intercom systems ect
Sound Link Audio
Maximum Input: 2V RMS
Audio Source Impedance: 100 ohms maximum
Audio Receiver Impedance: 10 k ohms minimum
3dB Bandwidth 20 Hz to 20 KHz over the distance range
Insertion Loss per balun pair Less than 3 dB over the frequency range.
Common Mode Rejection Greater than 60 dB @ 1KHz Greater than
40 dB over the frequency and distance range
THDMaximum 0.007% @ 1 KHz over distance range
Plug and Play:
Left (White) and Right (Red) stereo audio RCA connectors
Transmission Balun into the HI-FI audio output of the source component
Receive Balun into your desired input component.
Insert the Cat5e/Cat6 cable into both ends of the Baluns.
NOTE:
Usually use the length of 1000 foot--1650 foot.
It can be up to 3280 foot, but there will be slight crosstalk.
• Stereo Hi-Fi Audio Balun: 2-CH Stereo Hi-Fi Audio Long Distance Transmission, Up to 1000 foot-- 1600 foot via Cat5e/Cat6
• Plug and Play Convenient and Fast, No power required.
• Audio Extender 3dB Bandwidth 20 Hz to 20 KHz over the distance range
• Audio Extender built in surge suppressor to protect audio equipment against damaging voltage spikes.
• Analog Audio Extender for DVD Players, Satellite Receivers, MPEG Players, Laptops, Hi-Fi Stereo Audio Amplifiers, Audio Switchers, AV Monitors, Powered Subwoofer other line level audio equipment
