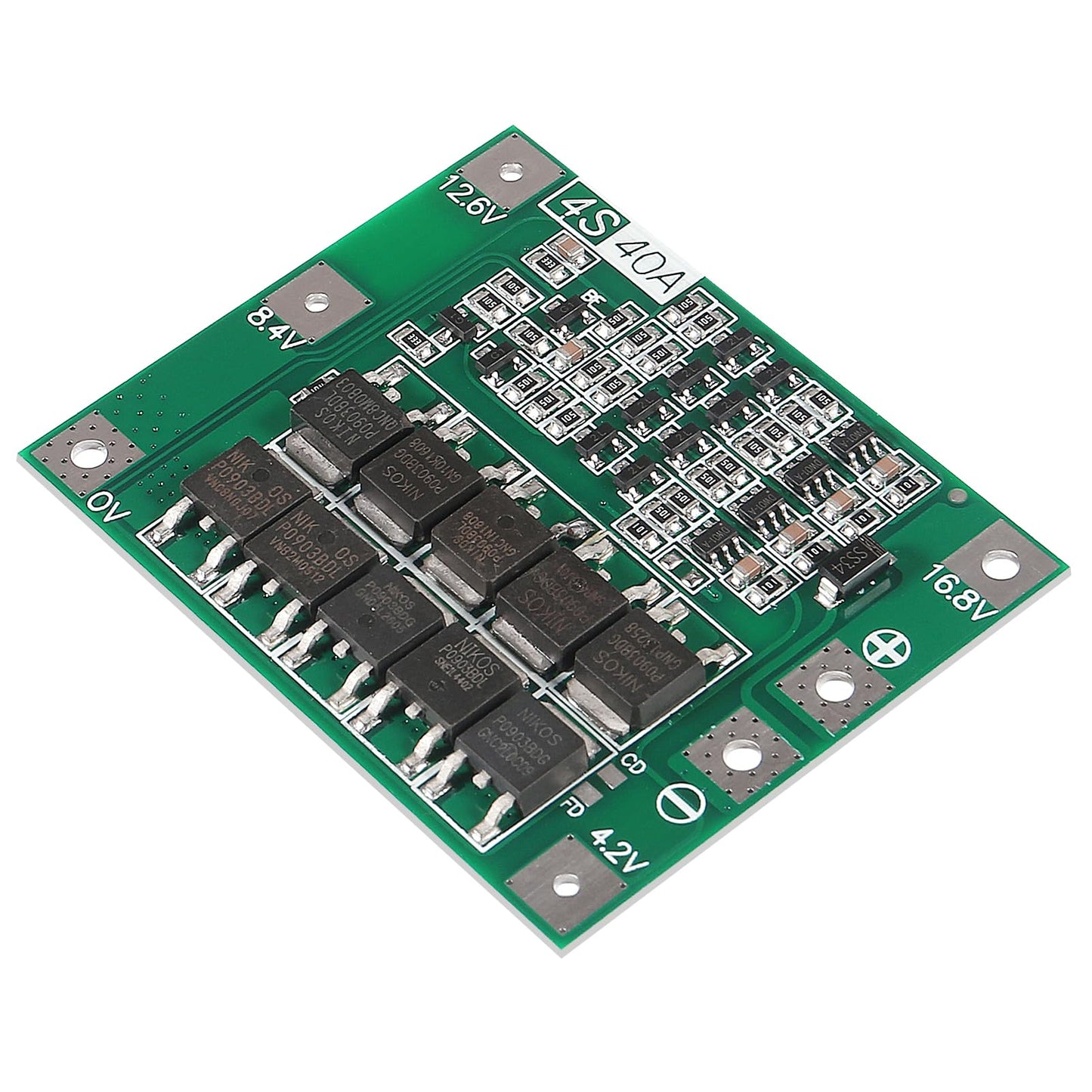

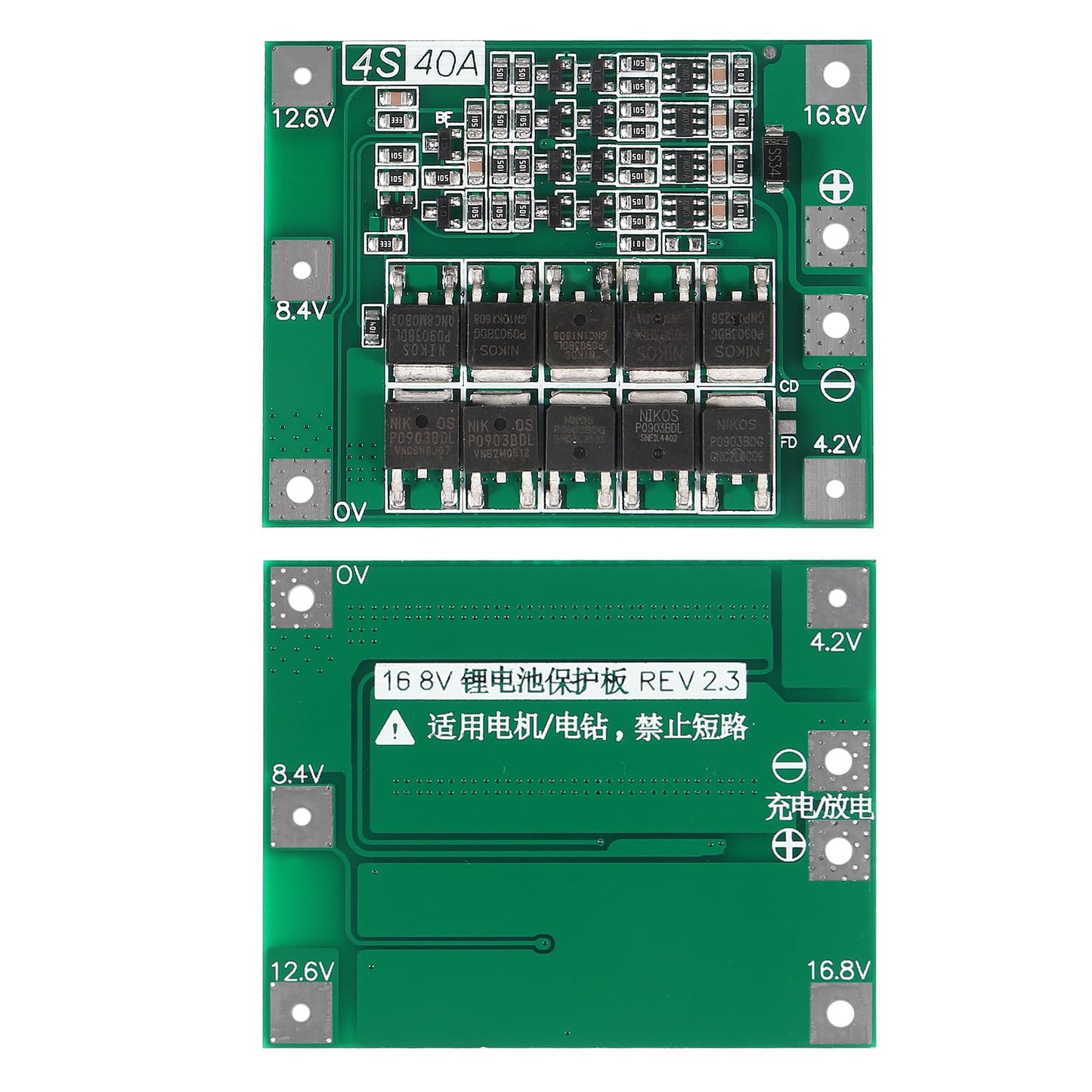

Description
Brand: XIITIA
Model: 744d7213-1b1c-45ae-86d9-5e396055267d
Features:
Charging Voltage: DC 16.8V~17V
Continuous Discharge Current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous Charging Current: up to 20A

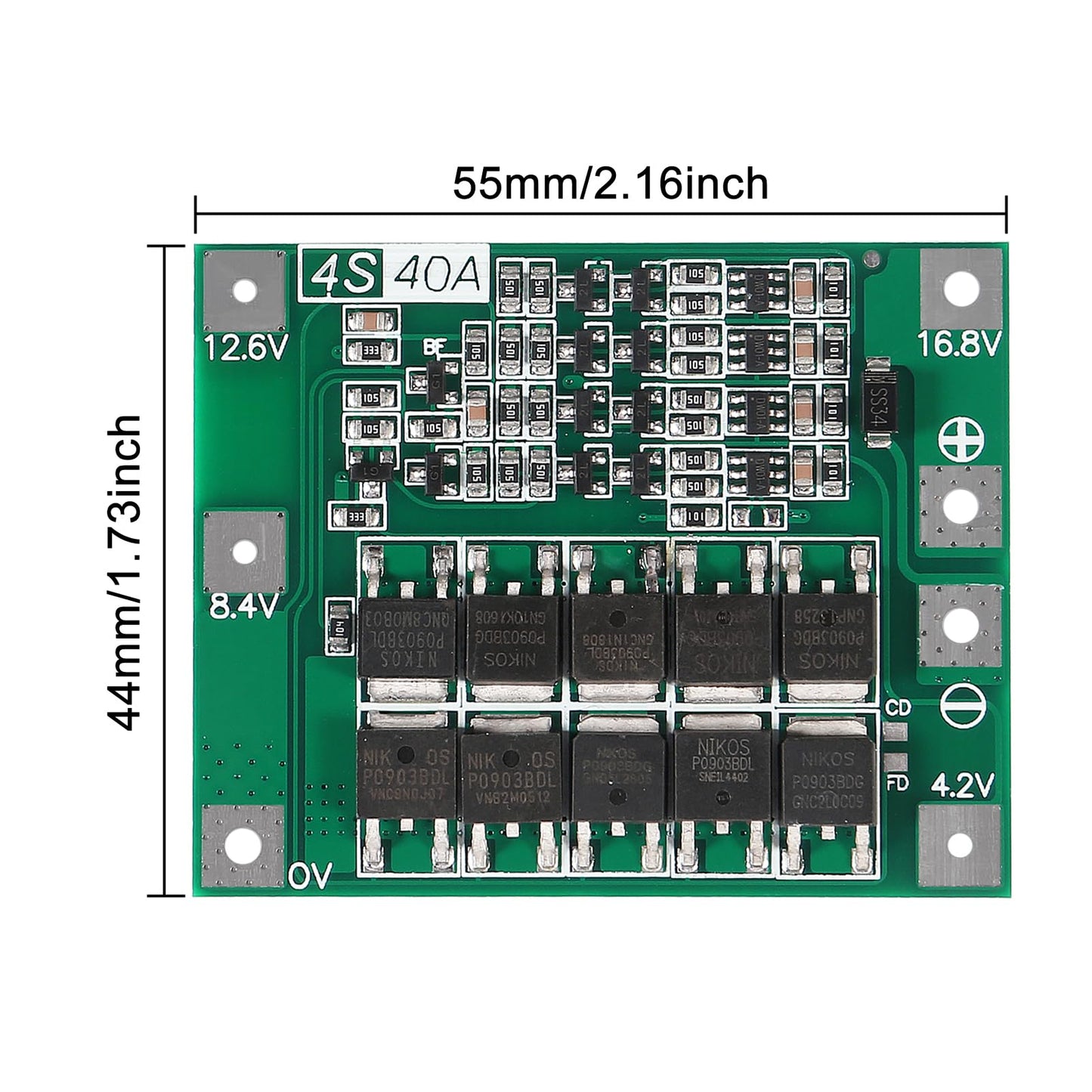

Enhance Version Product Size: 44*55*4mm
Applicable Choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery.
(including 18650, 26650, polymer lithium battery), can be drilled below 170W.
Note:
1.The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill).

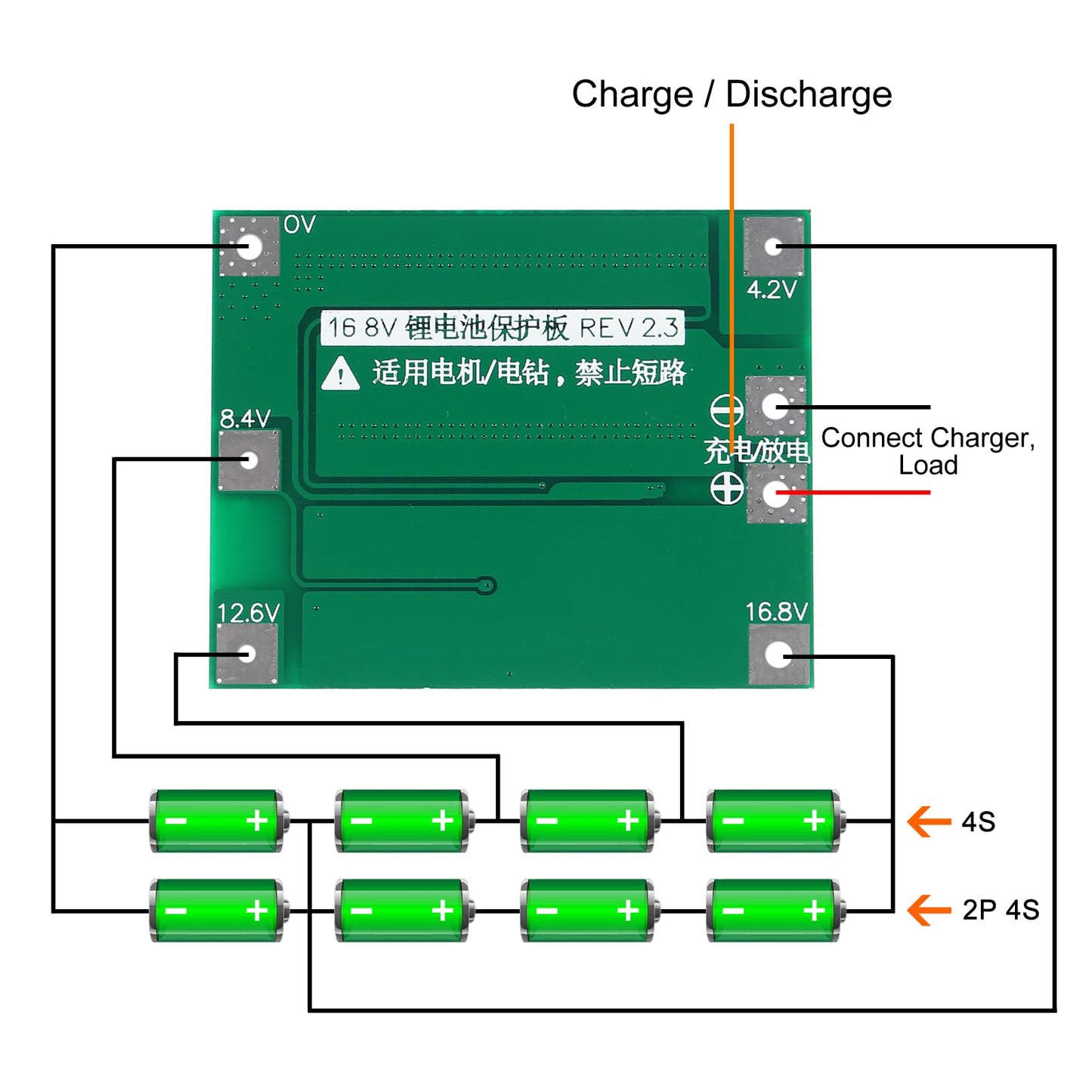

2.Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
3.When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
4.4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
• ★Multiple Protections: Over-discharge protection, overcurrent protection, overcharge protection
• High charge and discharge current.
• ★High Quality
• Compact size and lightweight
• High-accuracy voltage detection circuit
• Fine workmanship and durable
• Stable performance.
• 【Low Standby Current】: MOS transistor can control the battery charge and discharge, low standby current consumption.
• ★If you want to start the drill successfully, it requires 3pcs15C-20C power batteries, or 6pcs10C-15C power batteries.
• 【Applications】: It is suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit).Besides, it can use for electric drill with starting current below 80A and power below 135W.
Model: 744d7213-1b1c-45ae-86d9-5e396055267d
Features:
Charging Voltage: DC 16.8V~17V
Continuous Discharge Current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)
Continuous Charging Current: up to 20A
Enhance Version Product Size: 44*55*4mm
Applicable Choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery.
(including 18650, 26650, polymer lithium battery), can be drilled below 170W.
Note:
1.The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill).
2.Strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit.
3.When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
4.4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
• ★Multiple Protections: Over-discharge protection, overcurrent protection, overcharge protection
• High charge and discharge current.
• ★High Quality
• Compact size and lightweight
• High-accuracy voltage detection circuit
• Fine workmanship and durable
• Stable performance.
• 【Low Standby Current】: MOS transistor can control the battery charge and discharge, low standby current consumption.
• ★If you want to start the drill successfully, it requires 3pcs15C-20C power batteries, or 6pcs10C-15C power batteries.
• 【Applications】: It is suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, no size limit).Besides, it can use for electric drill with starting current below 80A and power below 135W.
