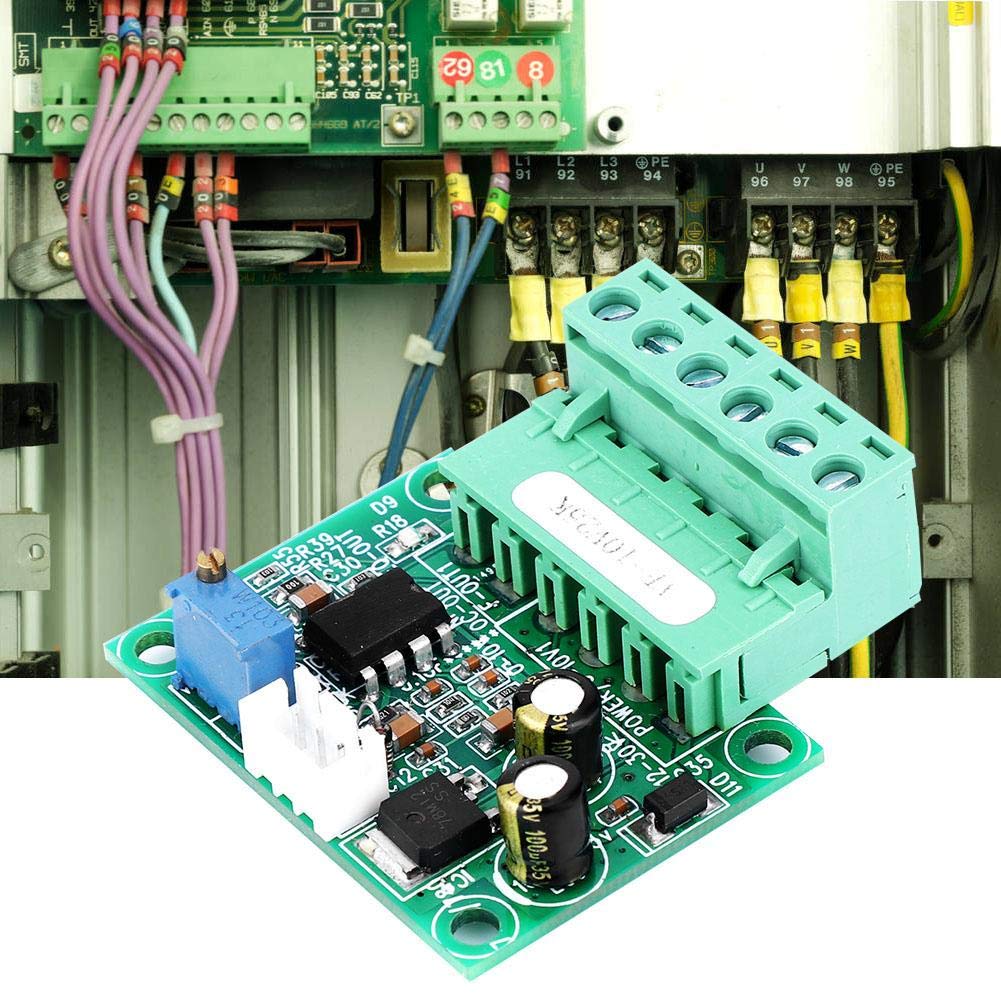

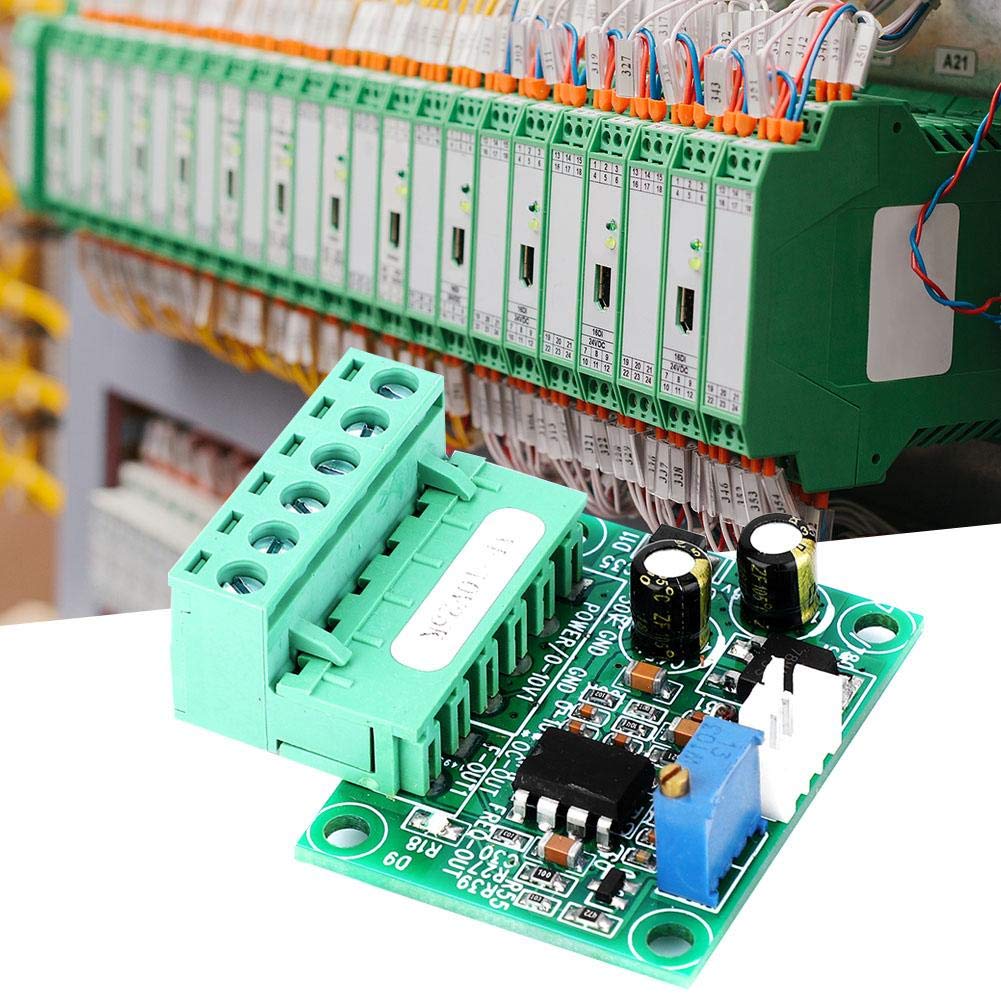

Description
Brand: FTVOGUE
Model: VF-10V25KHz
• Adopted of electronic components, and accuracy process, ensure for the durability.
• After the power is turned on, the power indicator light is on. The power supply has anti-reverse function.
• Can be used for PLC and inverter interface between the conversion, or motion control card and inverter interface matching control .
• The input power supply has a voltage range of 12-30 VDC. It is recommended that the power supply voltage be 15-24 VDC.
• We strive provide you with and convenient service. You are welcome us if you have any problem about our product, we will give you a satisfactory reply.
Color: multicolor
Model: VF-10V25KHz
Specification:
Item Type: Voltage Frequency Converter Module
Model: VF-10V25KHz
Input Control Voltage Range: 0-10VDC
The input power supply has a voltage range of 12-30 VDC. It is recommended that the power supply voltage be 15-24 VDC. When the 12V level is input, the power supply cannot be powered by 12VDC, and at least 15VDC or more. At 24 levels, the power supply needs be powered by 24VDC.
Current Requirement of the Power Supply: greater than 30MA
Mounting Fixed: 4 x M3 screw holes

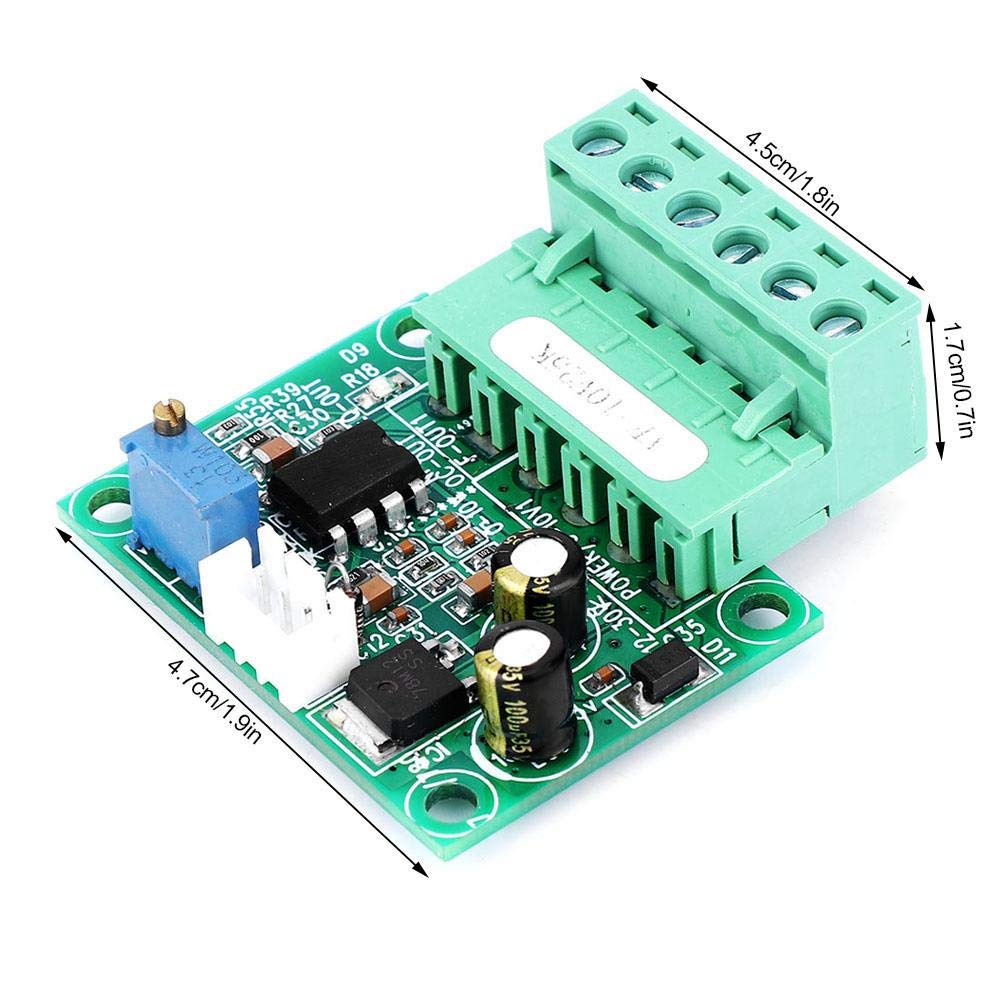

Size: Approx. 4.7 x 4.5 x 1.7cm / 1.9 x 1.8 x 0.7in
Package List:
1 x Voltage Frequency Converter Module
Instructions for Use and Wiring:

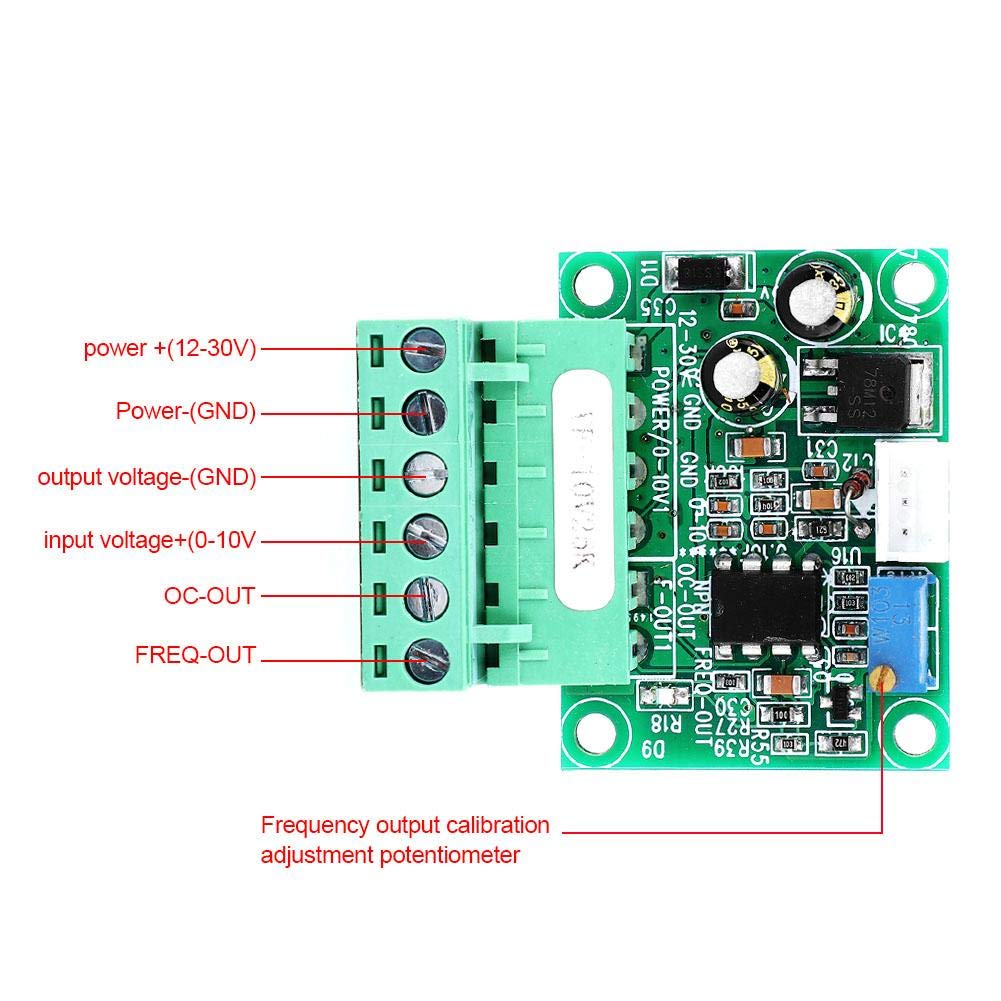

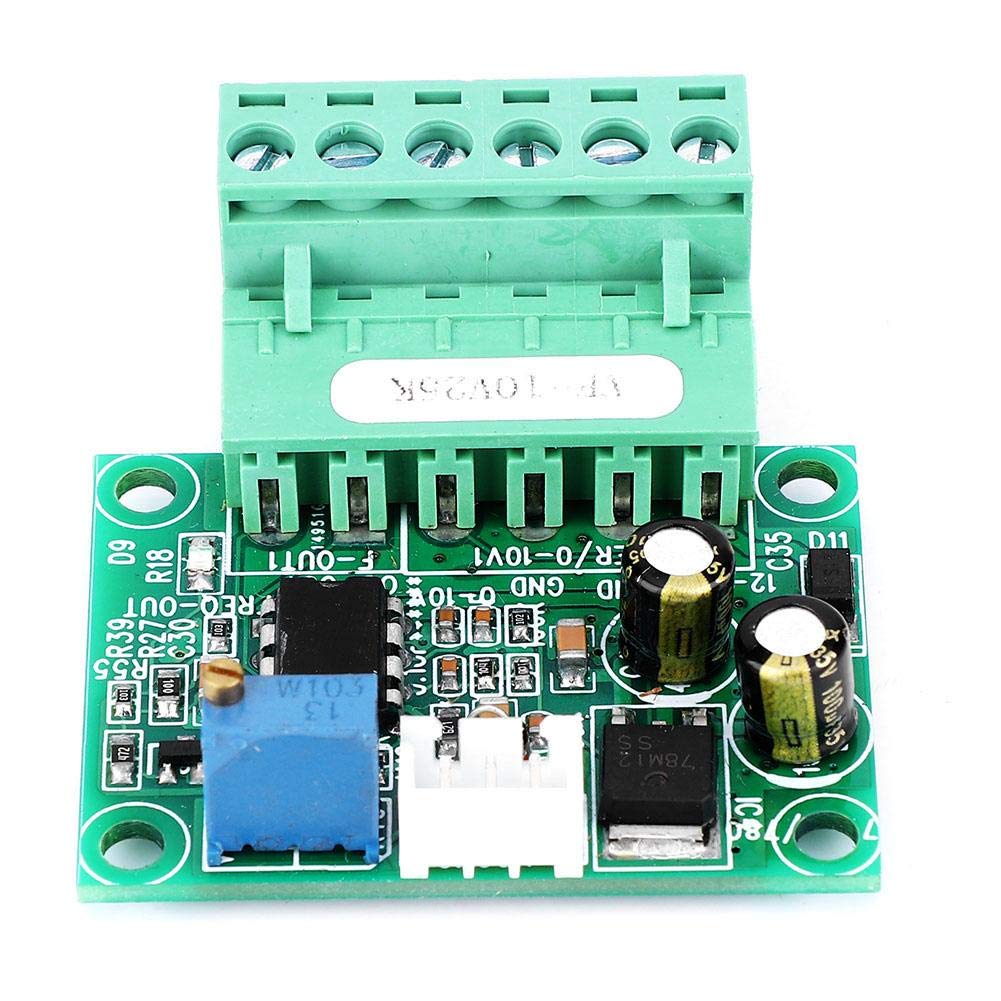

There is a silk screen mark on the top of the module. It can be wired according the mark. The meaning of the mark is as follows:
0-10V: The analog voltage is input the positive terminal.
GND: Common ground, GND.
12-30V: Power input positive terminal.
GND: power ground wire
OC-OUT: collector output port (use this output port when equipped with a driver)
FREQ-OUT: frequency output port (common frequency output port)
Two independent outputs, OC-OUT is NPN and FREQ-OUT is IC output. The common cathode end is used with the negative GND of the power supply. When the common anode wiring is used with the power supply, when the common anode wiring is 13-24V, it is necessary string a 2.7KR resistor. Common anode wiring, when 12V power supply, string a 330R resistor.
An example of the linear correspondence between voltage and frequency:
1V converted 2500Hz
Convert 5V 12.5KHz
Convert 10V 25KHz
