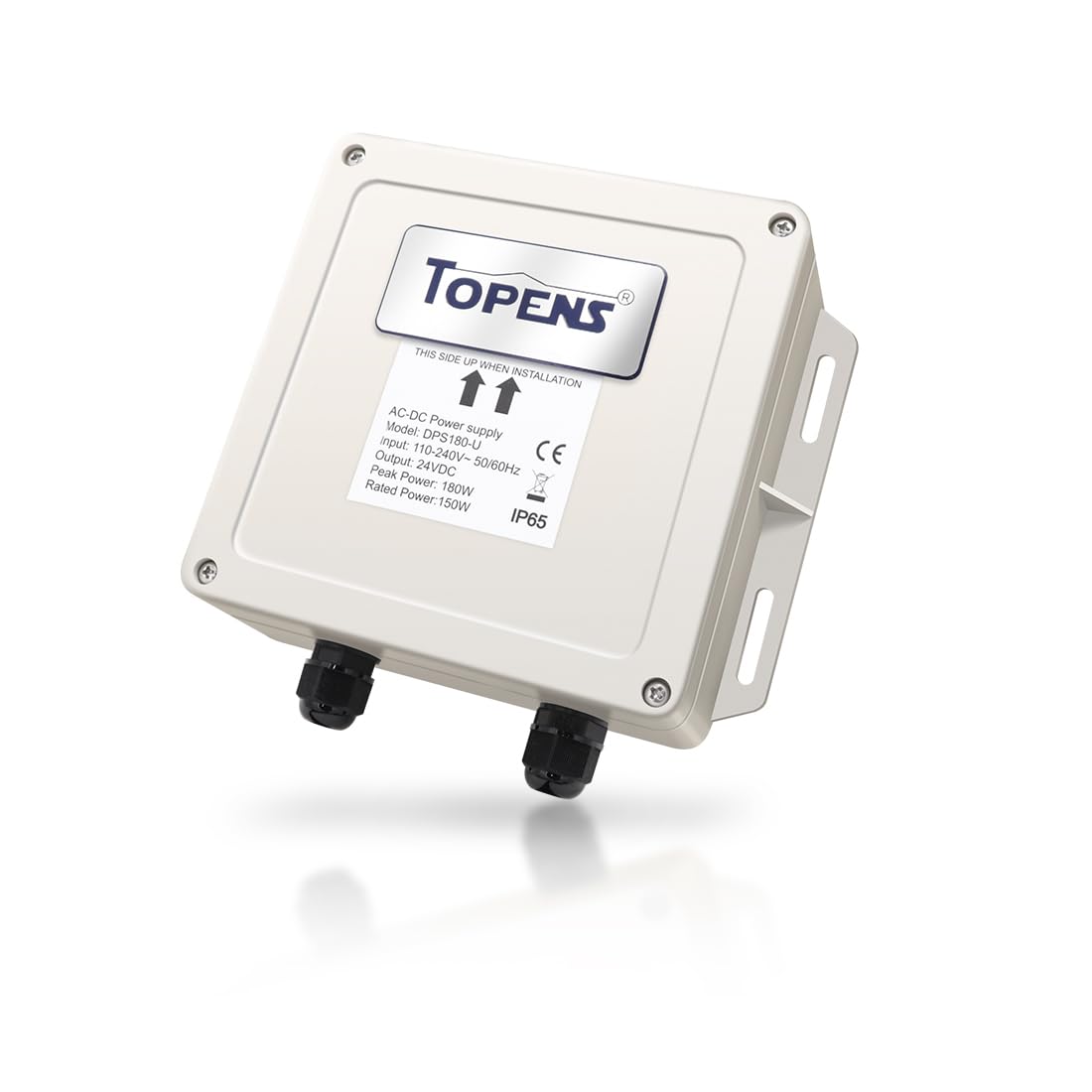

Brand: TOPENS

Model: DPS180-U

Kindly Note

• The DPS180-U power supply can directly power TOPENS A, AD and PW swing gate openers by AC electricity, as well as all other 24VDC gate opener systems.
• For TOPENS swing gate openers, the positive output (RED wire) of the DPS180-U power supply should be wired to the “BAT+” terminal, and the negative output (YELLOW wire) should be wired to “BAT-” terminal.
• If the dual swing gate opener is equipped with TOPENS ET24 electric lock, the open delay time of the two actuators should be more than 4 seconds for proper operation.
• The rated current of loads should be less than 6.25A.
• The 100-240VAC input cable of the DPS180-U power supply is 5 feet (2C x 18AWG), and the 24VDC output cable is 3.3 feet (2C x 18AWG).
• To extend the output cable, the cable should be 2C x 18AWG when the distance between the control board and the power supply is within 50 feet. 2C x 16AWG cable is strongly recommended for 50 feet to 164 feet extension distance. 2C x 14AWG cable should be used if the extension distance is 164 feet to 330 feet. The extension distance should be within 330 feet.

Specifications

AC Input: 100-240V, 50/60Hz

Output Voltage: 24VDC

Rated Output: 150W

Output Peak Power: 180W

Rated Current of Loads: 6.25A

Max. Current of Loads: 10A

Waterproof Degree: IP65

Working Temperature: 0°F to 120°F (-20℃~+50℃)

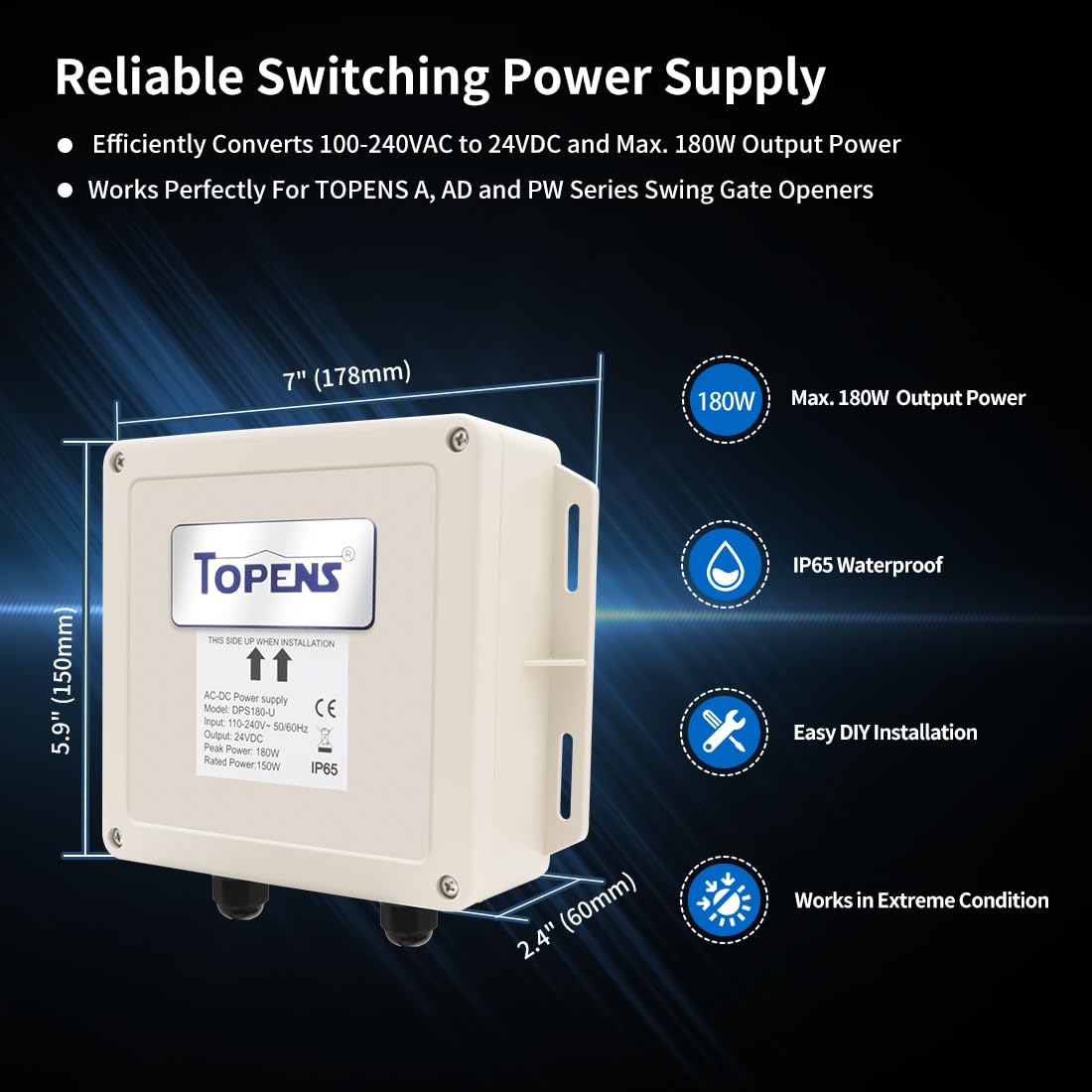

Dimension: 7 x 5.9 x 2.4” (178 x 150 x 60 mm)

Warning

• Keep children away from high voltage power source.
• Use it under the professional electrician’s guides.

• Reliable Switching Power Supply - TOPENS DPS180-U AC-DC Power Supply efficiently converts 100-240VAC to 24VDC, reducing electromagnetic interference to ensure stable voltage output. This converter provides 150W continuous output power and 180W of peak power. It has the high-quality control panel with a wide range of input voltage and is used in commercial, industrial and household appliances.
• Wide Applications - The DPS180-U voltage transformer can directly power all 24VDC devices, such as gate openers, CCTV security cameras, LED strip lights, mechanical arms, door access control systems and other DIY tools. This wide voltage input adapter works flawlessly with TOPENS A, AD and PW series swing gate openers. It is recommended to use where AC electricity is accessible and stable. Plug the DPS180-U power converter into an outlet, and it will supply 24VDC power to the system directly.

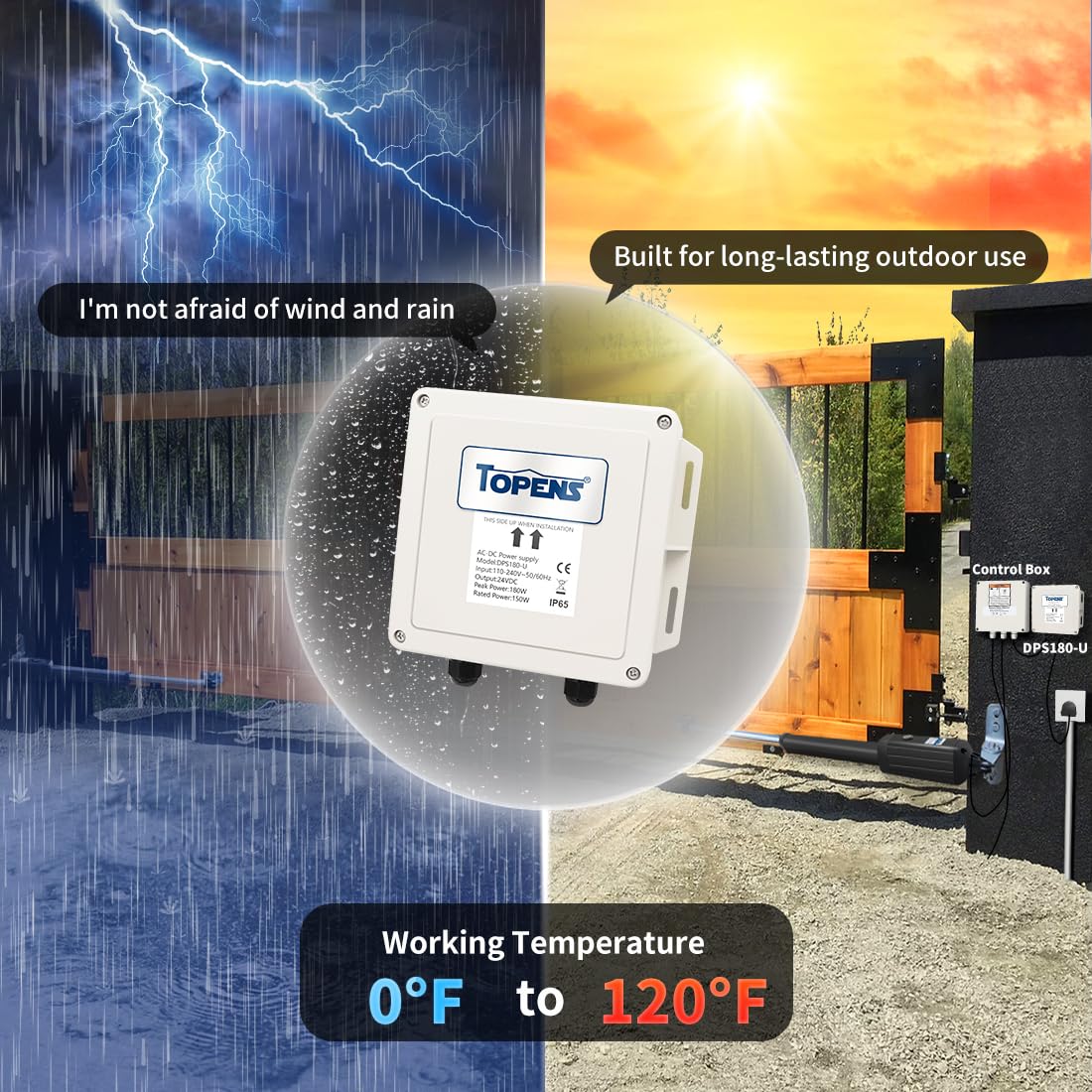

• Clever Design - Solid ABS housing withstands a variety of harsh environments and promises a long-lasting performance. The weatherproof casing ensures superior protection against water and dust from all directions. The DPS180-U adapter requires no maintenance for outdoor use. Pre-connected cable allows for fast and safe connection. The installation is labor-saving and simple.
• Multiple Protection - Smart chip provides ultimate protection against overload / over current / short circuit / overheat. It improves the safety of operation. Please note the DPS180-U AC-DC power supply adapter can NOT be used to charge any batteries and can NOT work with solar kit. Please order the TOPENS UPS01 Uninterrupted Power Supply to directly offer power, efficiently charge the battery and securely regulate solar charging current.
• Customer Service and Technical Support - All the TOPENS products come with a 12-month war-ranty against defects, a 30-day exchange & return and excellent tech support. Visit TOPENS website for the user manual, installation video, and personalized service. TOPENS is ready to offer professional solutions for any questions or assistance. Enjoy an easier and smarter life by ordering other TOPENS accessories.

Color: Grey
