Brand: Simply45

The Simply45 S45-1100 is a Cat6/6a UTP standard RJ45 modular plug built for professional installers terminating unshielded LAN cables. Fits 23 AWG solid Cat6 and Cat6a UTP cables with conductor sizes 1.05-1.17mm and max cable OD 7.4mm. Also supports larger-diameter stranded UTP patch cords too big for the S45-1000, and is backward compatible with Cat5e. The included Bar45 load bar is custom-designed to match the S45-1100 plug body, seating the cable deeper to reduce untwisted wire length and improve NEXT and FEXT crosstalk performance. Each plug uses a patented 3-prong phosphor bronze contact with 100u nickel base and 50u true 24ct gold plating, delivering 3 contact points per conductor versus 2-prong designs for stronger grip, lower resistance, and long-term corrosion resistance. UL Listed, UL94 V0 commercial rated, TAA compliant, HDBaseT approved, and PoE/PoH optimized. Meets ANSI/TIA 568.2-D Class E and ISO/IEC 11801 Class E. Recommended for CMP Plenum, CMR, CM, and LSZH up to B2ca-rated cables. Packaged in a 100-piece wide-mouth jar with green-tinted plugs and a matching color-coded cap for fast field identification. At Simply45, we make connectivity simple, reliable, and efficient. As part of SimplyBrands, we deliver innovative RJ45 solutions and accessories trusted by installers, integrators, and technicians worldwide. From copper and fiber to AV and testing, our award-winning products and patented technology help professionals work smarter, faster, and get the job done right the first time.

Features:

• Cat6 UTP Compatibility, Solid & Stranded UTP Cable - Fits 23 AWG solid Cat6/6a UTP, conductor sizes 1.05-1.17mm, max OD 7.4mm. Also works with larger-diameter stranded UTP patch leads too big for the S45-1000. Backward compatible with Cat5e.

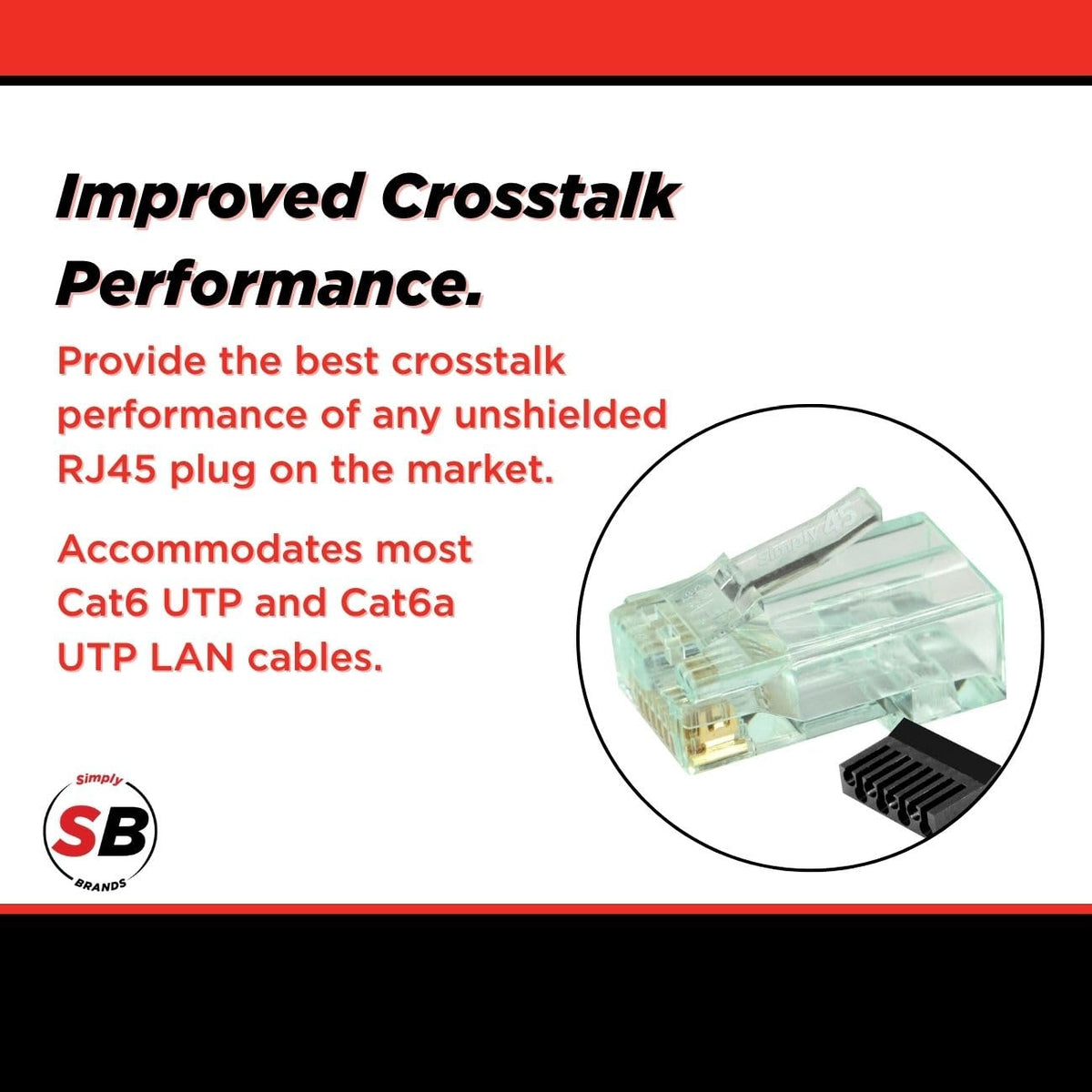

• Faster Terminations with Bar45 Load Bar Design - Patented Bar45 absorbs NEXT and FEXT crosstalk, seats cable deeper into the plug to reduce untwisted wire length, and simplifies termination for patch leads, custom runs, and Gigabit Ethernet installs.

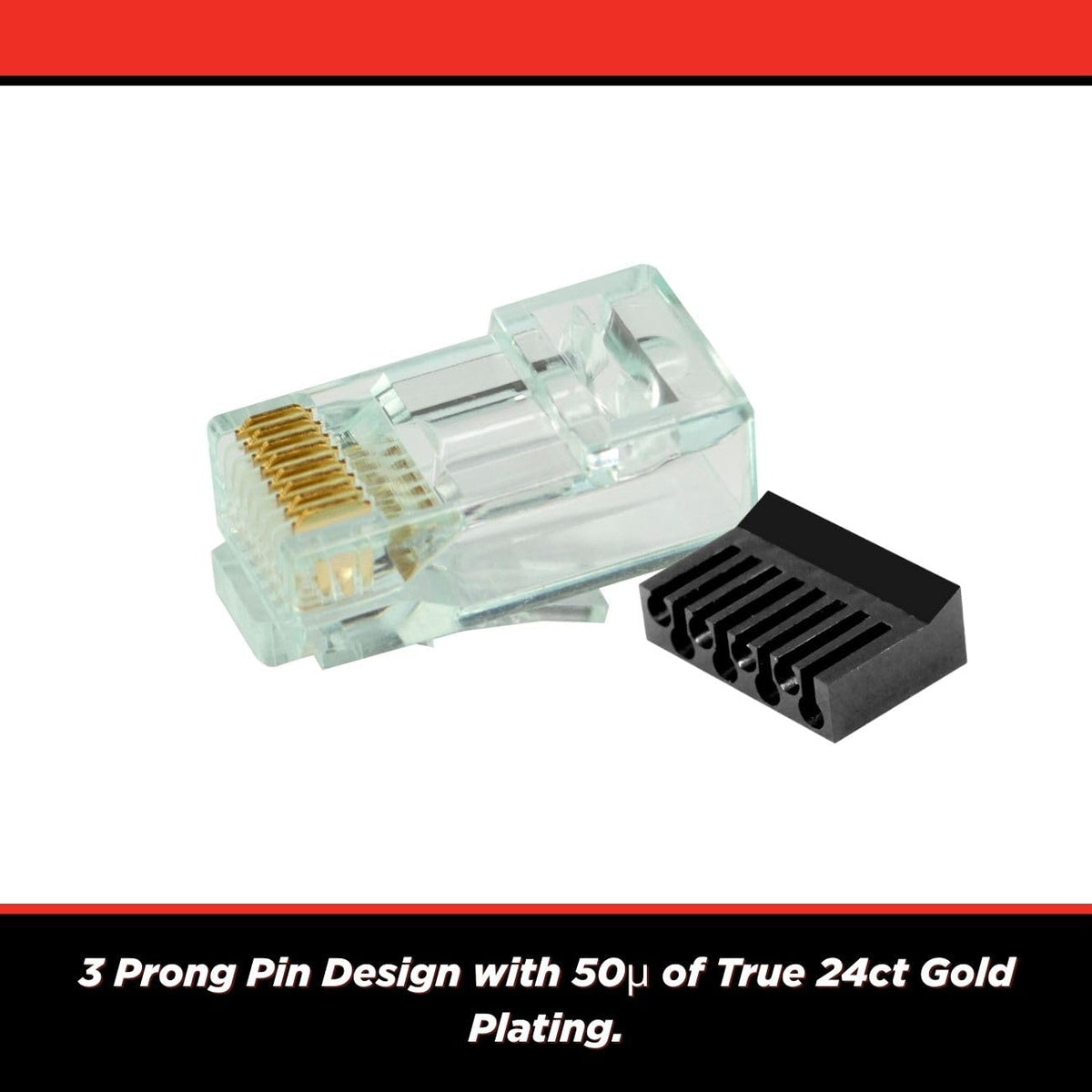

• 3-Prong vs. 2-Prong: Stronger Grip, Better Signal - 50u true 24ct gold-plated phosphor bronze contacts deliver 3 contact points per conductor instead of 2, improving signal integrity, reducing resistance, and providing long-term corrosion resistance.
• UL Listed and PoE/PoH Ready for Commercial Installs - UL94 V0 commercial rated, TAA compliant, HDBaseT approved. Meets ANSI/TIA 568.2-D Class E and ISO/IEC 11801 Class E. Recommended for CMP Plenum, CMR, CM, and LSZH up to B2ca-rated cables.

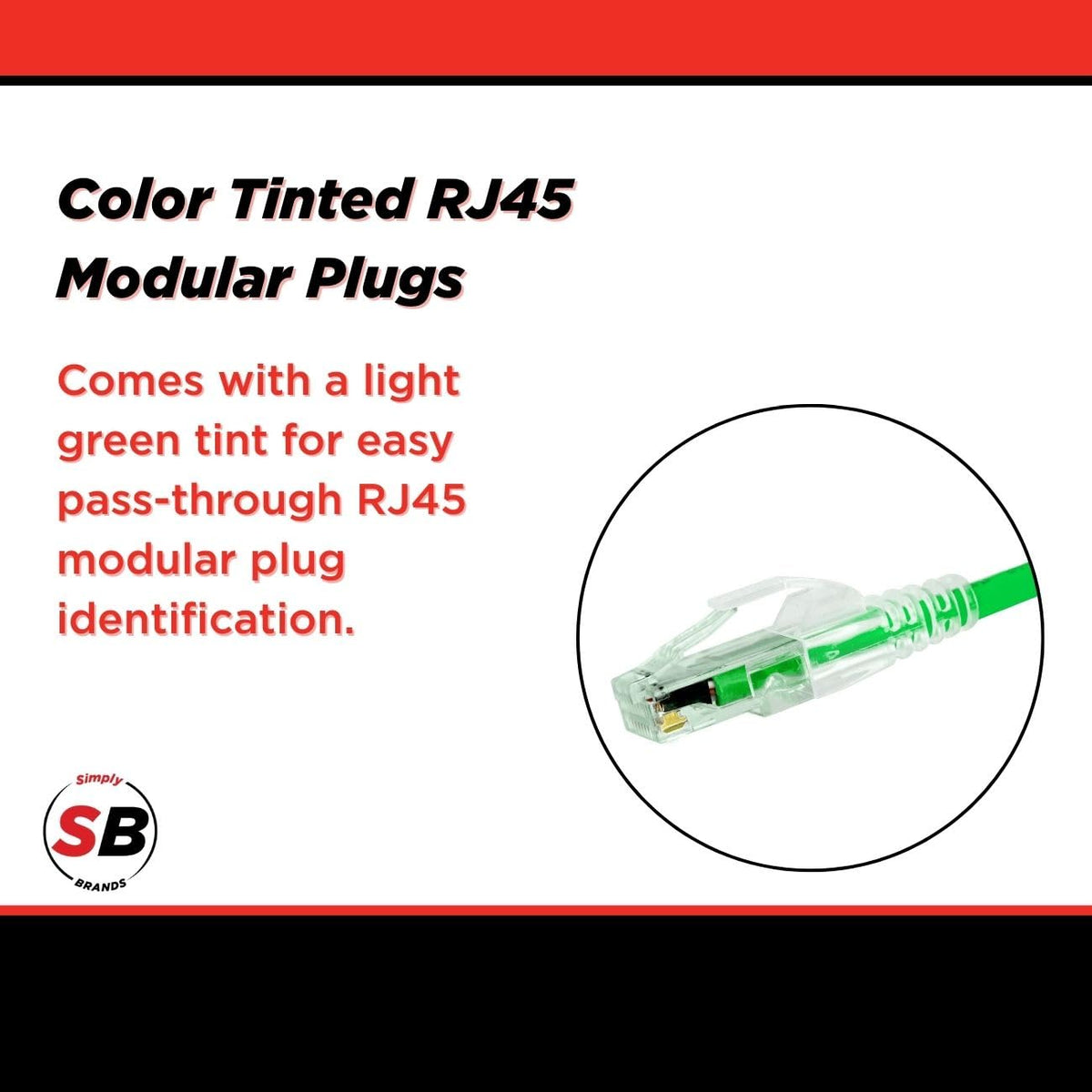

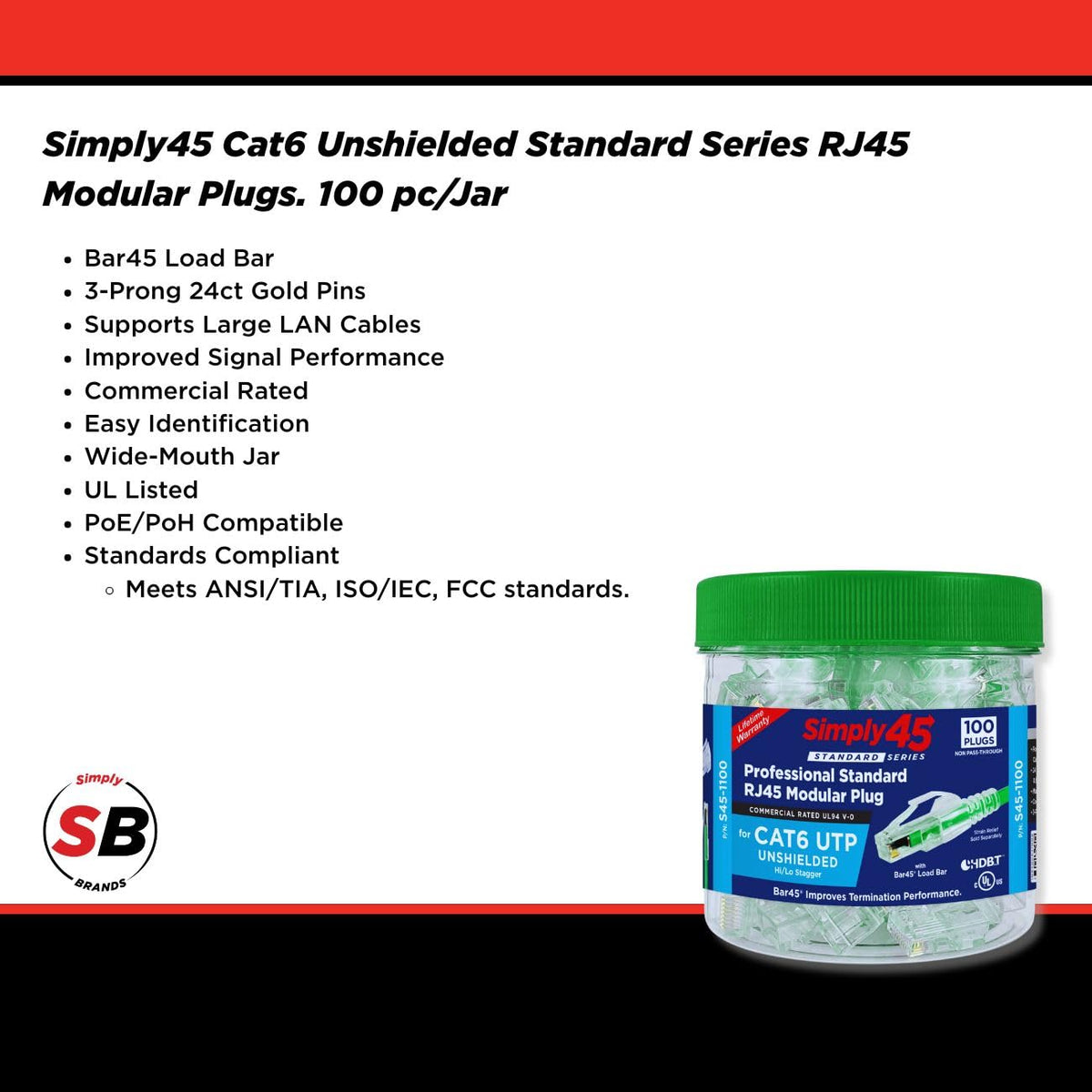

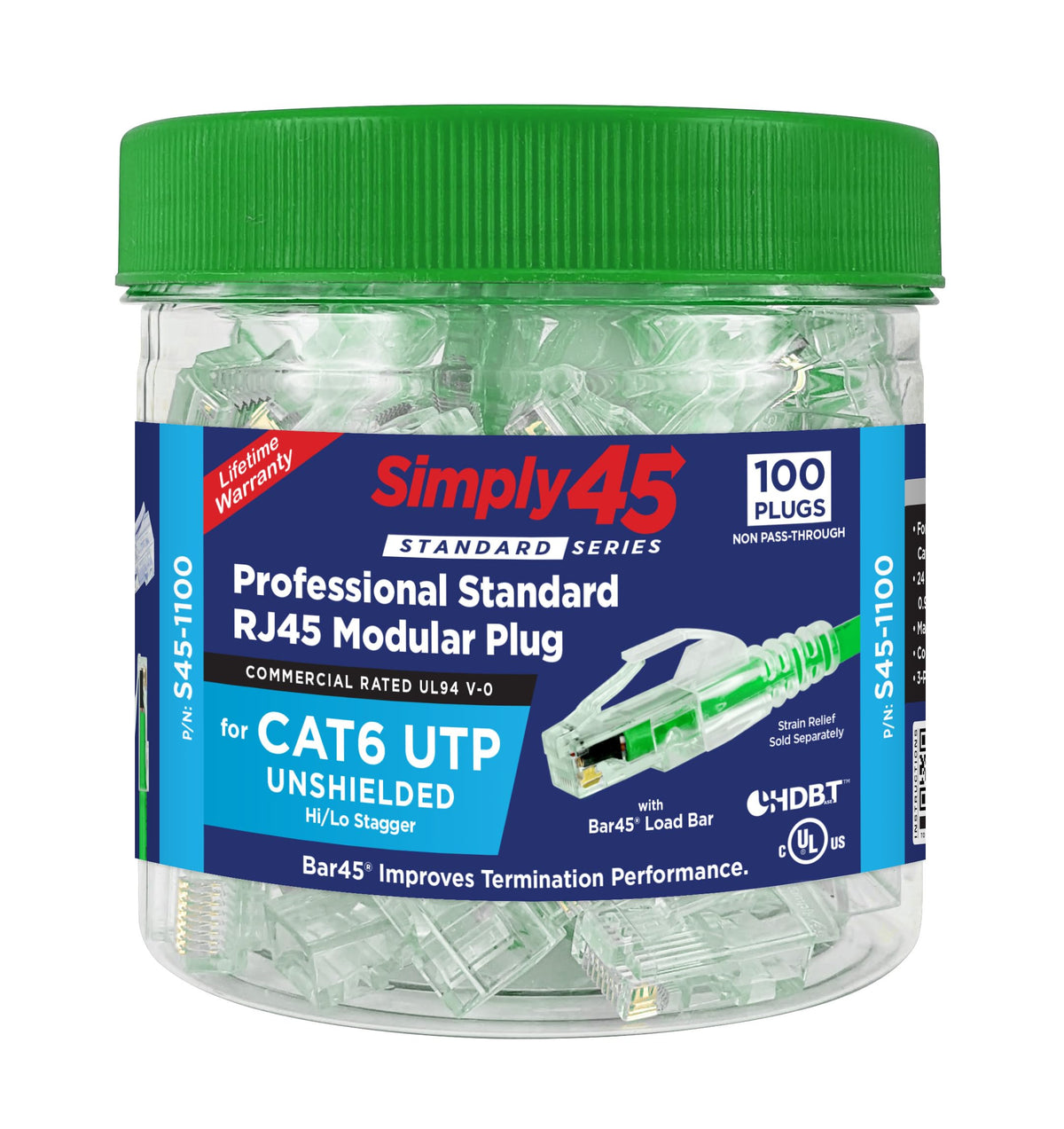

• 100-Pack Wide-Mouth Jar, Green Tint for Instant Field ID - Color-coded green plug body and matching jar cap lets installers grab the right Cat6 RJ45 ends fast from any bag or service kit. No spilling, no mixing up connectors on the job.

Product Details:

• Color: Green
• Size: 100 Pieces
• Model: S45-1100
• Package Quantity: 1
