Brand: SIIG

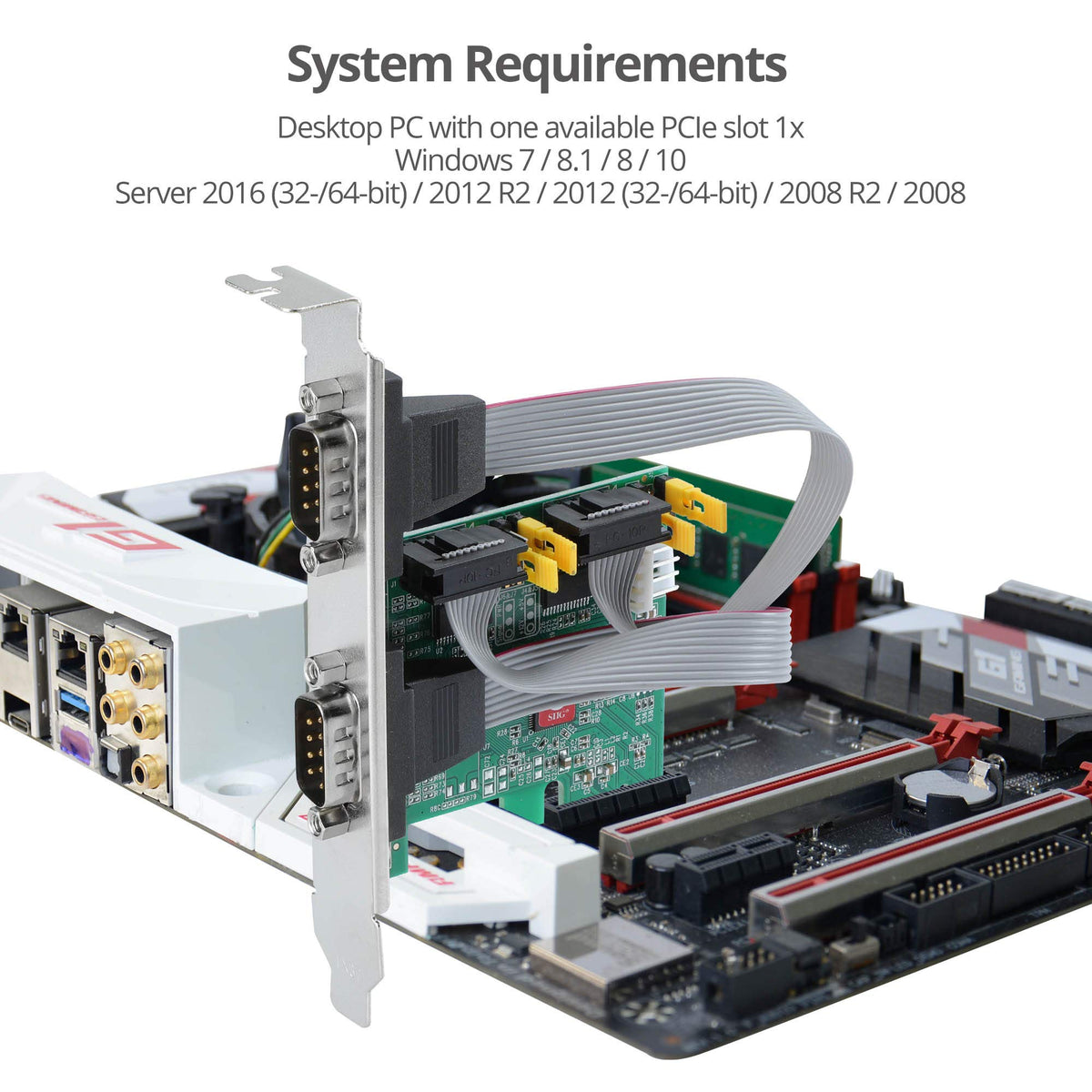

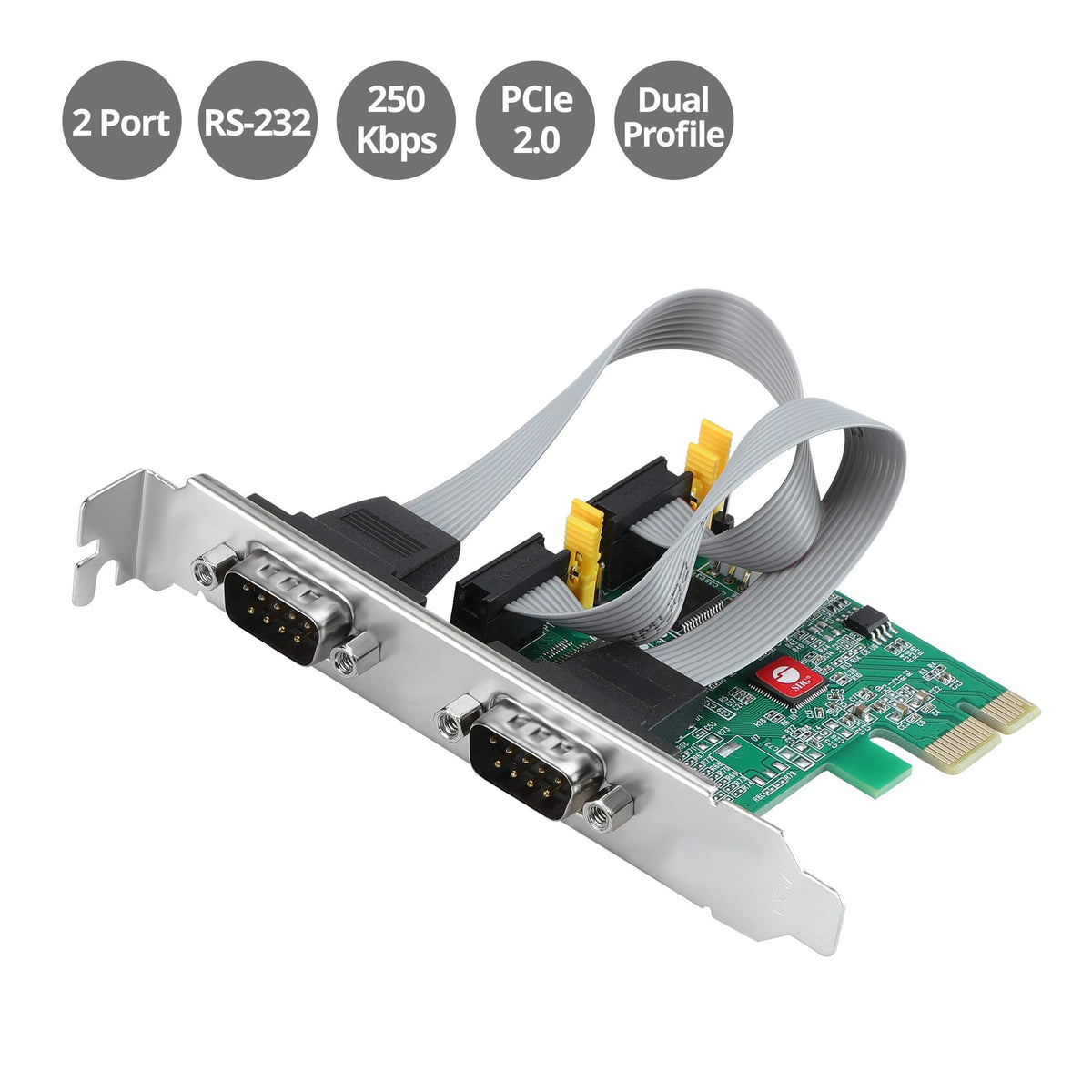

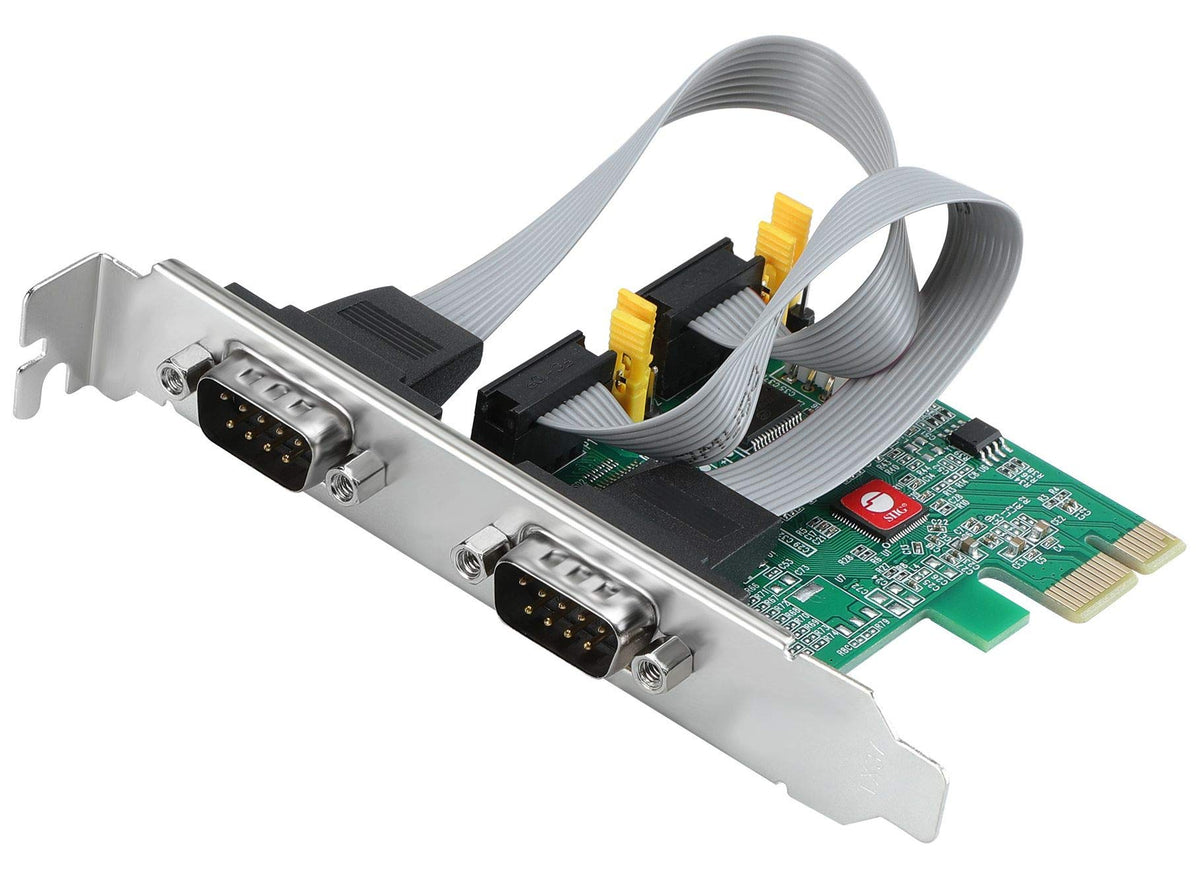

Features The SIIG's PCIe serial card JJ-E20711-S1 can be installed into an available PCI Express slot on the computer's motherboard, to provide two 9-pin RS-232 serial ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS-232 or parallel ports. The 16C650 UART serial port with data transfer rate up to 250Kbps. It works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers Benefits The PCIe serial card can decrease the loading on CPU activity which helps ensure optimal system performance and keep errors from happening. The card is with dual-profile design which fits full height and low-profile system chassis with the included spare low-profile brackets It is a great solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, vinyl cutter, printers, scanners, and etc.

Features:

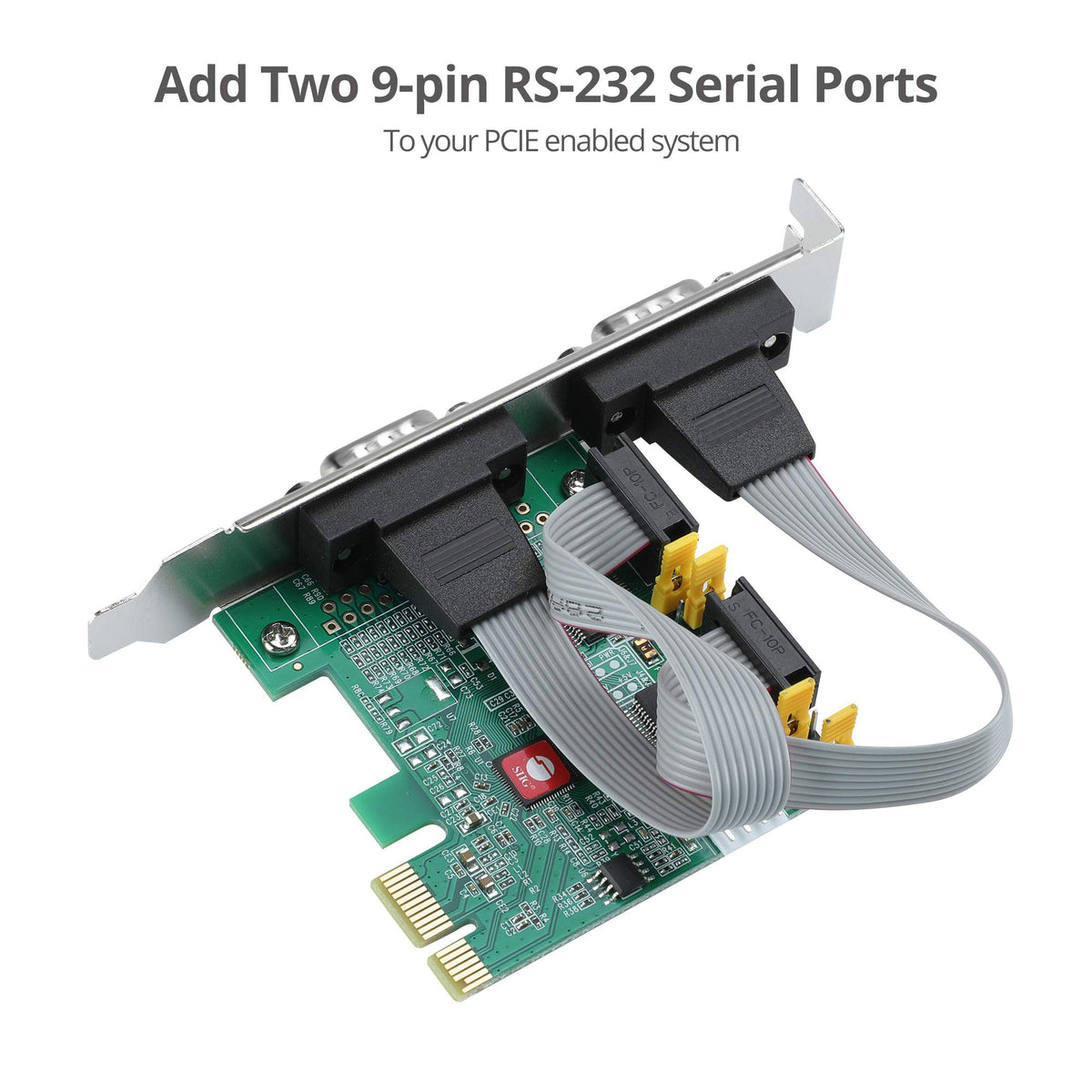

• Adds two 9-pin RS-232 serial port to PCIe enabled desktop computers, each port supports data transfer rate up to 250Kbps, Compliant with PCI Express 2.0 Gen 1
• Single-lane (x1) PCI Express End-point Controller with PHY integrated
• Full serial modem control with hardware and software flow control
• Supports 5, 6, 7, 8 and 9-bit serial formats, and Even, Odd, None, Space and Mark parity
• On chip 256-byte FIFO buffers in transmit and receive path for each serial port
• Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
• Supports PCI Bus Power Management Interface Specification Revision 1.2
• Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
• Installs into any PCI Express slot of any lane width
• Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

Product Details:

• Size: Serial Port x2
• Model: DHJJE20711S1
• Package Quantity: 1
