Description
Brand: SHNITPWR
Model: SNT-2403
Parameter
Input: AC 100V~240V 50/60Hz
Output Voltage: DC 24V ( constant voltage )
Output Current: Max 3A
Output Wattage:Max 72W
Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
AC input power cable length: 47.2in / 120cm
DC output power cable length: 43.3in / 110cm

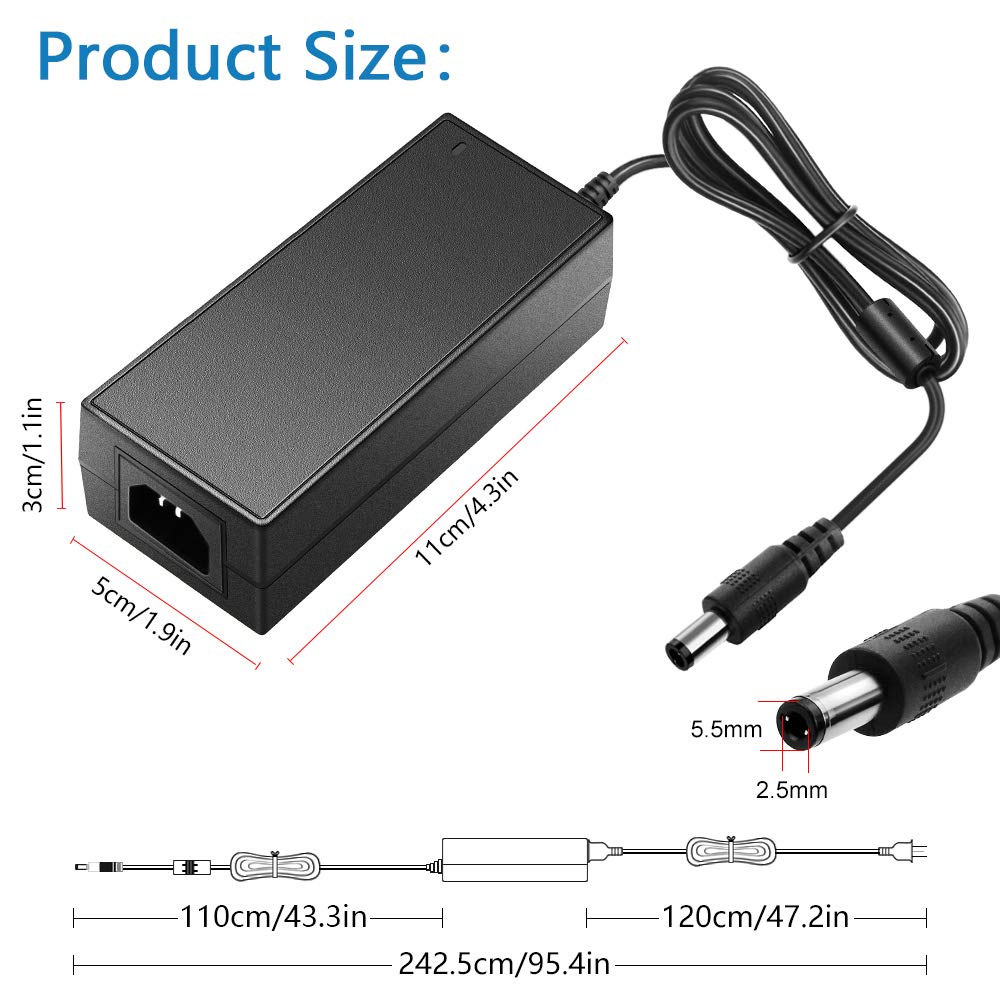

Adapter body size: 4.3in (L) x 1.9in (W) x 1.1in (H)
Safety Compliance: FCC / CE/ RoHS / CCC
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Weight: 0.87 lb / 396g
Professional advice from licensed electrician:
The max use should be no more than 80% of the full loads.
Otherwise, the power supply will generate much heat and its service life will be greatly shortened.
We recommend you to use this 24V 3A 72W power supply to power devices less than 57.6W.
Kindly note
1.The 24V 3A power supply comes with a free female DC connector. You can easily screw wires on it without soldering.
2.The plug is not waterproof, please don’t use it outdoor. Please keep it away from water and fire.
3.This is a 24V constant voltage power supply. Make sure your device match the 24V voltage and wattage LESS than 72W.
4.If there is any problem with the power supply, please feel free to contact us plus your order ID and picture by email. We will solve the problems for you within 24 hours.

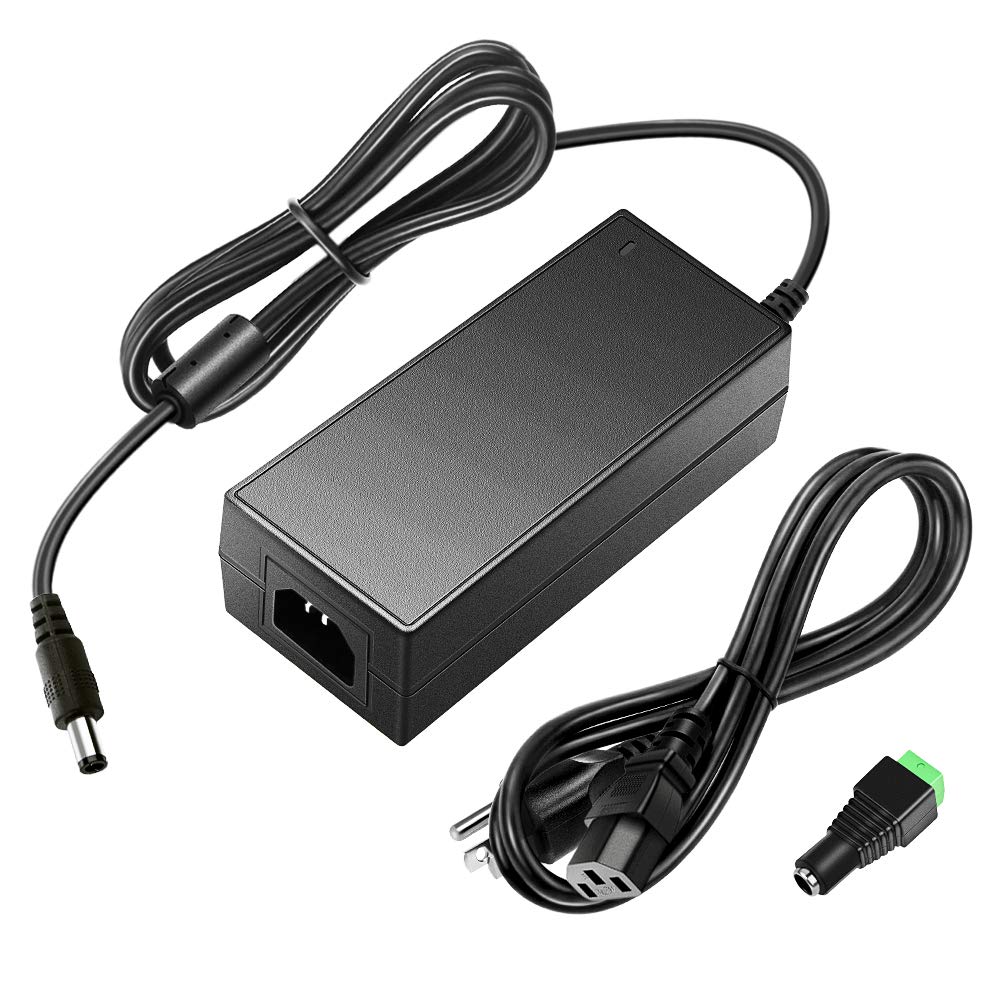

Package included
1x 24V 3A power supply adapter
1x AC input power cable
1x DC female connector
• Input: AC 100V - 240V, 50 / 60Hz
• Output: DC 24V, Max 3A, 72W
• It can supply with all amperage less than 3A. ---such as 500mA, 800mA, 1A, 2.5A, 3A. If your device draws 2A then 2A will be supplied. But if draws more than 3A, only 3A will be supplied and power supply will be damaged soon. NEVER OVERLOAD!

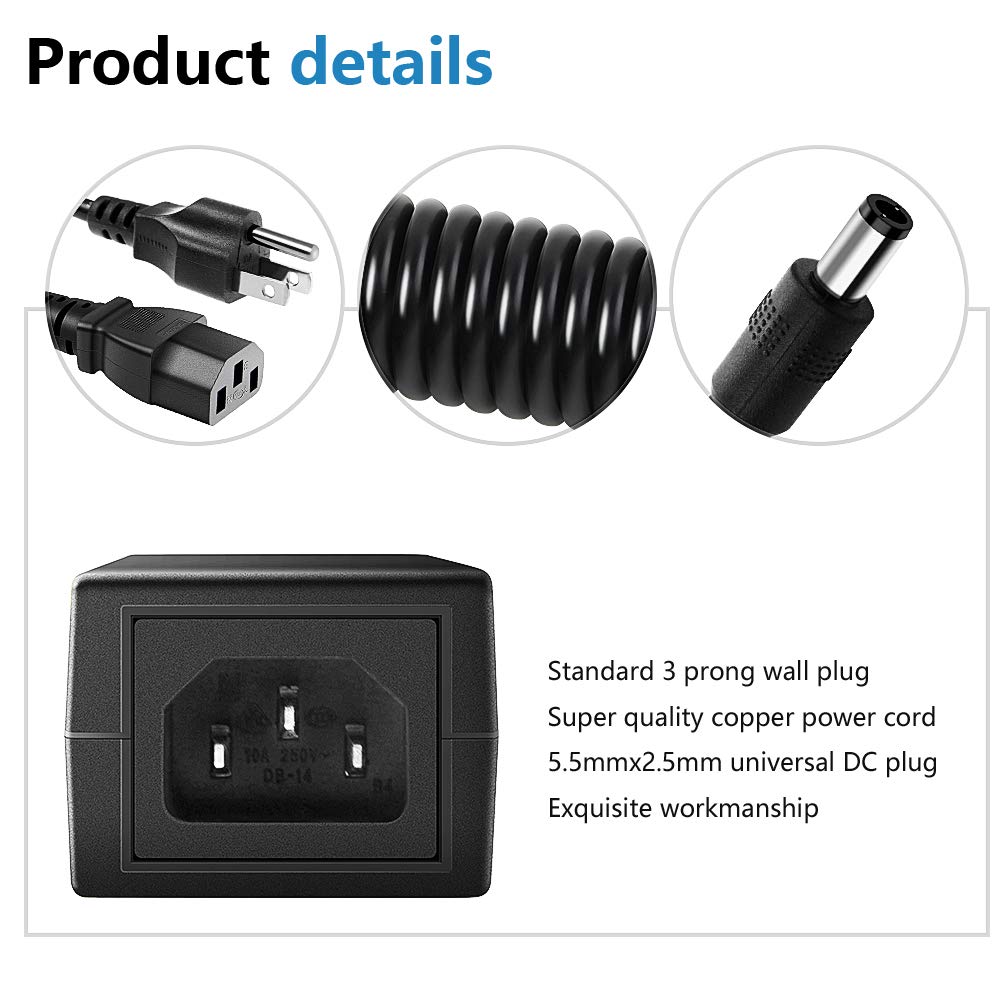

• Output DC adaptor jack size is 5.5mm x 2.5mm. In order to meet more needs,we give away a female DC connector. You can screw wires onto it easily, no soldering required.
• Certified by FCC CE ROHS. We focus on producing high quality power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.

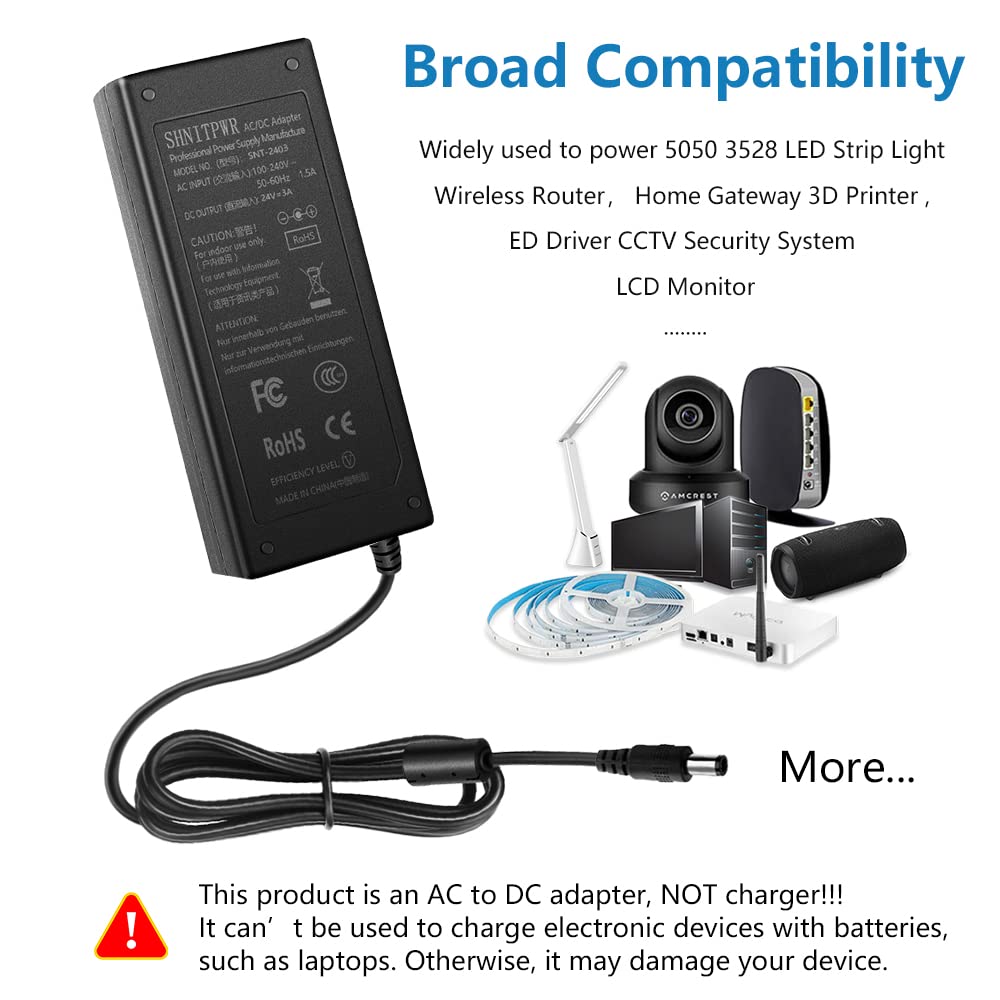

• It is perfect for 5050 3528 24V LED Strip Light, Wireless Router, ADSL Cats, HUB, Security Cameras, Audio/ Video Power Supply, 3D Printer, LED Driver, CCTV Security System, LCD Monitor, Webcam Router and other 24V devices.
• This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Otherwise, it may damage your device. If you have any isssue, please contact us at anytime. We will solve it for you at the first time.
Color: Black
Power/Wattage: 1-pack
Model: SNT-2403
Parameter
Input: AC 100V~240V 50/60Hz
Output Voltage: DC 24V ( constant voltage )
Output Current: Max 3A
Output Wattage:Max 72W
Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
AC input power cable length: 47.2in / 120cm
DC output power cable length: 43.3in / 110cm
Adapter body size: 4.3in (L) x 1.9in (W) x 1.1in (H)
Safety Compliance: FCC / CE/ RoHS / CCC
Working Temperature: 0~40℃
Storage Temperature: -20~60℃
Ambient Humidity: 0~95% Non-Condensation
Weight: 0.87 lb / 396g
Professional advice from licensed electrician:
The max use should be no more than 80% of the full loads.
Otherwise, the power supply will generate much heat and its service life will be greatly shortened.
We recommend you to use this 24V 3A 72W power supply to power devices less than 57.6W.
Kindly note
1.The 24V 3A power supply comes with a free female DC connector. You can easily screw wires on it without soldering.
2.The plug is not waterproof, please don’t use it outdoor. Please keep it away from water and fire.
3.This is a 24V constant voltage power supply. Make sure your device match the 24V voltage and wattage LESS than 72W.
4.If there is any problem with the power supply, please feel free to contact us plus your order ID and picture by email. We will solve the problems for you within 24 hours.
Package included
1x 24V 3A power supply adapter
1x AC input power cable
1x DC female connector
• Input: AC 100V - 240V, 50 / 60Hz
• Output: DC 24V, Max 3A, 72W
• It can supply with all amperage less than 3A. ---such as 500mA, 800mA, 1A, 2.5A, 3A. If your device draws 2A then 2A will be supplied. But if draws more than 3A, only 3A will be supplied and power supply will be damaged soon. NEVER OVERLOAD!
• Output DC adaptor jack size is 5.5mm x 2.5mm. In order to meet more needs,we give away a female DC connector. You can screw wires onto it easily, no soldering required.
• Certified by FCC CE ROHS. We focus on producing high quality power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.
• It is perfect for 5050 3528 24V LED Strip Light, Wireless Router, ADSL Cats, HUB, Security Cameras, Audio/ Video Power Supply, 3D Printer, LED Driver, CCTV Security System, LCD Monitor, Webcam Router and other 24V devices.
• This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Otherwise, it may damage your device. If you have any isssue, please contact us at anytime. We will solve it for you at the first time.
Color: Black
Power/Wattage: 1-pack
