Description
Brand: SHNITPWR
Model: SNT1230T
Parameter
Input: AC 110V/220V，50/60Hz
Output Voltage: DC 12V ( Regulated by 15% )
Output Current: Max 30A
Output Wattage:Max 360W

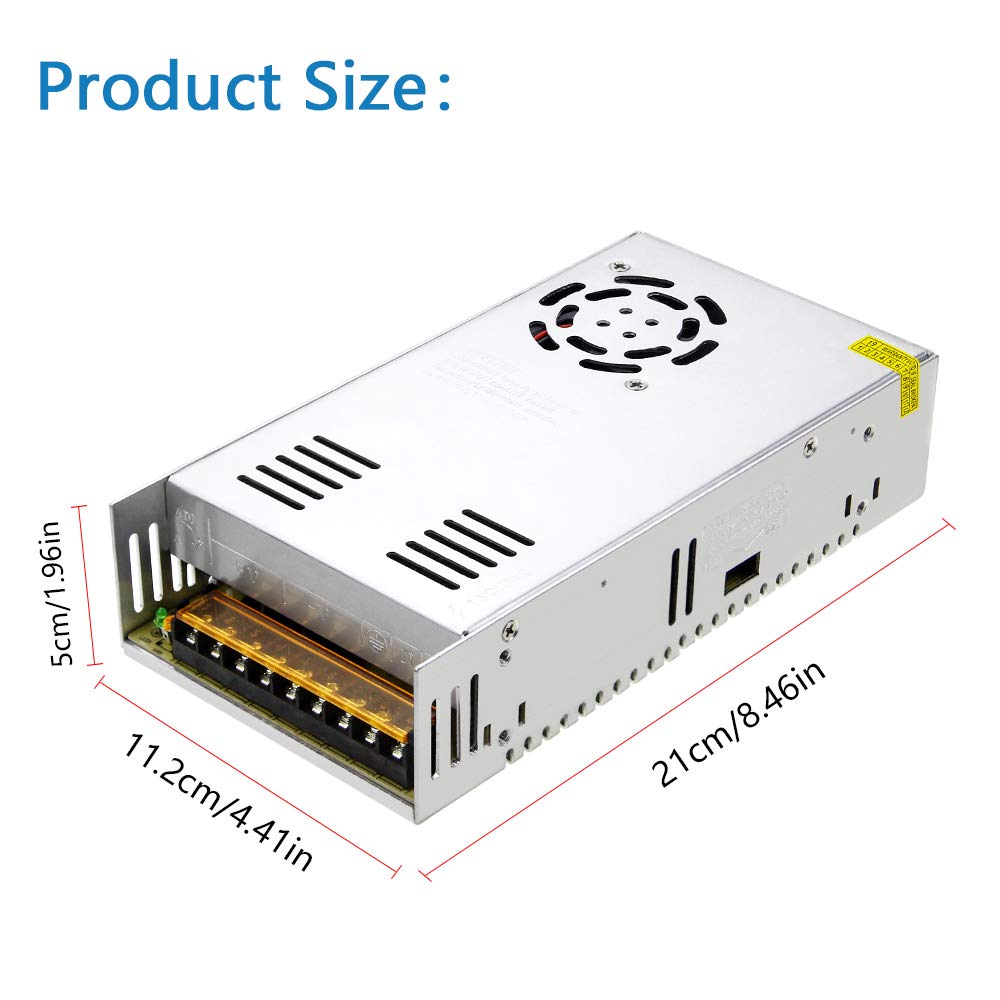

Size: 8.46in(L) x 4.41in(W) x 1.96in (H)
Material: Metal, Electronic Parts
Safety Compliance: FCC / CE/ RoHS / CCC
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10°C to 60 °C
Environmental humidity: 10%-95%
Weight: 1.87 lb / 850g
Package included:
1x 12V 30A power supply (power cord is not included)
Kindly note

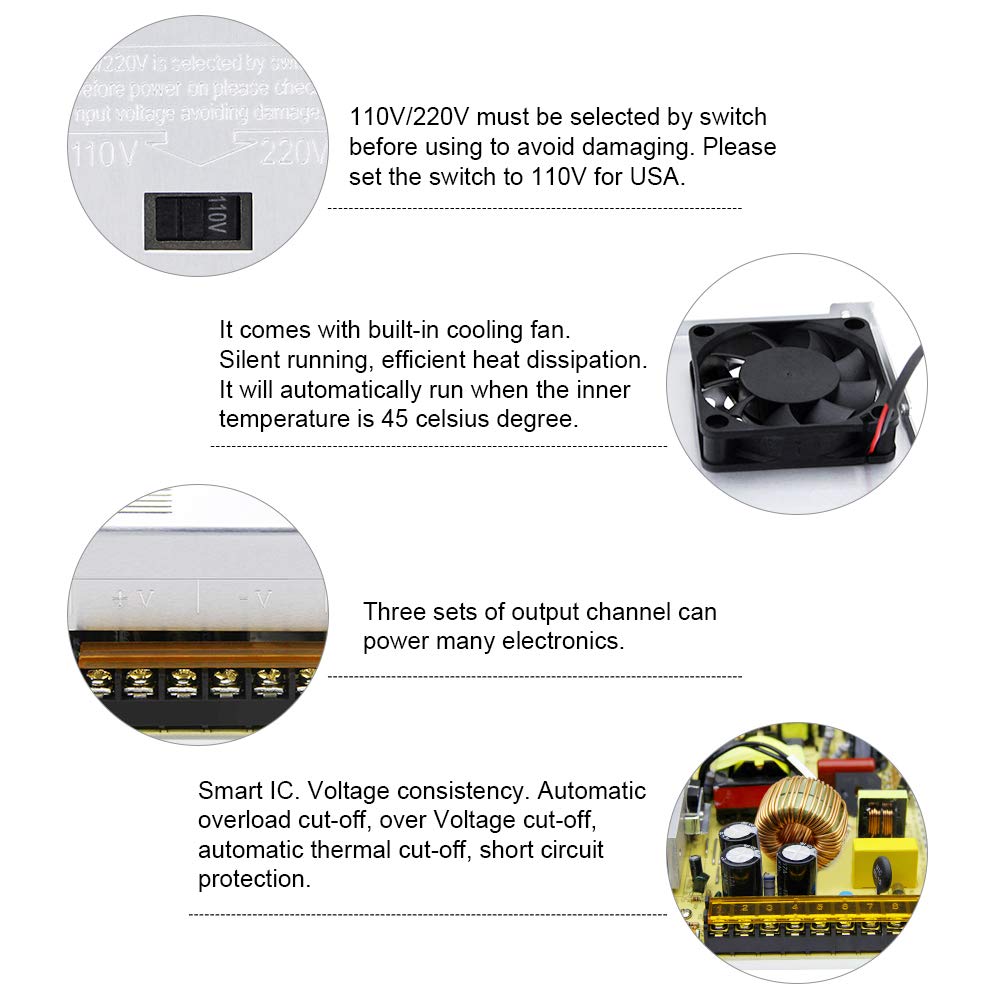

1.110V/220V must be selected by switch before using to avoid damaging. The power select (110v/220v) switch is located inside the case. Please use a small screw driver to reach in and change the switch to 110V for USA.
2.It comes without installation instruction, power cord, on/off switch and screws. Professional installation of licensed electrician is highly recommended.
3.High voltage inside, NEVER remove the cover. Not waterproof, indoor use only.
4.Make sure your device match the 12V voltage and wattage less than 360W. Please don’t run it overload.
5.If there is any issue with the power supply, please feel free to contact us by email. We will solve the problems for you within 24 hours.

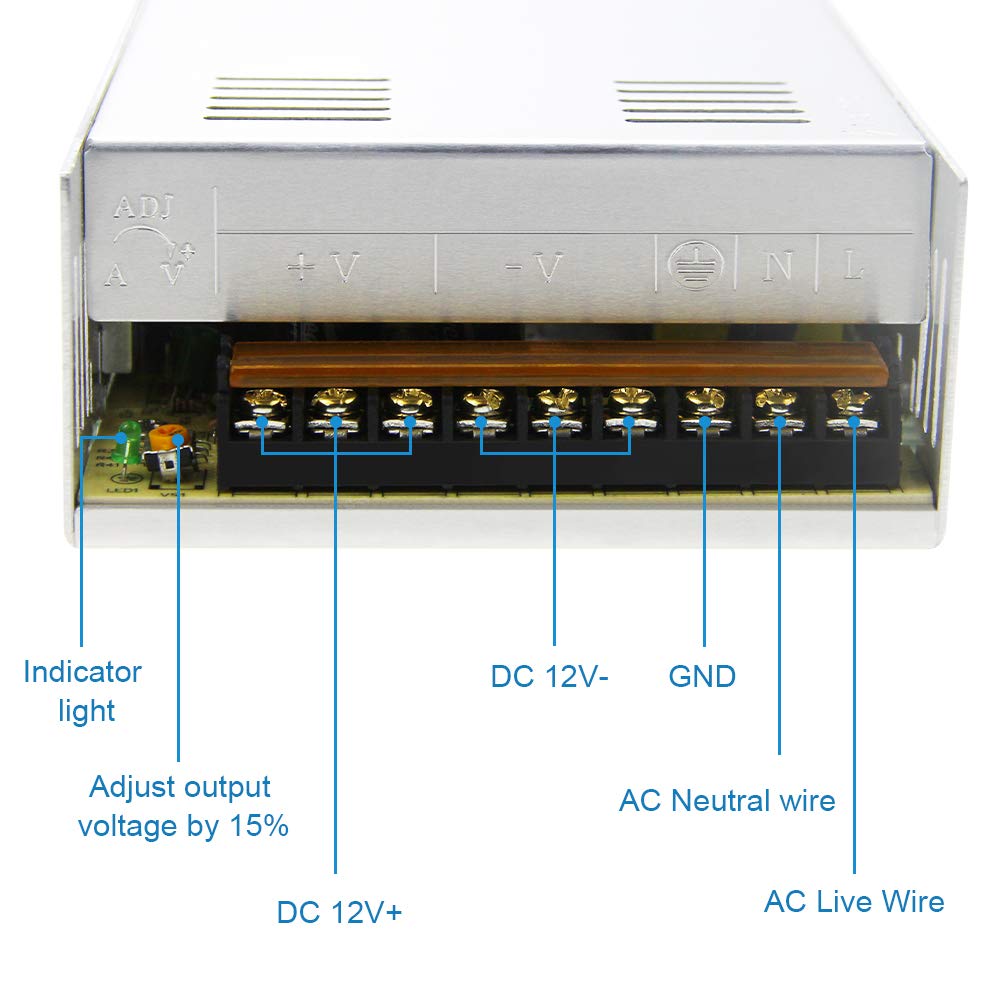

Connection instruction
L: AC Live Wire
N: AC Neutral wire
+V:DC 12V+
-V: DC 12V-
+V ADJ: Adjust output voltage by 15%
Professional advice from licensed electrician:
The max use should be no more than 80% of the full loads.
Otherwise, the service life of the power supply will be greatly shortened.
We recommend you to use this 12V 30A 360W power supply to power devices less than 288W.
• Universal switching mode power supply. Input: AC 110V / 220V, 50 / 60Hz
• Output: DC 12V, Max 30A, 360W. The default output voltage is 12V DC, but it can be regulated by 15%, from 10.2V to 13.8V. Three sets of output channels available.
• It can supply with all amperage less than 30A. ---such as 1A, 2.5A, 10A, 18A, 20A, 30A. For example, if your device draws 25A, then 25A will be supplied. If draws more than 30A, only 30A will be supplied and power supply will be damaged soon. NEVER OVERLOAD !

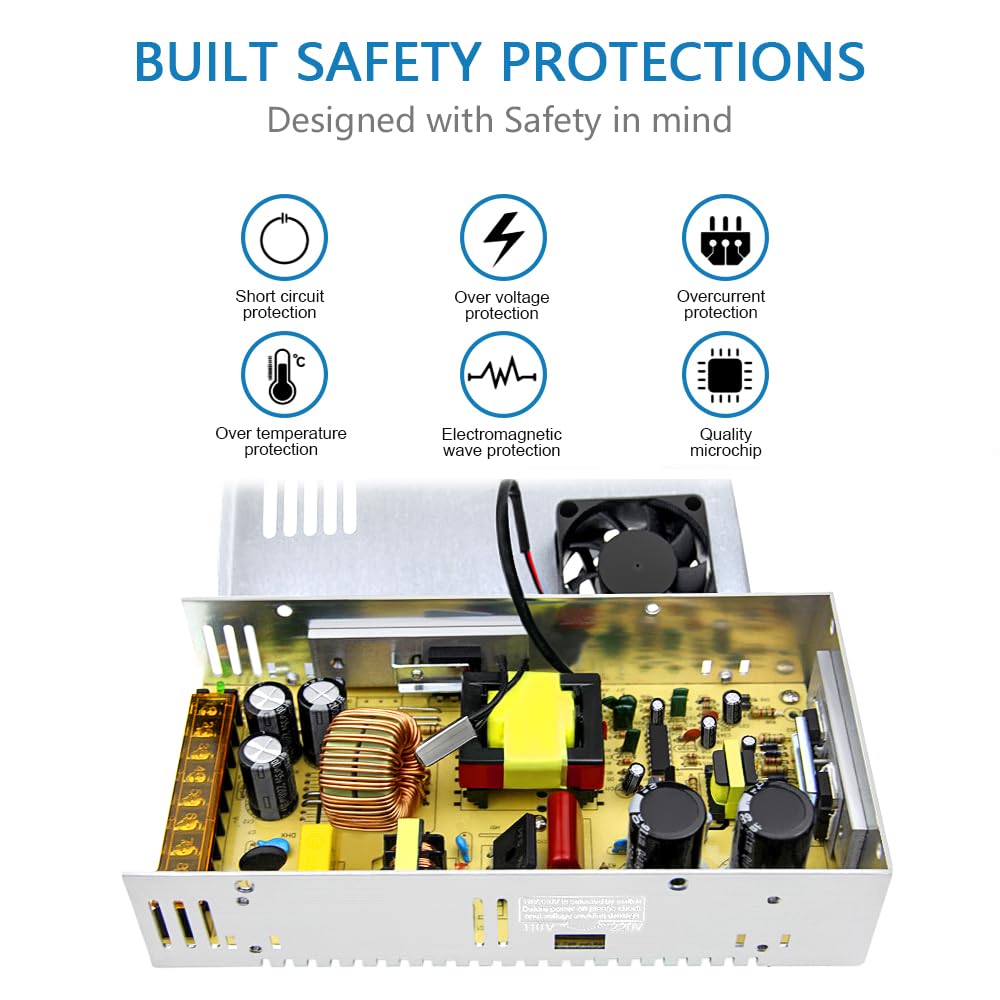

• Certified by FCC CE ROHS. We focus on producing high quality power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.
• It is perfect for 5050 3528 12V LED Strip Light, Wireless Router, ADSL Cats, HUB, Security Cameras, Audio/ Video Power Supply, 3D Printer, LED Driver, CCTV Security System, LCD Monitor, Webcam Router and other 12V devices less than 360W.
• There is built-in cooling fan, which makes heat dissipation more efficient. This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Otherwise, it may damage your device.
Power/Wattage: 30A
Model: SNT1230T
Parameter
Input: AC 110V/220V，50/60Hz
Output Voltage: DC 12V ( Regulated by 15% )
Output Current: Max 30A
Output Wattage:Max 360W
Size: 8.46in(L) x 4.41in(W) x 1.96in (H)
Material: Metal, Electronic Parts
Safety Compliance: FCC / CE/ RoHS / CCC
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10°C to 60 °C
Environmental humidity: 10%-95%
Weight: 1.87 lb / 850g
Package included:
1x 12V 30A power supply (power cord is not included)
Kindly note
1.110V/220V must be selected by switch before using to avoid damaging. The power select (110v/220v) switch is located inside the case. Please use a small screw driver to reach in and change the switch to 110V for USA.
2.It comes without installation instruction, power cord, on/off switch and screws. Professional installation of licensed electrician is highly recommended.
3.High voltage inside, NEVER remove the cover. Not waterproof, indoor use only.
4.Make sure your device match the 12V voltage and wattage less than 360W. Please don’t run it overload.
5.If there is any issue with the power supply, please feel free to contact us by email. We will solve the problems for you within 24 hours.
Connection instruction
L: AC Live Wire
N: AC Neutral wire
+V:DC 12V+
-V: DC 12V-
+V ADJ: Adjust output voltage by 15%
Professional advice from licensed electrician:
The max use should be no more than 80% of the full loads.
Otherwise, the service life of the power supply will be greatly shortened.
We recommend you to use this 12V 30A 360W power supply to power devices less than 288W.
• Universal switching mode power supply. Input: AC 110V / 220V, 50 / 60Hz
• Output: DC 12V, Max 30A, 360W. The default output voltage is 12V DC, but it can be regulated by 15%, from 10.2V to 13.8V. Three sets of output channels available.
• It can supply with all amperage less than 30A. ---such as 1A, 2.5A, 10A, 18A, 20A, 30A. For example, if your device draws 25A, then 25A will be supplied. If draws more than 30A, only 30A will be supplied and power supply will be damaged soon. NEVER OVERLOAD !
• Certified by FCC CE ROHS. We focus on producing high quality power adapters. No noise, low temperature operation, no spontaneous combustion, no explosion, no fire hazard, stable output. Automatic overload cut-off, over voltage cut-off, automatic thermal cut-off, short circuit protection.
• It is perfect for 5050 3528 12V LED Strip Light, Wireless Router, ADSL Cats, HUB, Security Cameras, Audio/ Video Power Supply, 3D Printer, LED Driver, CCTV Security System, LCD Monitor, Webcam Router and other 12V devices less than 360W.
• There is built-in cooling fan, which makes heat dissipation more efficient. This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Otherwise, it may damage your device.
Power/Wattage: 30A
