Description
Brand: Riotaxy
1.Materials & Plated:
Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ?Salt spray test for 48 hours
Connectors: N-Female to N-Female
RoHS compliant
2.Electricail Characteristics?
Impedance:50 ohm
Dielectric Withstanding Voltage:2500V (RMS)
Contact Resistance:Center conductor ? 1m?, Outer conductor ? 1m?
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR ?1.2
3.Package include:
1 piece surge protector
4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 50ohm Lightning Surge Protector with N-Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
This lightning protector is specifically for 50 ohm systems.
Lightning surge protector for Coaxial cable.
The Lightning Arrester protectors offer HF/VHF/UHF other frequency equipment with extremely low loss.
They boast an insertion loss of less than 0.2 dB.
Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
They can also be installed near the antenna for additional protection.
• 1.Protects signal boosters from lightning strikes, Requires additional ground cable
• 2.Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ?Salt spray test for 48 hours

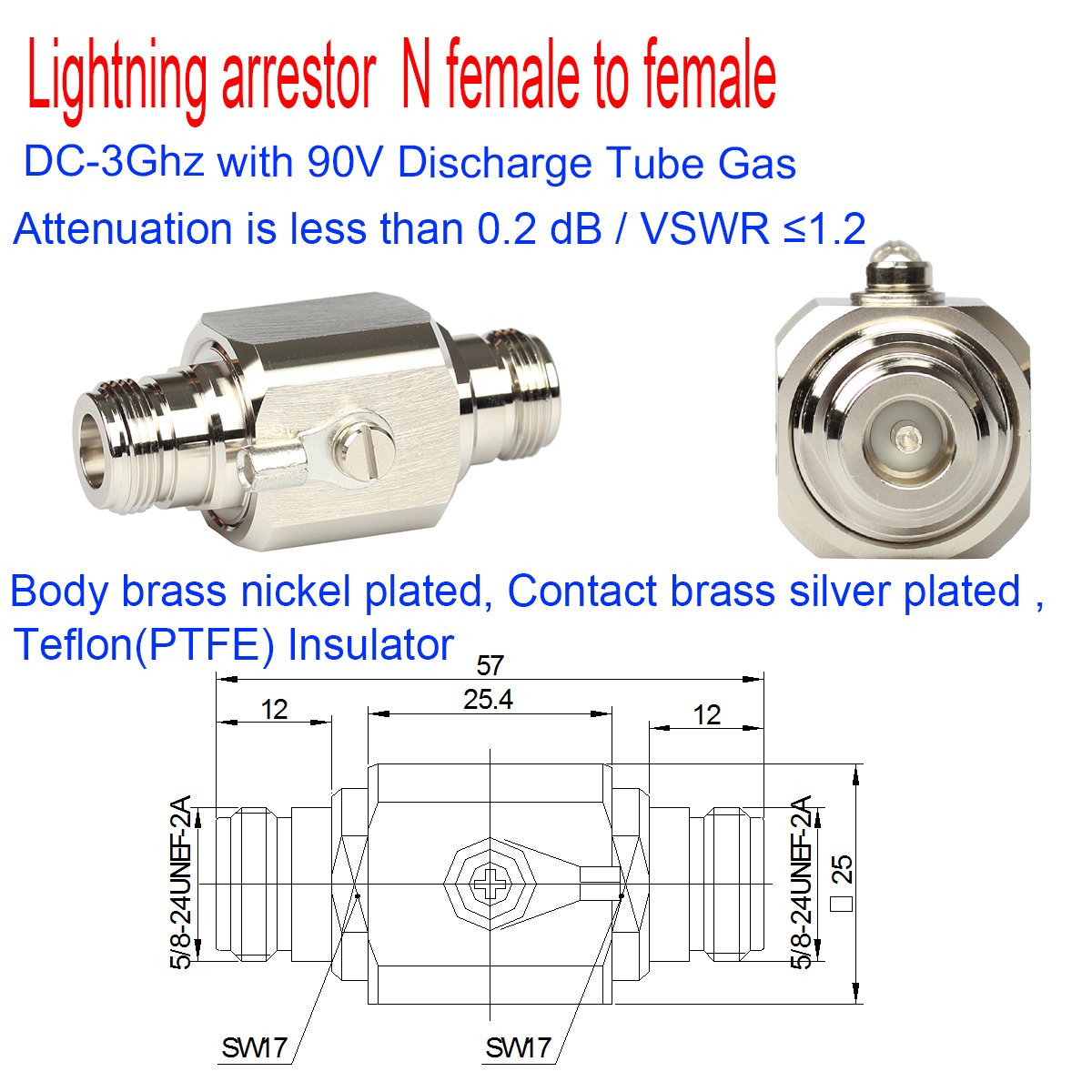

• 3. Frequency Range up to 3 GHz / Attenuation is less than 0.2 dB / VSWR ?1.2 ( DC-3Ghz)

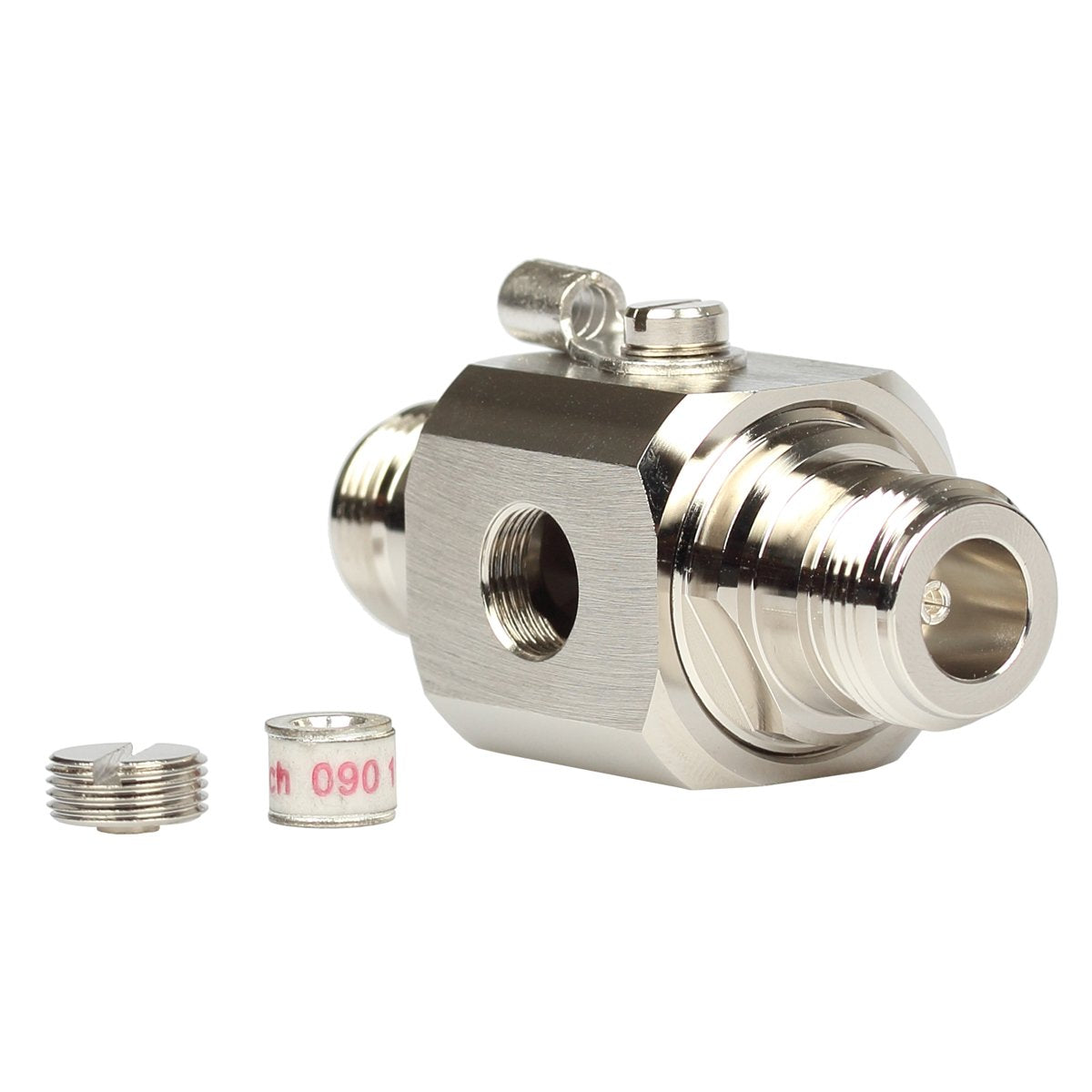

• 4. It has a replaceable gas discharge element with High Surge Power Capability ( 90V Gas tube)
• 5.Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
Color: 3G Lightning arrestor N Female to Female Square
1.Materials & Plated:
Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ?Salt spray test for 48 hours
Connectors: N-Female to N-Female
RoHS compliant
2.Electricail Characteristics?
Impedance:50 ohm
Dielectric Withstanding Voltage:2500V (RMS)
Contact Resistance:Center conductor ? 1m?, Outer conductor ? 1m?
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR ?1.2
3.Package include:
1 piece surge protector
4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 50ohm Lightning Surge Protector with N-Female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
This lightning protector is specifically for 50 ohm systems.
Lightning surge protector for Coaxial cable.
The Lightning Arrester protectors offer HF/VHF/UHF other frequency equipment with extremely low loss.
They boast an insertion loss of less than 0.2 dB.
Arresters should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
They can also be installed near the antenna for additional protection.
• 1.Protects signal boosters from lightning strikes, Requires additional ground cable
• 2.Body brass nickel plated, Contact brass silver plated ,Teflon(PTFE) Insulator for a reliable signal every time ?Salt spray test for 48 hours
• 3. Frequency Range up to 3 GHz / Attenuation is less than 0.2 dB / VSWR ?1.2 ( DC-3Ghz)
• 4. It has a replaceable gas discharge element with High Surge Power Capability ( 90V Gas tube)
• 5.Surge protector should be installed as close a possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
Color: 3G Lightning arrestor N Female to Female Square
