Brand: QSFPTEK

10/100/1000Base-Tx to 1000Base-SX Dual LC Fiber Gigabit Media Converter RJ45 Port Data Rate: 10/100/1000M auto-negotiation Optical Port Data Rate: 1.25Gbps Interface: 1x Dual LC Port, 1x RJ45 Port Fiber Type: Multimode Fiber Connector: Dual LC Fiber Wavelength: 850nm Reach: 550m Temperature Range: 0°C to 60°C Included Power Supply: Yes Power Supply: 5V DC/1A Power dissipation: 3 watts External Power: AC 100V~240V Dimensions: 95 x 72 x 27mm(D x W x H) Weight: 0.35kg Housing: Metal enclosure Product List: 1x Gigabit Ethernet Media Converter 1x 1000Base-SX SFP Module 1x DC Power Adapter 1x Product Manual LED Indicators: 1. FX: Light on when fiber speed is 1000Mbps, else light off. 2. TX: Light on when TP speed is 1000Mbps, else light off. 3. Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving. 4. FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active. 5. PWR: Light on when DC power on, else light off. Feature: 1. High-quality Conversion Chip: Lightning protection. Strong anti-interference ability.High-speed and stability signal conversion. 2. UL Certified Power Adapter: Safety standards: UL/EN60950 GB4943. High reliability, security and efficiency. 3. Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life. Wide Applications: 1. Extend or bridge networks using fiber cable. 2. Provide connectivity to users in an isolated area of a large complex or in a separate building. 3. Ideal for secure connections required by government or corporations where EMI is not acceptable. fiber modem fiber optic modem discount - high to low fiber converter fiber to ethernet converter

Features:

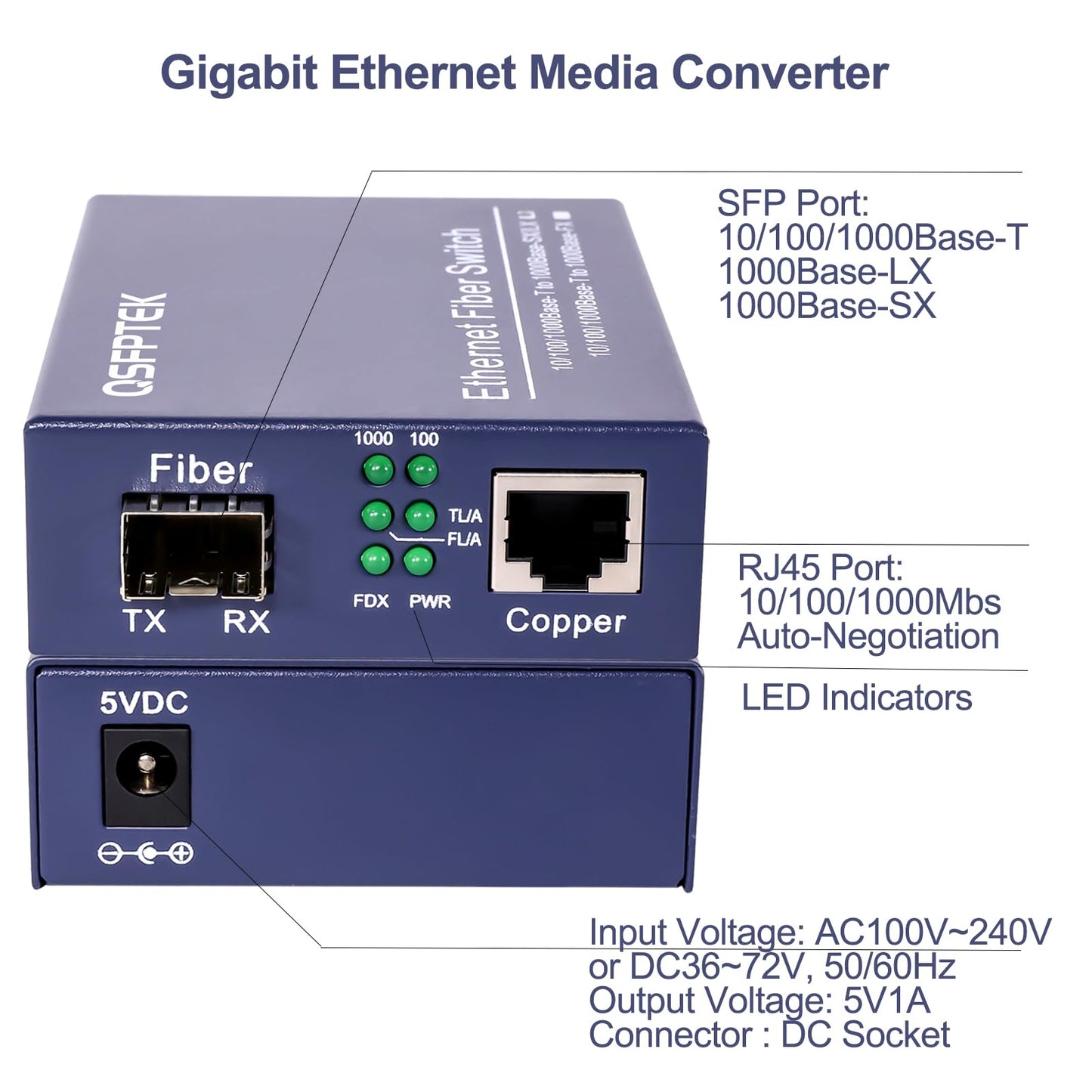

• 1x Multimode Dual LC fiber Optical Port: 1.25Gbps, 850nm wavelength, support Gigabit Ethernet
• 1x RJ45 Port: 10M/100M/1000M, supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover.
• Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX. Supports jumbo frame size 9K byte.
• Modulization configuration design, support hot-swappable, plug and play. And LED indicators for TX, FX LINK/ACT, POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.
• Only 93mm x 72mm x 27mm(3.7"x 2.8"x 1.1") in measurement. Its compact modular design facilitates deployment in a narrow desktop location to save space.

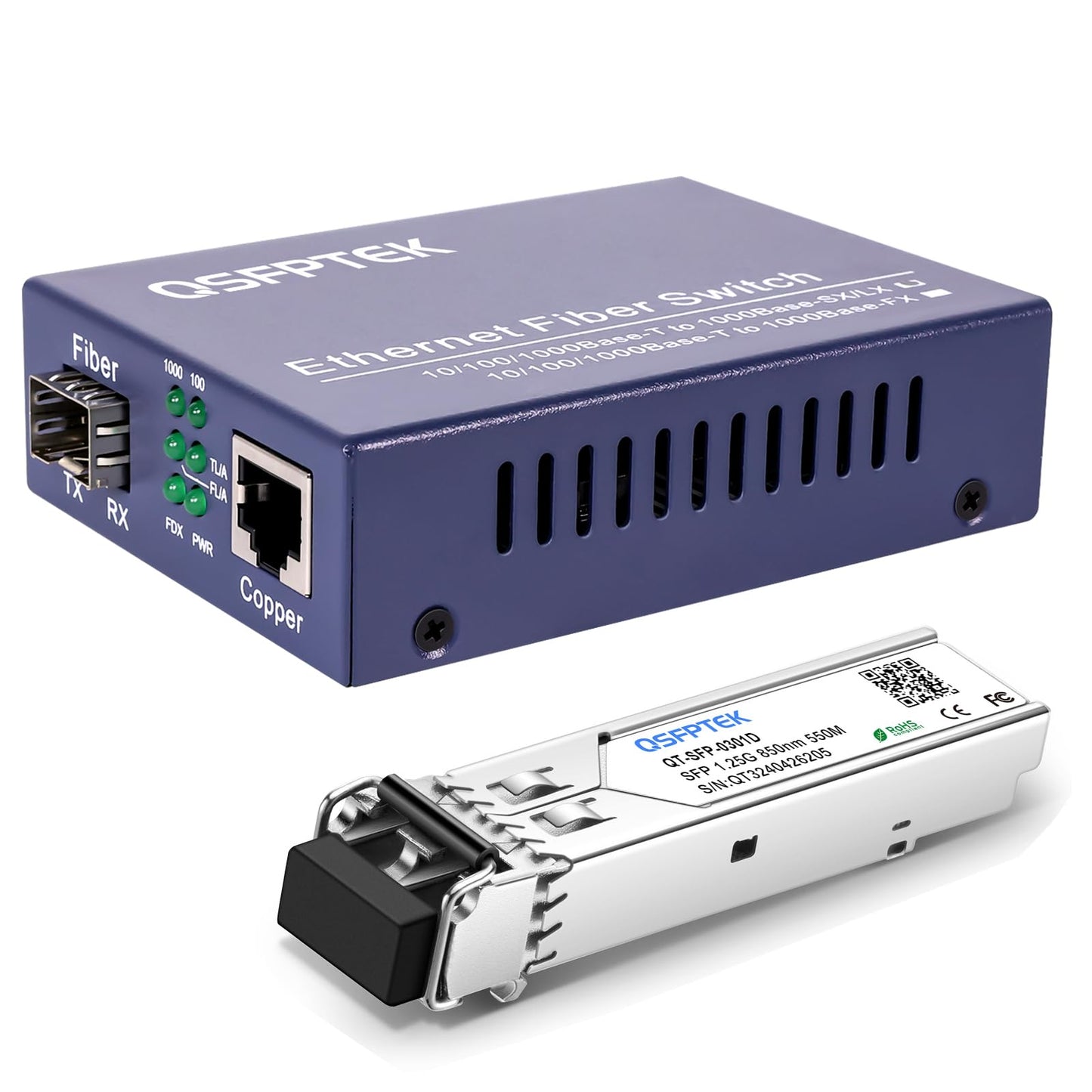

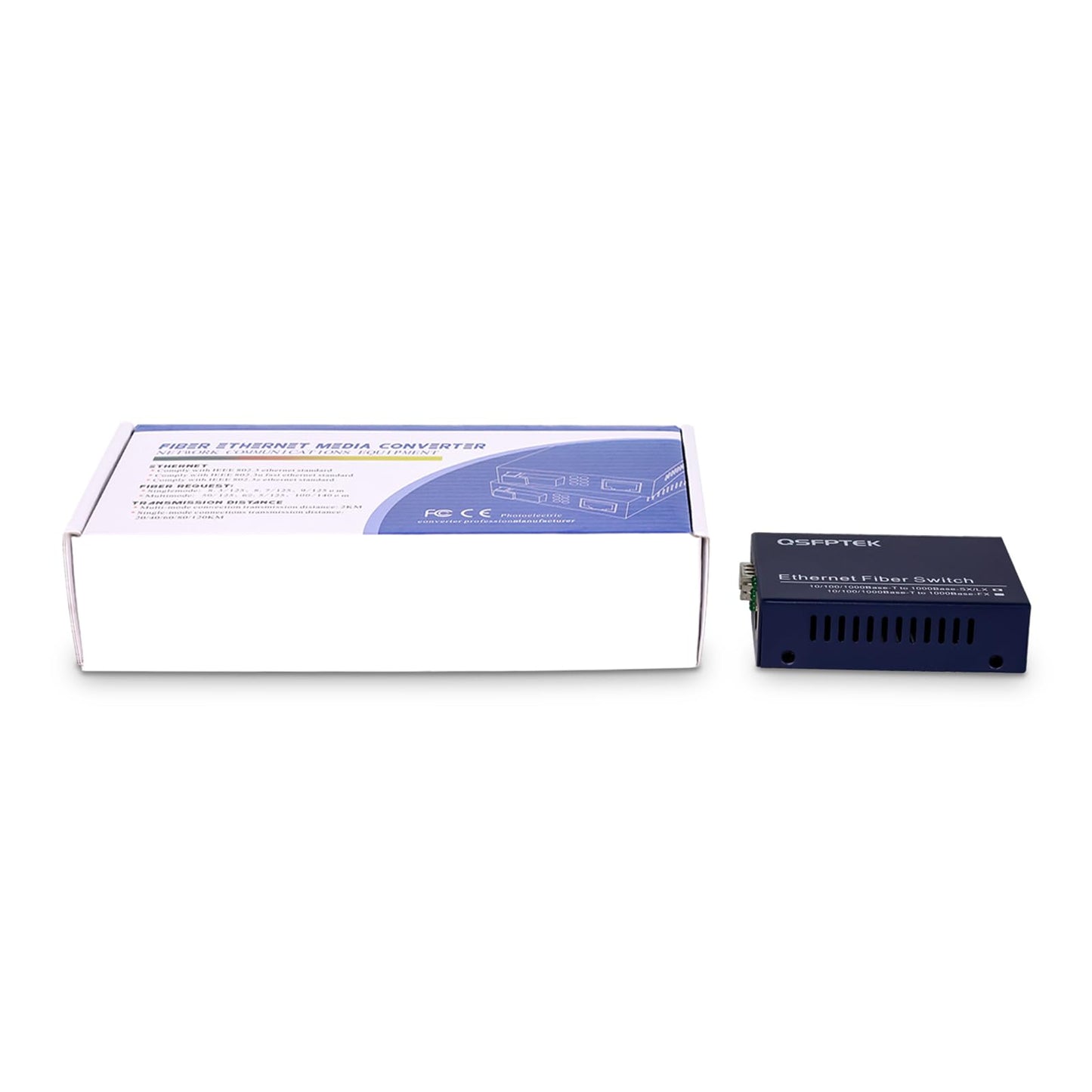

• Product List: 1x Gigabit Ethernet Media Converter, 1x 1000Base-SX SFP module, 1x DC Power Adapter, 1x Product Manual. 30-day Money-Back guarantee, lifetime tech support.

Product Details:

• Color: MMF, 550m, LC
• Size: 1G
• Model: QT-400A + 0301D
• Package Quantity: 1
