Description
Brand: PROCET PoE System

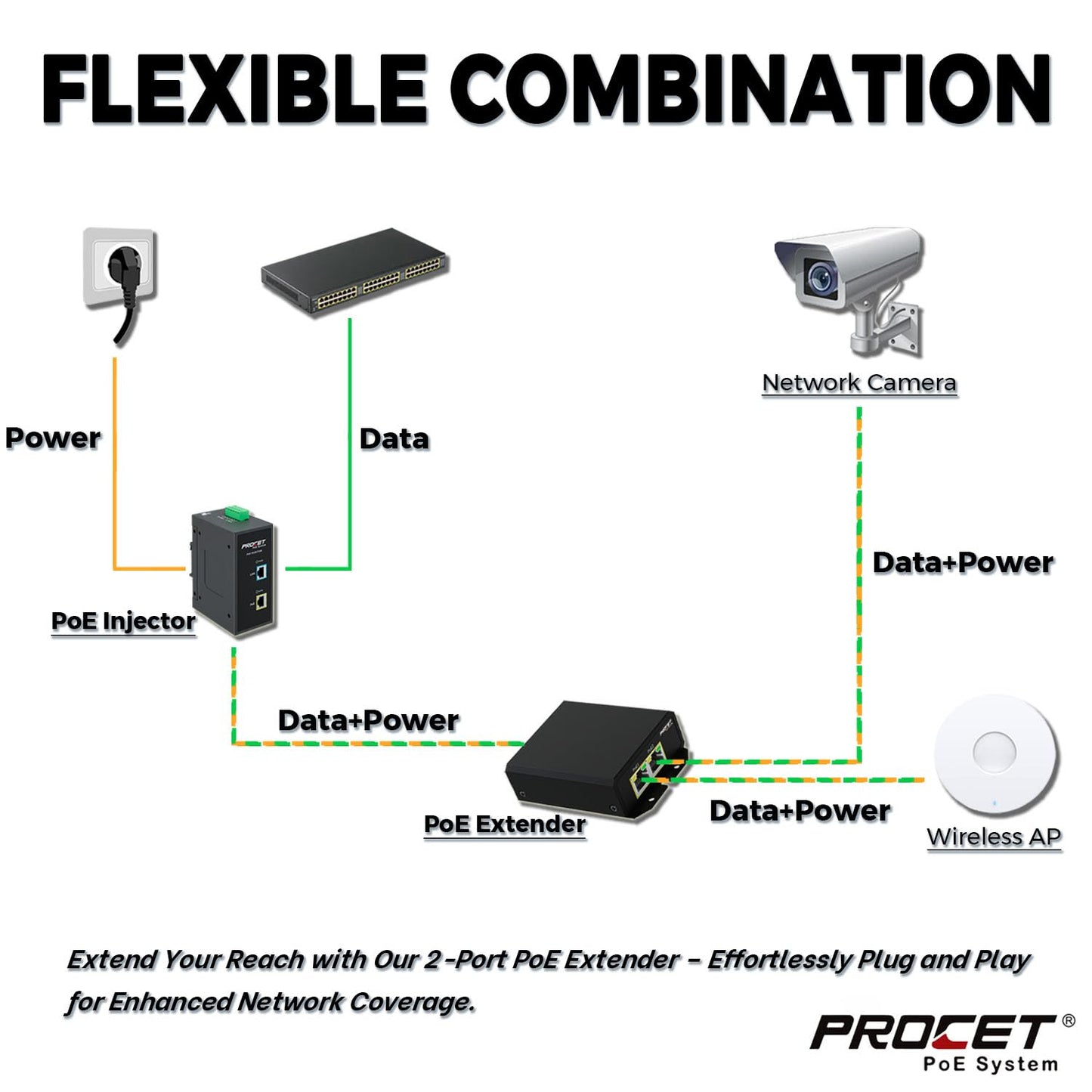

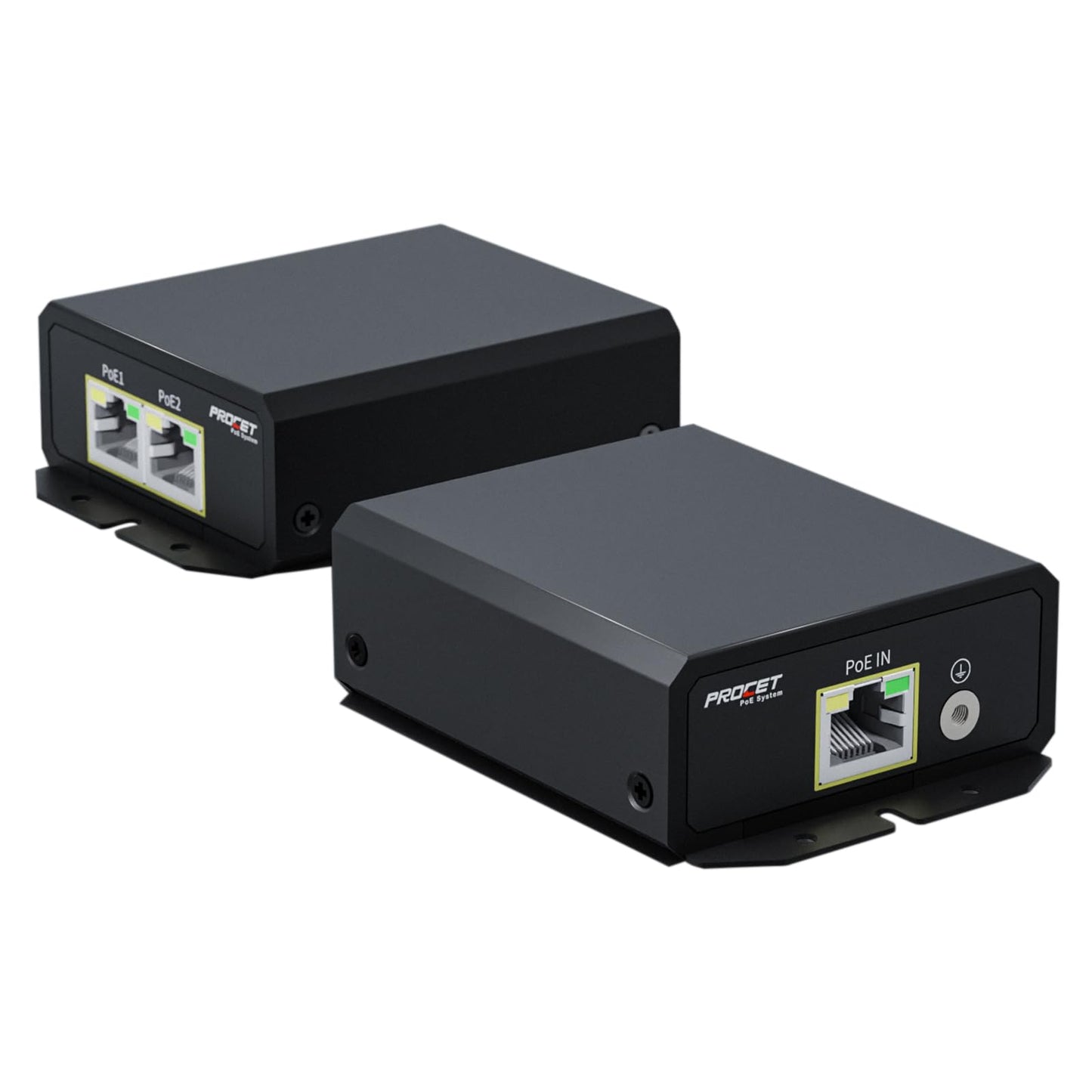

PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell. The 3 ports 10/100/1000Mbps includes: 1 x PoE-powered input port with 802.3bt/PoE++ at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W. PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an input voltage of 44- 57Vdc and operates under -40? to +65?. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.

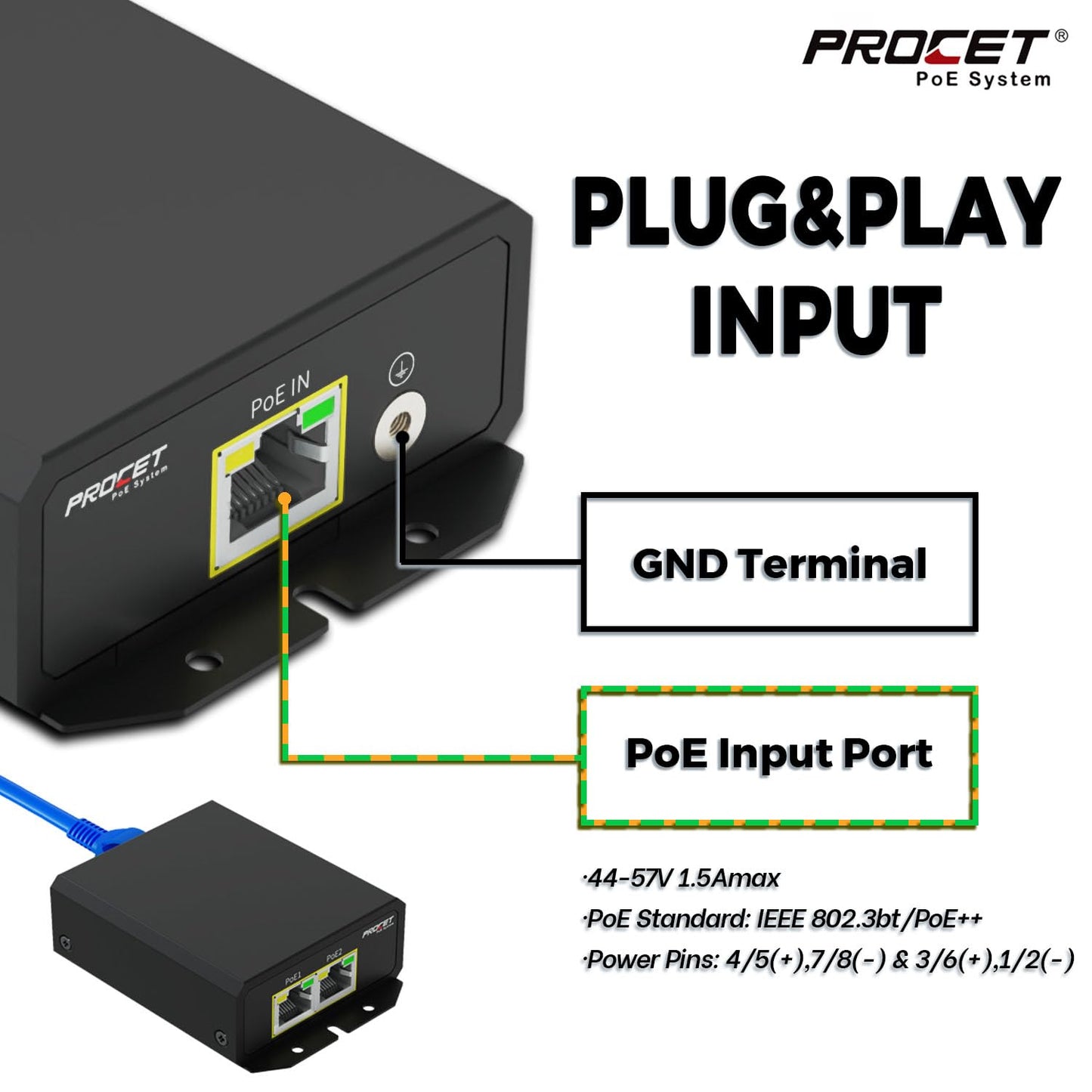

• Input Port Specification: Accepts a single input port with a voltage range of 44-57Vdc 1.5Amax, compliant with IEEE 802.3af/at/bt/PoE++ standards for compatibility with various Power Sourcing Equipment (PSE) such as PoE injectors or switches.

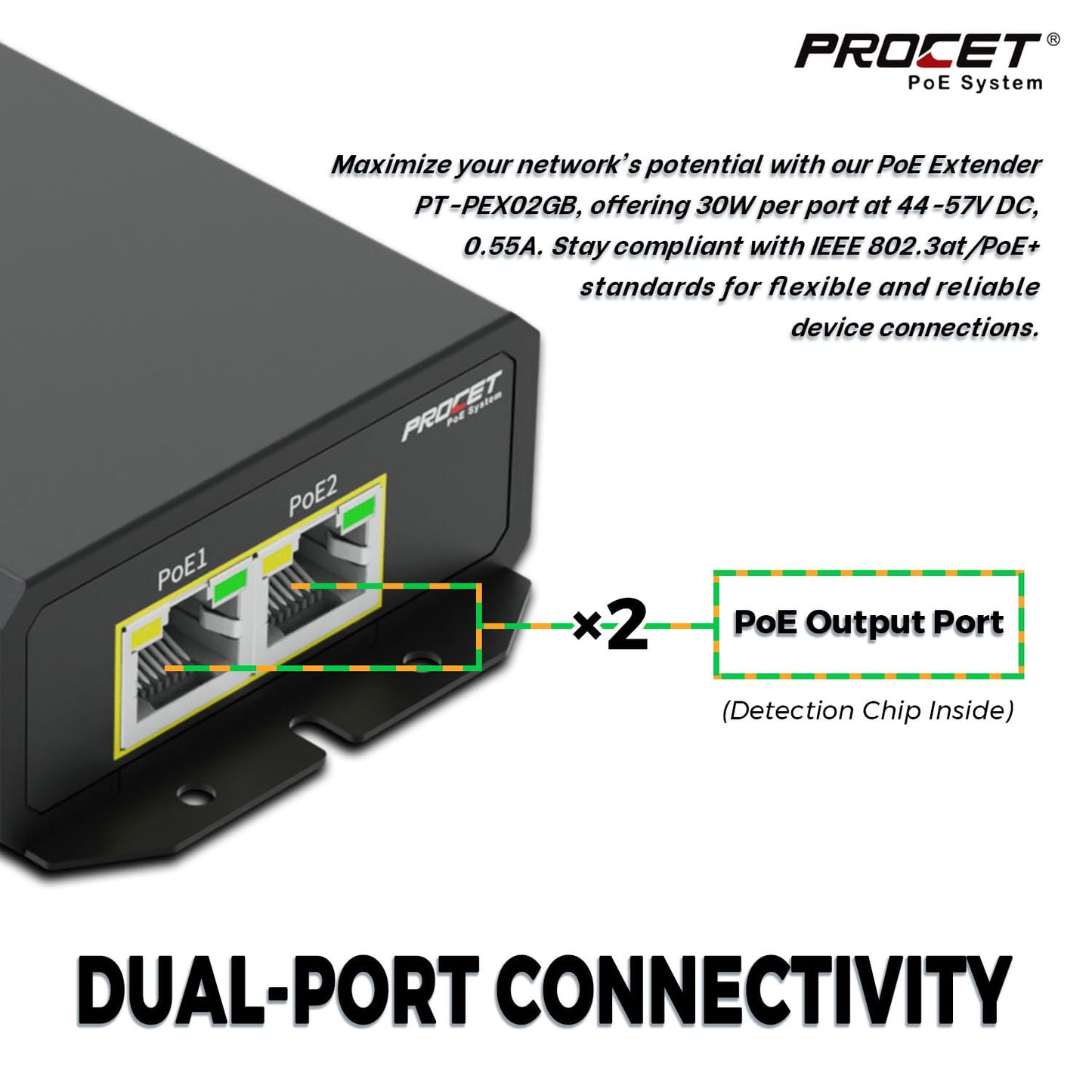

• Output Ports Specification: The 2 Port extender provides a total output power of 60W, with each port capable of supplying 30W at a voltage range of 44-57Vdc 0.55A, adhering to IEEE 802.3at/PoE+ standards.Supports a range of PoE Powered Devices (PDs), including IP Cameras, wireless APs, Microwave radio, IoT applications, door locks, displays, POS, and information kiosks.
• Industrial Design: High-impact metal shell. IP40 rated. Work Temp: -40°F to 149°F (-40? to 65?). 6KV Surge Protection. Supports data rates of 10/100/1000Mbps.
• Ease of Use: Plug and play, simplifying installation and use. Input power pins: 4/5(+), 7/8(-) & 3/6(+), 1/2(-), Output: 1/2 (-), 3/6 (+).

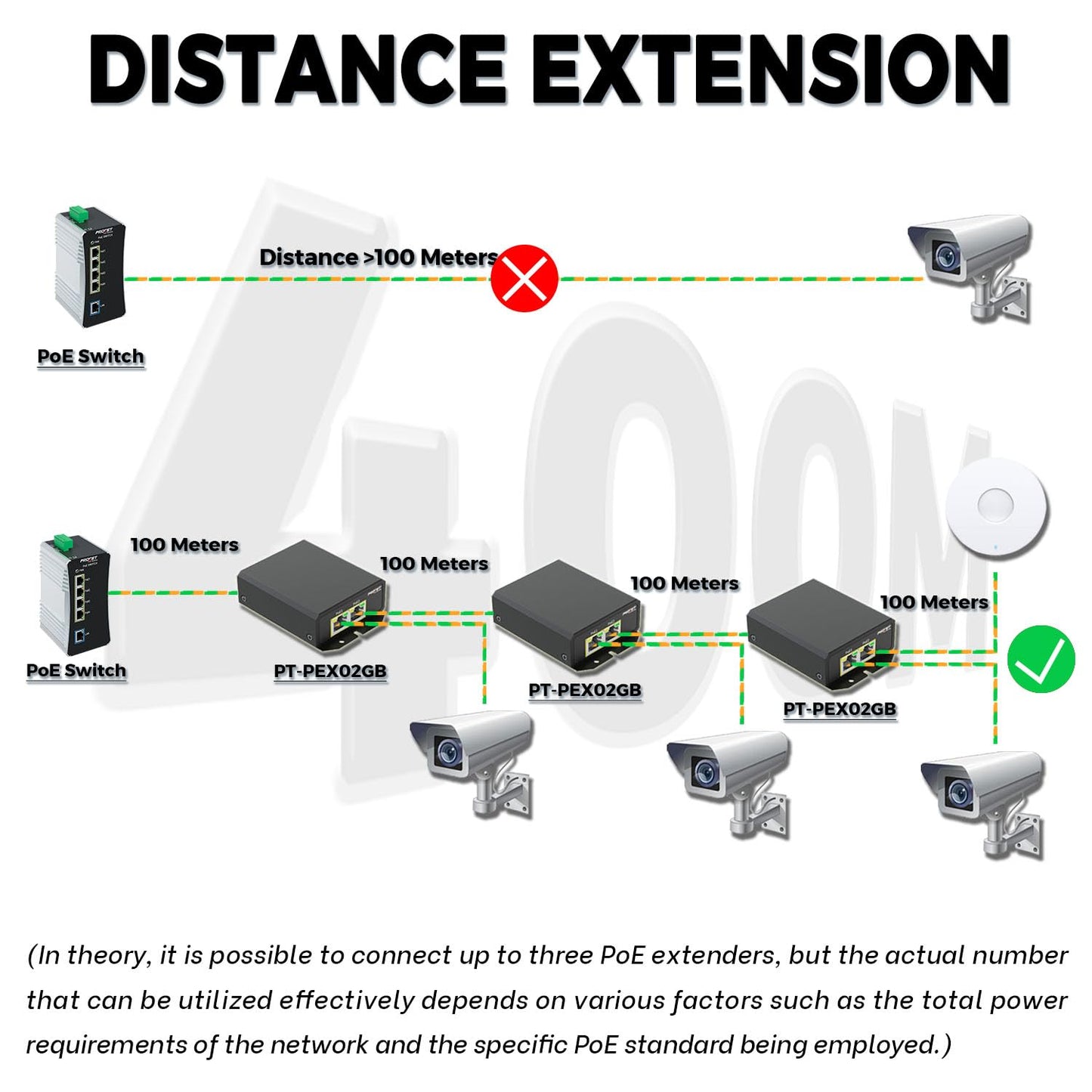

• Network Extension Capabilities: This device extends the reach of a PoE network connection beyond the standard 100m limit, allowing a total distance of up to 200m (656 ft.) from the PoE PSE to the PD. Daisy chain support allows for the connection of up to 3 PoE Extenders, potentially extending the PoE+ network by an additional 400m (1,312 ft.).
Color: Black
PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell. The 3 ports 10/100/1000Mbps includes: 1 x PoE-powered input port with 802.3bt/PoE++ at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W. PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an input voltage of 44- 57Vdc and operates under -40? to +65?. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.
• Input Port Specification: Accepts a single input port with a voltage range of 44-57Vdc 1.5Amax, compliant with IEEE 802.3af/at/bt/PoE++ standards for compatibility with various Power Sourcing Equipment (PSE) such as PoE injectors or switches.
• Output Ports Specification: The 2 Port extender provides a total output power of 60W, with each port capable of supplying 30W at a voltage range of 44-57Vdc 0.55A, adhering to IEEE 802.3at/PoE+ standards.Supports a range of PoE Powered Devices (PDs), including IP Cameras, wireless APs, Microwave radio, IoT applications, door locks, displays, POS, and information kiosks.
• Industrial Design: High-impact metal shell. IP40 rated. Work Temp: -40°F to 149°F (-40? to 65?). 6KV Surge Protection. Supports data rates of 10/100/1000Mbps.
• Ease of Use: Plug and play, simplifying installation and use. Input power pins: 4/5(+), 7/8(-) & 3/6(+), 1/2(-), Output: 1/2 (-), 3/6 (+).
• Network Extension Capabilities: This device extends the reach of a PoE network connection beyond the standard 100m limit, allowing a total distance of up to 200m (656 ft.) from the PoE PSE to the PD. Daisy chain support allows for the connection of up to 3 PoE Extenders, potentially extending the PoE+ network by an additional 400m (1,312 ft.).
Color: Black
