Description
Brand: PROCET PoE System

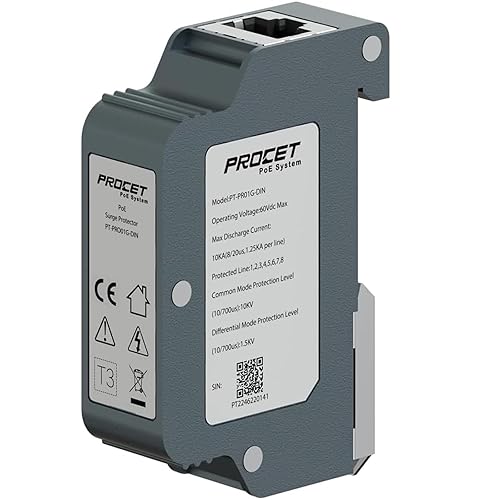

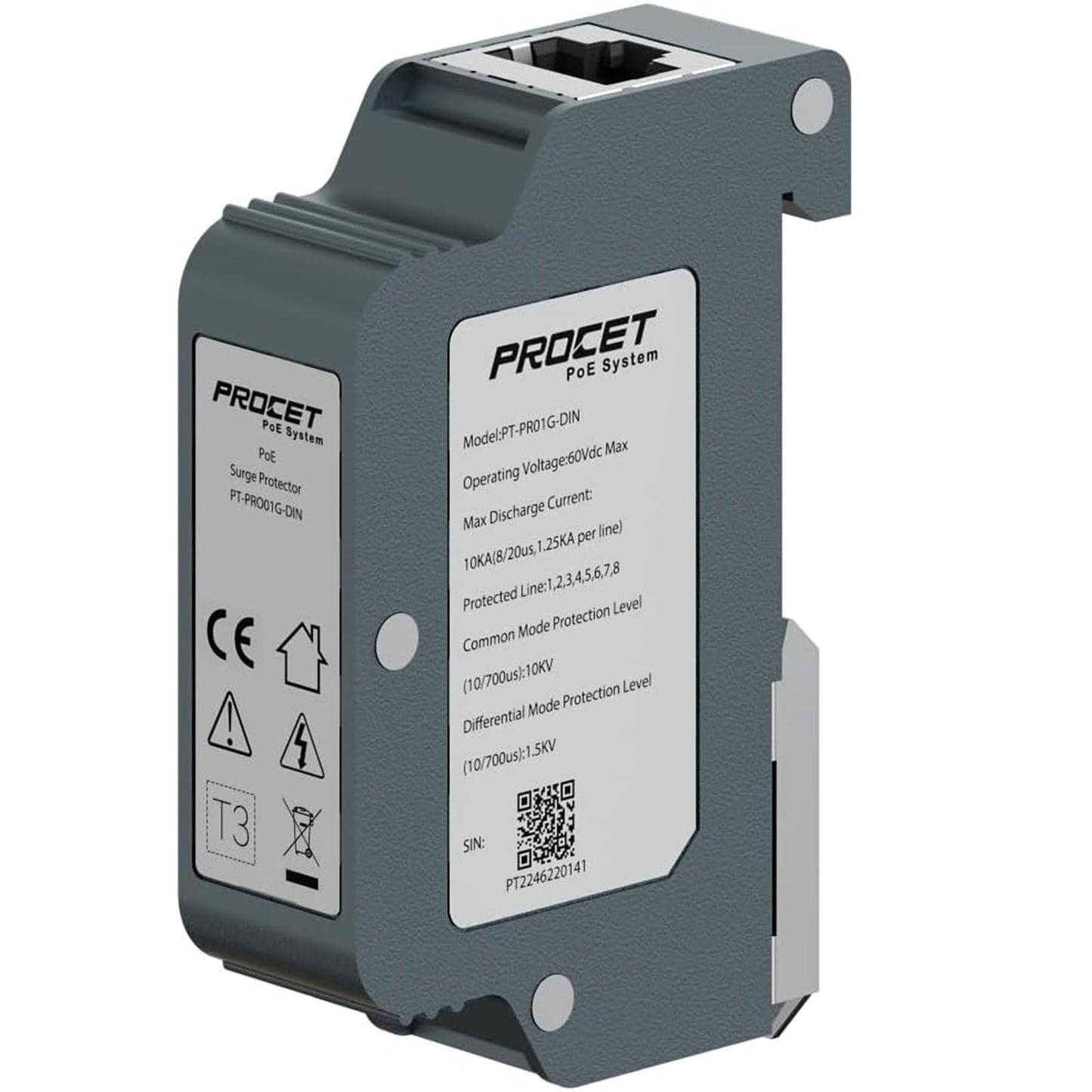

PT-PR01G-DIN is single-port PoE surge protector,which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines network signals and provides surge protection for PoE wires. The maximum common mode surge voltage is 10KV(10/700us) and differential mode surge voltage is 1.5KV(10/700us). It supports 10/100/1000Mbps of date speed. It also supports PoE wires with IEEE802.3af/at/bt or PoE++ standard and protects your network device against surge damage.

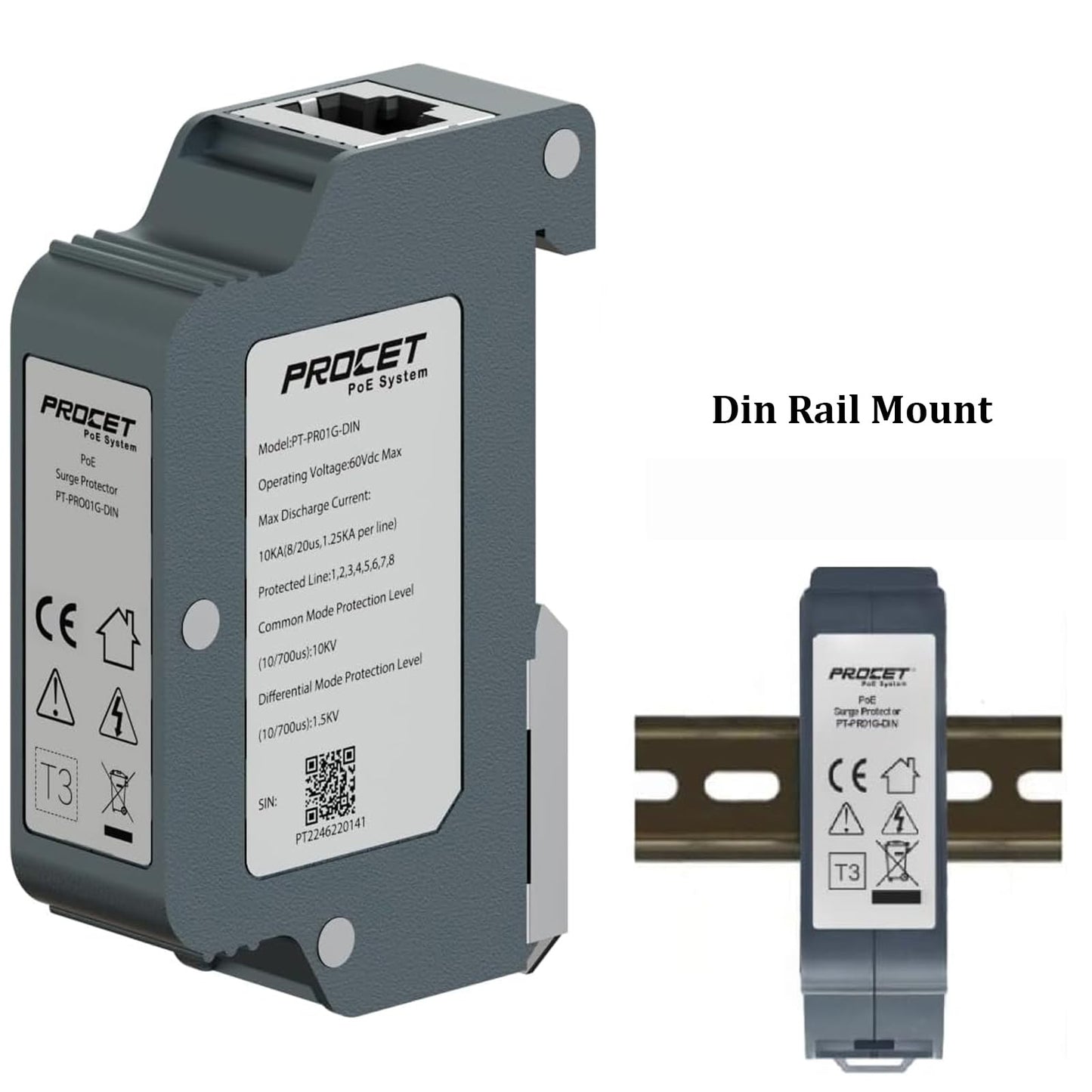

It is designed for indoor use with Zinc alloy shell, which works with 60Vdc Max voltage and operates under -40? to 85?. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly. This model equipped standard DIN rail mounting bracket,which can easily jam into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it only use on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.
- Operating Voltage: 60Vdc Max
- Maximum Operating DC Current :1A for 2 pairs, 2A for 4 pairs, Maximum 120W
- Data Speed: 10/100/1000Mbps
- Max Discharge Current: 10KA(8/20us,1.25KA per line)
- PoE Surge Protection 10KV,Protected line: 1,2,3,4,5,6,7,8
- Operating Temperature: -40? to 85?
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40? to 85?
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Zinc alloy
- Color: Grey
- Mounting: DIN Rail Mount
- IP Rated: IP40
- Size: 77.2mm X 45mm X 19mm
- Weight: 125g
- Packing.?Manual x 1

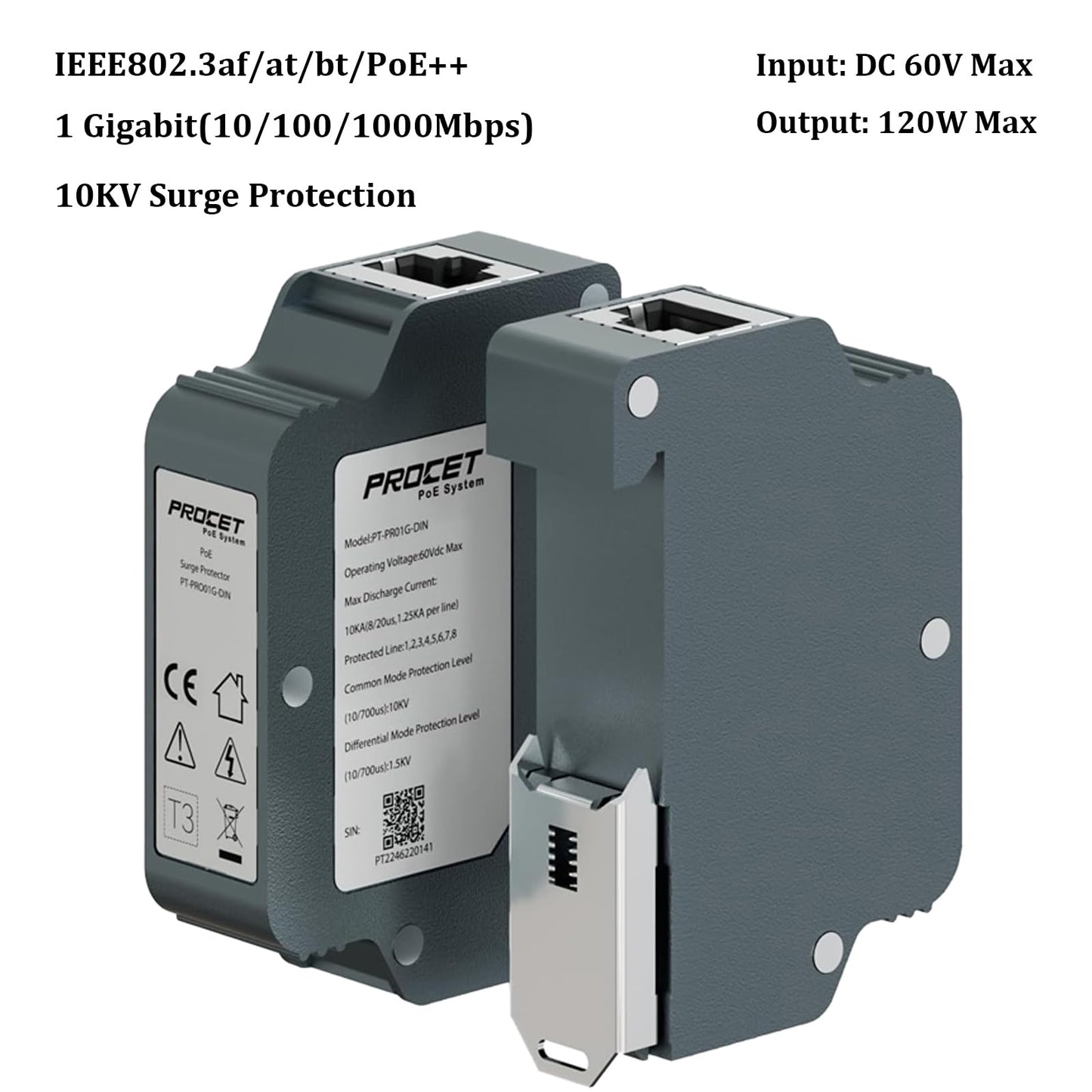

• ?DIN Rail PoE Surge Protector?for 802.3af/at/bt POE++ 10KV surge protection for SPD technology (Surge Protection Device)
• ?Industrial Grade Lightning Protection?Peak Surge Current up to 10KA which is super high. Maximum Operating Power at 120W Max, DC 60V Max. The DIN rail as a ground wire to transmit the current to the earth.

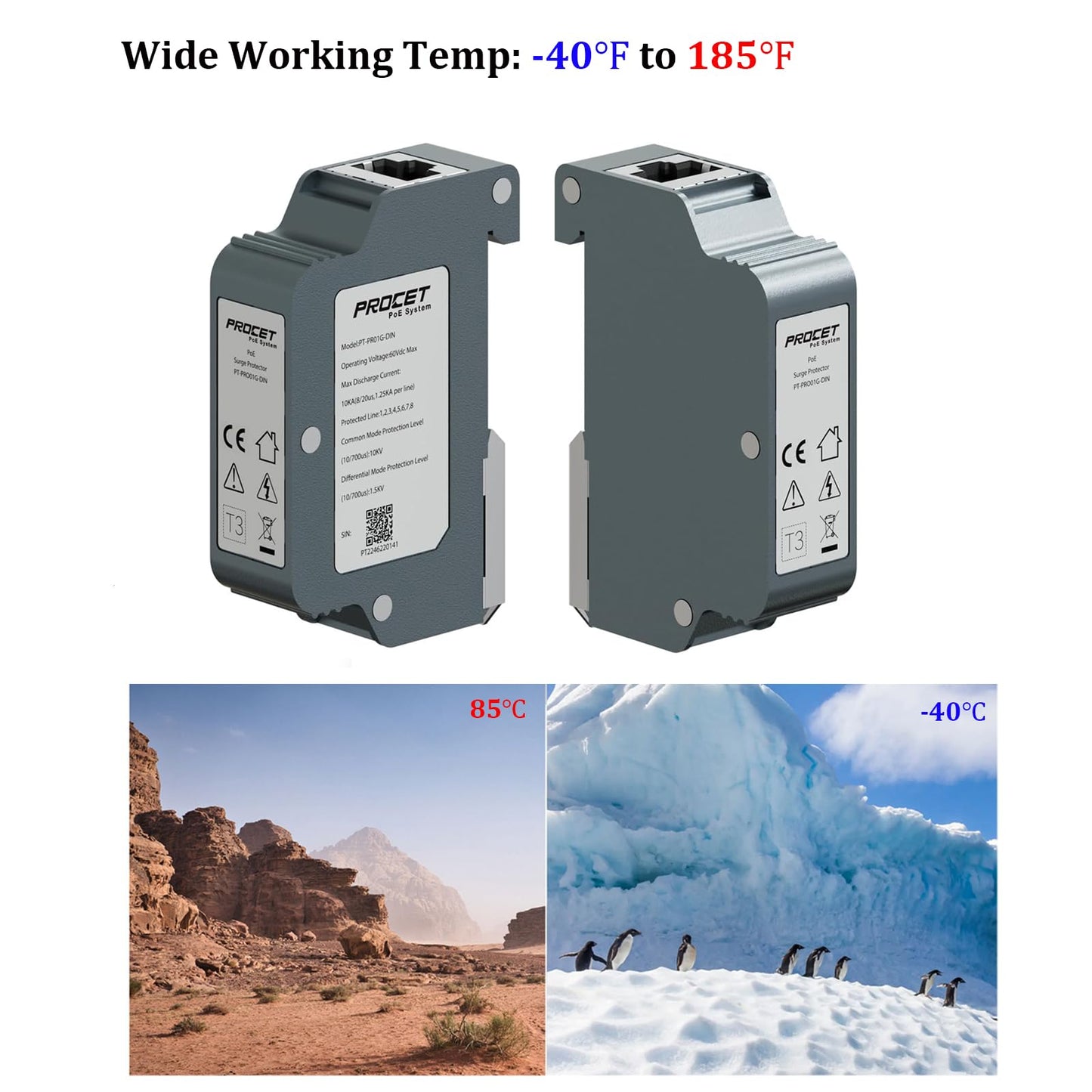

• ?Wide Working Temperature? PoE surge protector with Zinc Alloy housing is strong and corrosion-resistant, support operating temperature: -40? to 185?. Can work well in some extreme cold or hot environments.
• ?Gas Discharge Tube?Gas Discharge Tube arrester (GDT) ideal for PoE wires and well protects your devices against surge damage.
• ?Thunder Arrestor? Protects computer networking equipment devices like Router, Modem, Camera, Switch, Server etc. Widely used for projects DIN Rail mount.
Color: Grey
PT-PR01G-DIN is single-port PoE surge protector,which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines network signals and provides surge protection for PoE wires. The maximum common mode surge voltage is 10KV(10/700us) and differential mode surge voltage is 1.5KV(10/700us). It supports 10/100/1000Mbps of date speed. It also supports PoE wires with IEEE802.3af/at/bt or PoE++ standard and protects your network device against surge damage.
It is designed for indoor use with Zinc alloy shell, which works with 60Vdc Max voltage and operates under -40? to 85?. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly. This model equipped standard DIN rail mounting bracket,which can easily jam into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it only use on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.
- Operating Voltage: 60Vdc Max
- Maximum Operating DC Current :1A for 2 pairs, 2A for 4 pairs, Maximum 120W
- Data Speed: 10/100/1000Mbps
- Max Discharge Current: 10KA(8/20us,1.25KA per line)
- PoE Surge Protection 10KV,Protected line: 1,2,3,4,5,6,7,8
- Operating Temperature: -40? to 85?
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -40? to 85?
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Zinc alloy
- Color: Grey
- Mounting: DIN Rail Mount
- IP Rated: IP40
- Size: 77.2mm X 45mm X 19mm
- Weight: 125g
- Packing.?Manual x 1
• ?DIN Rail PoE Surge Protector?for 802.3af/at/bt POE++ 10KV surge protection for SPD technology (Surge Protection Device)
• ?Industrial Grade Lightning Protection?Peak Surge Current up to 10KA which is super high. Maximum Operating Power at 120W Max, DC 60V Max. The DIN rail as a ground wire to transmit the current to the earth.
• ?Wide Working Temperature? PoE surge protector with Zinc Alloy housing is strong and corrosion-resistant, support operating temperature: -40? to 185?. Can work well in some extreme cold or hot environments.
• ?Gas Discharge Tube?Gas Discharge Tube arrester (GDT) ideal for PoE wires and well protects your devices against surge damage.
• ?Thunder Arrestor? Protects computer networking equipment devices like Router, Modem, Camera, Switch, Server etc. Widely used for projects DIN Rail mount.
Color: Grey
