Brand: Walfront

Model: DPS5020

Features:

1. The power supply module features small in volume, advanced in function, good in effect, strong in operability and high in precision.

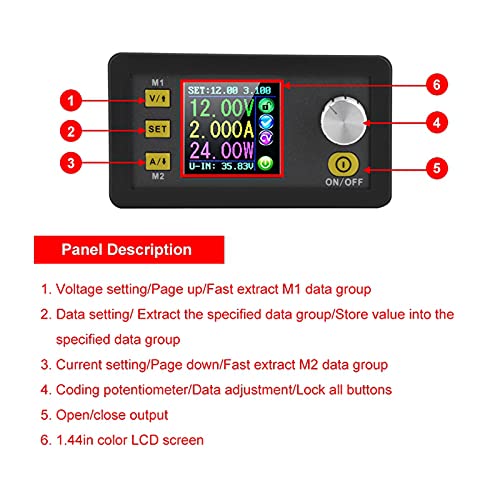

2. Open or close the output: You can press the ON/OFF button to open or close the output on any interface.

3. Lock the button to avoid wrong operation: On any interface, you can keep pressing coding potentiometer for 2 seconds, all buttons are locked. Keep pressing coding potentiometer for 2 seconds to unlock all buttons. You can see the key lock/unlock icon on the right of the screen.

4. M0-M9 ten data groups: M0 group is the boot default data group. When you extract the data group you need, this data group will cover M0 data group and be automatically stored on M0 data group.

5. You can quickly extract storage data group M1 or M2 or extract the specified data group.

Specification:

Model (Optional): DPS5015, DPS5020

Input Voltage: DC 6-60V

Output Voltage: 0-50.00V

Output Current:

DPS5015: 0-15.00A

DPS5020: 0-20.00A

Output Power:

DPS5015: 0-750W

DPS5020: 0-1000W

Output Voltage Resolution: 0.01V

Output Current Resolution: 0.01A

Display: 1.44in colorful LCD

Wiring Length: 200mm/7.9in

Display Module Size:

DPS5015: 80*42*45mm/3.1*1.6*1.8in

DPS5020: 79*43*41mm/3.1*1.7*1.6in

Power Module Size: 93*71*41mm / 3.7*2.8*1.6in

Package Weight (Approx.):

DPS5020: 237g/8.3oz

DPS5020: 269g/9.5oz

Package List:

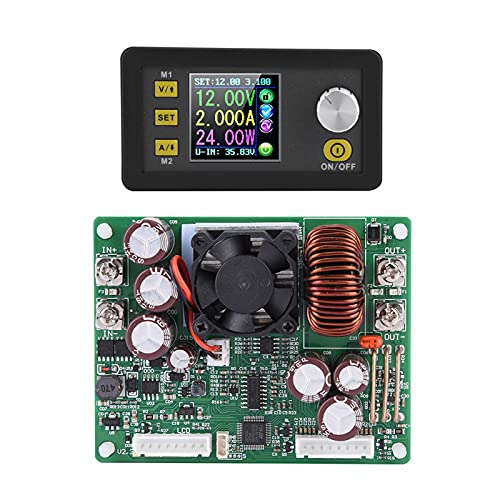

1 * Display Module

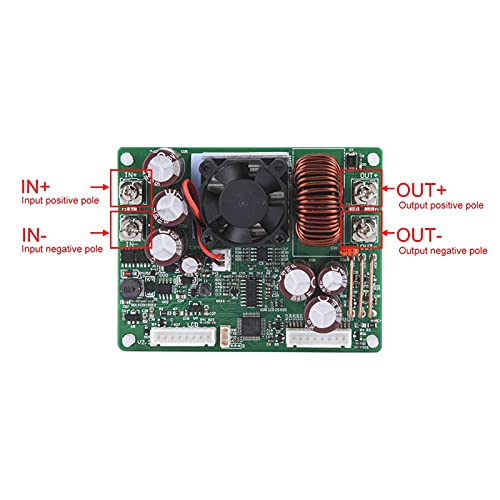

1 * Power Module

1 * USB Board

1 * Bluetooth Board

1 * Set of Accessories

Note:

1. You must make sure that the input voltage is 1.1 times higher than output voltage.

2. Under large current circumstances, pay attention to enhancing heat dissipation.

3. Please properly connect the display module

• PROGRAMMABLE CONTROL POWER SUPPLY: This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one. It can store 10 groups of preset value and can quickly extract 2 groups of preset value.
• VOLTAGE AND CURRENT METER FUNCTION: With LCD display and the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc. In the output state display area, it is convenient for you to know whether the output works, output voltage/current state, current data group extracted, etc.
• GOOD VISUAL EFFECT STRONG OPERABILITY: Characterized with advanced functions, high accuracy, good visual effect and strong operability, the item is really practical. The power supply module features small in volume, advanced in function, good in effect, strong in operability and high in precision.
• LOCK BUTTON TO AVOID WRONG OPERATION: Open or close the output: You can press the ON/OFF button to open or close the output on any interface. Lock the button to avoid wrong operation: On any interface, you can keep pressing coding potentiometer for 2 seconds, all buttons are locked. Keep pressing coding potentiometer for 2 seconds to unlock all buttons. You can see the key lock/unlock icon on the right of the screen.
• QUICKLY EXTRACT STORAGE DATA GROUP: M0-M9 ten data groups: M0 group is the boot default data group. When you extract the data group you need, this data group will cover M0 data group and be automatically stored on M0 data group. You can quickly extract storage data group M1 or M2 or extract the specified data group.

Color: multicolor
