Description
Brand: WiFi-Texas

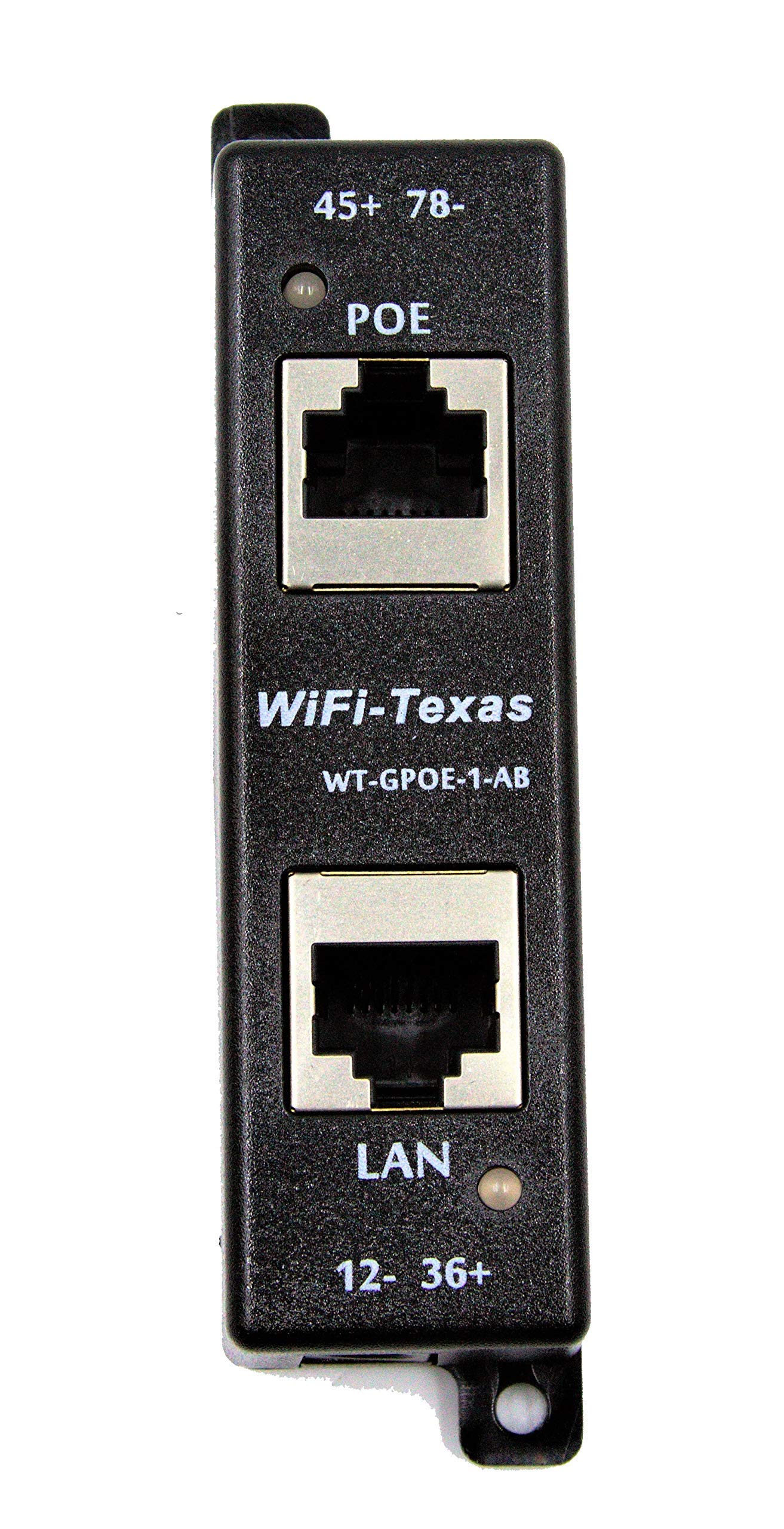

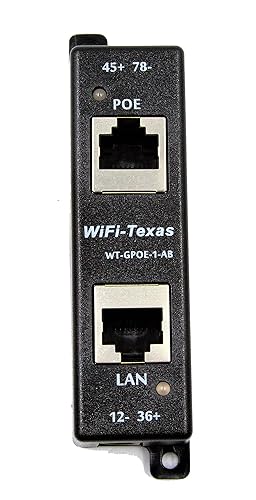

<b> Power-over-Ethernet (PoE) injector / splitter</b><br>Low cost solution for delivery of 4 Pair PoE power when used with Y-Cable. Instantly upgrade your infrastructure to support one high powered device. This method allows power to be combined with 10/100/1000 networks and supports both 802.3af and 802.3at with "always on" passive power. Or use this product as a PoE splitter to divide power and data.<p><b>Product Features</b><br> Two DC inputs specified for Mode A or Mode B power delivery. Mode A uses power on pins 3 and 6 and return on 1 and 2. Mode B uses power on 4 and 5 and return on 7 and 8<br> Can deliver up to 60 watts at the PSE and 50 watts at the PD when powered using a 60 watt power supply and a Y cable on both modes<br> Can be used as a PoE "Splitter" by inputing PoE and dividing power on to the DC Barrel and 10/100/1000 data on to the LAN port<br> 10/100/1000 Mbps Gigabit data rates<br> Easy installation<br> Passive "always on" power<br> Wall mount tabs<p><b>Compatible Power Supplies Available Separately</b><br> PS-24v30w - 24 volts DC, 1.25 amps, 30 watts <br> PS-48v30w - 48 volts DC, .625 amps, 30 watts<br> PS-48v60w - 48 volts, 1.25 amps, 60 watts <br> PS-56v60w

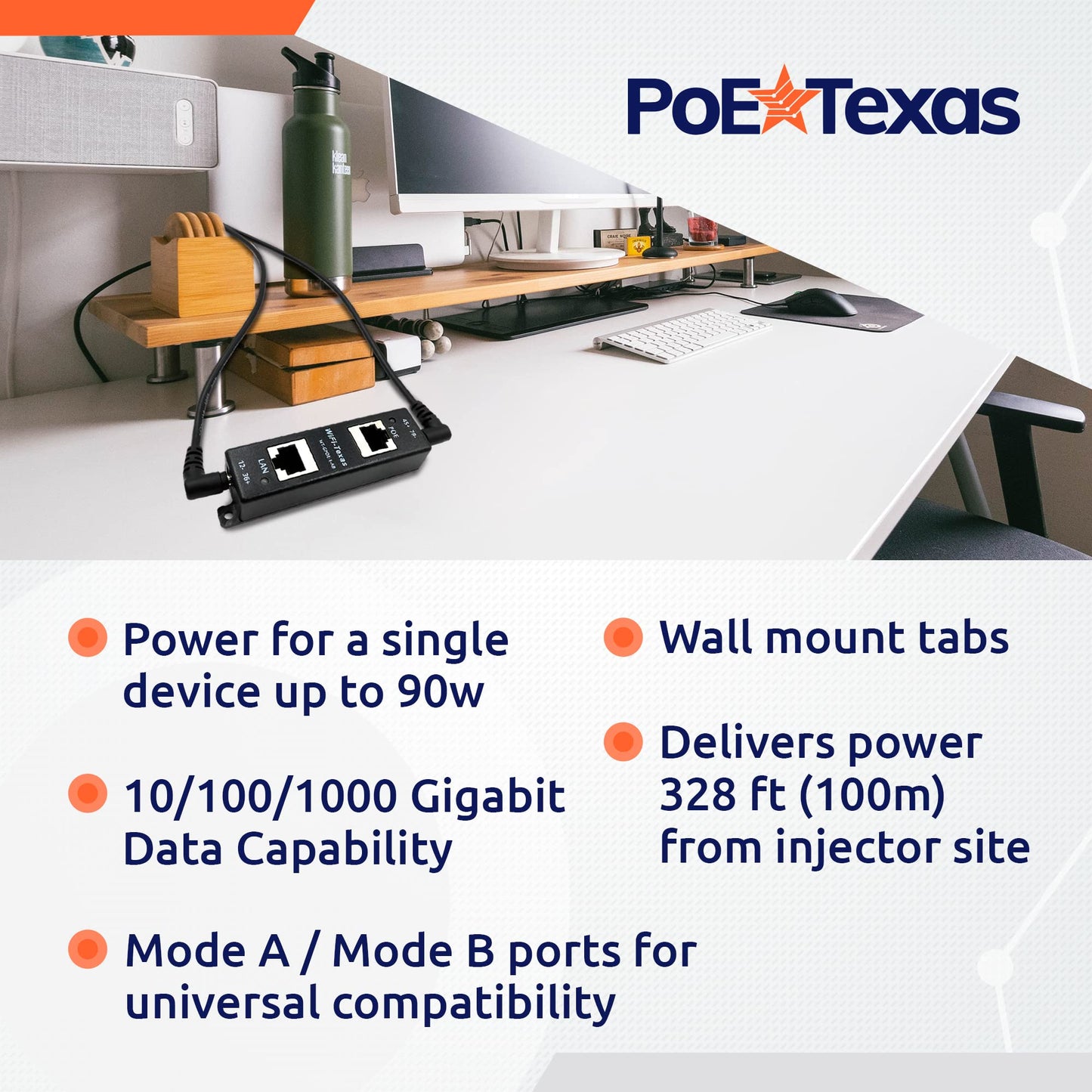

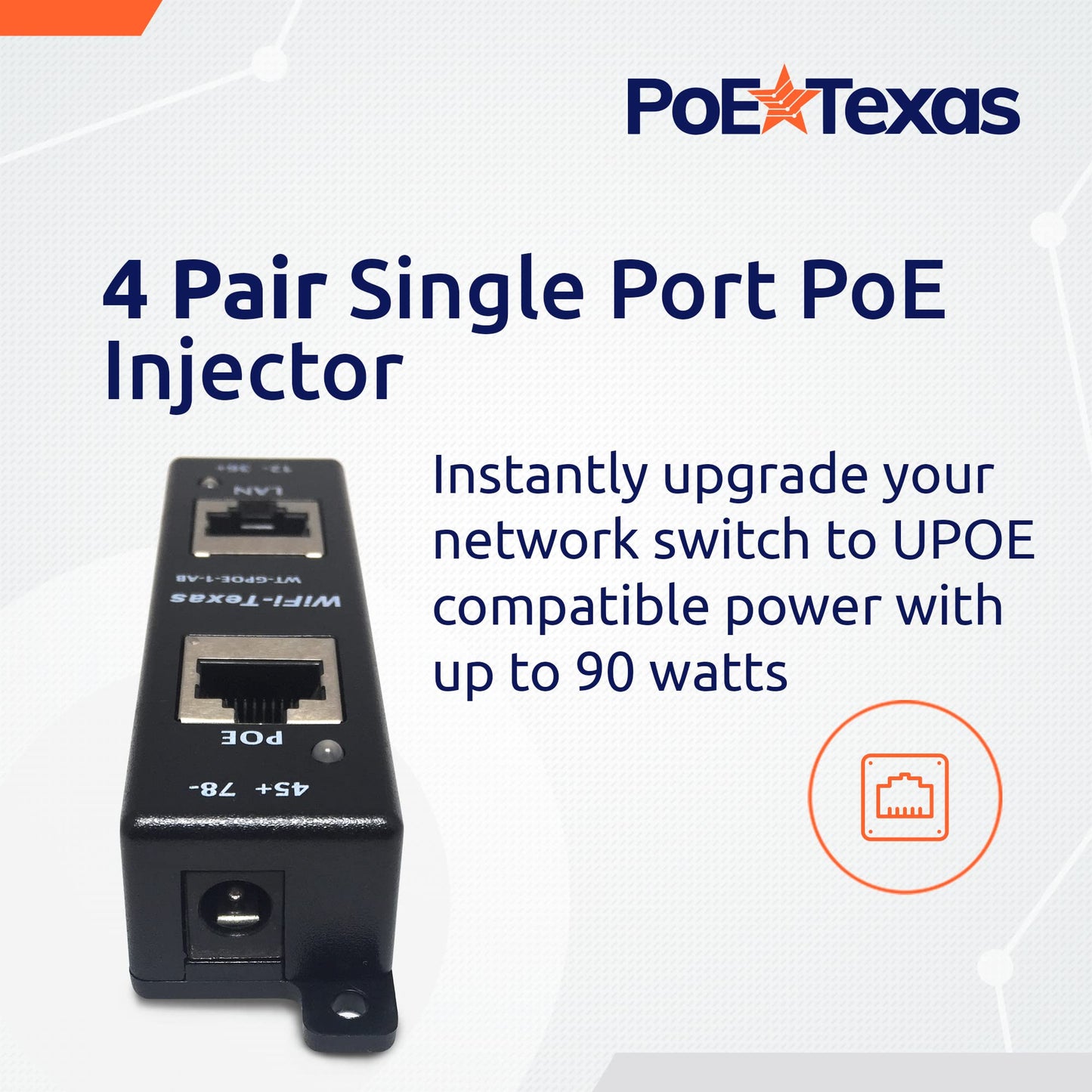

• A low cost solution for 4 pair PoE. Instantly upgrade your infrastructure with this PoE injector. Support one 60 watt high powered device when used with the included Y-cable and a 48v 60w power supply (sold separately).
• Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet injector. Use with devices that accept passive 802.3af or PoE+.

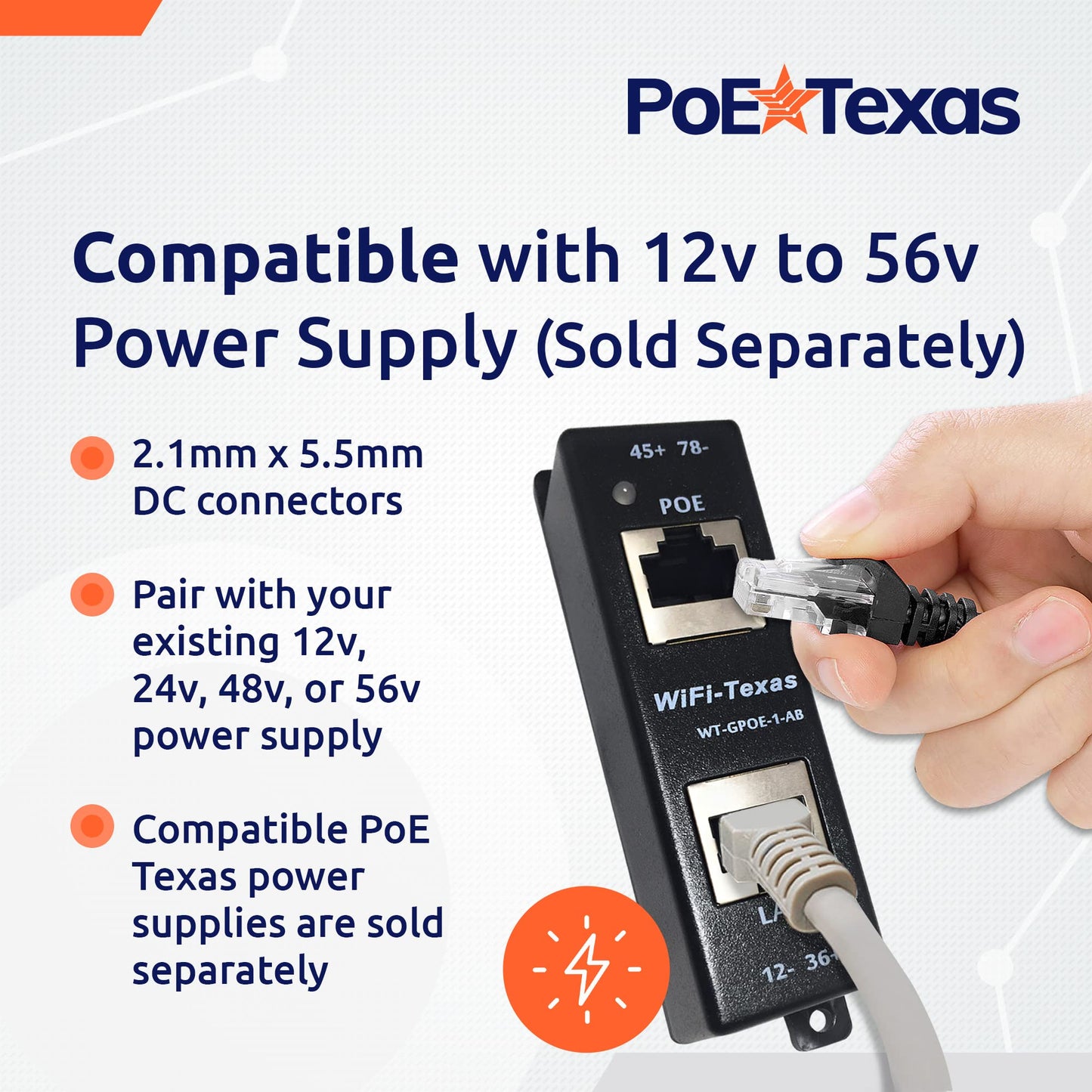

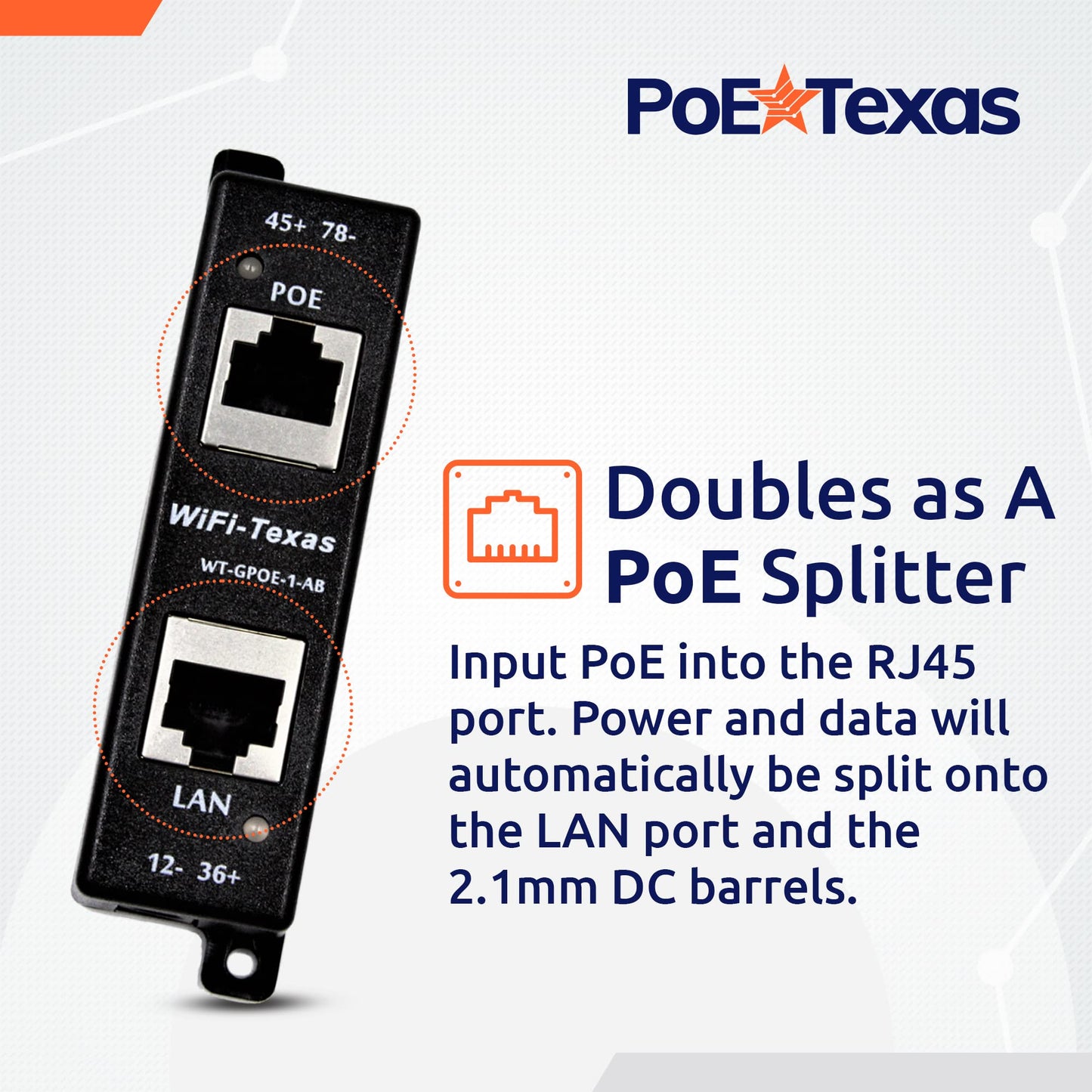

• Dual use purpose: This Power over Ethernet adapter doubles as a PoE splitter. Simply input PoE into the RJ45 port and divide power and data between the LAN port and the 2.1mm DC barrel. Compatible with 12-56v DC power supply (sold separately).
• Plug and play. Our single port PoE adapter / injector transmits 10/100/1000 Gigabit data, delivering lightning fast wired speeds with no loss of signal quality. Use Mode A for 48v and above. Switch to Mode B for 24v devices.
• All of our PoE products are backed by a One Year replacement warranty and a 30 Day, no questions asked, return policy. Expert help is only a phone call away. Please call 512 479 0317 for assistance.
Color: black
<b> Power-over-Ethernet (PoE) injector / splitter</b><br>Low cost solution for delivery of 4 Pair PoE power when used with Y-Cable. Instantly upgrade your infrastructure to support one high powered device. This method allows power to be combined with 10/100/1000 networks and supports both 802.3af and 802.3at with "always on" passive power. Or use this product as a PoE splitter to divide power and data.<p><b>Product Features</b><br> Two DC inputs specified for Mode A or Mode B power delivery. Mode A uses power on pins 3 and 6 and return on 1 and 2. Mode B uses power on 4 and 5 and return on 7 and 8<br> Can deliver up to 60 watts at the PSE and 50 watts at the PD when powered using a 60 watt power supply and a Y cable on both modes<br> Can be used as a PoE "Splitter" by inputing PoE and dividing power on to the DC Barrel and 10/100/1000 data on to the LAN port<br> 10/100/1000 Mbps Gigabit data rates<br> Easy installation<br> Passive "always on" power<br> Wall mount tabs<p><b>Compatible Power Supplies Available Separately</b><br> PS-24v30w - 24 volts DC, 1.25 amps, 30 watts <br> PS-48v30w - 48 volts DC, .625 amps, 30 watts<br> PS-48v60w - 48 volts, 1.25 amps, 60 watts <br> PS-56v60w
• A low cost solution for 4 pair PoE. Instantly upgrade your infrastructure with this PoE injector. Support one 60 watt high powered device when used with the included Y-cable and a 48v 60w power supply (sold separately).
• Power an IP camera, desktop phone, WiFi access point, or other low voltage device through a network data cable using this Passive Power over Ethernet injector. Use with devices that accept passive 802.3af or PoE+.
• Dual use purpose: This Power over Ethernet adapter doubles as a PoE splitter. Simply input PoE into the RJ45 port and divide power and data between the LAN port and the 2.1mm DC barrel. Compatible with 12-56v DC power supply (sold separately).
• Plug and play. Our single port PoE adapter / injector transmits 10/100/1000 Gigabit data, delivering lightning fast wired speeds with no loss of signal quality. Use Mode A for 48v and above. Switch to Mode B for 24v devices.
• All of our PoE products are backed by a One Year replacement warranty and a 30 Day, no questions asked, return policy. Expert help is only a phone call away. Please call 512 479 0317 for assistance.
Color: black
