Description
Brand: Oiyagai
Model: 765470381065
Module Properties: non-isolated buck
Rectification Methods: synchronous rectification
Input Voltage: 4.75V-23V
Output Voltage: 1.0V-17V
Output Current: Peak 3A, long 1.8A
Conversion Efficiency: 96% (the highest)
Switching Frequency: 340KHz
Output Ripple: 340mV (empty cut pm)
Load Regulation: +/- 0.5% Voltage Regulation: +/- 2.5%
Working Temperature: -40°C - + 85°C
External Dimensions: 17 * 11 * 3.8mm (L * W * H)
Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Applications: HM dedicated DC-DC step-down module (supports 2S ~ 5S lithium polymer), DIY mobile power, car power,
communications equipment supply, there are a variety of size and weight for demanding applications.
Package included:

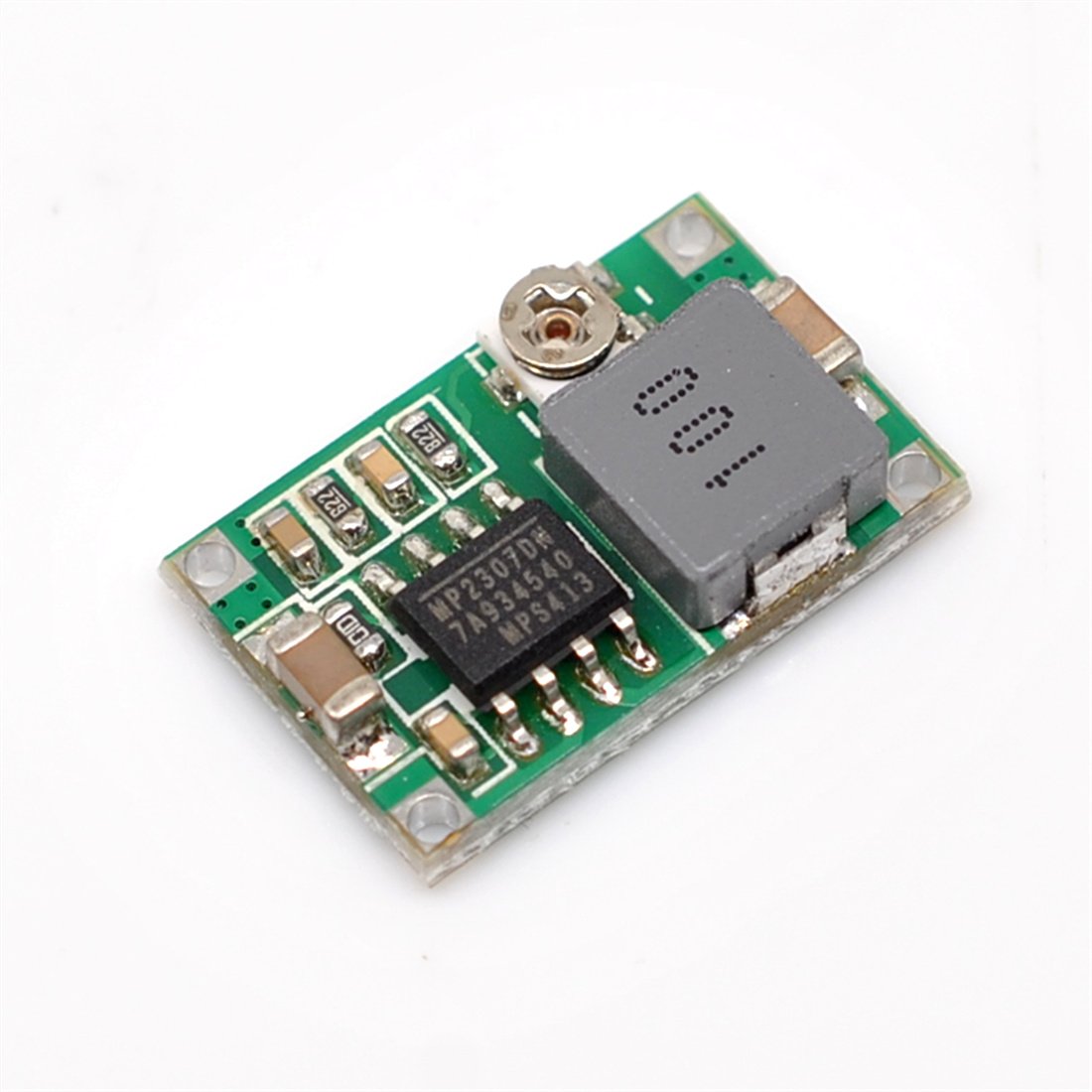

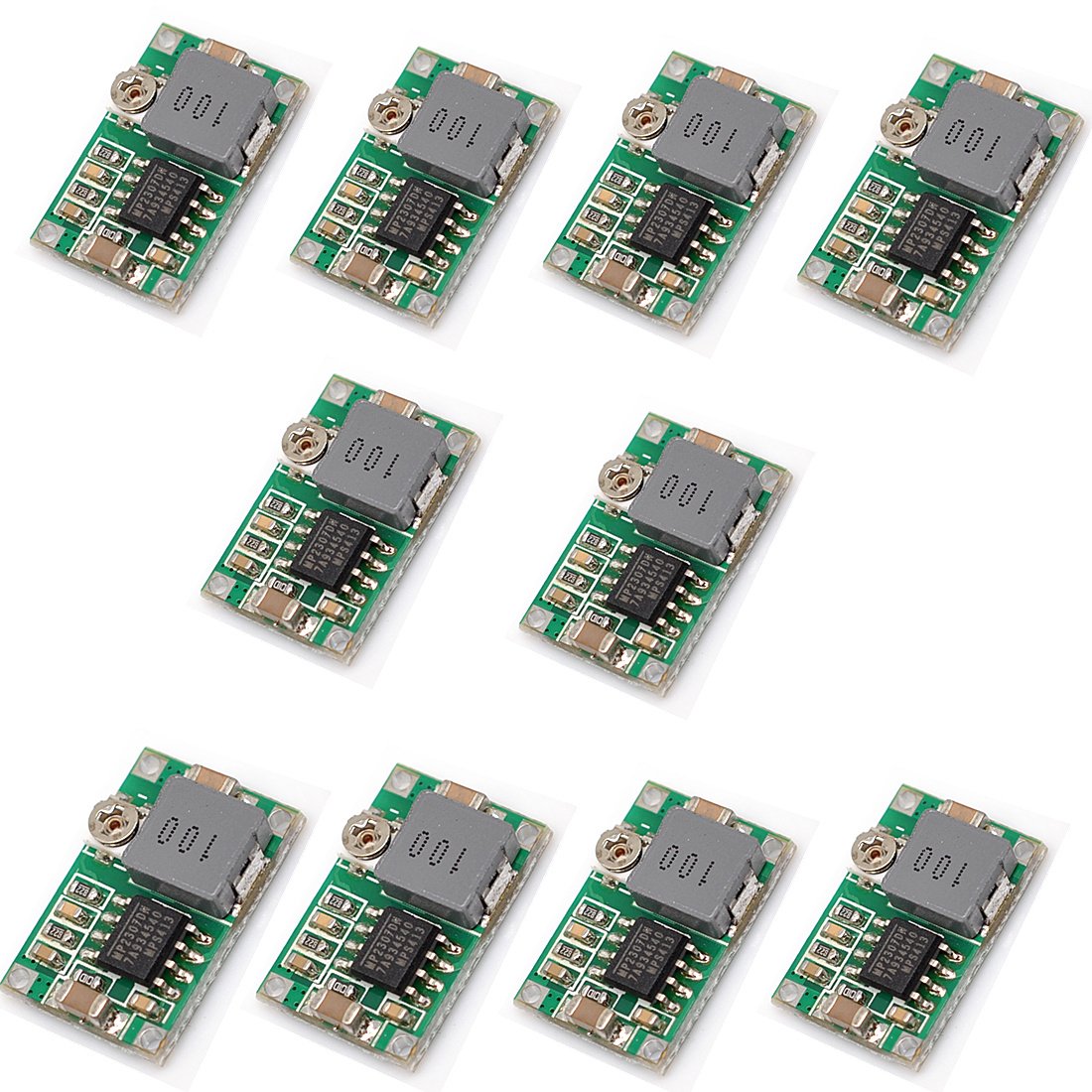

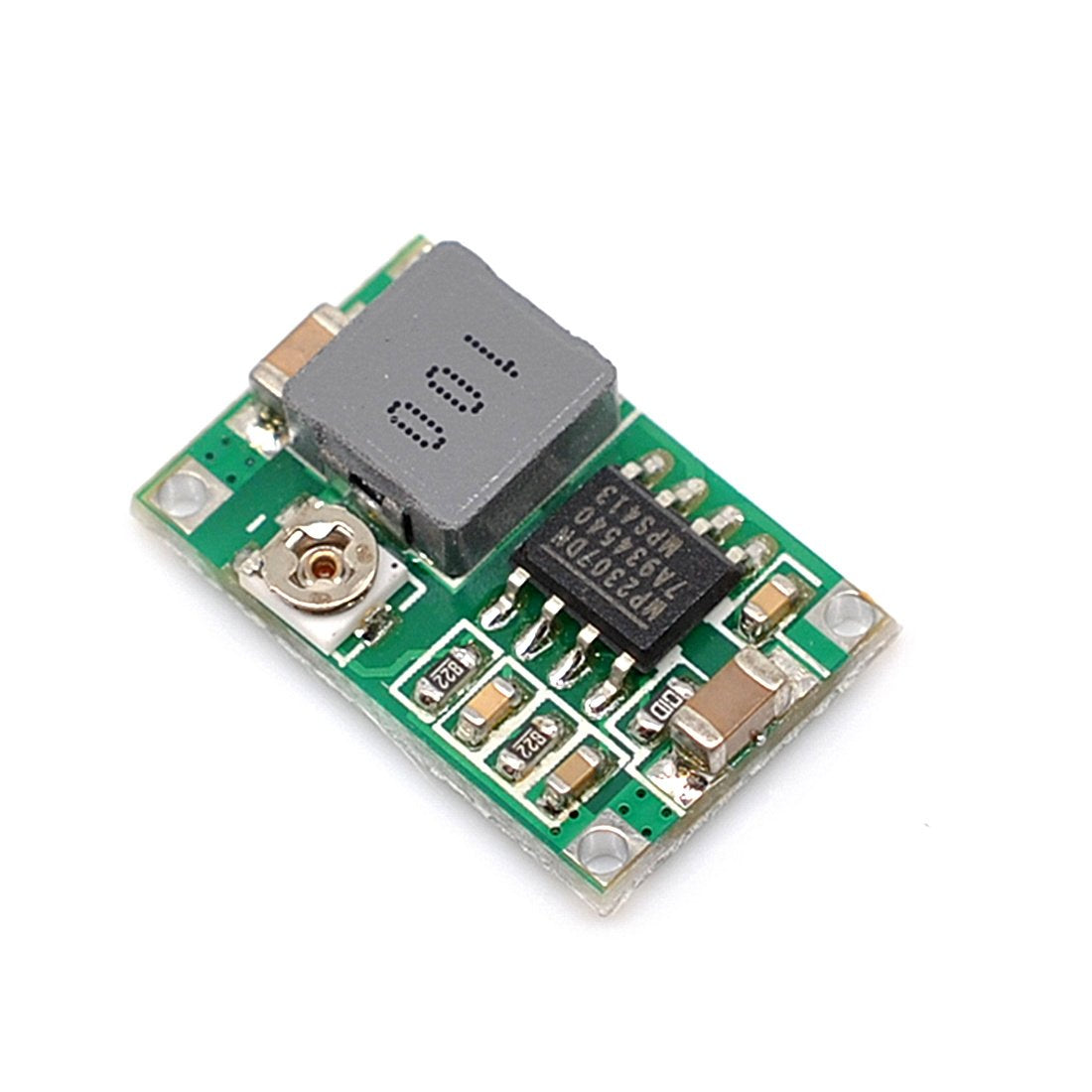

10pcs Mini-360 Ultra-small HM Step down Power Module
• Adjustable Output Voltage - Converts DC 4.75V-23V input to 1V-17V output using MP2307 high-efficiency chip, ideal for low-voltage applications.
• High Efficiency & Stable Performance - Up to 96% conversion efficiency and 340KHz switching frequency ensure minimal heat and stable power delivery.
• Compact & Lightweight Design - Mini 360 module size fits tight spaces, perfect for RC airplane, drone, Arduino, or Raspberry Pi projects.

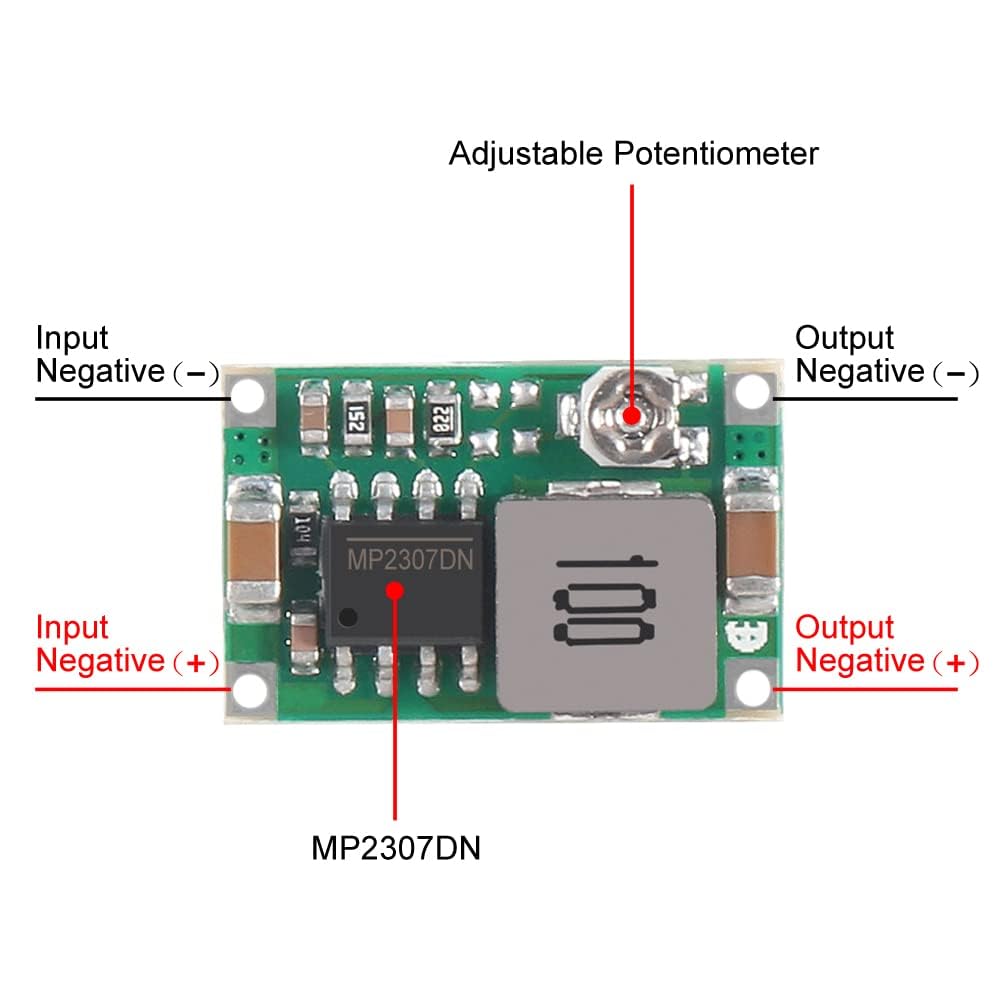

• Easy to Use - Built-in adjustable potentiometer allows precise output voltage tuning

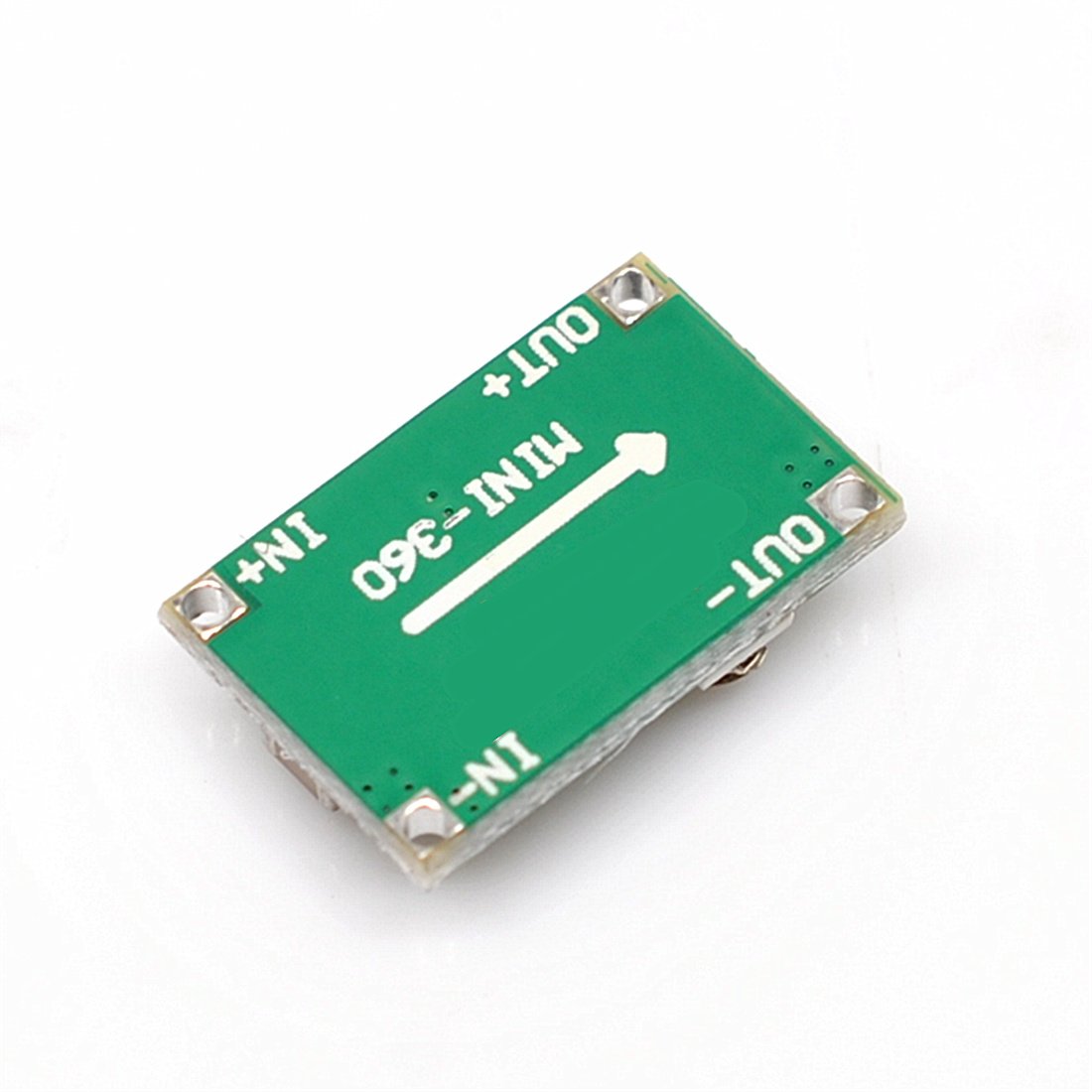

• simply connect input/output terminals.
• Wide Application - Suitable for DIY electronics, LED drivers, battery charging, sensors, and embedded power systems.
Color: multicolor
Model: 765470381065
Module Properties: non-isolated buck
Rectification Methods: synchronous rectification
Input Voltage: 4.75V-23V
Output Voltage: 1.0V-17V
Output Current: Peak 3A, long 1.8A
Conversion Efficiency: 96% (the highest)
Switching Frequency: 340KHz
Output Ripple: 340mV (empty cut pm)
Load Regulation: +/- 0.5% Voltage Regulation: +/- 2.5%
Working Temperature: -40°C - + 85°C
External Dimensions: 17 * 11 * 3.8mm (L * W * H)
Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Applications: HM dedicated DC-DC step-down module (supports 2S ~ 5S lithium polymer), DIY mobile power, car power,
communications equipment supply, there are a variety of size and weight for demanding applications.
Package included:
10pcs Mini-360 Ultra-small HM Step down Power Module
• Adjustable Output Voltage - Converts DC 4.75V-23V input to 1V-17V output using MP2307 high-efficiency chip, ideal for low-voltage applications.
• High Efficiency & Stable Performance - Up to 96% conversion efficiency and 340KHz switching frequency ensure minimal heat and stable power delivery.
• Compact & Lightweight Design - Mini 360 module size fits tight spaces, perfect for RC airplane, drone, Arduino, or Raspberry Pi projects.
• Easy to Use - Built-in adjustable potentiometer allows precise output voltage tuning
• simply connect input/output terminals.
• Wide Application - Suitable for DIY electronics, LED drivers, battery charging, sensors, and embedded power systems.
Color: multicolor
