Description
Brand: NOYITO
Model: vp05100
Feature
Using embedded technology of single chip microcomputer.
Easy to operate, it can be fine-tuned by a potentiometer.
Select a different input voltage range (0-5V/0-10V) by the jumper cap.
The module is small and easy to carry and use.
Parameter:
Module operating voltage: DC 7V-12V.
Conversion range: 0-5V/0-10V voltage conversion to 0%-100% PWM
Allowable error: 1% - 3%.
Size:32x34mm
Wiring instructions:
VCC: Power + (5V-12V).
GND: Power - / Ground.
VIN: Input voltage 0-10V / 0-5V.
GND: Input voltage ground.
GND: Output PWM ground.
PWM: Output PWM.
Instructions:
Connect the working voltage to VCC and GND, and do not reverse the connection to avoid damage to the board and device.
The controllable voltage is connected to the VIN terminal, and the voltage range is divided into 0-5V and 0-10V according to the selected mode.
The PWM output is at the PWM side.
The duty cycle can be adjusted by adjusting the voltage.
Accuracy can be controlled by adjusting the potentiometer.
Package Included

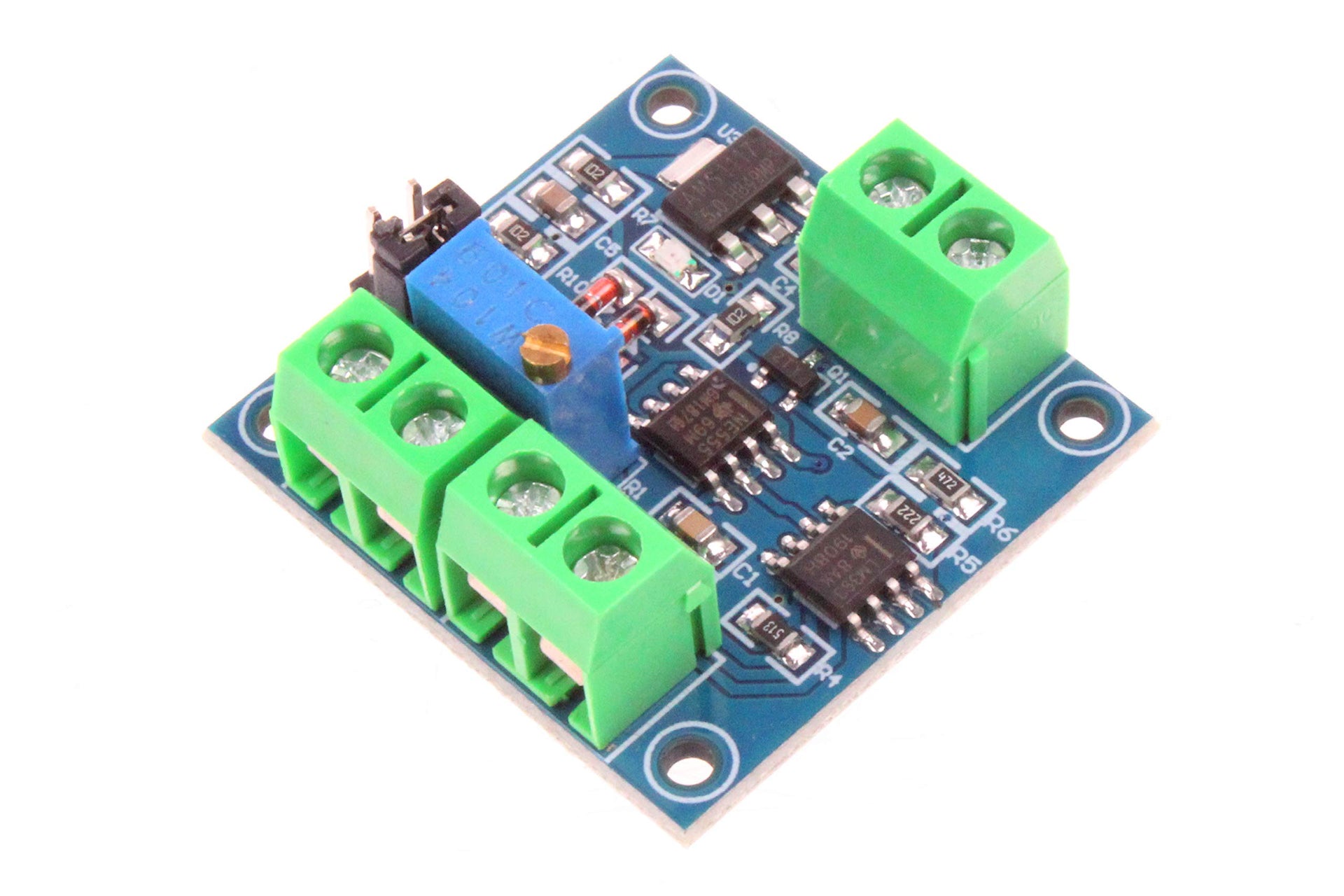

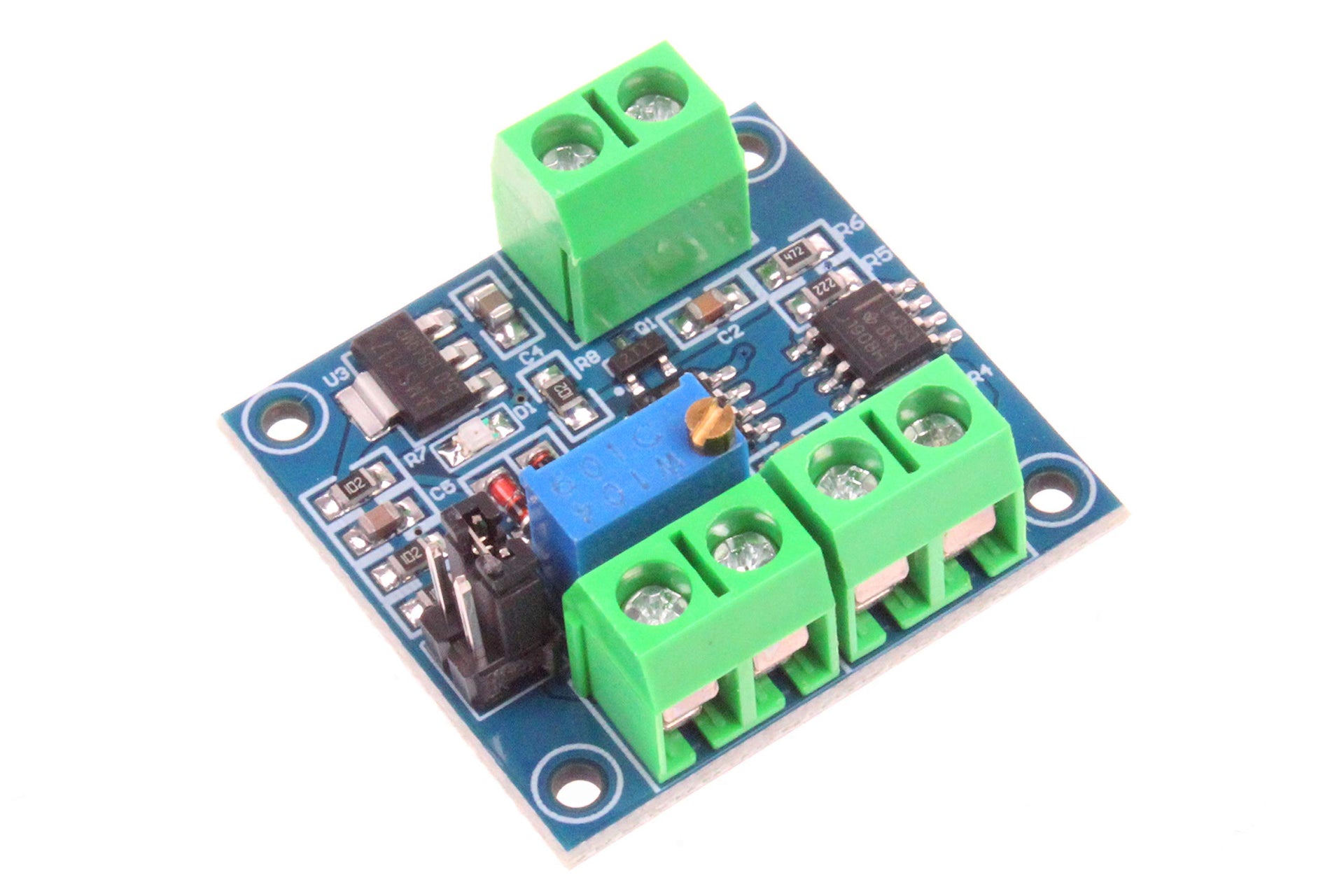

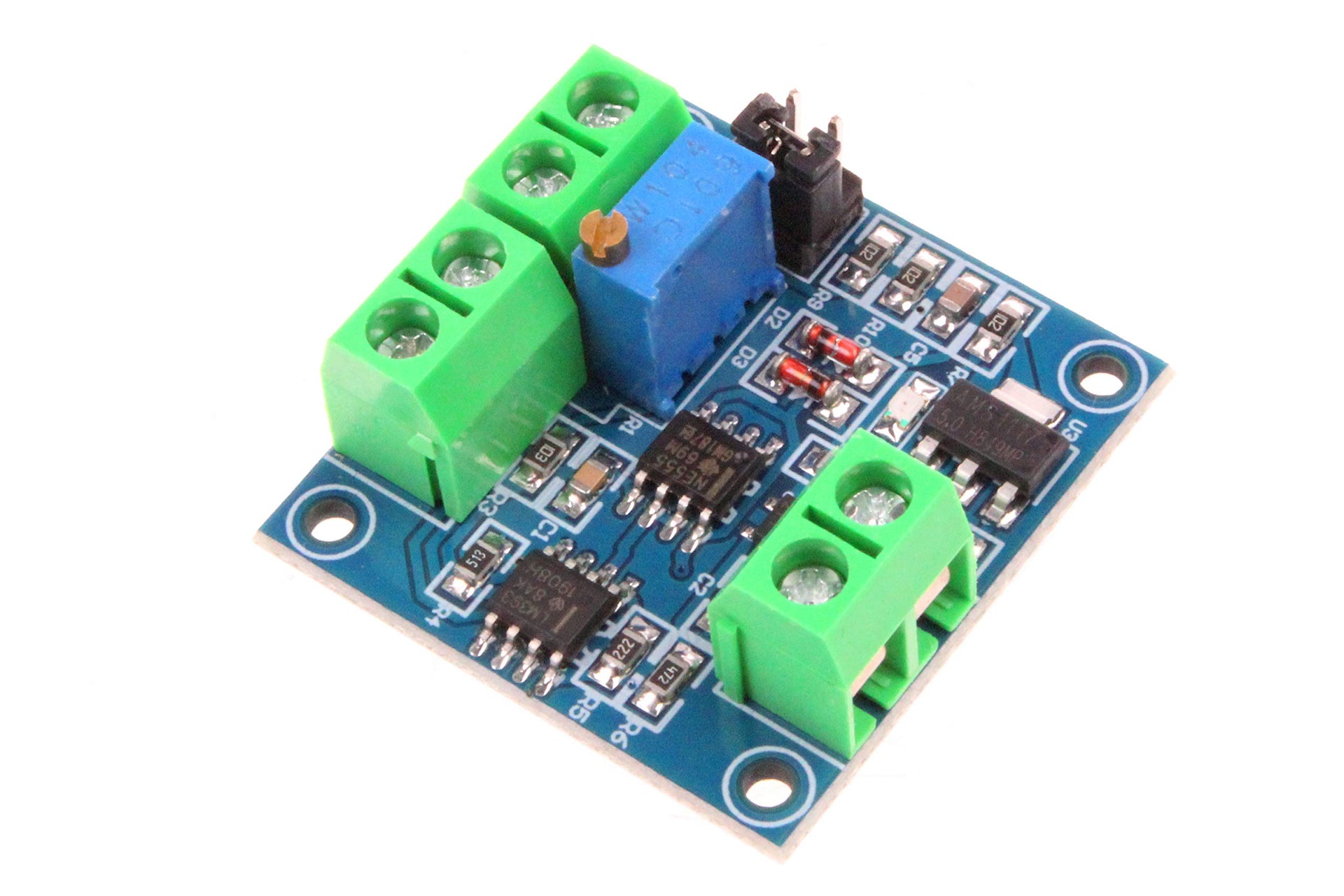

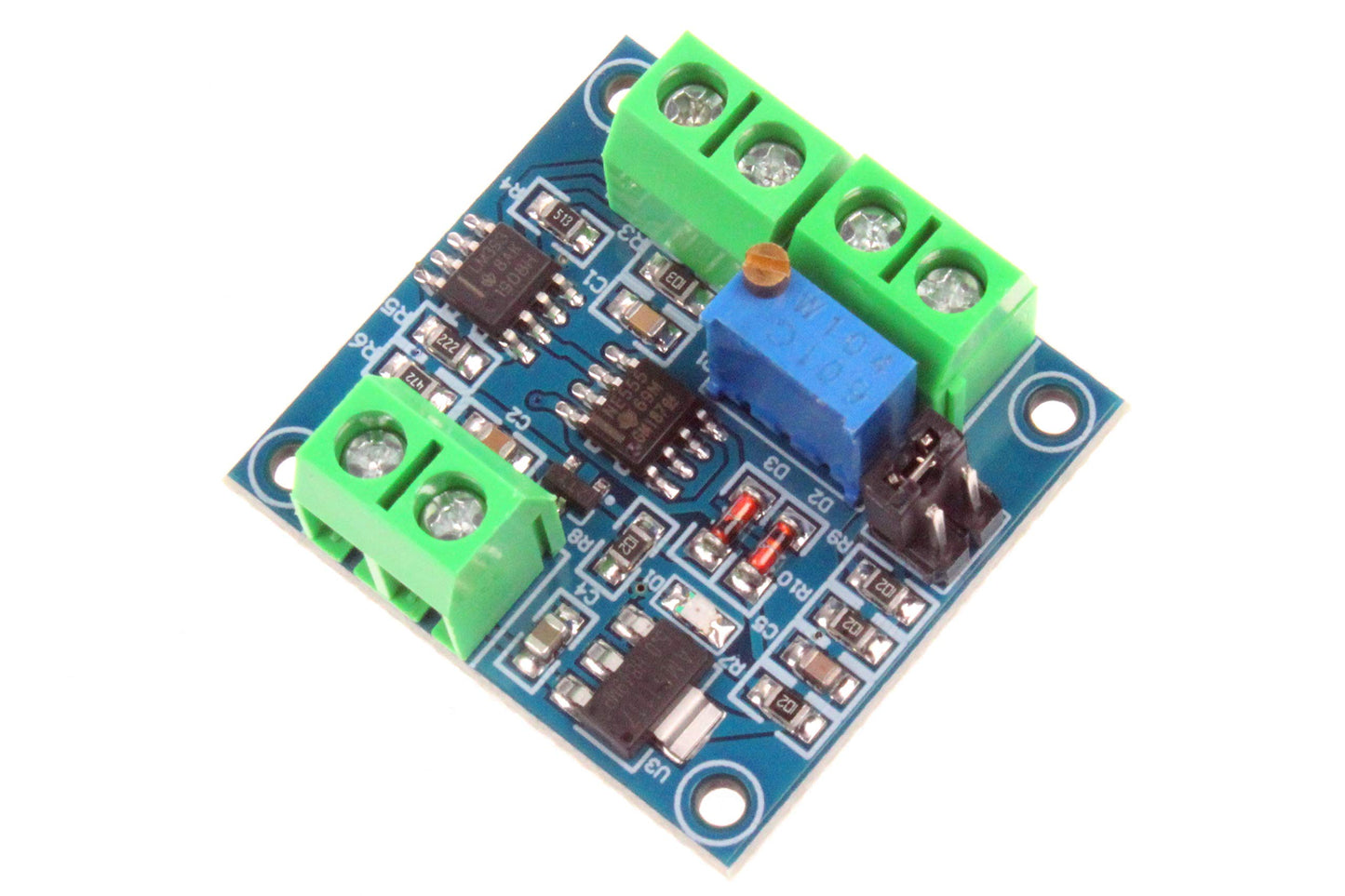

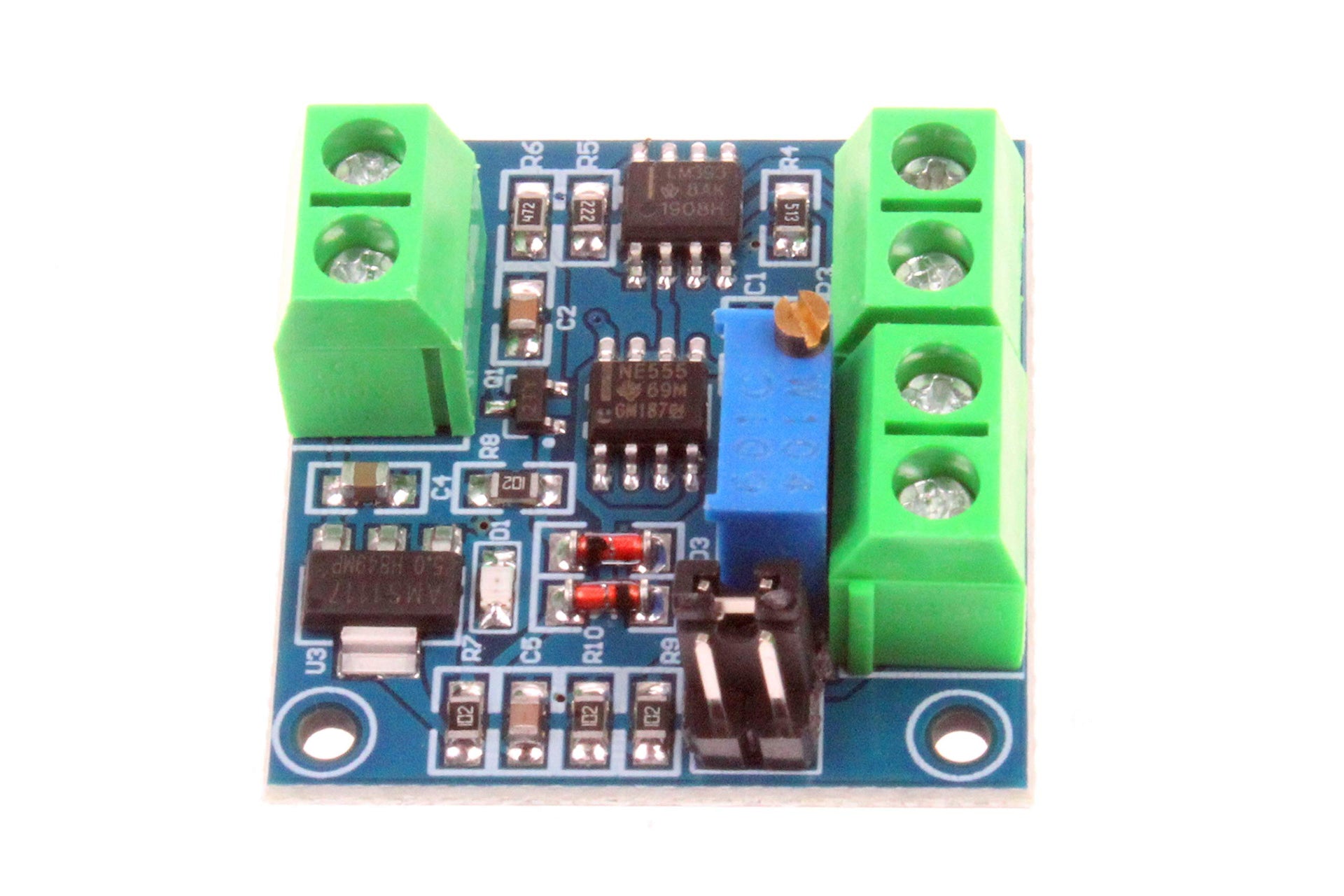

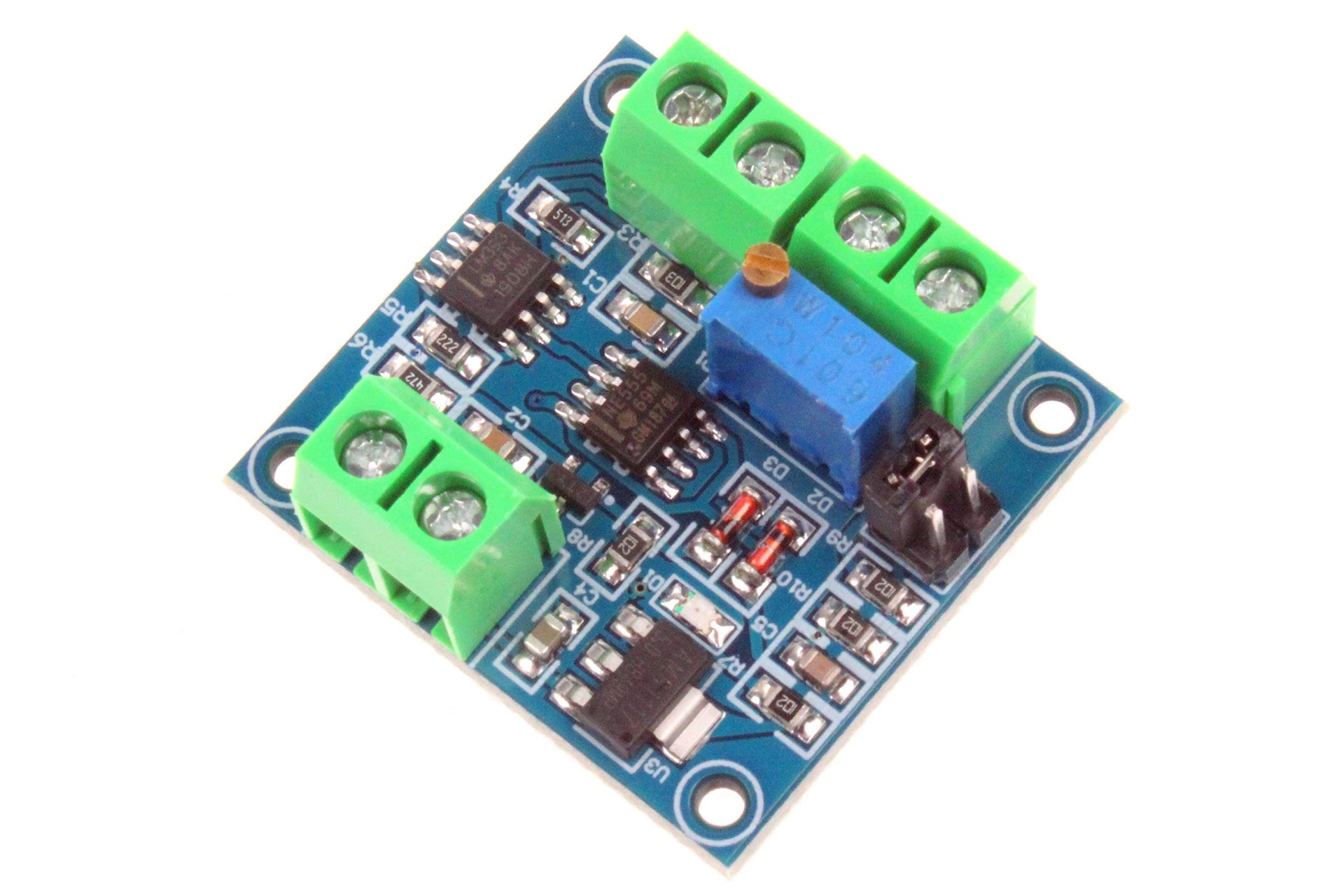

1Pcs NOYITO Voltage to PWM Module
• NOYITO Voltage-to-PWM module converts the 0-5V/0-10V voltage to a 0%-100% PWM output and adjusts the PWM duty cycle by adjusting the voltage.
• Can be used to control the motor or other places where PWM is required. The module is small in size and easy to apply in different places.
• Module working voltage: DC 7V-12V.
• Conversion range: 0-5V/0-10V voltage conversion to 0%-100% PWM
• Select a different input voltage range (0-5V/0-10V) by the jumper cap.
• Output PWM amplitude: 5V. Output PWM frequency: about 50KHz.
• NOYITO Voltage to PWM Module User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgQhF7eSZDhxtHUDj?e=r2EKGl
Color: Blue
Model: vp05100
Feature
Using embedded technology of single chip microcomputer.
Easy to operate, it can be fine-tuned by a potentiometer.
Select a different input voltage range (0-5V/0-10V) by the jumper cap.
The module is small and easy to carry and use.
Parameter:
Module operating voltage: DC 7V-12V.
Conversion range: 0-5V/0-10V voltage conversion to 0%-100% PWM
Allowable error: 1% - 3%.
Size:32x34mm
Wiring instructions:
VCC: Power + (5V-12V).
GND: Power - / Ground.
VIN: Input voltage 0-10V / 0-5V.
GND: Input voltage ground.
GND: Output PWM ground.
PWM: Output PWM.
Instructions:
Connect the working voltage to VCC and GND, and do not reverse the connection to avoid damage to the board and device.
The controllable voltage is connected to the VIN terminal, and the voltage range is divided into 0-5V and 0-10V according to the selected mode.
The PWM output is at the PWM side.
The duty cycle can be adjusted by adjusting the voltage.
Accuracy can be controlled by adjusting the potentiometer.
Package Included
1Pcs NOYITO Voltage to PWM Module
• NOYITO Voltage-to-PWM module converts the 0-5V/0-10V voltage to a 0%-100% PWM output and adjusts the PWM duty cycle by adjusting the voltage.
• Can be used to control the motor or other places where PWM is required. The module is small in size and easy to apply in different places.
• Module working voltage: DC 7V-12V.
• Conversion range: 0-5V/0-10V voltage conversion to 0%-100% PWM
• Select a different input voltage range (0-5V/0-10V) by the jumper cap.
• Output PWM amplitude: 5V. Output PWM frequency: about 50KHz.
• NOYITO Voltage to PWM Module User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgQhF7eSZDhxtHUDj?e=r2EKGl
Color: Blue
