Description
Brand: NOYITO
Model: NODC9CCV40358
Parameter:
Module nature: Non-isolated buck constant current, constant voltage module (CC CV) charging module.
Input voltage: DC 12V, 24V, 36V, (7V-40V).
Output voltage: DC 1.2V-35V (Continuously Adjustable).
Output current: MAX 8A (power tube temperature exceeds 65 °C Or work continuously for a long time.， Please use a fan for heat dissipation. ).
Constant current range: 0.2-9A (adjustable).
The lowest voltage difference: 1V
Output power: Max 300W.
Conversion efficiency: up to about 95% (the higher the output voltage, the higher the efficiency)
Working frequency: 180KHZ.
Output ripple: 20M bandwidth.
No-load current: 20mA (measured in the case of 24V to 12V).
Load regulation: +/- 1% (constant voltage).
Voltage regulation: +/- 1%.
Dynamic response speed: 5% 200uS.
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease) The potentiometer on the input side is voltage regulation (CV), and the potentiometer on the output side is current regulation (CC).
Indicator light: Two-color indicator light, the indicator light is red during charging, the charging completion indicator is green (no load is green) The indicator without constant current is red. Output short circuit protection: Yes.
Input reverse connection protection: none.
Output prevents backflow: none.
Wiring method: terminal block.
Dimensions: 65 (length) * 47 (width) * 23.5 (height) mm.
Weight: 68G.
Scope of application: high-power LED constant current drive, lithium battery charging (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-hydrogen battery (battery pack) charging.
Pacakge Included:

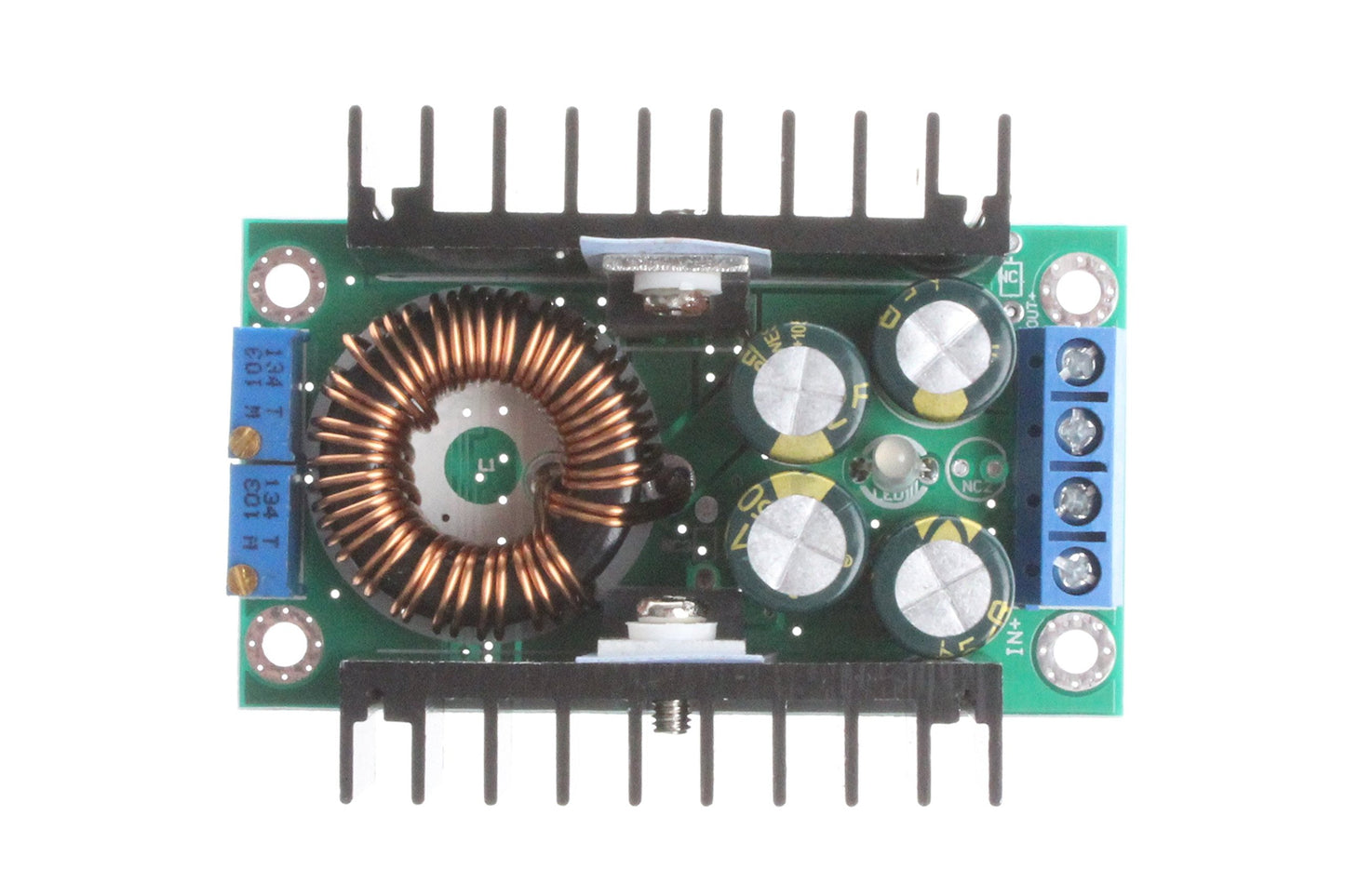

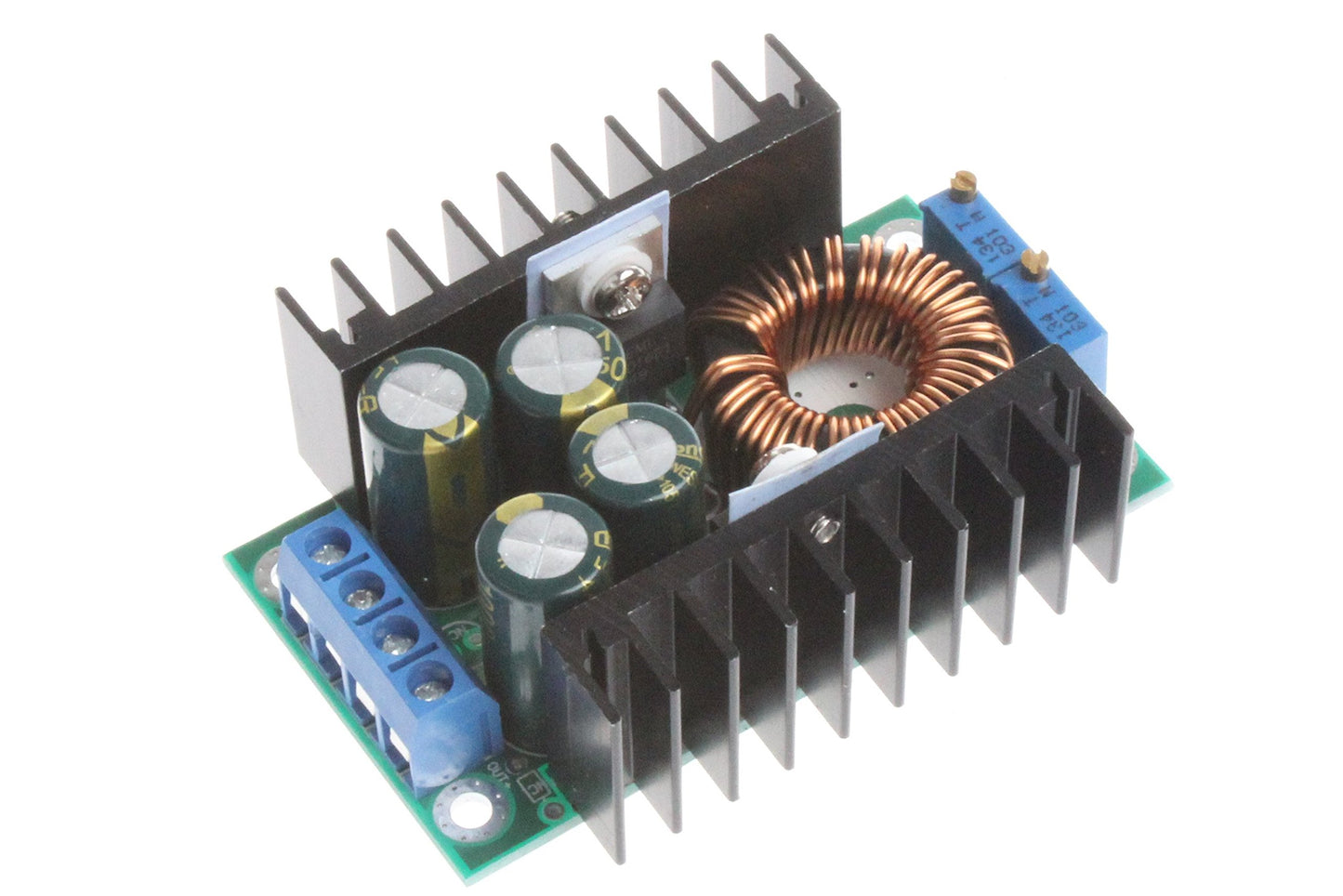

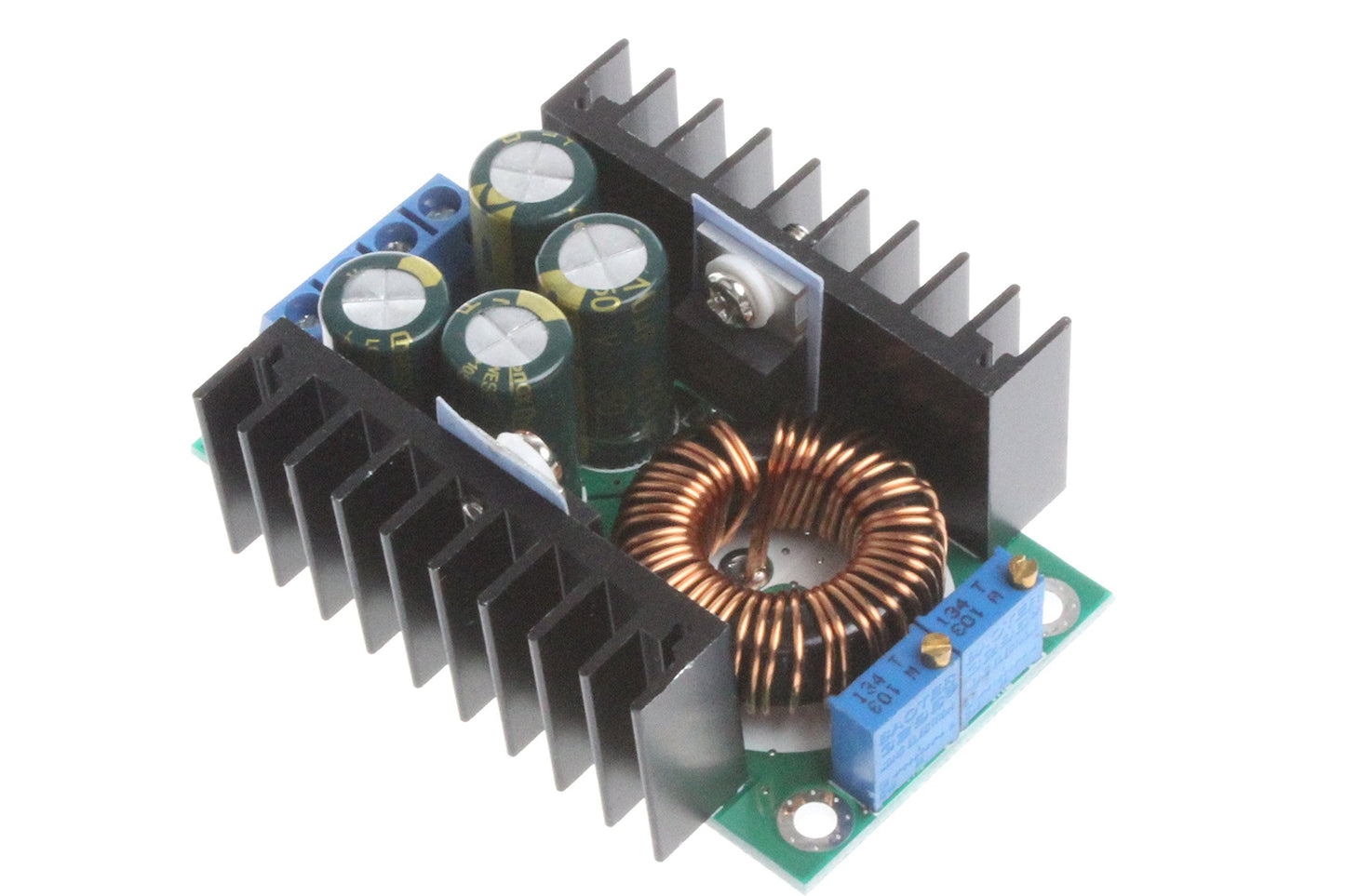

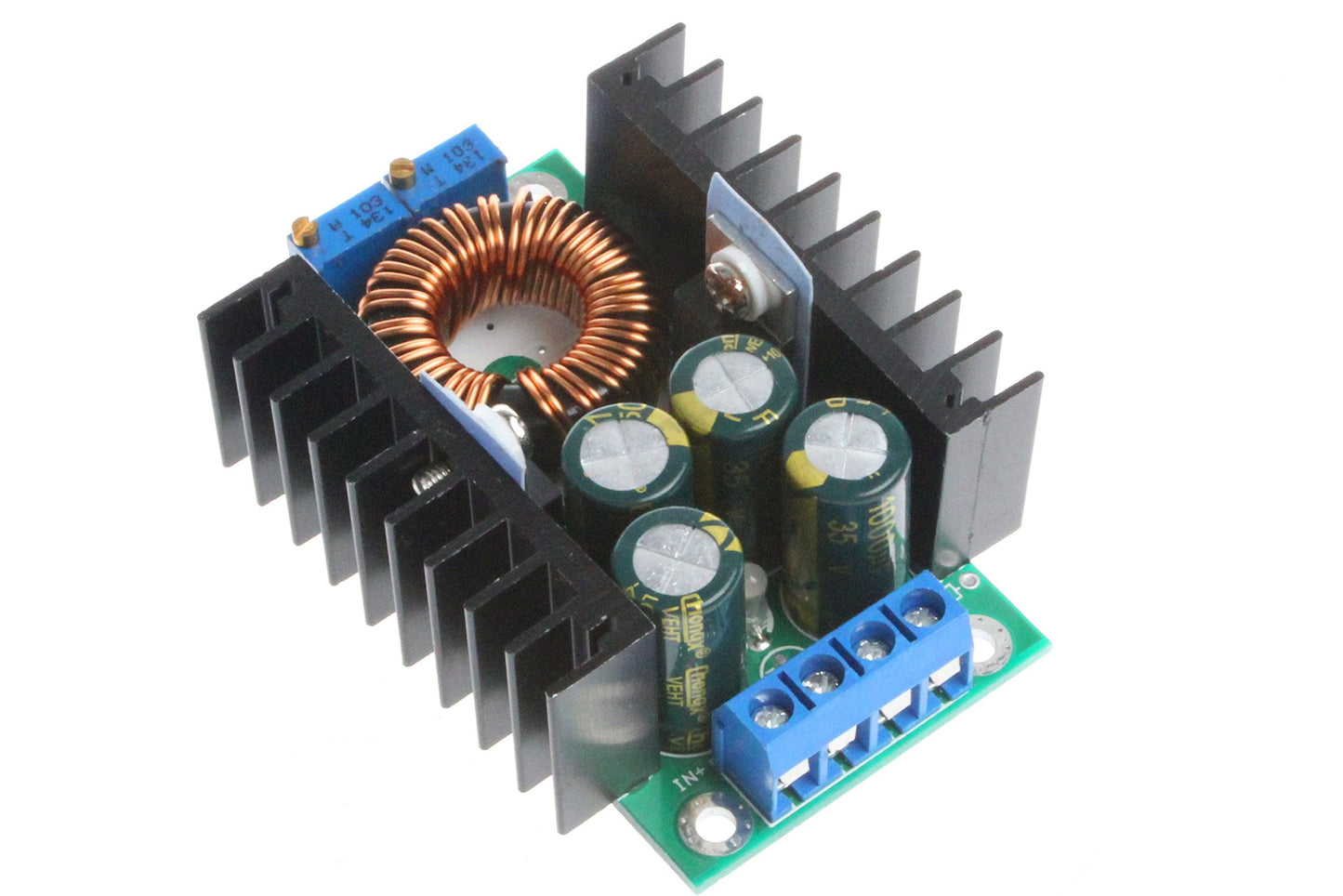

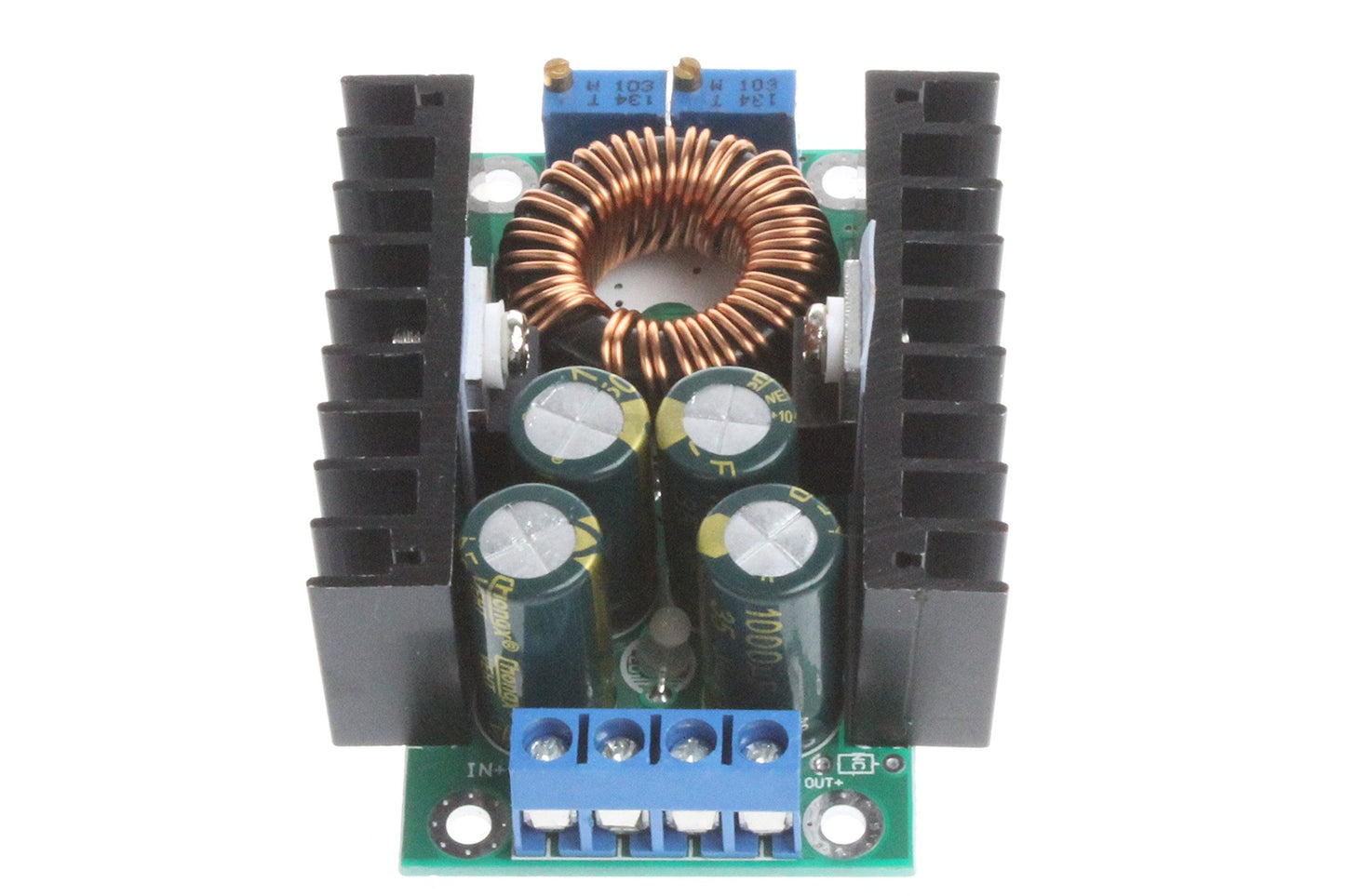

1Pcs NOYITO DC-DC 8A Adjustable Buck Power Supply Module
• Module nature: Non-isolated buck constant current, constant voltage module (CC CV) charging module.
• Input voltage: DC 12V, 24V, 36V, (7V-40V).
• Output voltage: DC 1.2V-35V (Continuously Adjustable).
• Output current: MAX 9A (power tube temperature exceeds 65 °C Or work continuously for a long time.， Please use a fan for heat dissipation. ).
• Output power: Max 300W.（If used for a long time, it is recommended that the load not exceed 80% of the full load.）
Color: Green
Model: NODC9CCV40358
Parameter:
Module nature: Non-isolated buck constant current, constant voltage module (CC CV) charging module.
Input voltage: DC 12V, 24V, 36V, (7V-40V).
Output voltage: DC 1.2V-35V (Continuously Adjustable).
Output current: MAX 8A (power tube temperature exceeds 65 °C Or work continuously for a long time.， Please use a fan for heat dissipation. ).
Constant current range: 0.2-9A (adjustable).
The lowest voltage difference: 1V
Output power: Max 300W.
Conversion efficiency: up to about 95% (the higher the output voltage, the higher the efficiency)
Working frequency: 180KHZ.
Output ripple: 20M bandwidth.
No-load current: 20mA (measured in the case of 24V to 12V).
Load regulation: +/- 1% (constant voltage).
Voltage regulation: +/- 1%.
Dynamic response speed: 5% 200uS.
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease) The potentiometer on the input side is voltage regulation (CV), and the potentiometer on the output side is current regulation (CC).
Indicator light: Two-color indicator light, the indicator light is red during charging, the charging completion indicator is green (no load is green) The indicator without constant current is red. Output short circuit protection: Yes.
Input reverse connection protection: none.
Output prevents backflow: none.
Wiring method: terminal block.
Dimensions: 65 (length) * 47 (width) * 23.5 (height) mm.
Weight: 68G.
Scope of application: high-power LED constant current drive, lithium battery charging (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-hydrogen battery (battery pack) charging.
Pacakge Included:
1Pcs NOYITO DC-DC 8A Adjustable Buck Power Supply Module
• Module nature: Non-isolated buck constant current, constant voltage module (CC CV) charging module.
• Input voltage: DC 12V, 24V, 36V, (7V-40V).
• Output voltage: DC 1.2V-35V (Continuously Adjustable).
• Output current: MAX 9A (power tube temperature exceeds 65 °C Or work continuously for a long time.， Please use a fan for heat dissipation. ).
• Output power: Max 300W.（If used for a long time, it is recommended that the load not exceed 80% of the full load.）
Color: Green
