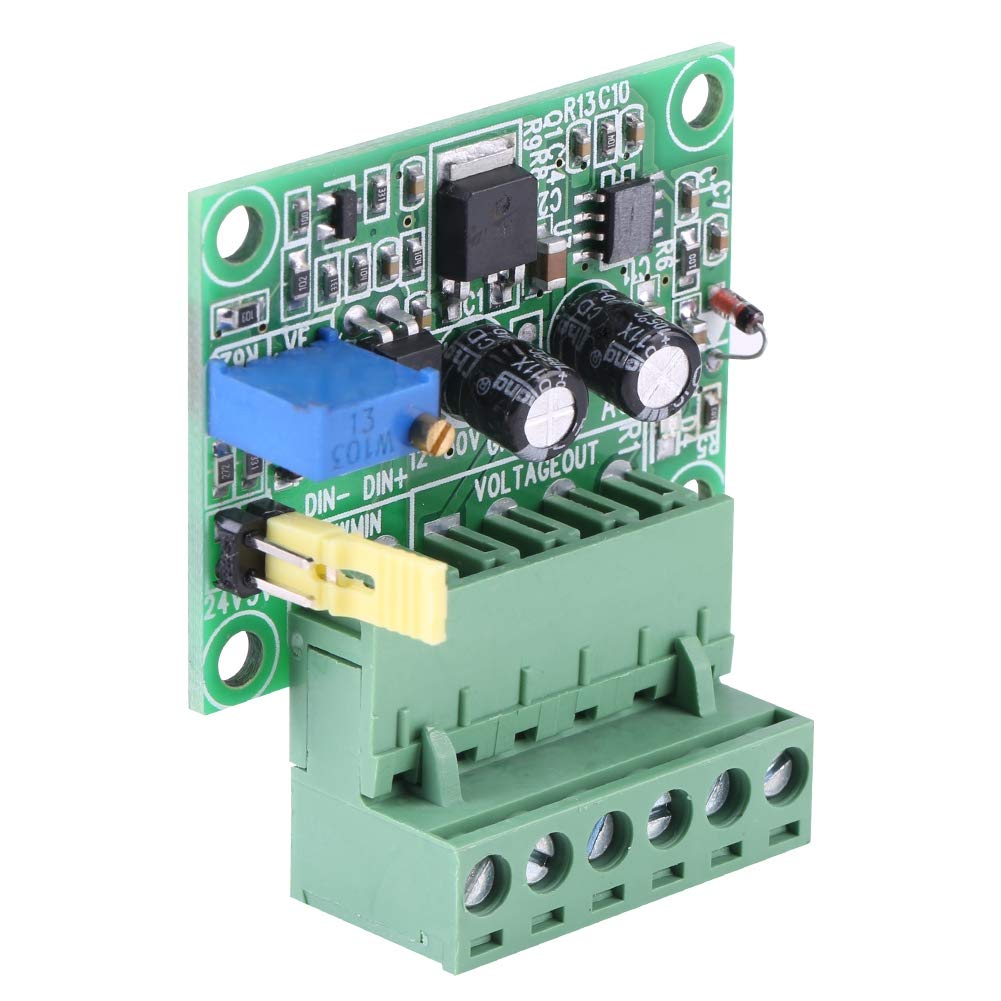

Brand: NITRIP

Model: NITRIP9mg3qevcha

Specification:
Condition: brand new and high quality
Current: M a x. 12mA
Power supply input voltage: 12-30V

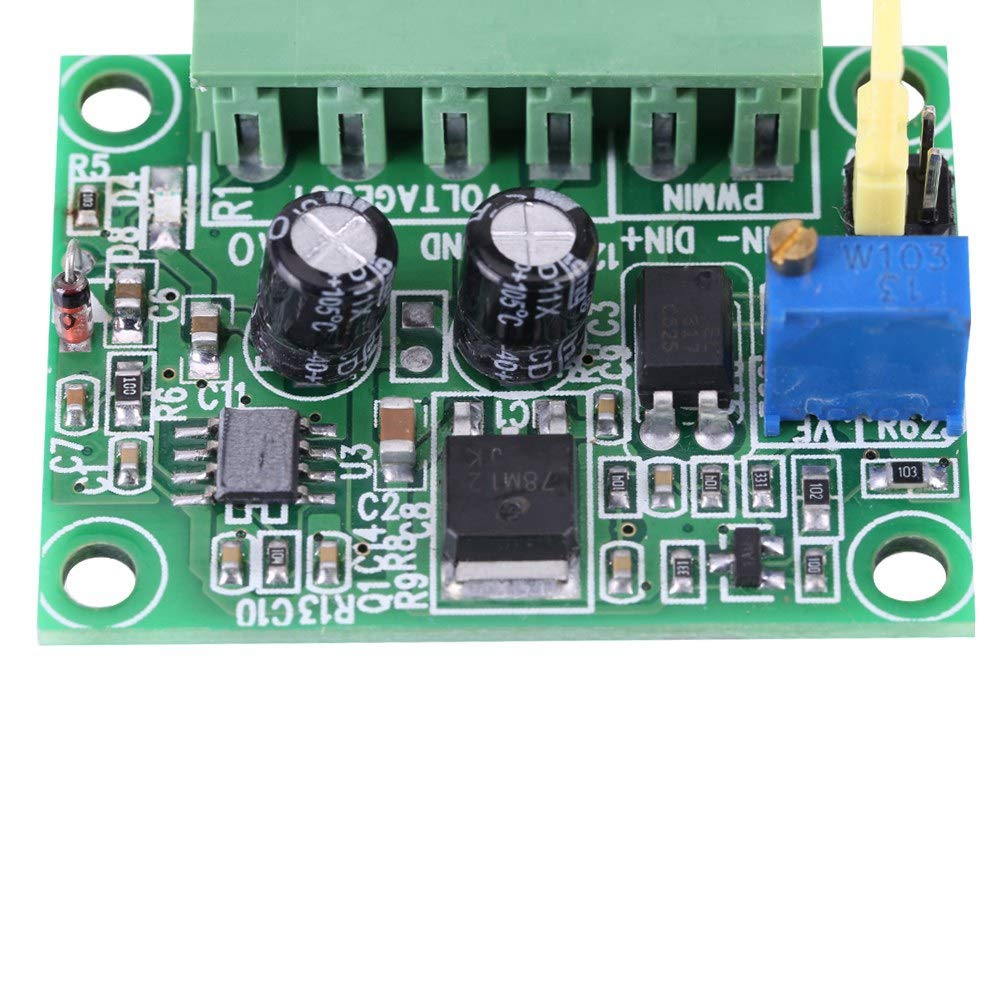

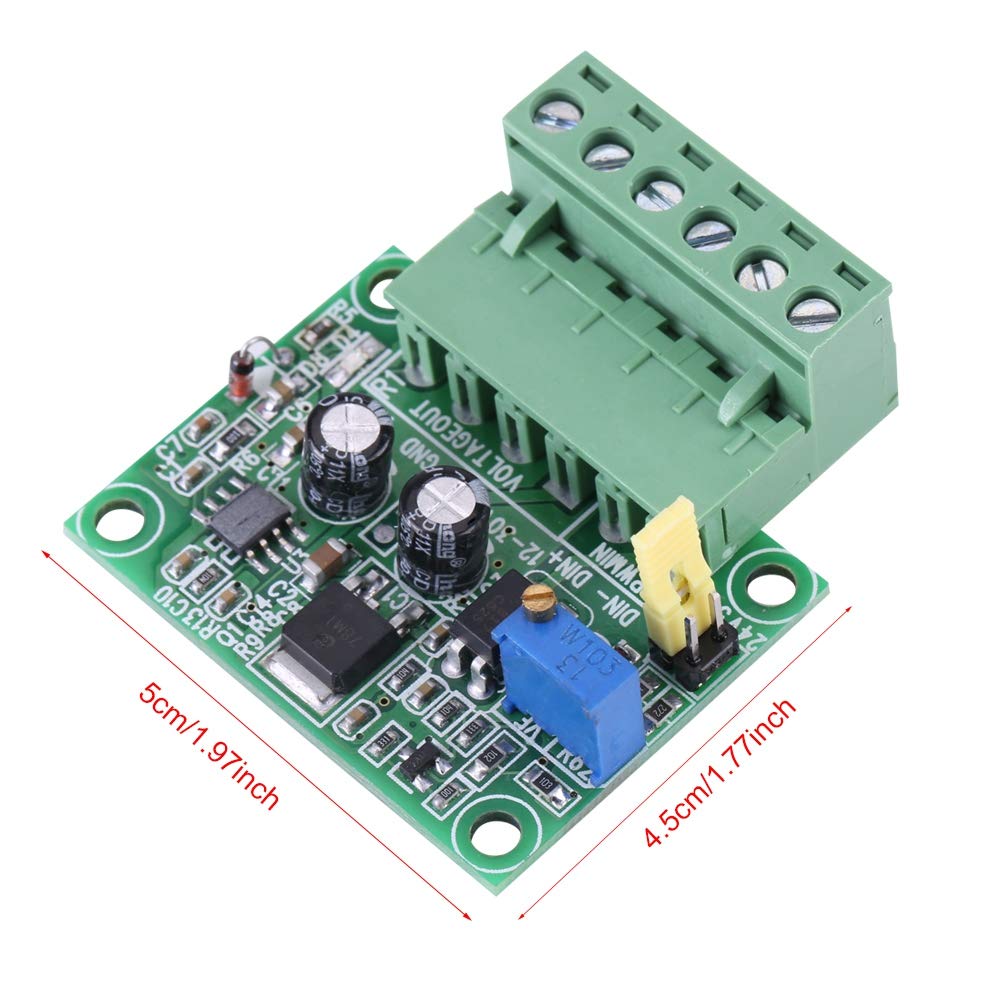

Size: Approx. 5 x 4.5cm / 1.97 x 1.77inch
Weight: 20g
Quantity: 1pc

Using method:

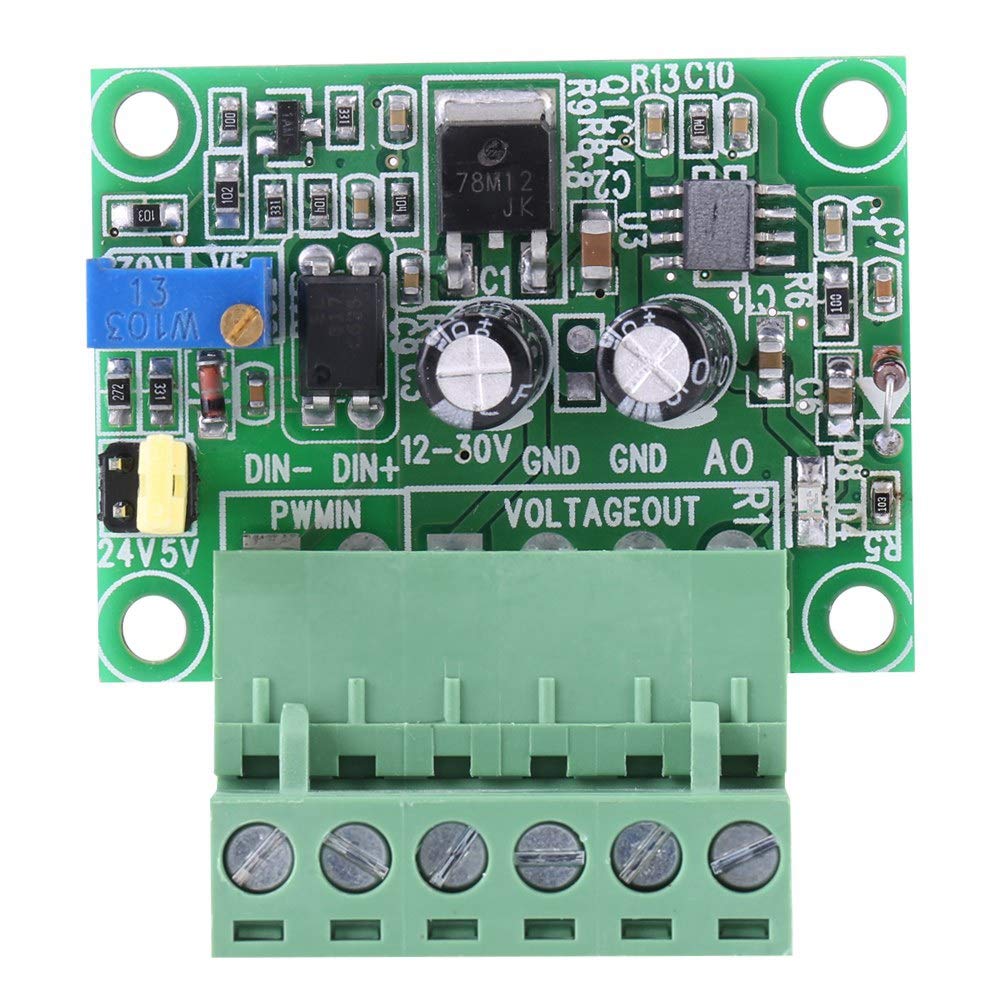

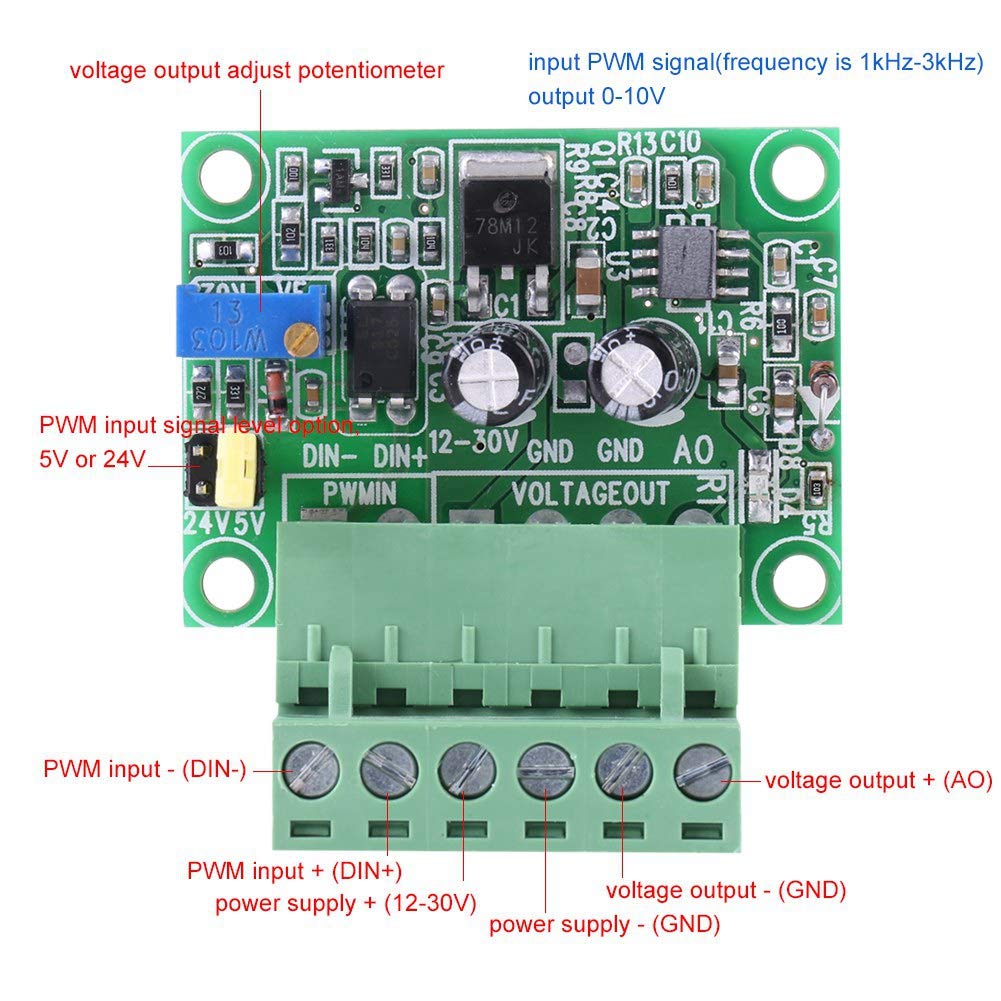

PWM input frequency range: 1KHZ-3KHZPWM input level range:4.5V to 10V p e a k to p e a k level, jumper inserted at 5V. This type mainly for conventional industrial control card (such as for MACH3 board), for 5V the CPU interface.12 to 24V p e a k to p e a k level, jumper inserted at 24V. This type mainly for conventional PLC interface
0-10V analog voltage output explanation:
When the input port is not connected, the output port gives 0V. The first time when we power on this module, we better calibrate it: find a 50% duty ratio , connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5.4V. We adjust the potentiometer on the converter module to make multi-meter shows about 5.4V. After this is done, we have calibrated and matched pulse with this converter module.  The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select PWM output pin STEP LOW / ACTIVE for MACH3 software.

Package Included:
1 x PWM to Voltage Converter

Note:
After power-up, when there is no input , the output is 0V. There is output only when there is input.



• 【Specification】Weight: 20g, Size: 5 x 4.5cm / 1.97 x 1.77inch.
• 【Main Funtion】PWM converts digital into analog (0 to 10V).
• 【Features】Input digital can be 5V or 24V level 0-100% PWM signal. Output analog can be 0-10v voltage or 0-5v voltage.
• 【Application Occasions】Can be used for industrial control panel PLC or other interface switching.
• 【Easy Operate】This module is easy to wire and convenient to use.
