Brand: MakerFocus

Model: .

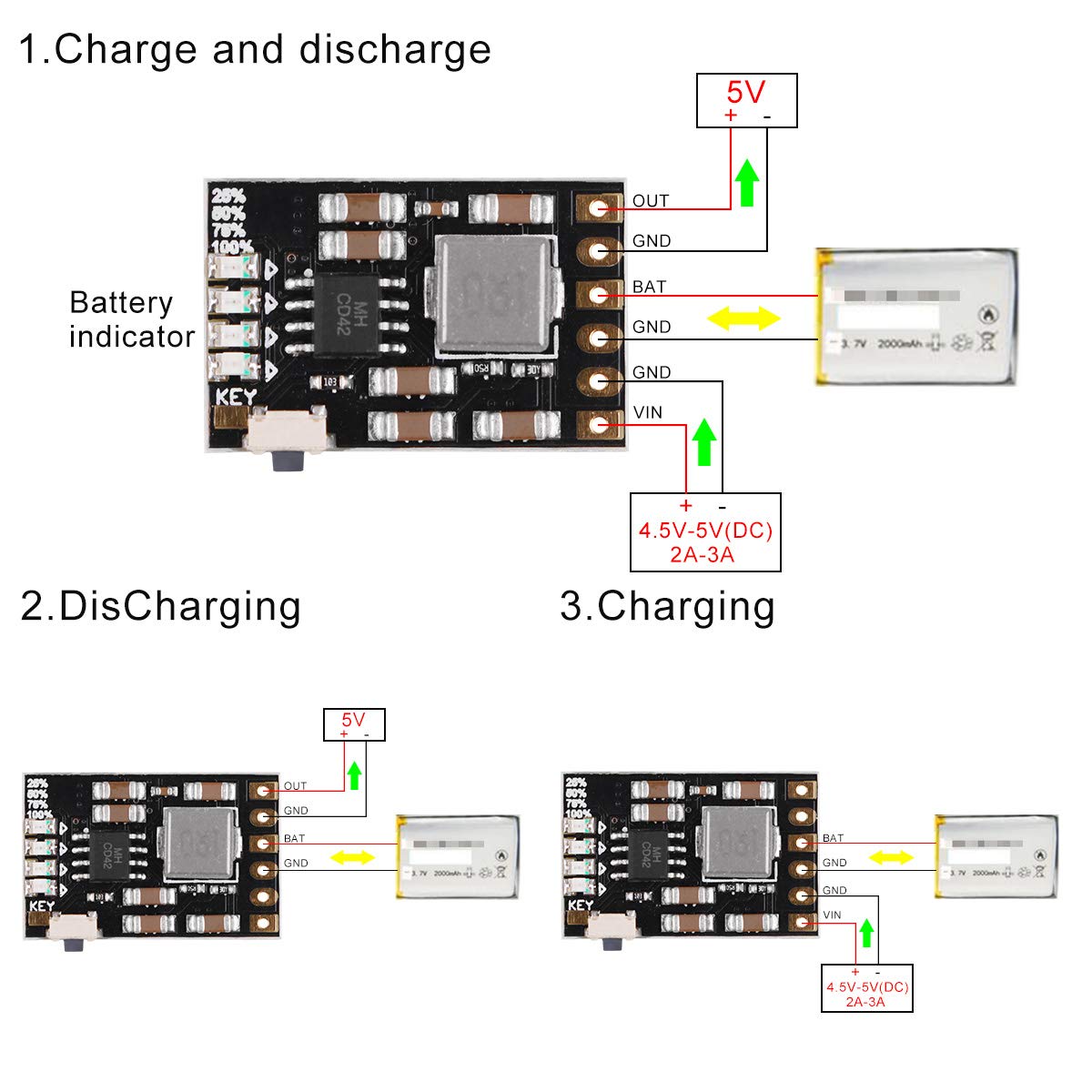

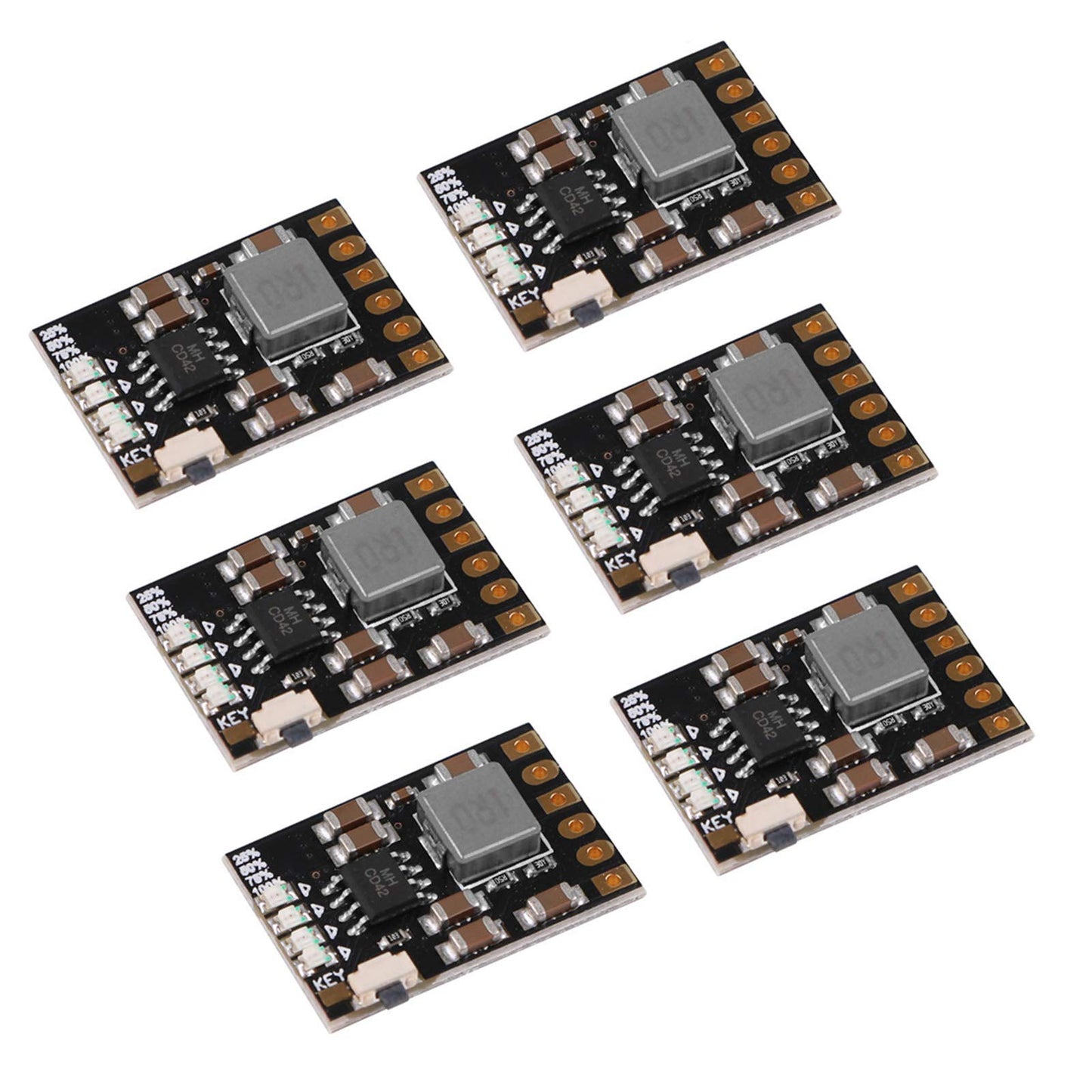

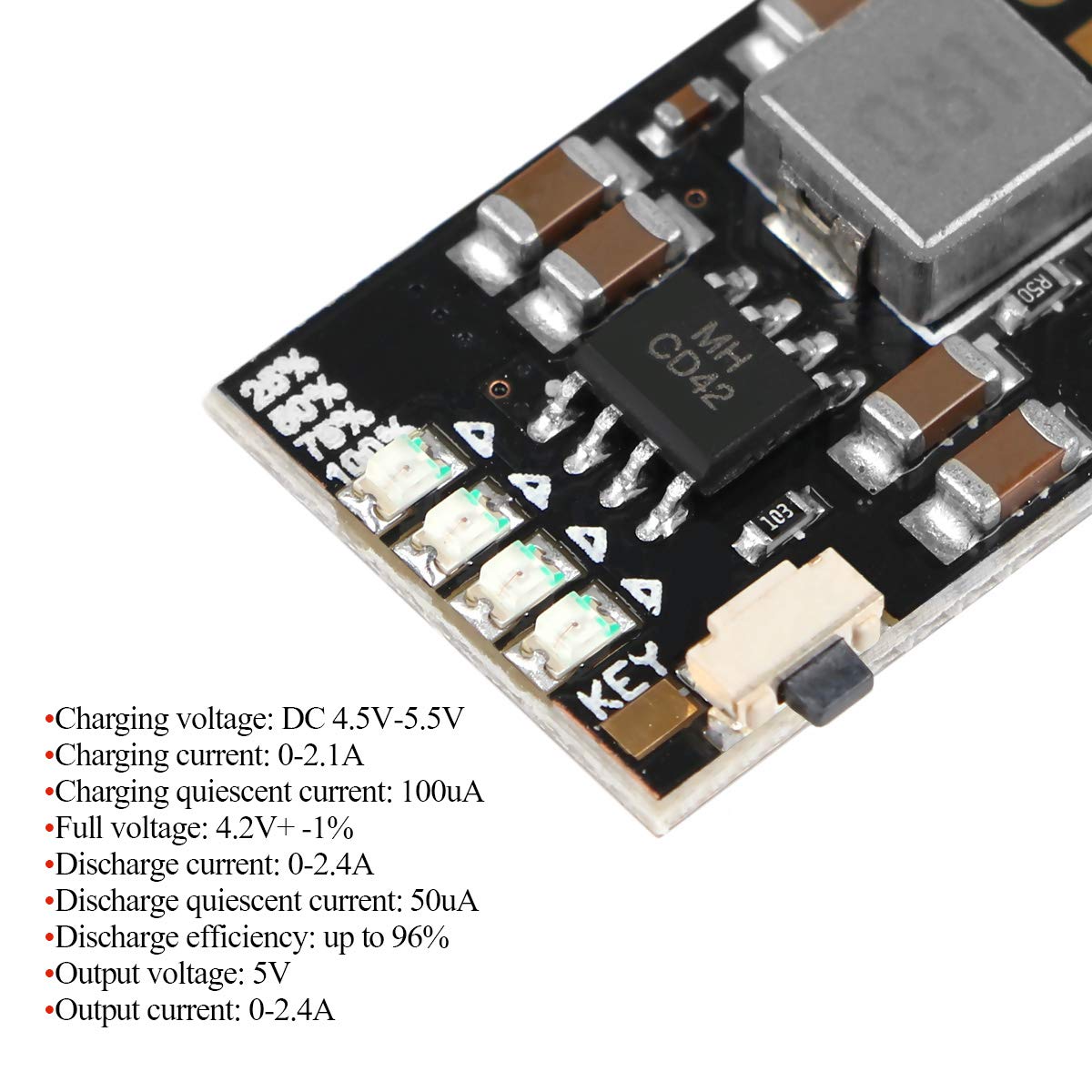

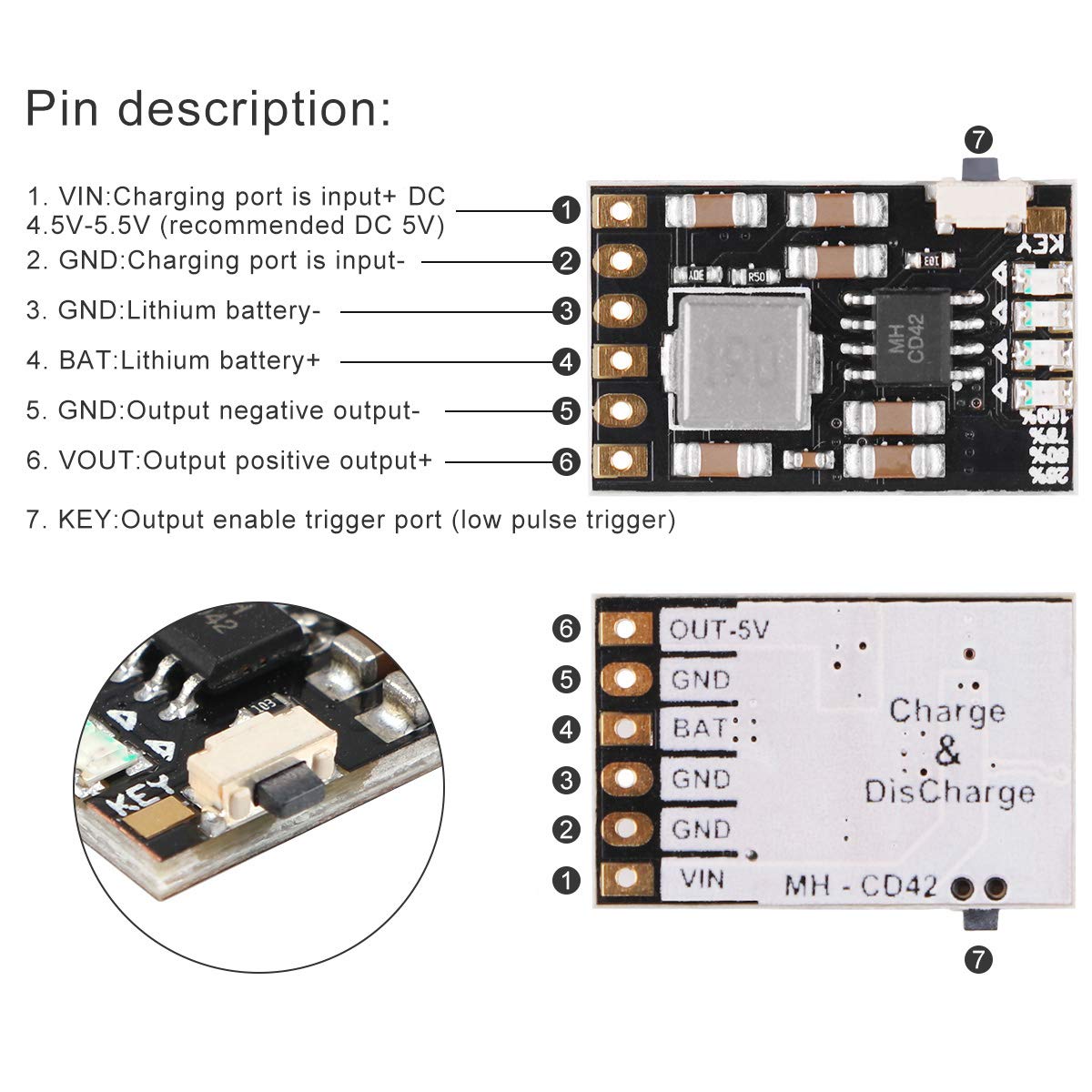

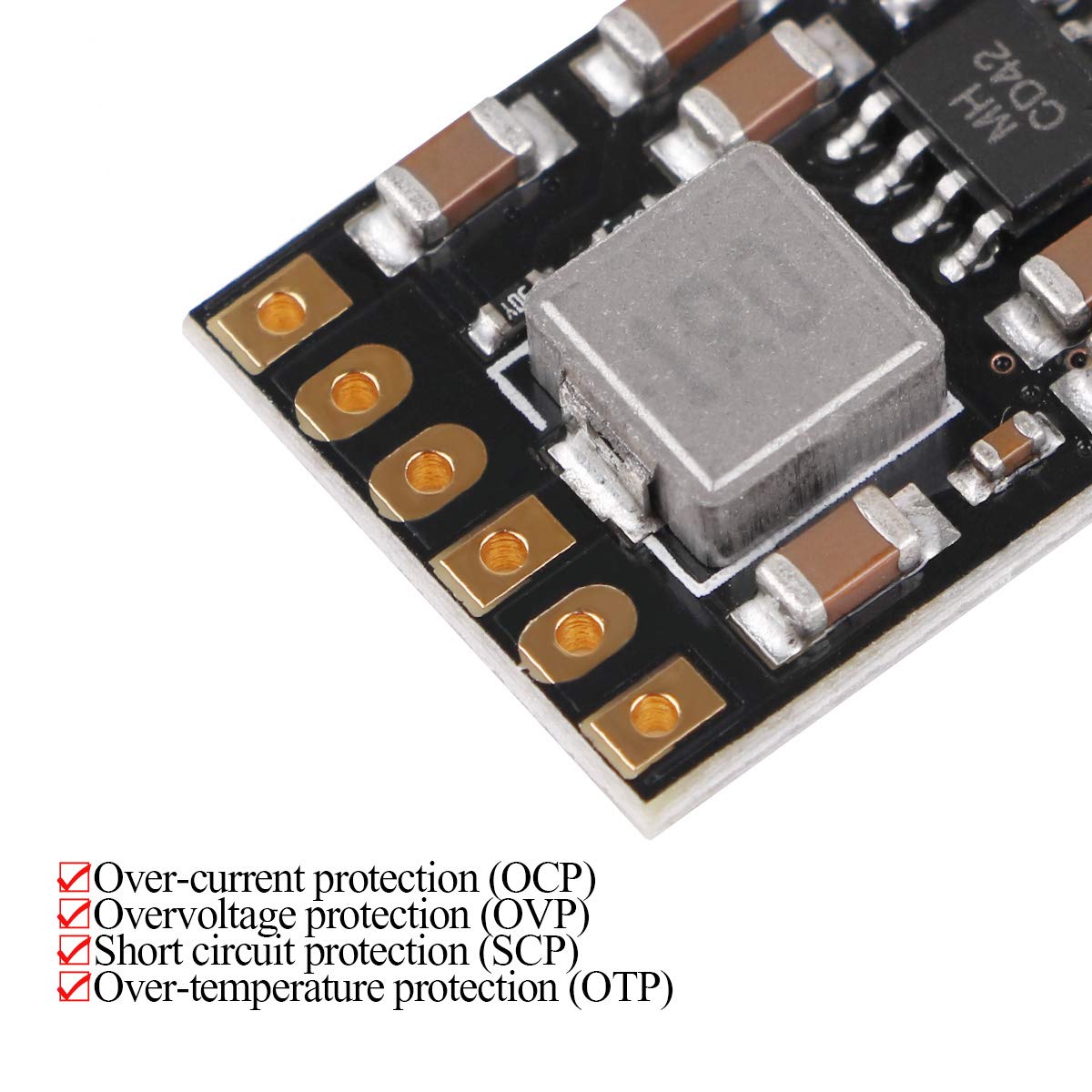

Parameter: Charging voltage: DC 4.5V-5.5V (DC 5V recommended) Charging current: 0-2.1A Charging quiescent current: 100uA Full voltage: 4.2V+ -1% Discharge current: 0-2.4A Discharge quiescent current: 50uA Discharge efficiency: up to 96% Output voltage: 5V Output current: 0-2.4A Ambient temperature: -20℃ to + 85℃ PCB board process: Shen Jin Size : 25 * 16 * 4mm The module comes with lithium battery protection function: Over-current protection (OCP) Overvoltage protection (OVP) Short Circuit Protection (SCP) Over-temperature protection (OTP) Charge and discharge power level 4 interval indicate Pin description: VIN: Charge Port Positive Input + GND: Charger Negative Input - BAT: Lithium Battery + GND: Lithium Battery - GND: Output Negative Output - OUT: Output Positive Output + KEY: Output Enable Trigger Port (Low Pulse Trigger) Applications: Car charging retrofit Driving recorder power supply Mobile power Portable devices such as mobile phones and tablets Package Content: 6 * 2A 5V Lithium battery charging protection module

• ★ MCU users, if you accept a small load KEY can be connected to the microcontroller about 20s to provide a low level allows the module to continue working. Trigger mode: low level trigger (ground)
• ★ 4 in 1 Charging / Discharging / Lithium Battery Protection / Battery Level Indicator Module. Lithium battery protection function: over-current, overvoltage, over-temperature, short circuit protection
• ★ In discharge mode (The charging mode KEY function is invalid), trigger the KEY port once to open the output
• continuously trigger the KEY port twice to close the output
• ★ The first time the load is connected, the output is automatically turned on. If the load is less than 50mA, the output will be automatically turned off after 30 seconds
• if the load is greater than 50mA, the output will be automatically turned on
• ★ Allow discharge while charging. (Note: At this time output voltage 4.7 / 5V)

Color: As Shown
