Brand: Kodrily

Model: KOD20251011121303

Features:
1. Highly integrated SMD components for high stability and reliability.
2. Flame retardant plastic housing, safe.

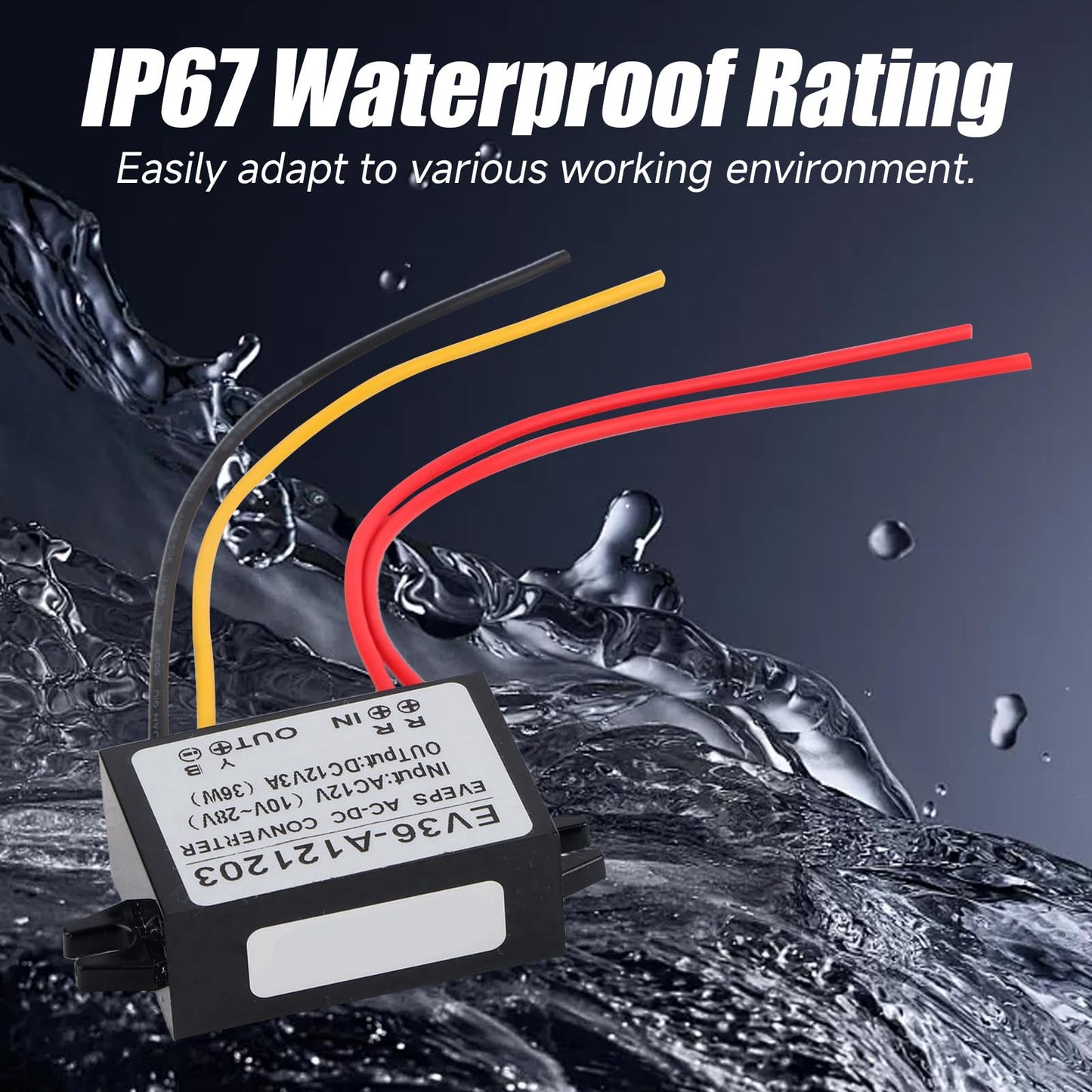

3. IP67 waterproof and dustproof, easily adapt to various working environment.

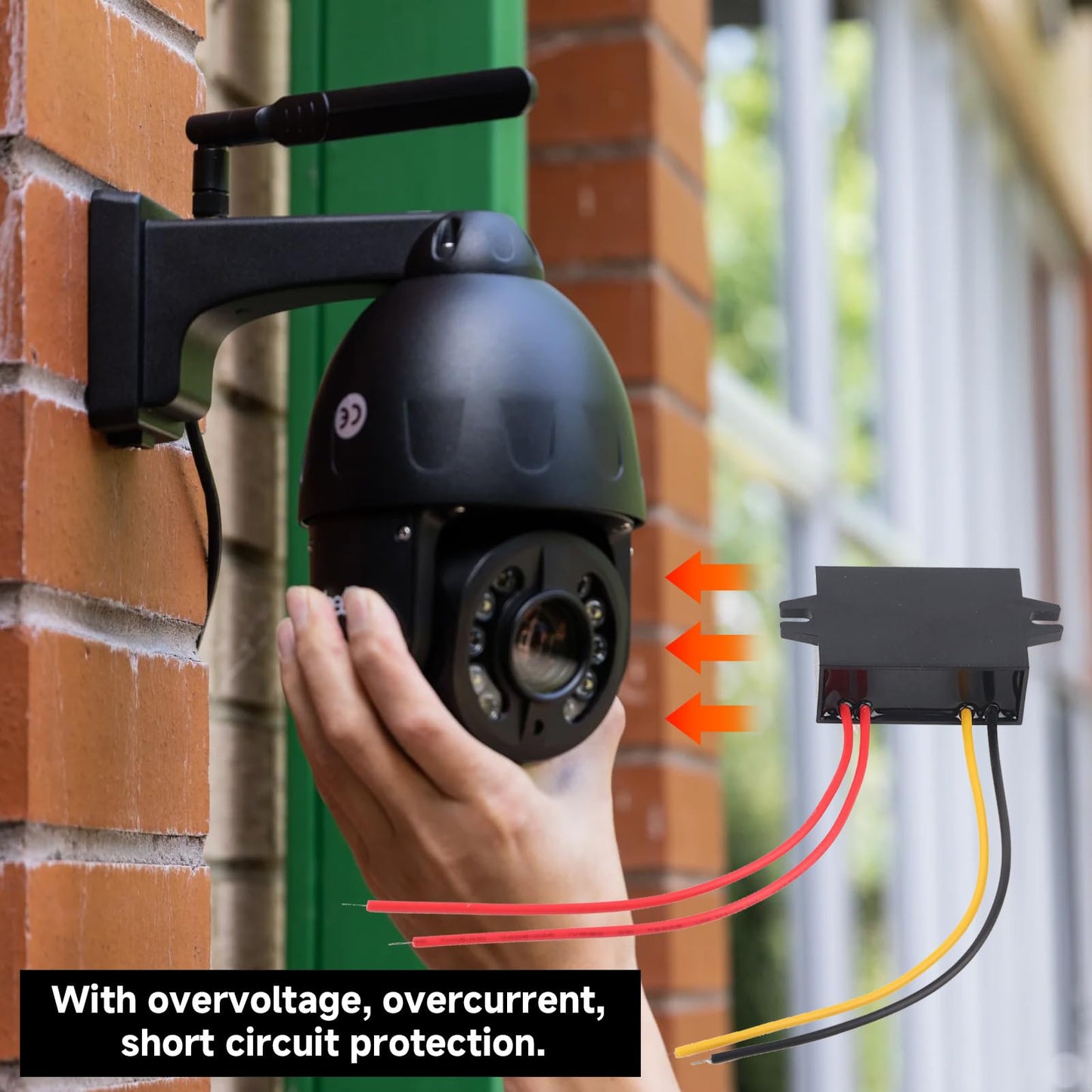

4. With overvoltage, overcurrent, short circuit protection.
5. Suitable for car screen, monitor camera, fan, water pump, motor, router, etc.

Specification:

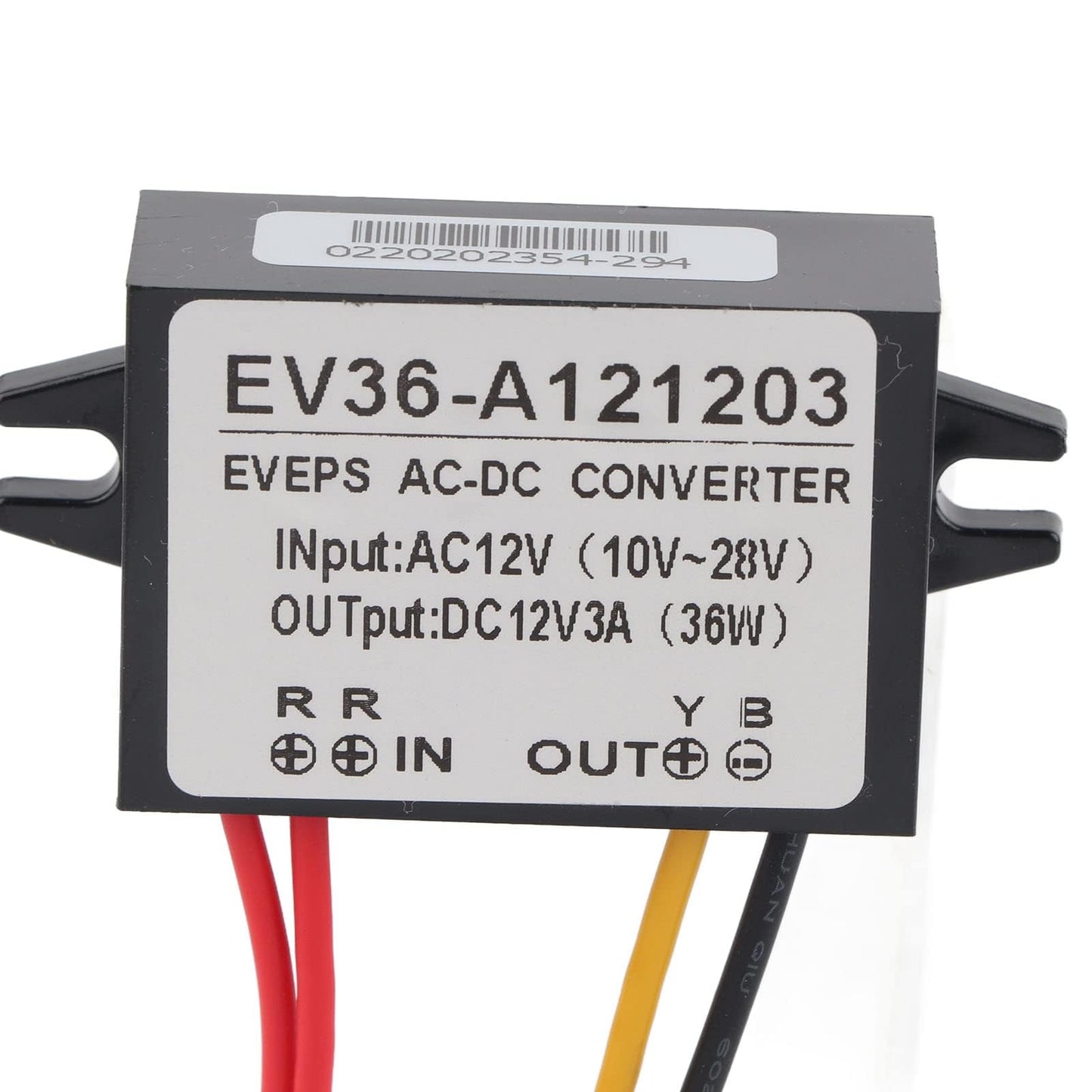

Input voltage: AC 10-28V
Output voltage: DC12V±0.25V
Output current: 1A/2A/3A/5A (Optional)

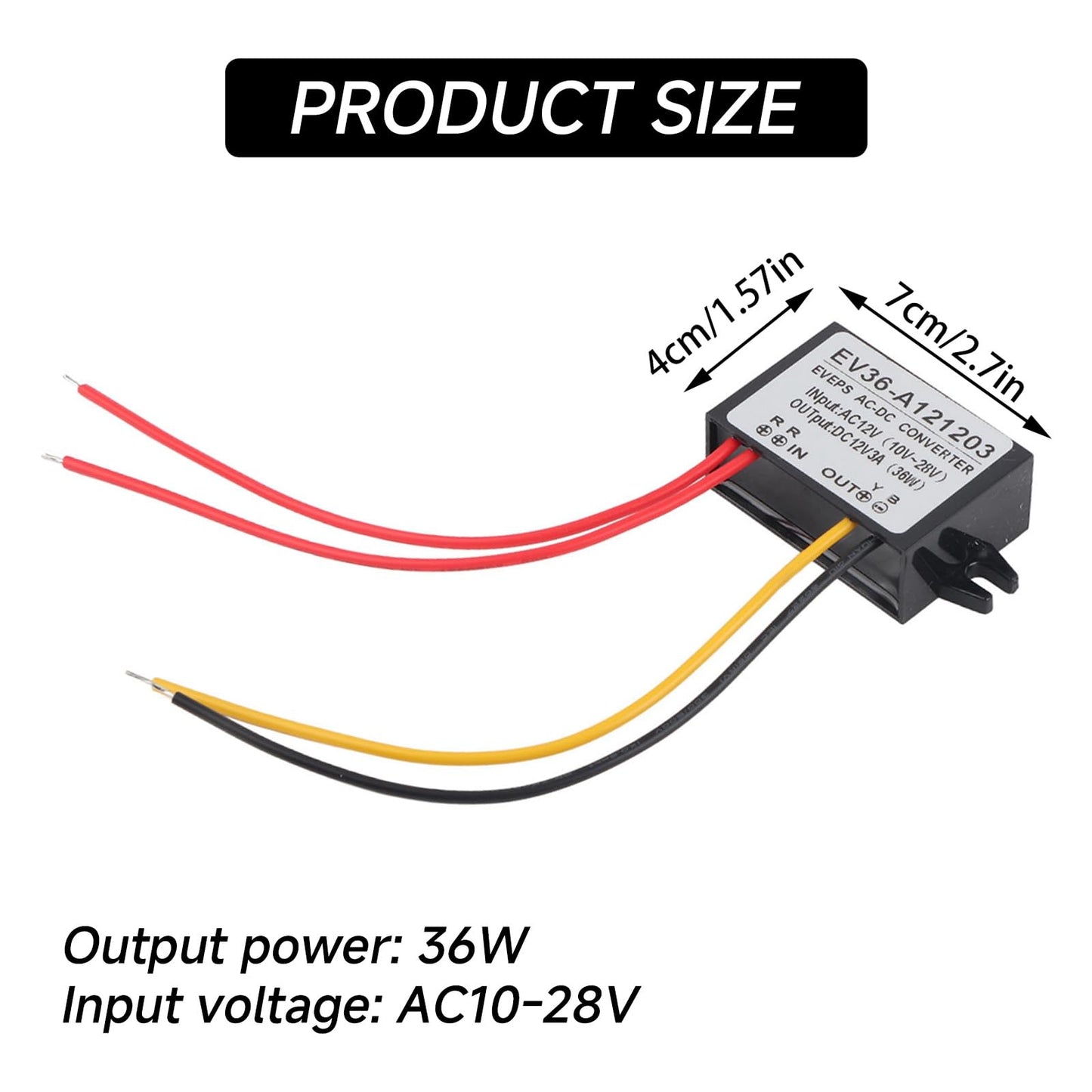

Output power: 12W/24W/36W/60W
Continuous working current: 2A/3.5A
Conversion efficiency: 96%
Protection level: IP67
Working temperature: -20~80℃

Package list:
1 x Converter

Note:
1. When the input voltage is AC10-14V, the output current is less than 1A; when the output voltage is 12V, it is not recommended to output with load at this time, because the conversion efficiency is low at this time; the output 12V after loading will cause the output to be unstable and big output fluctuation.The load is too big to start!
2. When the input voltage is AC15-AC28V, the conversion efficiency of the module is 90%, and the output voltage can maintain DC12V±0.25V. At this time, the 3A module can support long-term work within 2A, and the 5A module can support long-term work within 3.5A!
3. The input voltage also supports DC input, and the DC input range is DC16-36V. DC input conversion efficiency is low, the conversion efficiency is 83%-90% maximum; when DC input, the input terminal is not divided into positive and negative poles!

Package List：
1 x Converter

• Scope of Application: AC12V to DC12V converter is suitable for power supply between small devices and motors. It can convert the voltage into the applicable voltage required by small devices, play the overload, overcurrent, short circuit protection role
• Integrated SMD: AC12V to DC12V Step Down Converter is built in with a highly integrated SMD, which can make the voltage output more stable, improve conversion efficiency, and reduce energy loss. It can extend the service life of electrical appliances
• Short Term Waterproof: Protection AC to 12V DC converter waterproof level is short term waterproof IP67, which can be used outdoors. But AC12V to DC12V step down converter is not suitable for long term use in water or humid places
• Easy to Install: When installing AC to 12V DC converter, please connect the wires accurately and select the appropriate power according to the voltage required by the electronic equipment. It has 3 Continuous working current: options: 2A, 3A, 5A
• Precautions: When using protection AC to 12V DC converter, need to pay attention to the temperature changes in the use environment. The AC12V to DC12V converter is prone to danger when used in a high temperature state for a long time

Color: black
