Description
Brand: HI-Link
Specification:

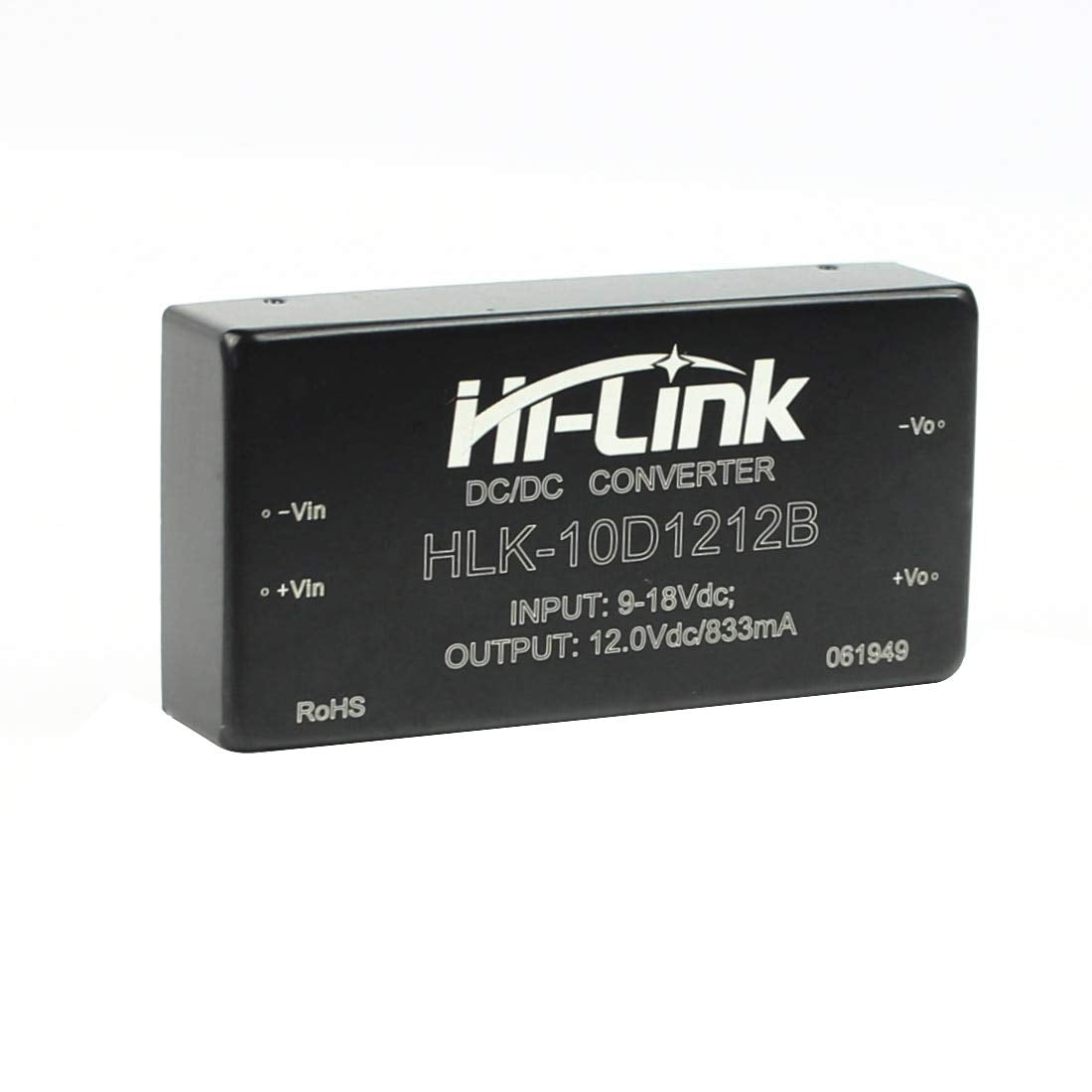

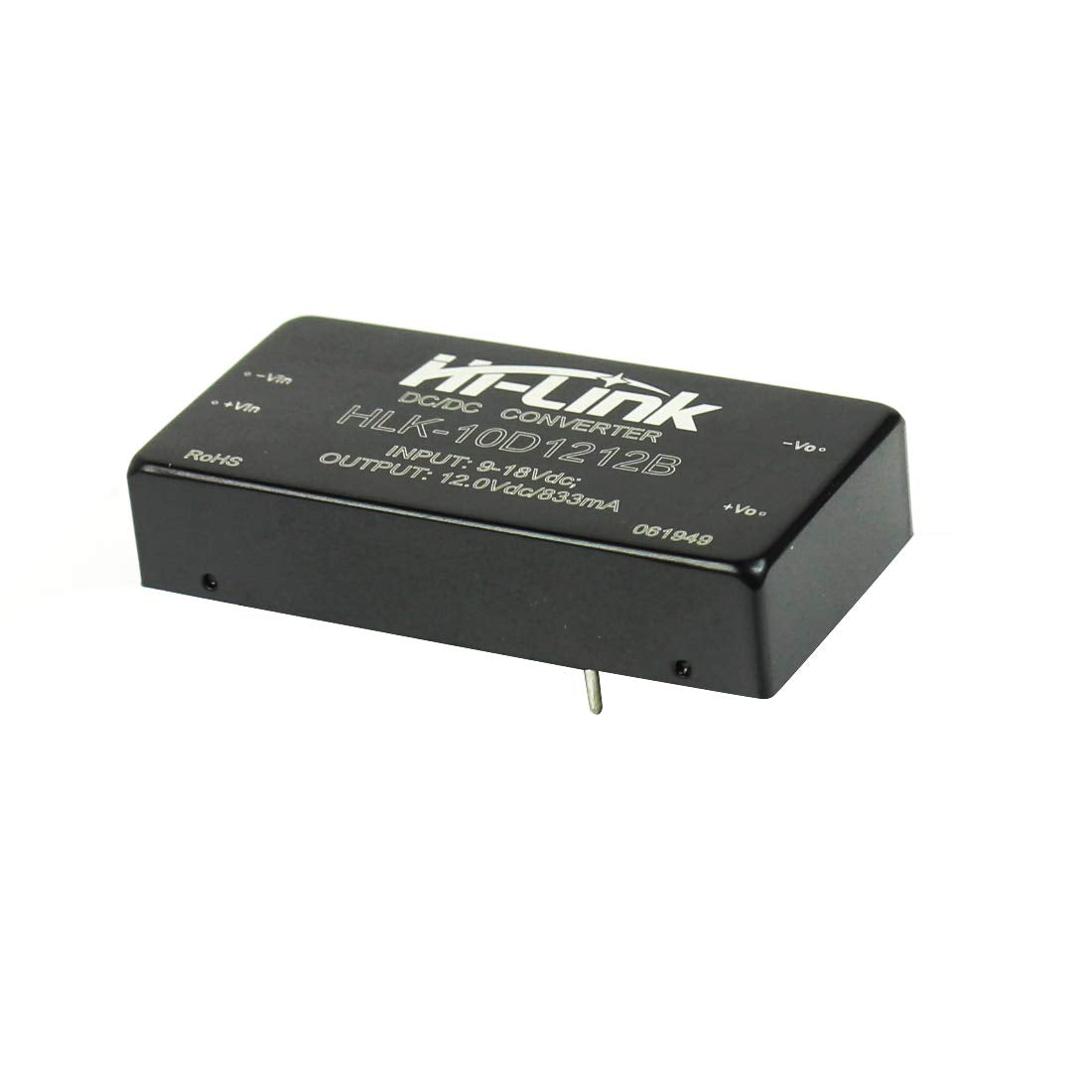

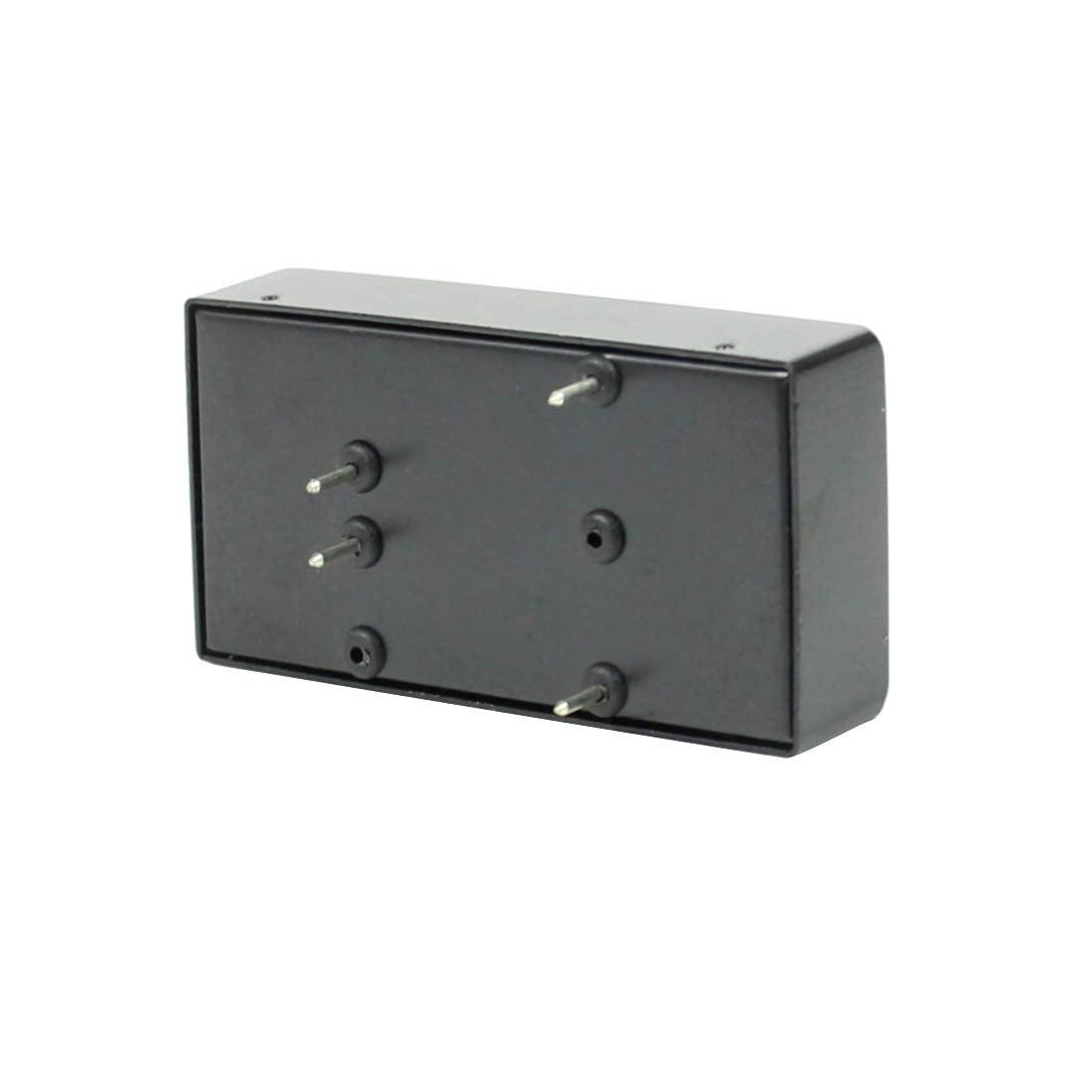

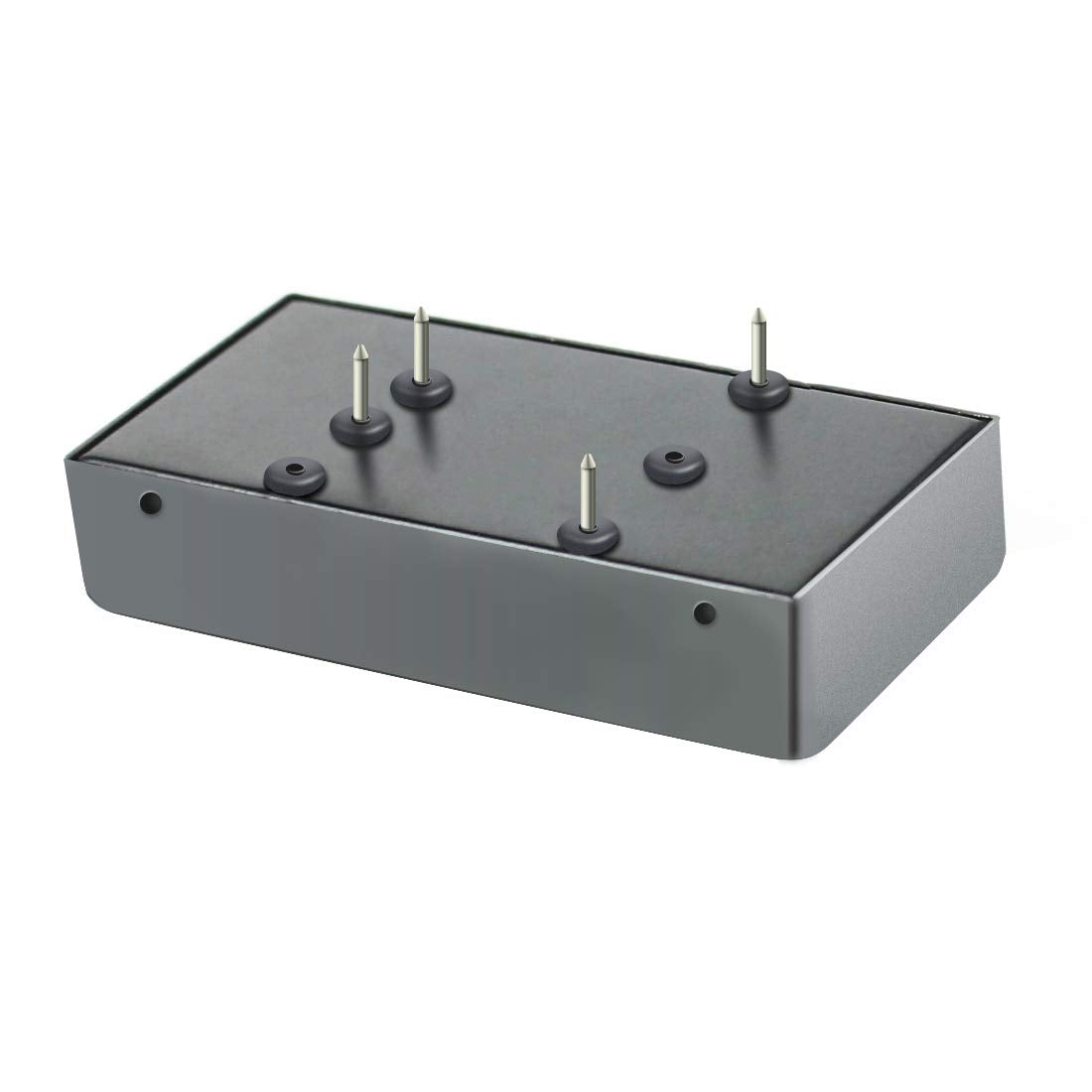

Product Name:10W DC to DC power module
Material:Metal
Function:supply power
Start delay time:100ms
Package:PP bag, foam
Rated input voltage:12Vdc
Input voltage range:9-18Vdc
Max input current:?1.2A
Impulse voltage:?30Vdc
Starting voltage:9Vdc
Product performance :
1.Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC
2.Conversion efficiency 86%?Typ?
3.Isolation voltage 1500Vdc
4. Ultra-low standby power: 0.3W(Typical value)
5. Super fast startup: 100mS (Typical value)
6. range of working temperature: -40¡ãC~+85¡ãC
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting,dust-proof, moisture-proof, vibration-proof.
11.High reliability, long life design, long continuous working time
12.Size: 50.8 * 25.4 * 11mm
• Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC
• Conversion efficiency 86%?Typ?
• Ultra-low standby power: 0.3W(Typical value)
• Super fast startup: 100mS (Typical value)
• International standard pins, PCB board in-line installation
Specification:
Product Name:10W DC to DC power module
Material:Metal
Function:supply power
Start delay time:100ms
Package:PP bag, foam
Rated input voltage:12Vdc
Input voltage range:9-18Vdc
Max input current:?1.2A
Impulse voltage:?30Vdc
Starting voltage:9Vdc
Product performance :
1.Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC
2.Conversion efficiency 86%?Typ?
3.Isolation voltage 1500Vdc
4. Ultra-low standby power: 0.3W(Typical value)
5. Super fast startup: 100mS (Typical value)
6. range of working temperature: -40¡ãC~+85¡ãC
7. Output short circuit protection, over current protection
8. Metal case, low output ripple
9. International standard pins, PCB board in-line installation
10. Adopt high-quality environmentally friendly waterproof and thermally conductive adhesive potting,dust-proof, moisture-proof, vibration-proof.
11.High reliability, long life design, long continuous working time
12.Size: 50.8 * 25.4 * 11mm
• Ultra wide range input (2: 1), output 10W.Voltage:9-18VDC
• Conversion efficiency 86%?Typ?
• Ultra-low standby power: 0.3W(Typical value)
• Super fast startup: 100mS (Typical value)
• International standard pins, PCB board in-line installation
