Description
Brand: HI-Link

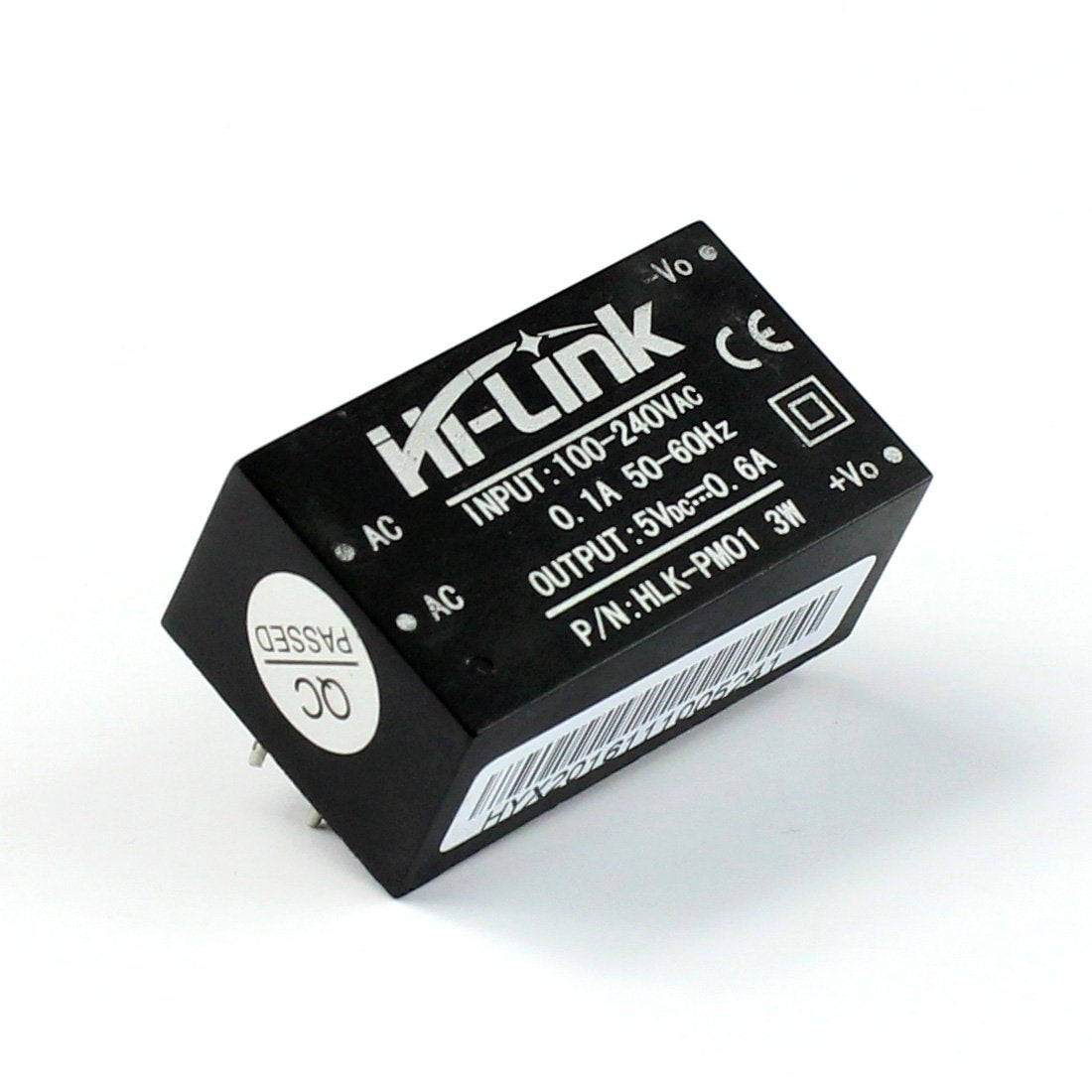

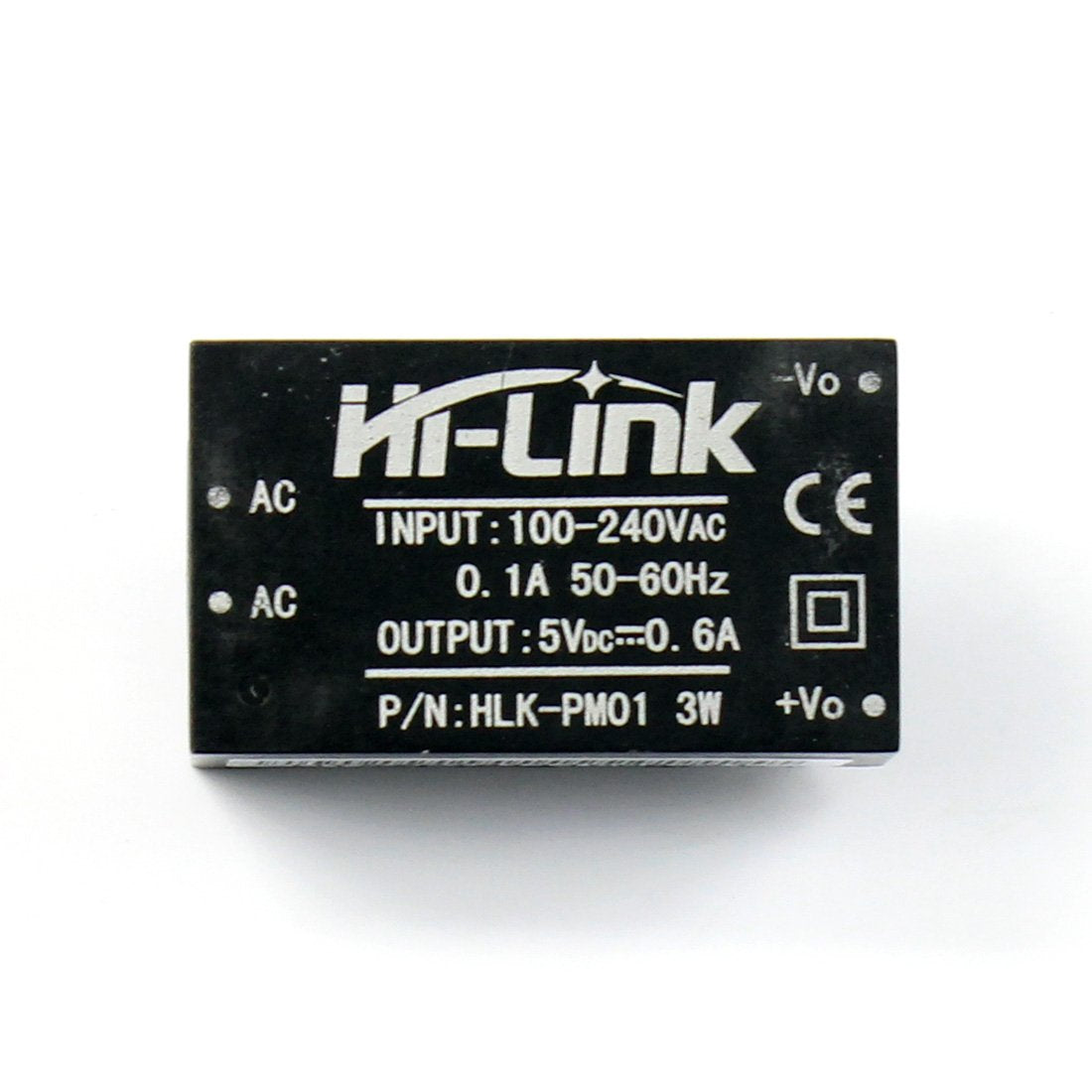

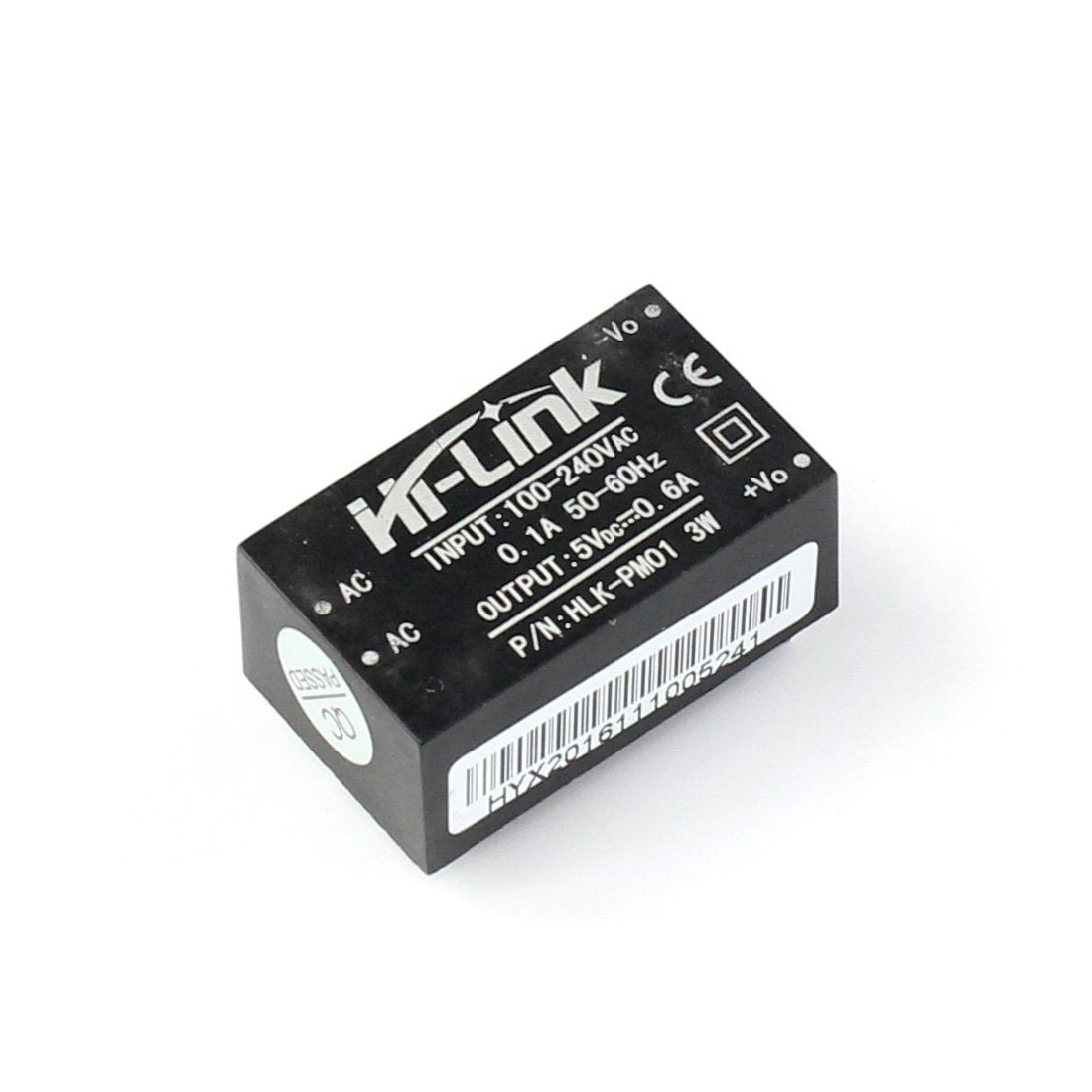

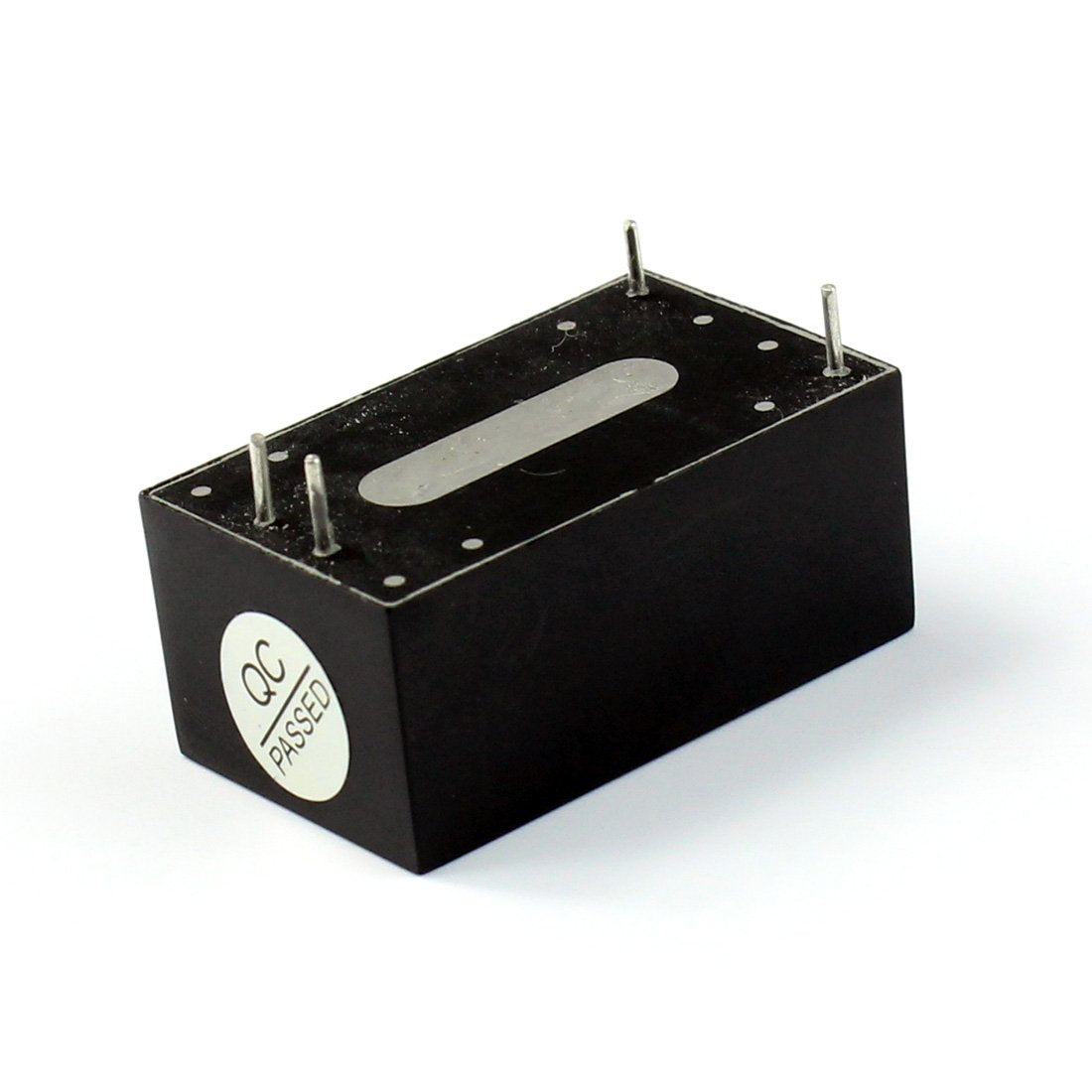

Model: HLK-PM01
Features:
Ultra-thin, ultra-small, the smallest in the industry
Global universal input voltage (90~245Vac)
Low power consumption, green environmental protection, no-load loss <0.1W
Low ripple, low noise,Works without external circuitry
Good output short circuit and overcurrent protection and self-recovery
Input and output isolation withstand voltage 3000Vac
High reliability, long life design, continuous working time greater than 100,000 hours
Meet UL and CE requirements; product design meets EMC and safety testing requirements
High-quality environmental protection waterproof and thermal conductive glue potting, moisture-proof, anti-vibration, meet the waterproof and dustproof IP65 standard
HLK-PM01
Parameters:
Rated input voltage: 100-240VAc;Input voltage range: 90-264VAc
MAX input current: ?0.2A;Input surge current: ?10A
MAX input voltage: ?270VAc
Input slow start: ?50mS
Input low voltage efficiency: Vin=110VAc, output full load ?69%;Input high voltage efficiency: Vin=220VAc, output full load ?70%
Long-term reliability: MTBF?100,000h
No-load rated output voltage: 5±0.1VDc;Full load rated output voltage: 5±0.2VDc
Short time output current limit: ?1000mA;Long-term output limit: ?600mA
Voltage regulation: ±0.2%; Load regulation rate: ±0.5%
Output ripple and noise (mVp-p): ?50mV, rated input voltage, full output. Test with a 20MHz bandwidth oscilloscope, load side and 10uF and 0.1uF capacitors.
Switching machine overshoot amplitude: (rated input voltage, output plus 10% load) ?5% VO
Output overcurrent protection: 150-200A for output load limit
Output short circuit protection: direct short circuit during normal output, automatically resume normal operation after short circuit removal
• HLK-PM01:Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of smart home.
• HLK-2M05 / HLK-2M09 / HLK-2M012:The 2W ultra-small series module power supply is a small-volume, high-efficiency module power supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. Has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
• HLK-10M05 / HLK-10M12:The 10W ultra-small series module power supply is a small-volume, high-efficiency module power supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. Has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
• HLK-5M05:Meet UL, CE requirements, Ultra-thin, ultra-small
• All voltage input (AC: 100 ~ 240V)
• Low ripple and low noise
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• 100% load aging and testing

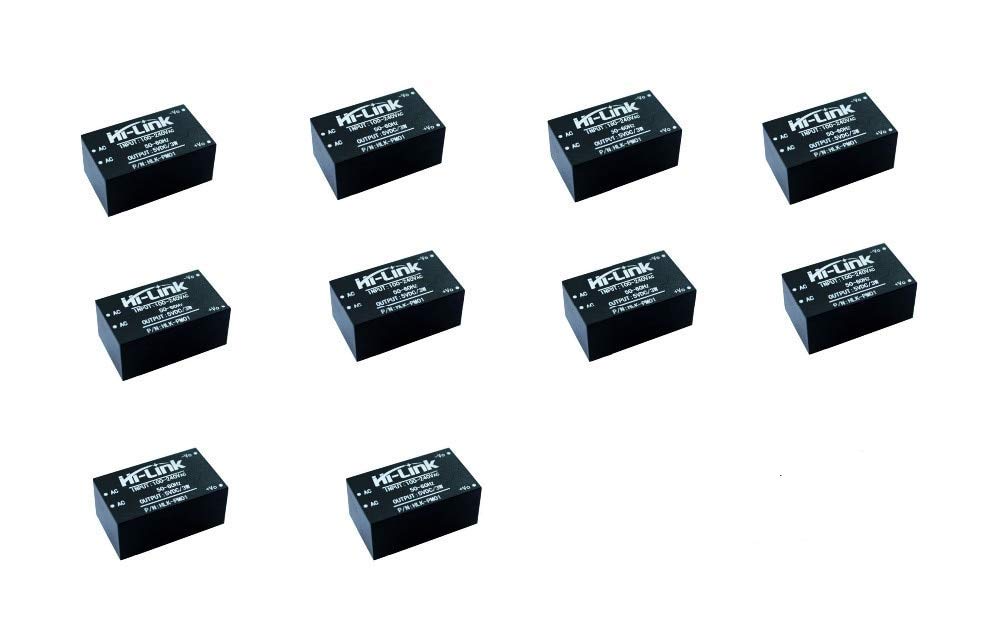

• Pacakge include :10pcs power module
Color: HLK-PM01 220V-5V
Model: HLK-PM01
Features:
Ultra-thin, ultra-small, the smallest in the industry
Global universal input voltage (90~245Vac)
Low power consumption, green environmental protection, no-load loss <0.1W
Low ripple, low noise,Works without external circuitry
Good output short circuit and overcurrent protection and self-recovery
Input and output isolation withstand voltage 3000Vac
High reliability, long life design, continuous working time greater than 100,000 hours
Meet UL and CE requirements; product design meets EMC and safety testing requirements
High-quality environmental protection waterproof and thermal conductive glue potting, moisture-proof, anti-vibration, meet the waterproof and dustproof IP65 standard
HLK-PM01
Parameters:
Rated input voltage: 100-240VAc;Input voltage range: 90-264VAc
MAX input current: ?0.2A;Input surge current: ?10A
MAX input voltage: ?270VAc
Input slow start: ?50mS
Input low voltage efficiency: Vin=110VAc, output full load ?69%;Input high voltage efficiency: Vin=220VAc, output full load ?70%
Long-term reliability: MTBF?100,000h
No-load rated output voltage: 5±0.1VDc;Full load rated output voltage: 5±0.2VDc
Short time output current limit: ?1000mA;Long-term output limit: ?600mA
Voltage regulation: ±0.2%; Load regulation rate: ±0.5%
Output ripple and noise (mVp-p): ?50mV, rated input voltage, full output. Test with a 20MHz bandwidth oscilloscope, load side and 10uF and 0.1uF capacitors.
Switching machine overshoot amplitude: (rated input voltage, output plus 10% load) ?5% VO
Output overcurrent protection: 150-200A for output load limit
Output short circuit protection: direct short circuit during normal output, automatically resume normal operation after short circuit removal
• HLK-PM01:Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of smart home.
• HLK-2M05 / HLK-2M09 / HLK-2M012:The 2W ultra-small series module power supply is a small-volume, high-efficiency module power supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. Has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
• HLK-10M05 / HLK-10M12:The 10W ultra-small series module power supply is a small-volume, high-efficiency module power supply. It has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability and high safety isolation. Has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
• HLK-5M05:Meet UL, CE requirements, Ultra-thin, ultra-small
• All voltage input (AC: 100 ~ 240V)
• Low ripple and low noise
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• 100% load aging and testing
• Pacakge include :10pcs power module
Color: HLK-PM01 220V-5V
