Brand: gofanco

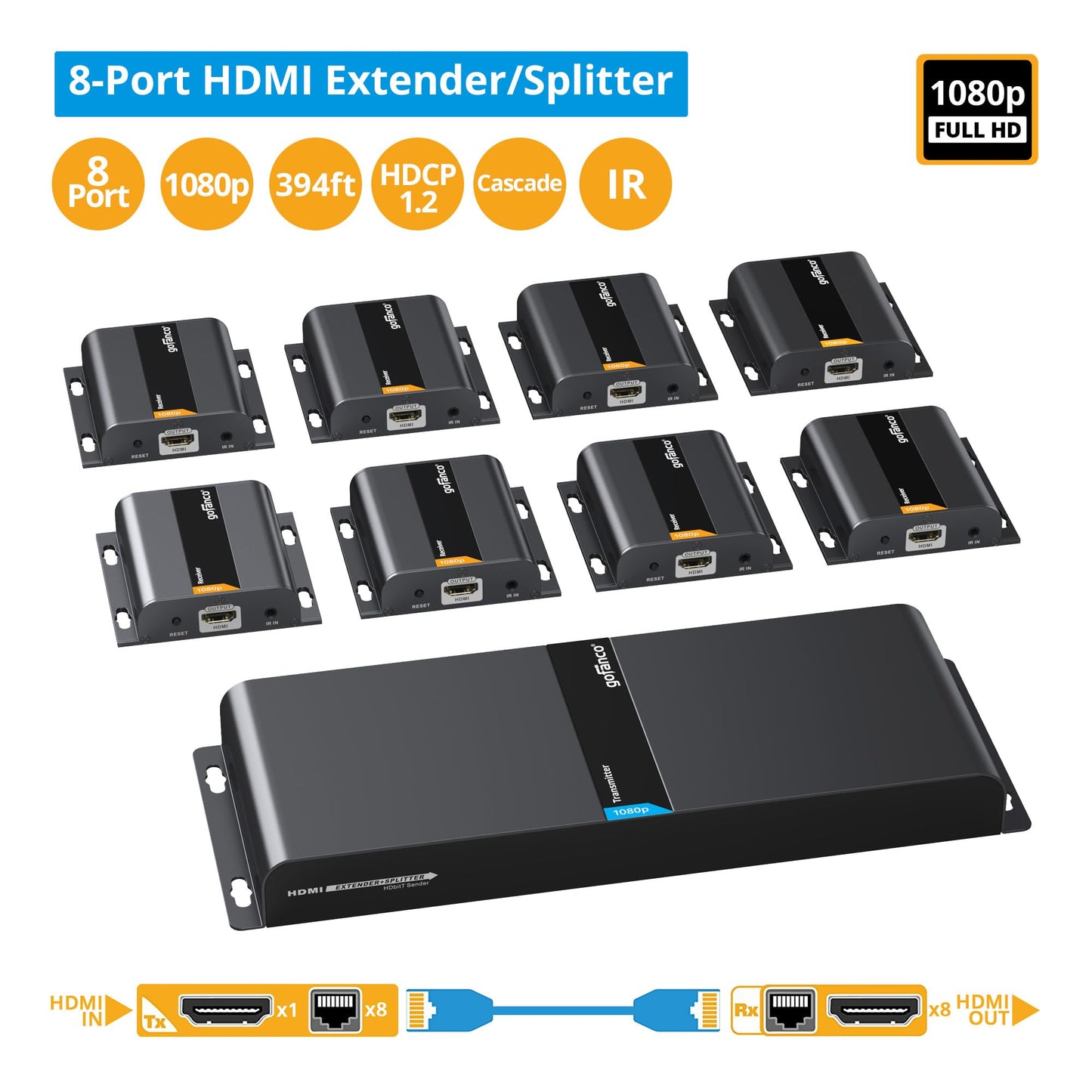

• HDMI EXTENDER SPLITTER KIT - Includes 1 Transmitter and 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 up to 394ft simultaneously. *Important*: HDbitT8Pv2 (this kit, version 2.0) is not backward compatible with the previous version and its receivers (RX). If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes

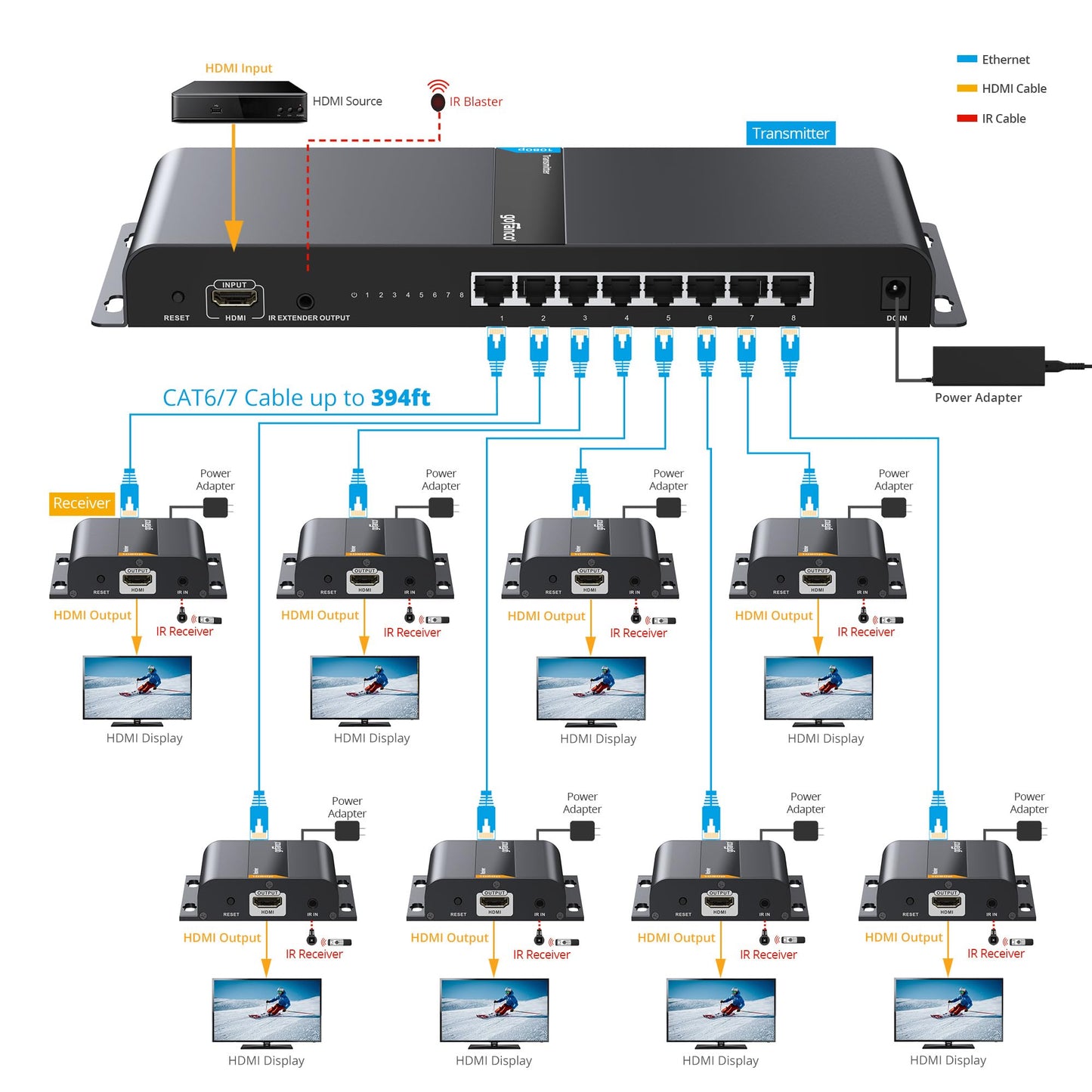

• NETWORK DISTRIBUTION - Direct connection from Transmitter to Receivers or through IP network via 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately. Note that each VLAN can only accommodate 1 transmitter (TX). *Note: Don't use with home routers
• VIDEO RESOLUTIONS & AUDIO - Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz
• Auto adjustment for different cable lengths to produce the best video and audio experience
• Supports 2-channel Stereo Audio; * Note: There’s a 250ms or less delay/latency due to data compression
• Not recommended for real-time applications, such as PC gaming
• IR EXTENSION - You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable. *Note: One directional IR control from RX side to TX
• SIMPLE INSTALLATION - No driver required
• Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns
Color: black
Important Notes:
- A good quality CAT cable is essential in delivering quality content. CAT6/7 is recommended over CAT5e. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100 (B07PB3R8BK) / CAT6UTP-150 (B07P6TDMLH) on Amazon
- Use a straight-through (patch) Ethernet cable and NOT crossover

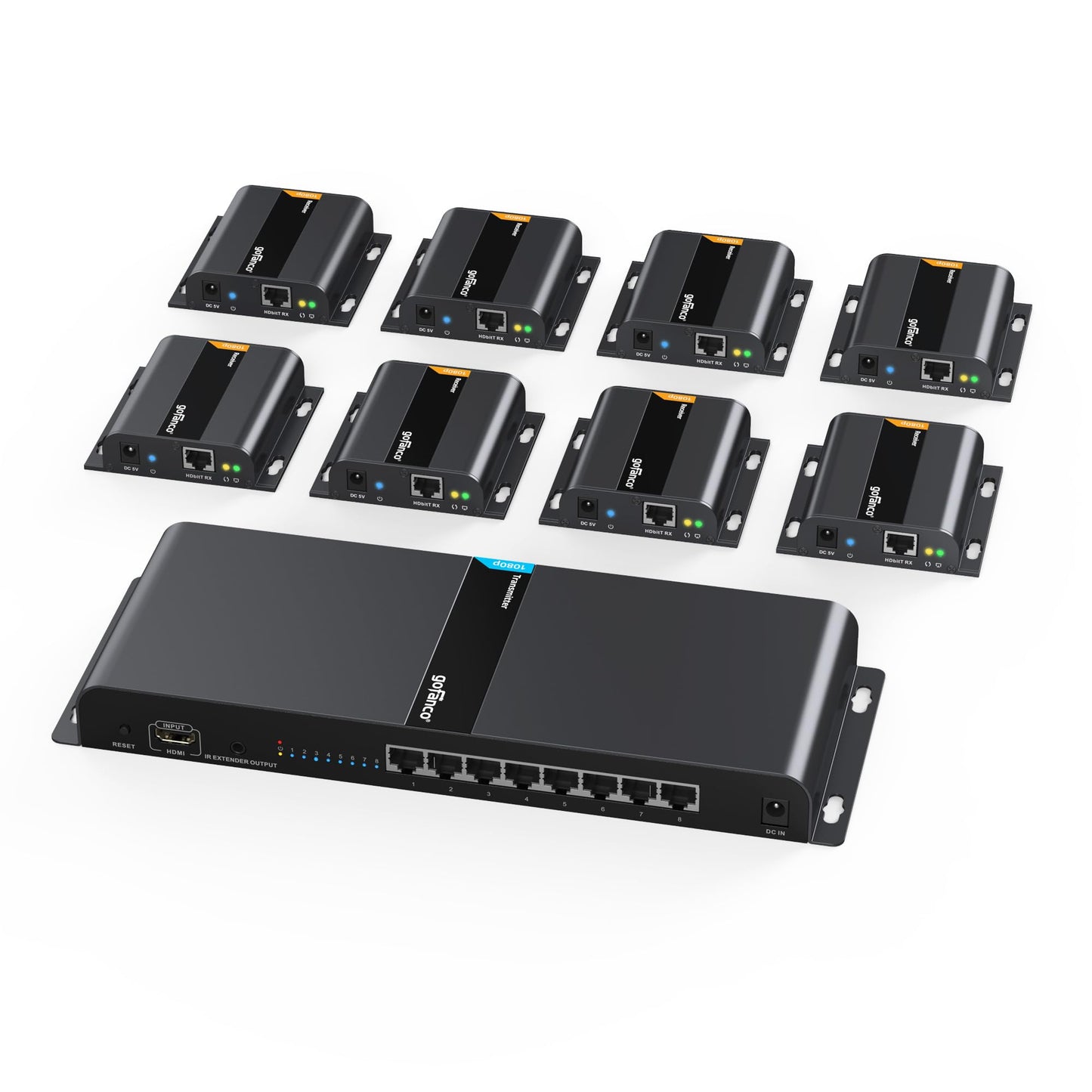

- This kit comes with 1 Transmitter and 8 Receivers.
Specifications
- Video transmission: Up to 394ft (120m) at 1080p
- Supported resolutions: 480i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz
- HDMI 1.3, HDCP 1.4
- Audio format: 2-channel Stereo audio
- Transport protocol: HDbitT
- Housing: Metal, surface mountable
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS
What's in the Package
- 8-Port HDMI HDbitT Extender 1080p - 120m Kit (1 Transmitter & 8 Receivers)
- Power adapters (9)
- IR Blaster cable
- IR Receiver cables (8)
- User’s guide
Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
• HDMI EXTENDER SPLITTER KIT - Includes 1 Transmitter and 8 Receivers. Extend and distribute 1 HDMI source to 8 HDMI displays over CAT5e/6/7 up to 394ft simultaneously. *Important*: HDbitT8Pv2 (this kit, version 2.0) is not backward compatible with the previous version and its receivers (RX). If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes
• NETWORK DISTRIBUTION - Direct connection from Transmitter to Receivers or through IP network via 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Connect up to 30 Receivers per Transmitter. Additional Receivers (HDbitTv2-RX) are sold separately. Note that each VLAN can only accommodate 1 transmitter (TX). *Note: Don't use with home routers
• VIDEO RESOLUTIONS & AUDIO - Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz
• Auto adjustment for different cable lengths to produce the best video and audio experience
• Supports 2-channel Stereo Audio; * Note: There’s a 250ms or less delay/latency due to data compression
• Not recommended for real-time applications, such as PC gaming
• IR EXTENSION - You can control the HDMI source device at a remote location with the included IR cables that forward commands over a CAT cable. *Note: One directional IR control from RX side to TX
• SIMPLE INSTALLATION - No driver required
• Surface mountable metal housing. FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Please click on gofanco in the buy box and select “Ask a Question” if you have any questions or concerns
Color: black
