Description
Brand: GBAYSA
Description

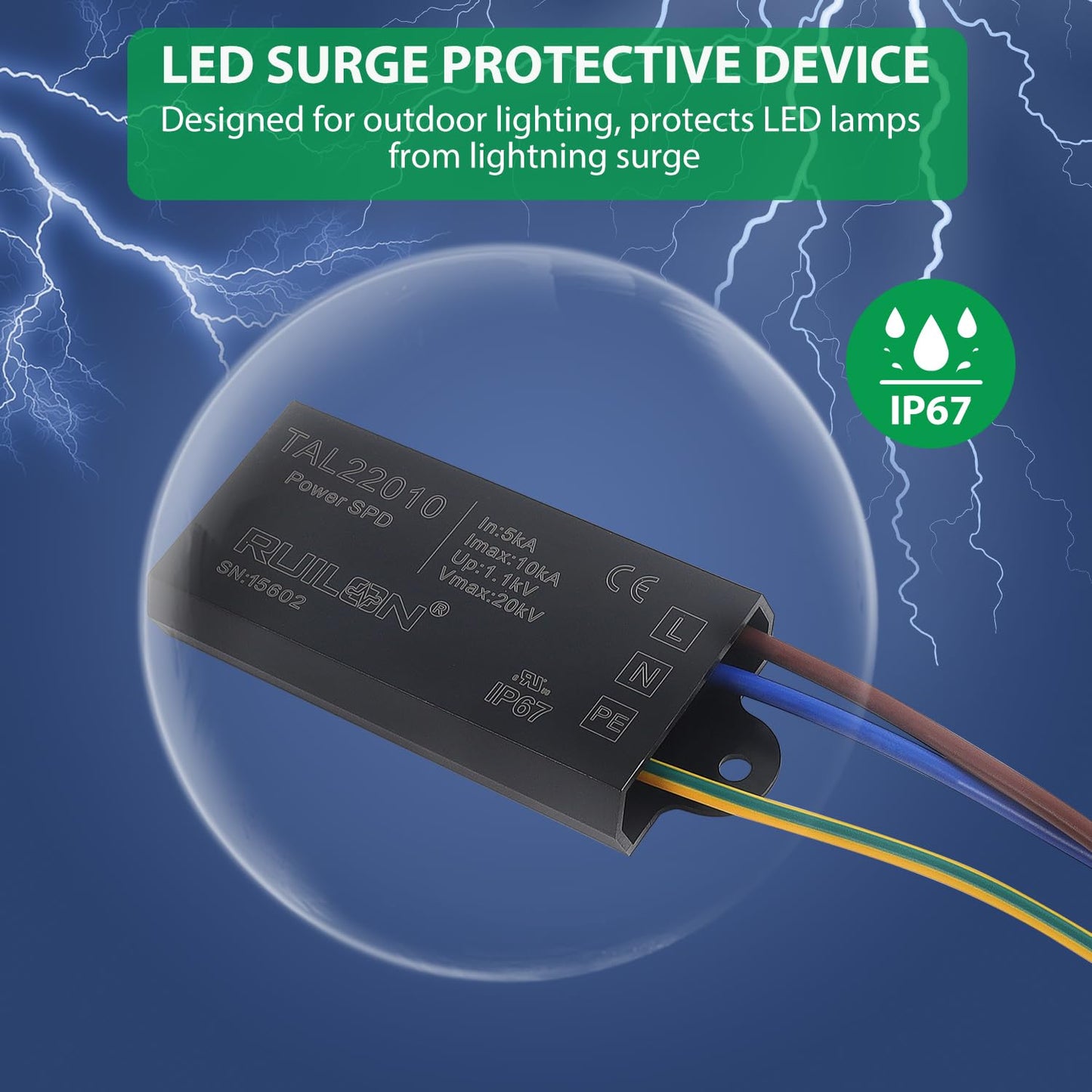

LED street lights power SPD: Designed for protecting LED driver and could be connected perfectly with its in put port, sealed enclosure, waterproof and dust-proof, IP67 protection grade, belongs to Class II, III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the over-current capabilities.
Features
1. Maximum Discharge Current: 10kA, 8/20us.
2. Meets ANSI C82.77-5-2015: Location Category CM, 10kV/5kA, 1.2/50us-8/20us Combination Wave.
3. Meets IEEE C62.41.2: Location Category CLow, 6kV/3kA, 1.2/50us-8/20us Combination Wave.
4. Meets US Dept. of Energy MSSLC Model Spec.
5. Parallel connected SPD device.
6. IP67 Water-proof and Dust-proof.
7. Indication wire lead options for Parallel connected modules.
8. IEC61643-11 Class II/EN61643-11 Type 2 Compliant1.
9. 110VAC and 277VAC voltage ratings are available for Class I and Class II installation based on IEC luminaire protection classes.
10. CE-Meets the requirements of Low Voltage and RoHS European Directives.
11. Size of Each(IN): 3.1*1.4*0.5; Weight of Each(OZ): 2.1; Enclosure Material: ABS765A(94V0).

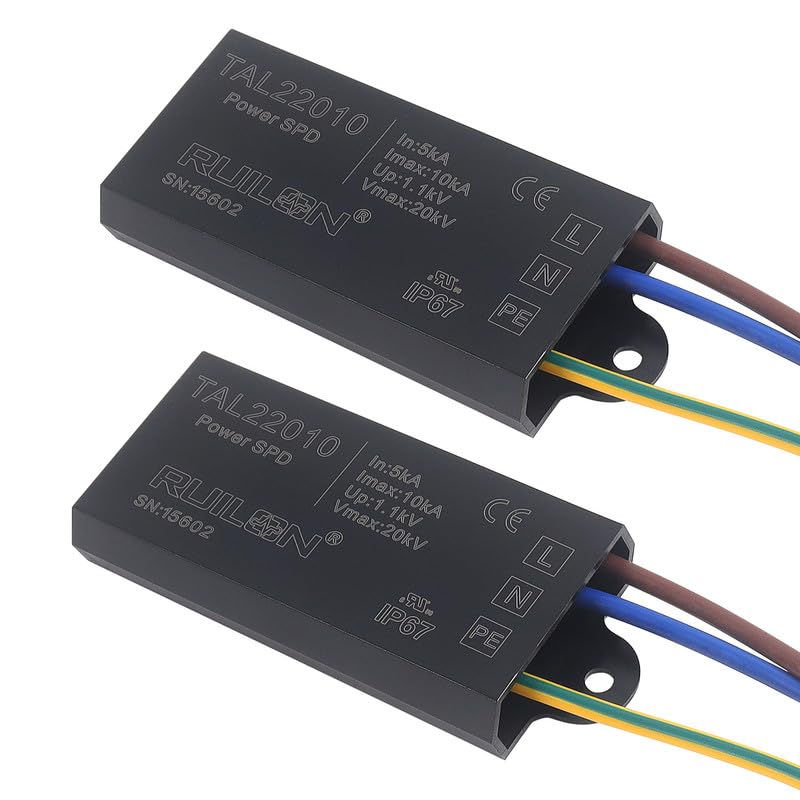

12. Package Included: 2*Surge Protective Device.
• Comprehensive Surge Protection -- The surge protective device designed for protecting LED driver. This surge protector uses common mode and differential mode to protect led from lightning surge damage.
• IP67 Waterproof & Flame-retardant -- This surge protective device enclosure is made of high quality flame retardant material, durable and safe for long-term use, protects LED power surge protection and your safety.
• Wide Application -- Our surge protective device is perfect for outdoor and indoor lighting, roadway, traffic, digital, wash wall, parking lot, flood, home, tunnel and street.

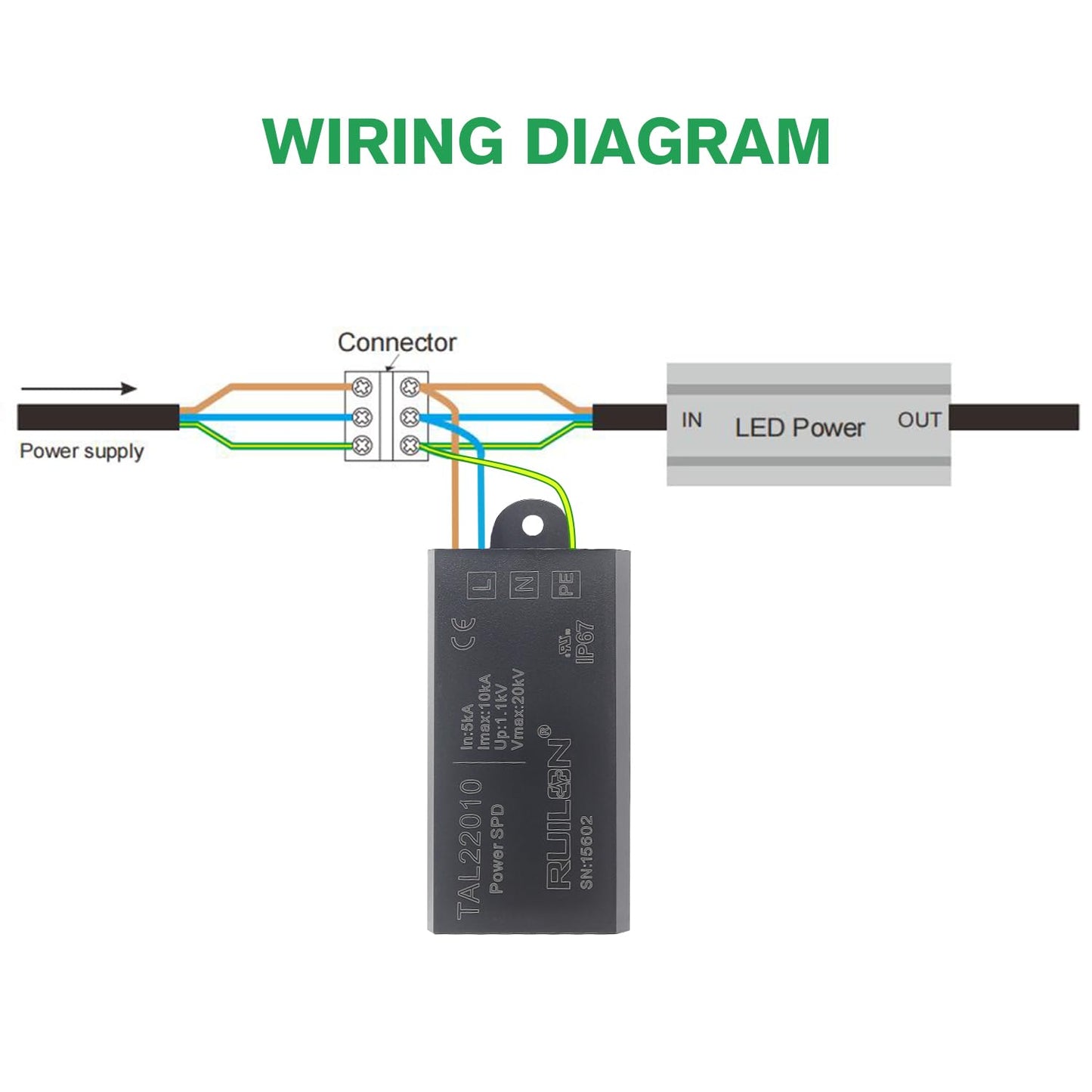

• Easy Installation -- The 3-wire surge protective device is very easy to connect to the circuits, simple wiring can be completed in a few minutes without complicated operation, saving a lot of time and energy.

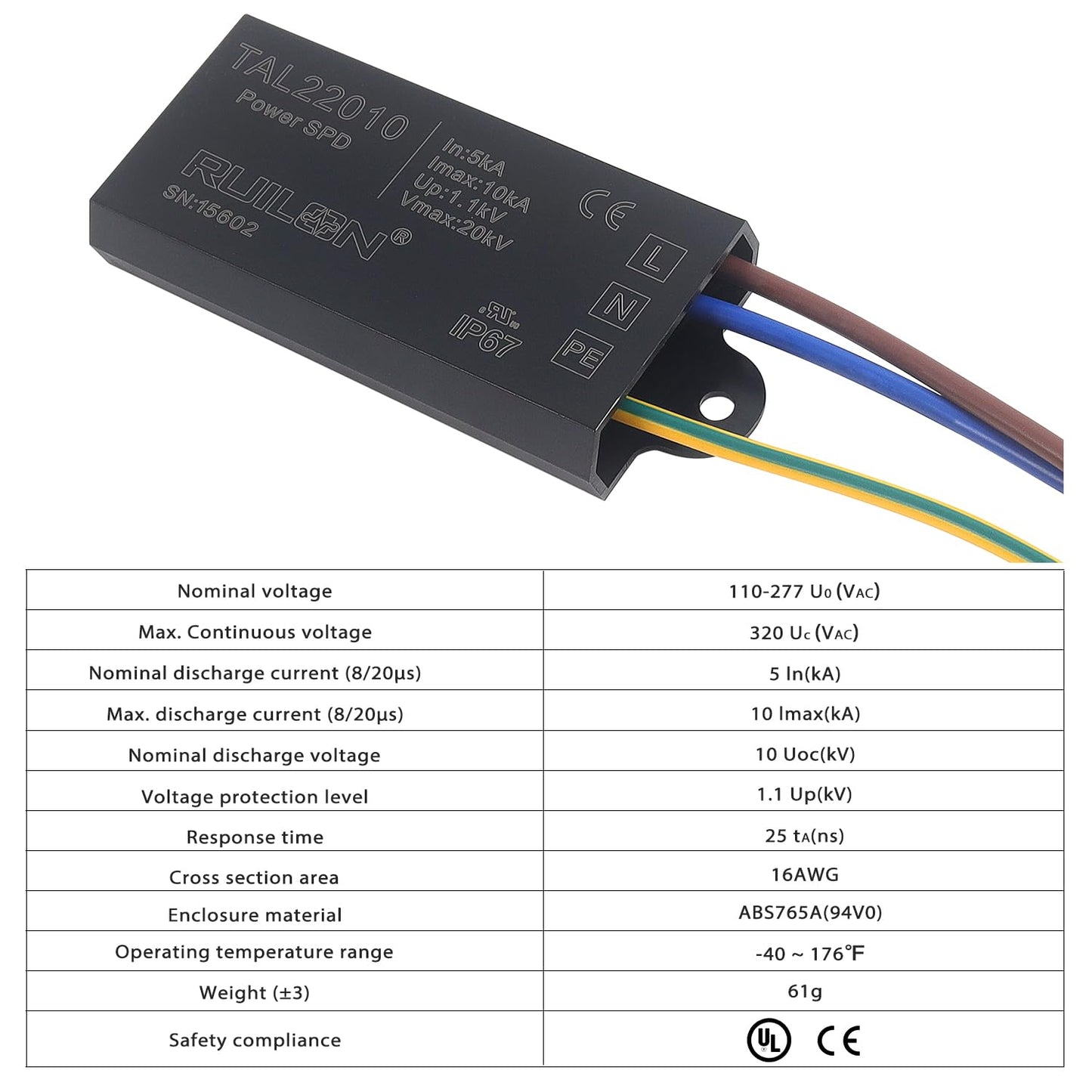

• Certified -- This surge protective device is listed to UL 1449 and CE, meeting applicable protection requirements. Max. discharge current: 10kA, nominal discharge current: 5kA, nominal discharge voltage: 10kV, nominal voltage: 110-277Vac.
Color: Black
Description
LED street lights power SPD: Designed for protecting LED driver and could be connected perfectly with its in put port, sealed enclosure, waterproof and dust-proof, IP67 protection grade, belongs to Class II, III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the over-current capabilities.
Features
1. Maximum Discharge Current: 10kA, 8/20us.
2. Meets ANSI C82.77-5-2015: Location Category CM, 10kV/5kA, 1.2/50us-8/20us Combination Wave.
3. Meets IEEE C62.41.2: Location Category CLow, 6kV/3kA, 1.2/50us-8/20us Combination Wave.
4. Meets US Dept. of Energy MSSLC Model Spec.
5. Parallel connected SPD device.
6. IP67 Water-proof and Dust-proof.
7. Indication wire lead options for Parallel connected modules.
8. IEC61643-11 Class II/EN61643-11 Type 2 Compliant1.
9. 110VAC and 277VAC voltage ratings are available for Class I and Class II installation based on IEC luminaire protection classes.
10. CE-Meets the requirements of Low Voltage and RoHS European Directives.
11. Size of Each(IN): 3.1*1.4*0.5; Weight of Each(OZ): 2.1; Enclosure Material: ABS765A(94V0).
12. Package Included: 2*Surge Protective Device.
• Comprehensive Surge Protection -- The surge protective device designed for protecting LED driver. This surge protector uses common mode and differential mode to protect led from lightning surge damage.
• IP67 Waterproof & Flame-retardant -- This surge protective device enclosure is made of high quality flame retardant material, durable and safe for long-term use, protects LED power surge protection and your safety.
• Wide Application -- Our surge protective device is perfect for outdoor and indoor lighting, roadway, traffic, digital, wash wall, parking lot, flood, home, tunnel and street.
• Easy Installation -- The 3-wire surge protective device is very easy to connect to the circuits, simple wiring can be completed in a few minutes without complicated operation, saving a lot of time and energy.
• Certified -- This surge protective device is listed to UL 1449 and CE, meeting applicable protection requirements. Max. discharge current: 10kA, nominal discharge current: 5kA, nominal discharge voltage: 10kV, nominal voltage: 110-277Vac.
Color: Black
