Description
Brand: FUERAN

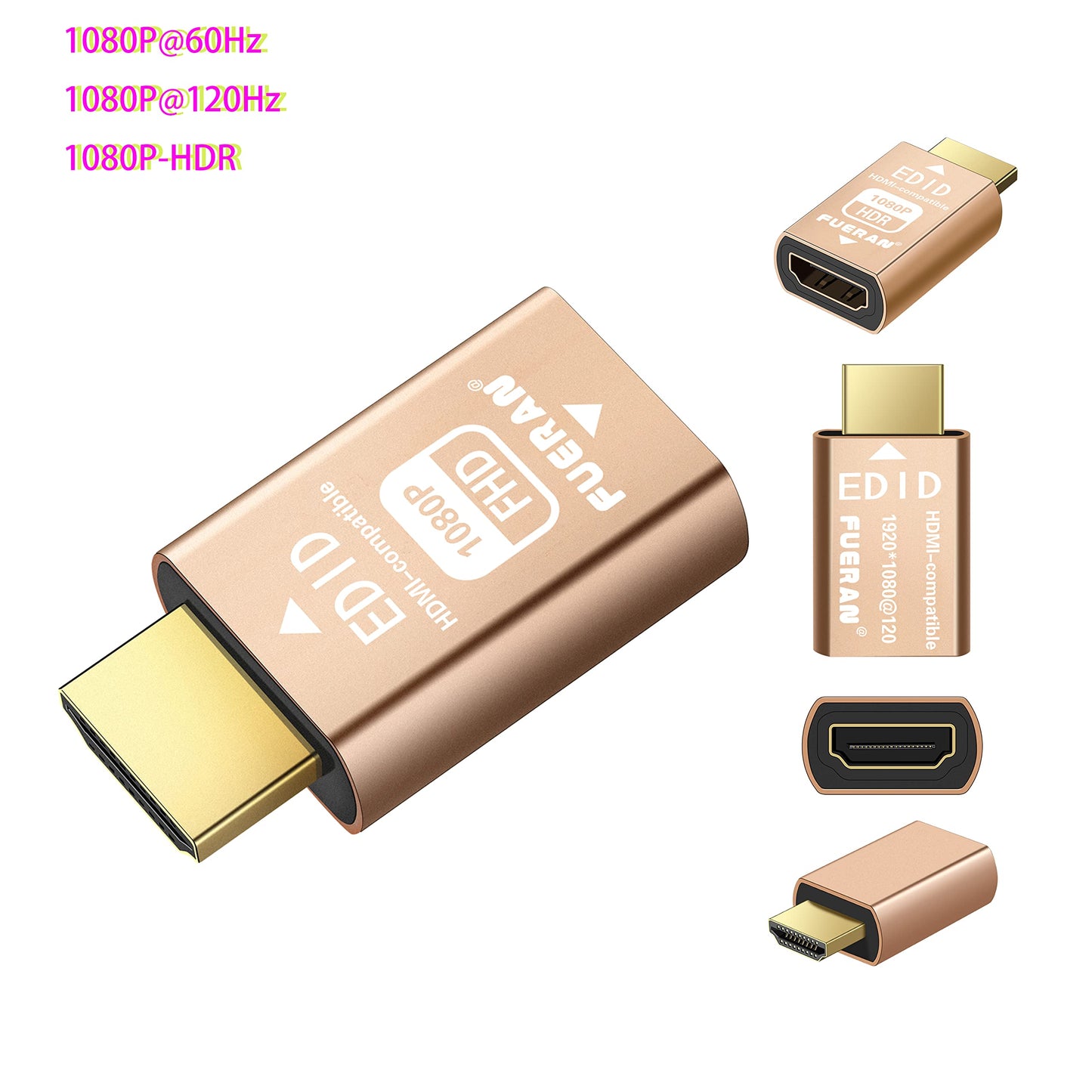

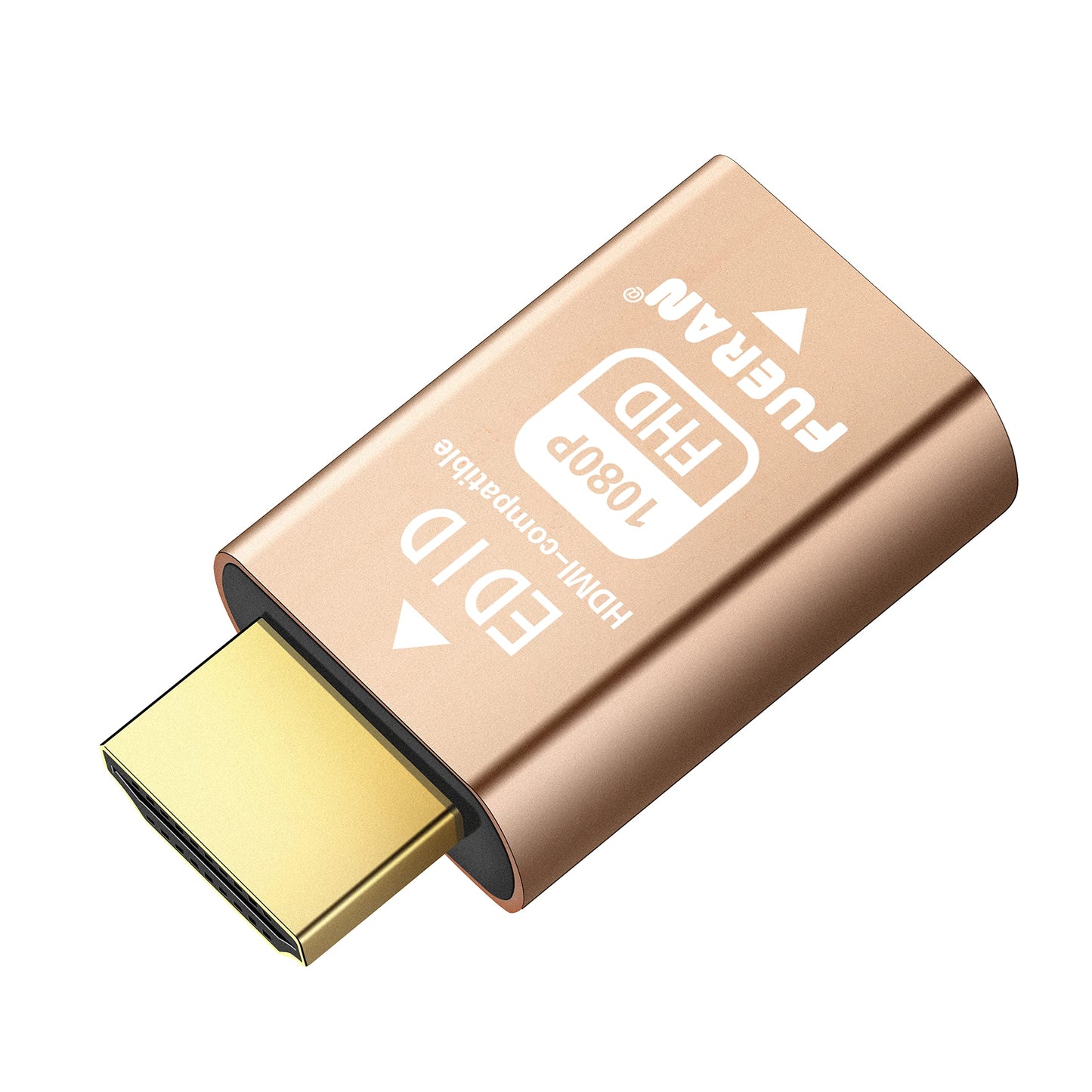

HDMI 2.0 EDID Emulator copies the EDID of the desired HDMI display and connects directly to the HDMI source to ensure that the EDID is not lost in connections between devices such as switches, splitters, and extenders. Emulates an HDMI display (sink device) by providing Hot Plug Detect and EDID to the HDMI source device. Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4, 2560x1440p (WQHD), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
Support audio/video sync output: HDMI is originally of audio signal.
True plug and play, hot swap and no need to set: the plug and play is applicable to direct connection with notebook computer, PC desktop computer, DVD, Blu-ray player and other devices, and electric hot swap can also be connected with those devices(The audio signal will not be affected if the signal is reconnected in time when the disconnect signal is now cut off and now connected.)It can serve as a virtual display. When the monitor is turned off and powerless or the monitor line is hot-swappable, it can ensure the safe of the video signal, the stability of the screen and the window, and the order.
To solve screen resolution jumping problem in the use of switcher.It can be used only to connect a simulator with every HDMI input of the computer. It supports AMD multi-screen graphics splicing extension split screen mode, and eyefinity wide-domain multi-screen splicing mode(When the monitor line is plucked out with electricity, the screen TV wall display will not be affected, only leading the relevant screen dark and other screens immovable.) It supports Nvidia graphics multi-screen output, and the order of screen remains the same when it is restarted.
Solve problems of some LED large screens and screen jitter.
Features Specifications:
Video Format:HDMI 2.0
12-bit Deep Color:RGB, YCC 4:4:4, YCC 4:2:2, YCC 4:2:0
Emulation mode: provides EDID to the HDMI source device from the emulator's internal memory.
Supports headless operation - no monitor attached to source.Compact design for easy installation and operation.
No power supply - powered by video source.Ideal for resolving signal handshaking problems between a source and a display.
Max. Resolution 3840x2160p@60Hz
Default Resolution 1920x1080p@60Hz
Color Depth RGB/YCC444/YCC422: 12-bit
Dimension 1.693 x 0.9449 x 0.3937 in
43 x 24 x 10 mm
Weight 0.0314 lb
• Bi-directional EDID emulator: address communication issues between an HDMI video source and a display. By copying or ghosting an EDID, the emulator can relay information from the display to the computer.Our HDMI EDID Emulator offers exceptional versatility, supporting various pixel formats (YCbCr 4:4:4, 4:2:2, 4:2:0, RGB) and 2.1 Ch Audio. The default resolution:1920*1080@60Hz,The resolution range:800*600@60Hz~1920*1080@60Hz.
• HDMI Edid Emulator Perfect Matching Synchronous:Our advanced technology guarantees flawless synchronization, keeping your displays and PC in perfect "sync" all the time, EDID emulator solve a "loss of sync" issue with multiple displays. Enjoy uninterrupted visuals without,No more desktop re-arranging each time you power on or off a TV.Insert EDID、 turn off the TV or even unplug the HDMI and your PC won’t skip a beat!

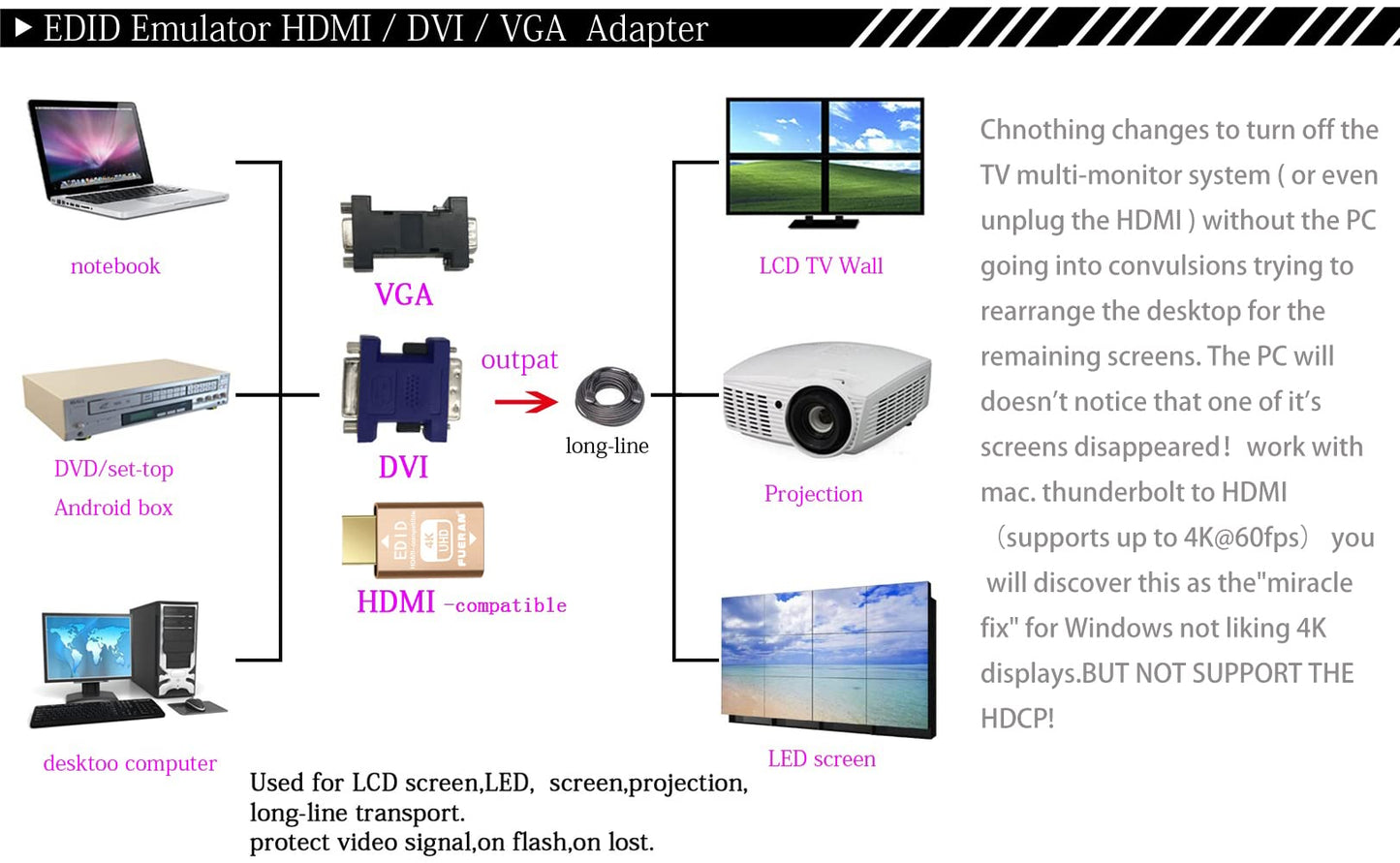

• multipurpose: An EDID emulator can be used to remotely manage display settings. An EDID emulator can be used for testing and troubleshooting purposes.EDID emulator fixing compatibility problems between video scaler and monitor.Our EDID emulator can help to improve the performance and compatibility of display devices, reduce downtime, and simplify display management.
• Virtual Monitor Functionality: Our HDMI-Compatible EDID works as a virtual monitor when not in use. Simply close your laptop lid and resume work at your preferred resolution. Enjoy the convenience of designated.
• Resolution required for various splicing: default resolution including 1024x768@60Hz, 1280x720@60Hz,1280x800@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, and 3840x2160@60Hz. Please note that you must select the resolution supported by your device. Resolutions that are not supported by your device will not be displayed.
Color: 1920x1080-1p
HDMI 2.0 EDID Emulator copies the EDID of the desired HDMI display and connects directly to the HDMI source to ensure that the EDID is not lost in connections between devices such as switches, splitters, and extenders. Emulates an HDMI display (sink device) by providing Hot Plug Detect and EDID to the HDMI source device. Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4, 2560x1440p (WQHD), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
Support audio/video sync output: HDMI is originally of audio signal.
True plug and play, hot swap and no need to set: the plug and play is applicable to direct connection with notebook computer, PC desktop computer, DVD, Blu-ray player and other devices, and electric hot swap can also be connected with those devices(The audio signal will not be affected if the signal is reconnected in time when the disconnect signal is now cut off and now connected.)It can serve as a virtual display. When the monitor is turned off and powerless or the monitor line is hot-swappable, it can ensure the safe of the video signal, the stability of the screen and the window, and the order.
To solve screen resolution jumping problem in the use of switcher.It can be used only to connect a simulator with every HDMI input of the computer. It supports AMD multi-screen graphics splicing extension split screen mode, and eyefinity wide-domain multi-screen splicing mode(When the monitor line is plucked out with electricity, the screen TV wall display will not be affected, only leading the relevant screen dark and other screens immovable.) It supports Nvidia graphics multi-screen output, and the order of screen remains the same when it is restarted.
Solve problems of some LED large screens and screen jitter.
Features Specifications:
Video Format:HDMI 2.0
12-bit Deep Color:RGB, YCC 4:4:4, YCC 4:2:2, YCC 4:2:0
Emulation mode: provides EDID to the HDMI source device from the emulator's internal memory.
Supports headless operation - no monitor attached to source.Compact design for easy installation and operation.
No power supply - powered by video source.Ideal for resolving signal handshaking problems between a source and a display.
Max. Resolution 3840x2160p@60Hz
Default Resolution 1920x1080p@60Hz
Color Depth RGB/YCC444/YCC422: 12-bit
Dimension 1.693 x 0.9449 x 0.3937 in
43 x 24 x 10 mm
Weight 0.0314 lb
• Bi-directional EDID emulator: address communication issues between an HDMI video source and a display. By copying or ghosting an EDID, the emulator can relay information from the display to the computer.Our HDMI EDID Emulator offers exceptional versatility, supporting various pixel formats (YCbCr 4:4:4, 4:2:2, 4:2:0, RGB) and 2.1 Ch Audio. The default resolution:1920*1080@60Hz,The resolution range:800*600@60Hz~1920*1080@60Hz.
• HDMI Edid Emulator Perfect Matching Synchronous:Our advanced technology guarantees flawless synchronization, keeping your displays and PC in perfect "sync" all the time, EDID emulator solve a "loss of sync" issue with multiple displays. Enjoy uninterrupted visuals without,No more desktop re-arranging each time you power on or off a TV.Insert EDID、 turn off the TV or even unplug the HDMI and your PC won’t skip a beat!
• multipurpose: An EDID emulator can be used to remotely manage display settings. An EDID emulator can be used for testing and troubleshooting purposes.EDID emulator fixing compatibility problems between video scaler and monitor.Our EDID emulator can help to improve the performance and compatibility of display devices, reduce downtime, and simplify display management.
• Virtual Monitor Functionality: Our HDMI-Compatible EDID works as a virtual monitor when not in use. Simply close your laptop lid and resume work at your preferred resolution. Enjoy the convenience of designated.
• Resolution required for various splicing: default resolution including 1024x768@60Hz, 1280x720@60Hz,1280x800@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, and 3840x2160@60Hz. Please note that you must select the resolution supported by your device. Resolutions that are not supported by your device will not be displayed.
Color: 1920x1080-1p
