Description
Brand: FainWan
Model: 600W DC to DC

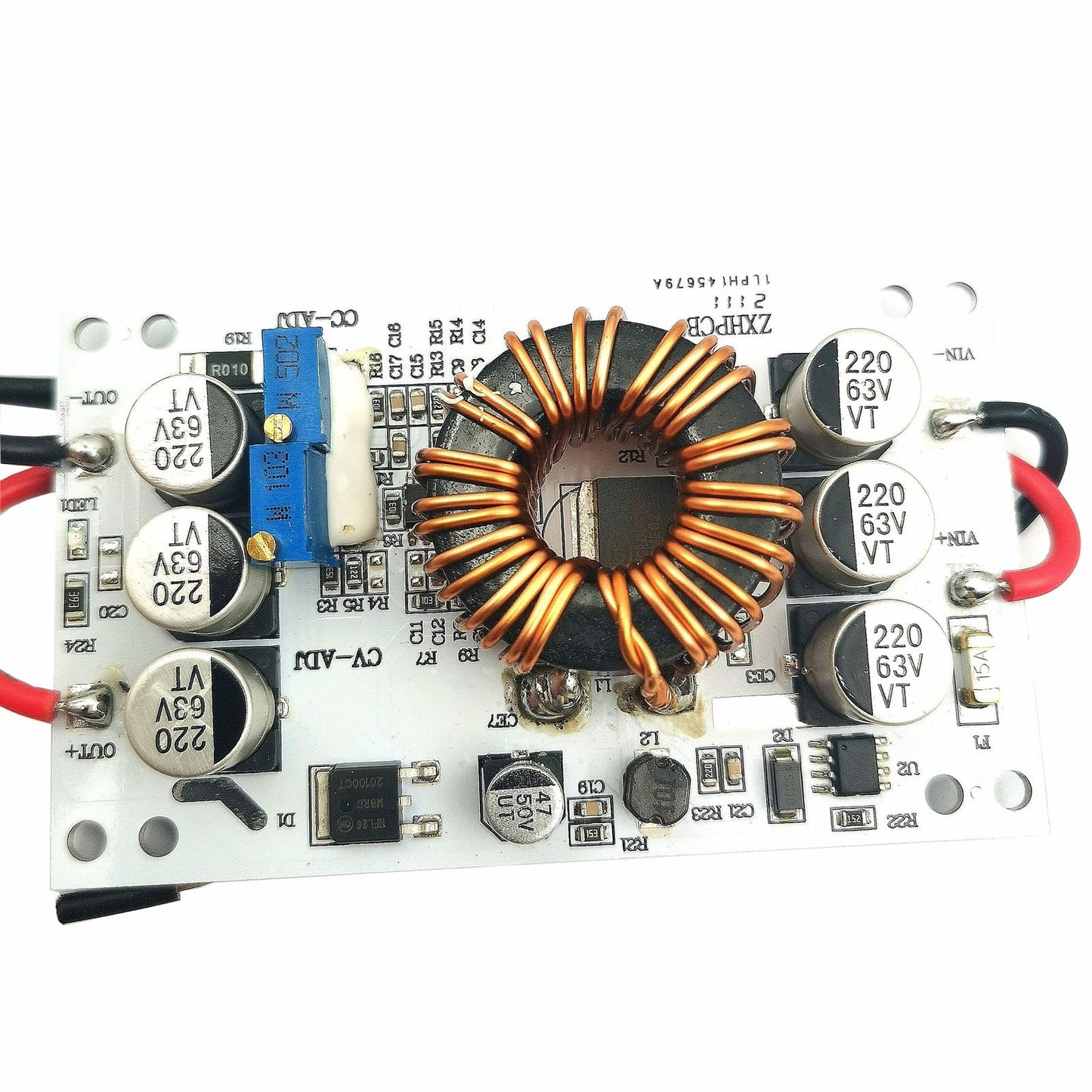

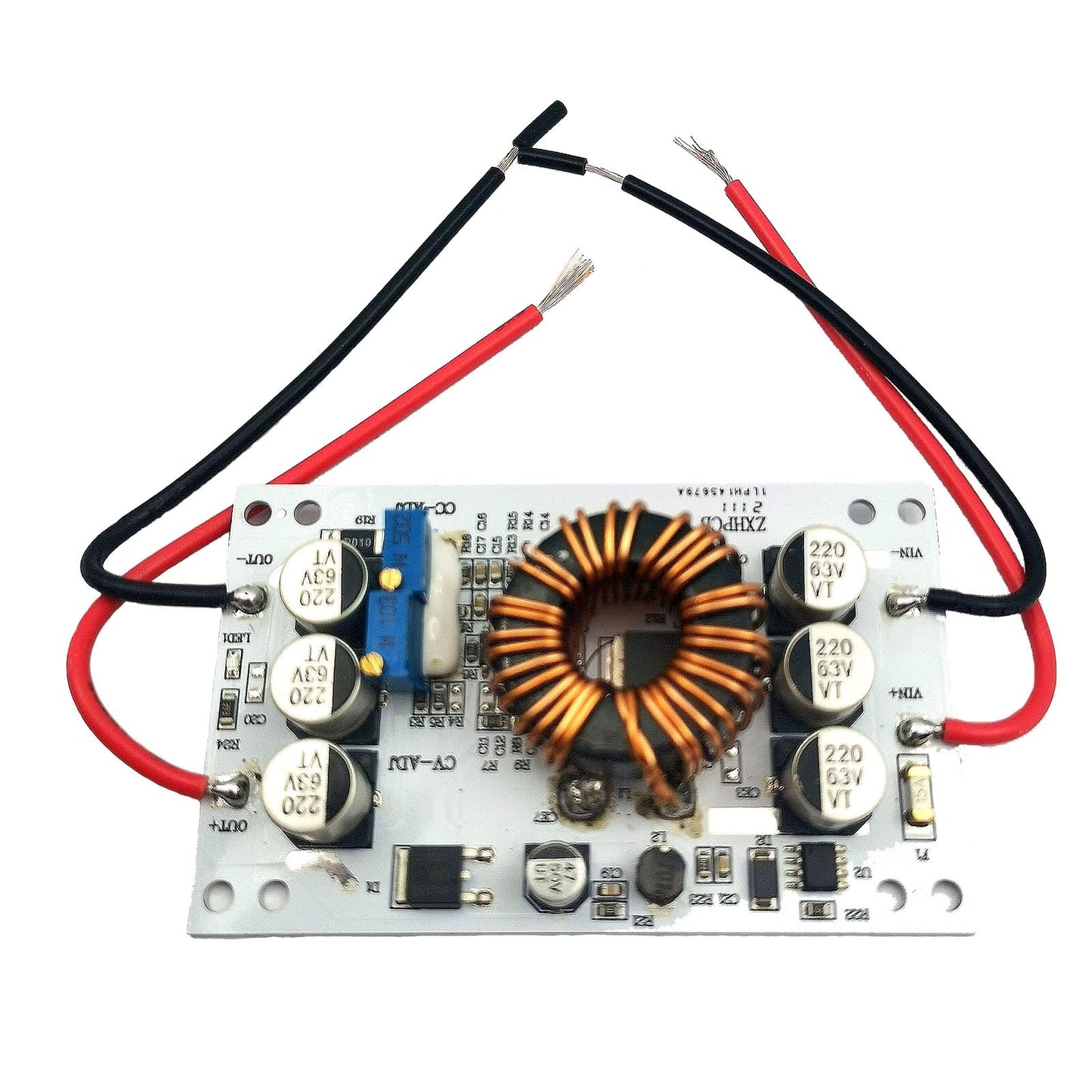

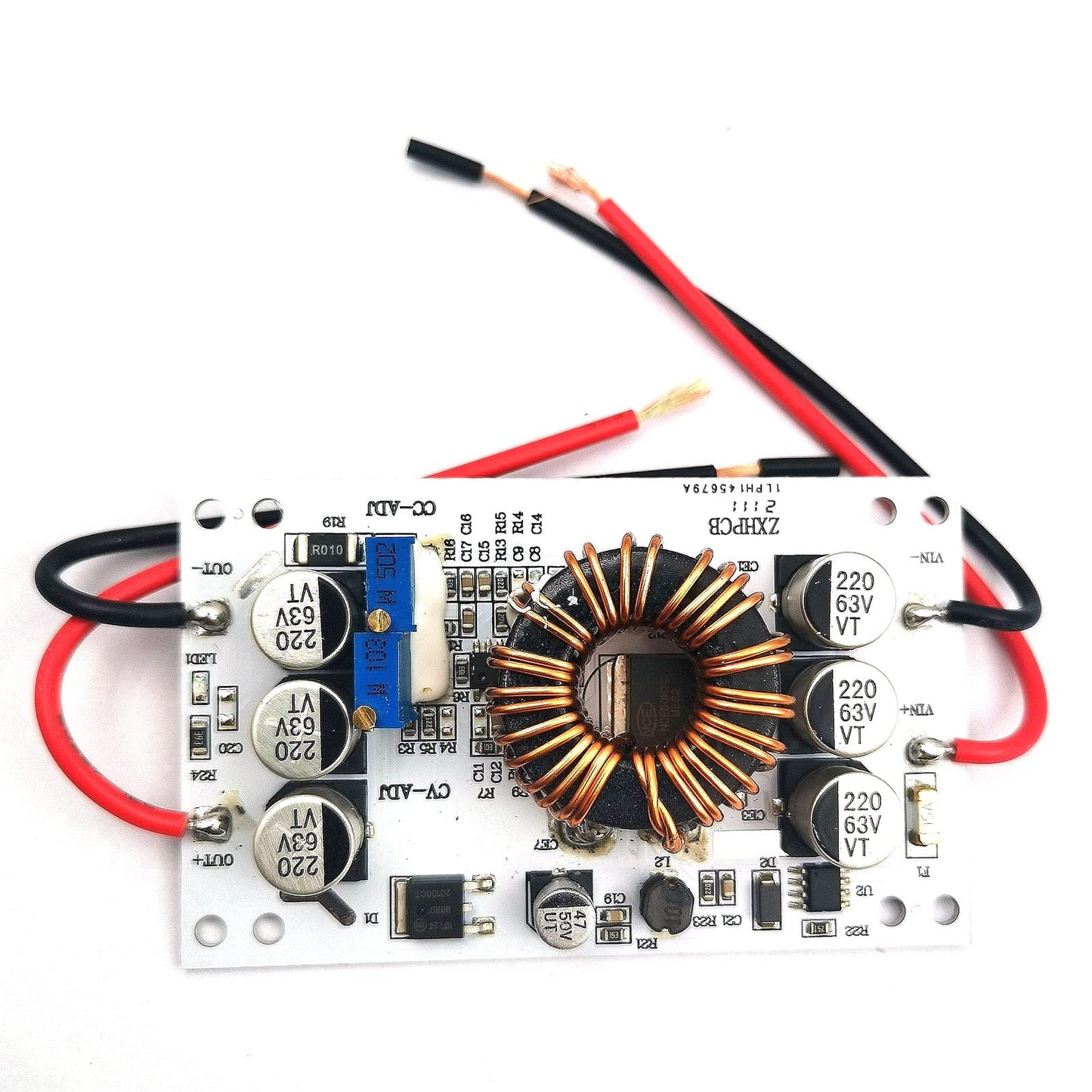

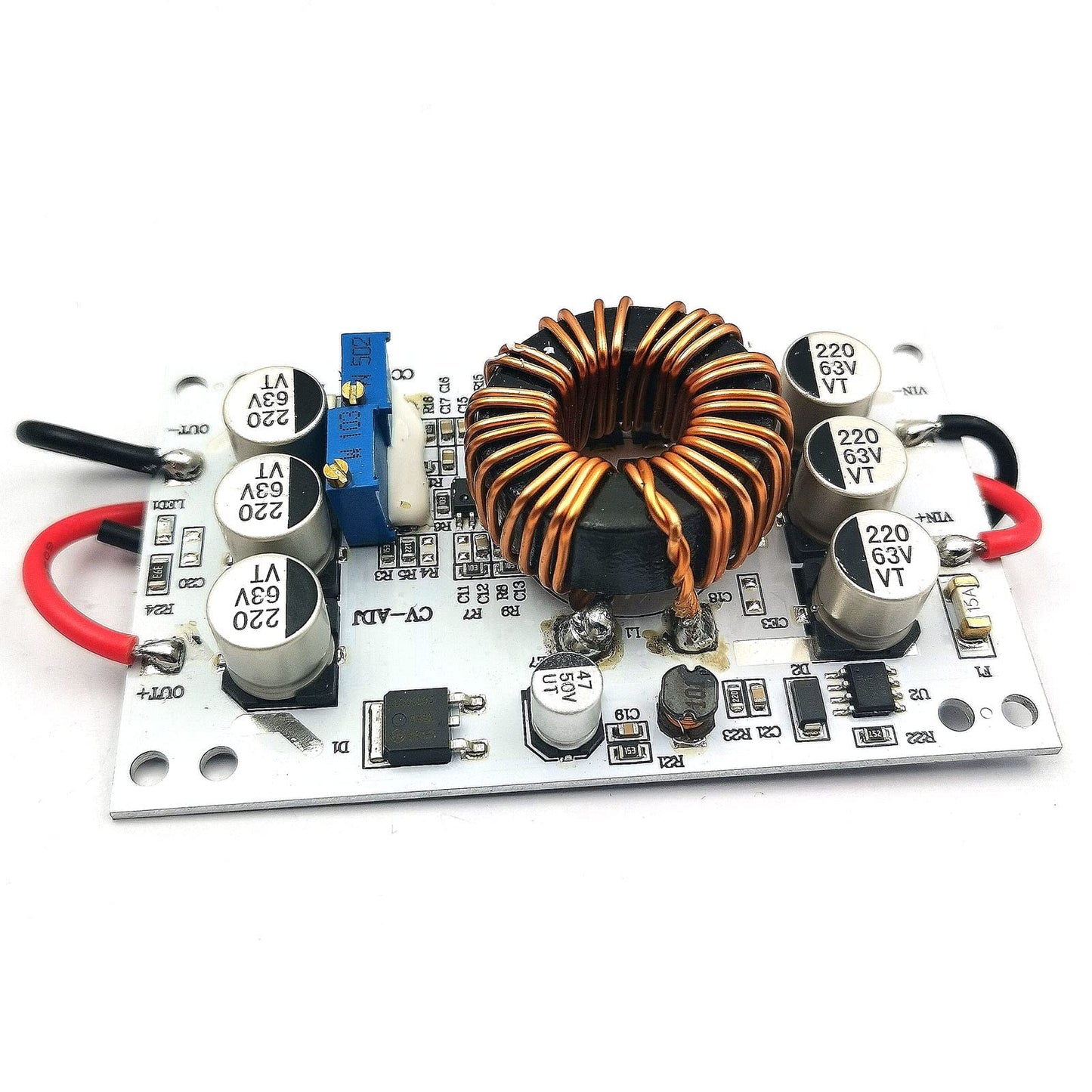

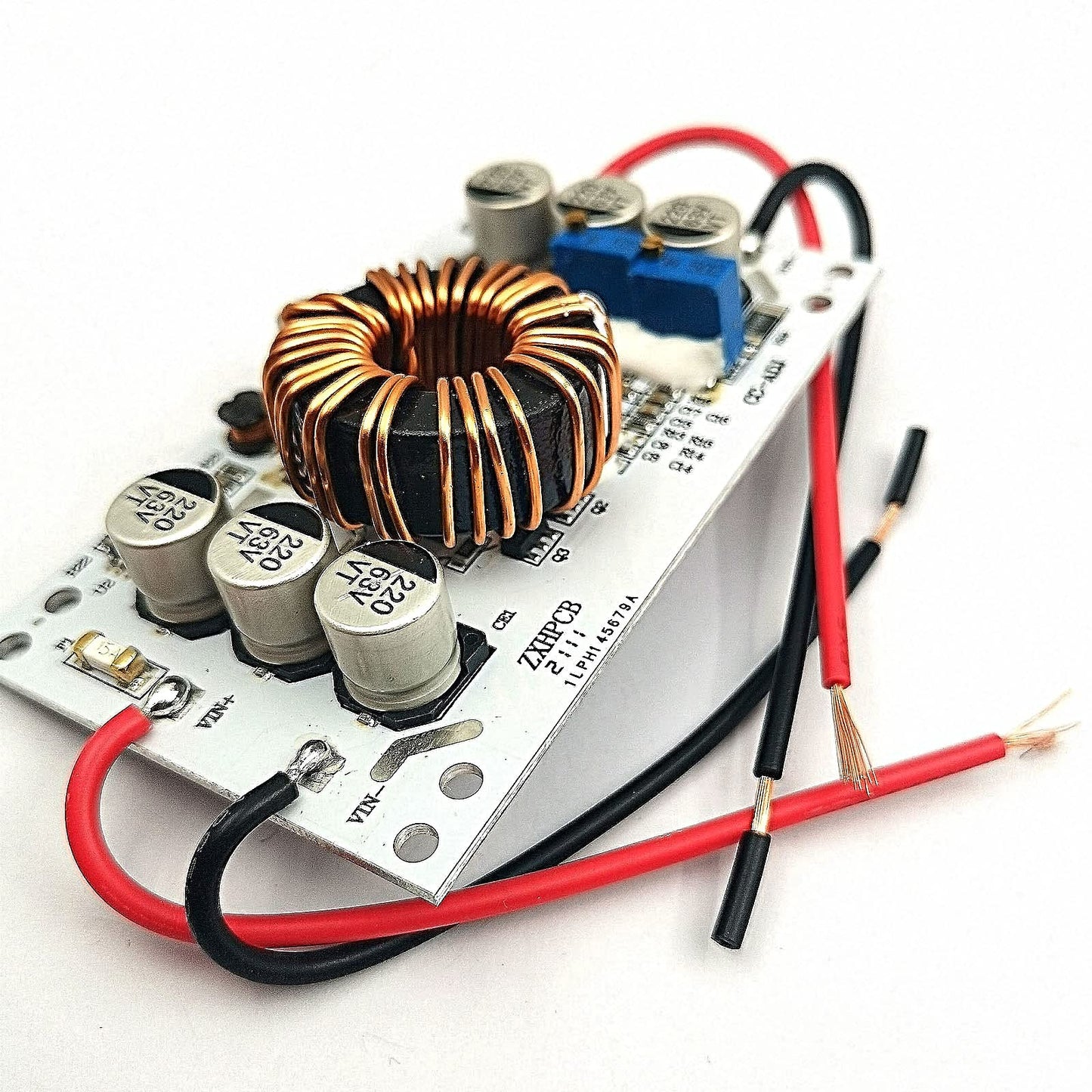

600W non-Isolated boost constant current power supply module
Input voltage: DC10V-60V
Input current: 10 (MAX)
Static operating current: 10mA (12V 20V the higher the output voltage static too much)
Output voltage: 12-60V continuously adjustable (default output 19V shipment other voltage please pay attention to the dispensers)
Output current: 10A or more 6A Please strengthen the heat dissipation (The larger the difference between the input and output pressure the smaller the output current)
Constant current range: 0.2-10A
Output power: = input voltage * 10A e.g.12V * 10A = 120W 60V * 10A = 600W
Operating temperature: -40 to + 85 degrees (enhance heat dissipation if the ambient temperature is too high)
Operating frequency: 150KHz
Conversion efficiency: 92%-96% (efficiency is related to input output voltage current pressure)
Input reverse protection: No (Note that forward and reverse are not reversed)
Installation: 4*3mm screw holes
Wiring method: wiring output
Module size: 85mm*52mm*21mm(L*W*H)
Weight: 90g
Output voltage regulation:
1. Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage based on your battery or LED.
Clockwise voltage is very small counterclockwise adjustable the output current regulation:
2. Turn the CC-ADJ potentiometer clockwise for about 20 turns.
Set the output current to the minimum value and connect it to the LED CC-ADJ potentiometer to the required current.
For charging the battery place the battery after the charge is complete then receive the output and adjust the CC-ADJ to the current you need. (For the full charge of the battery it must be used for charging because the more charge remaining in the battery the smaller the charging current.)
Package Included:
1 x 600W Constant Current Boost Converter
• Input DC10V-60V step-up to DC 12-60V output
• Output power= input voltage * 10A. e.g.12V * 10A = 120W 24V * 10A = 240W 60V * 10A = 600W
• Output current: 10A is max. 6A or more please strengthen the heat dissipation (The larger the difference between the input and output pressure the smaller the output current)
• Note: please don't use short circuit to adjust the current. The boost module circuit structure cannot be adjusted by short circuit
Color: Multicolor
Model: 600W DC to DC
600W non-Isolated boost constant current power supply module
Input voltage: DC10V-60V
Input current: 10 (MAX)
Static operating current: 10mA (12V 20V the higher the output voltage static too much)
Output voltage: 12-60V continuously adjustable (default output 19V shipment other voltage please pay attention to the dispensers)
Output current: 10A or more 6A Please strengthen the heat dissipation (The larger the difference between the input and output pressure the smaller the output current)
Constant current range: 0.2-10A
Output power: = input voltage * 10A e.g.12V * 10A = 120W 60V * 10A = 600W
Operating temperature: -40 to + 85 degrees (enhance heat dissipation if the ambient temperature is too high)
Operating frequency: 150KHz
Conversion efficiency: 92%-96% (efficiency is related to input output voltage current pressure)
Input reverse protection: No (Note that forward and reverse are not reversed)
Installation: 4*3mm screw holes
Wiring method: wiring output
Module size: 85mm*52mm*21mm(L*W*H)
Weight: 90g
Output voltage regulation:
1. Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage based on your battery or LED.
Clockwise voltage is very small counterclockwise adjustable the output current regulation:
2. Turn the CC-ADJ potentiometer clockwise for about 20 turns.
Set the output current to the minimum value and connect it to the LED CC-ADJ potentiometer to the required current.
For charging the battery place the battery after the charge is complete then receive the output and adjust the CC-ADJ to the current you need. (For the full charge of the battery it must be used for charging because the more charge remaining in the battery the smaller the charging current.)
Package Included:
1 x 600W Constant Current Boost Converter
• Input DC10V-60V step-up to DC 12-60V output
• Output power= input voltage * 10A. e.g.12V * 10A = 120W 24V * 10A = 240W 60V * 10A = 600W
• Output current: 10A is max. 6A or more please strengthen the heat dissipation (The larger the difference between the input and output pressure the smaller the output current)
• Note: please don't use short circuit to adjust the current. The boost module circuit structure cannot be adjusted by short circuit
Color: Multicolor
