Description
Brand: Envistia
Model: TP4056-DW01A-5V-1A-1S
• Uses both the TP4056 and the DW01A Li-Ion battery protection IC, which together provide constant-current/constant-voltage (CC/CV) charging, along with protection against over-voltage, over-discharge, over-current and short circuits to protect the battery and the device that it is powering
• If the battery voltage drops below about 2.4V (over-discharge), the DW01A protection IC disconnects the battery from the OUT connectors, disabling discharge to protect the battery from running at too low of a voltage
• Powered by a 5V USB power supply using the MicroUSB connector or solder pads
• Perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s and 18650s that don't have their own protection circuit

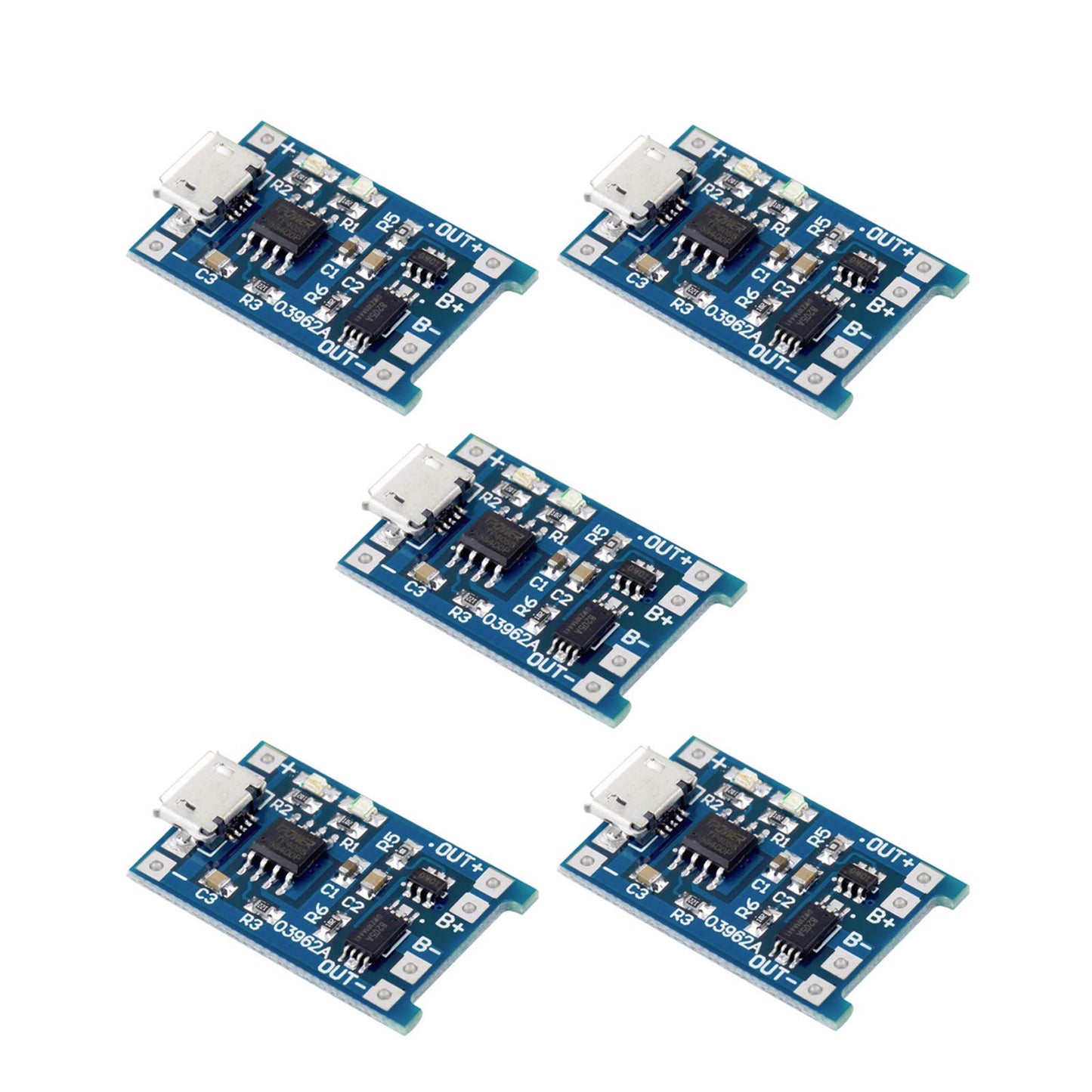

• Package of 5 Micro-USB TP-4056 modules
Model: TP4056-DW01A-5V-1A-1S

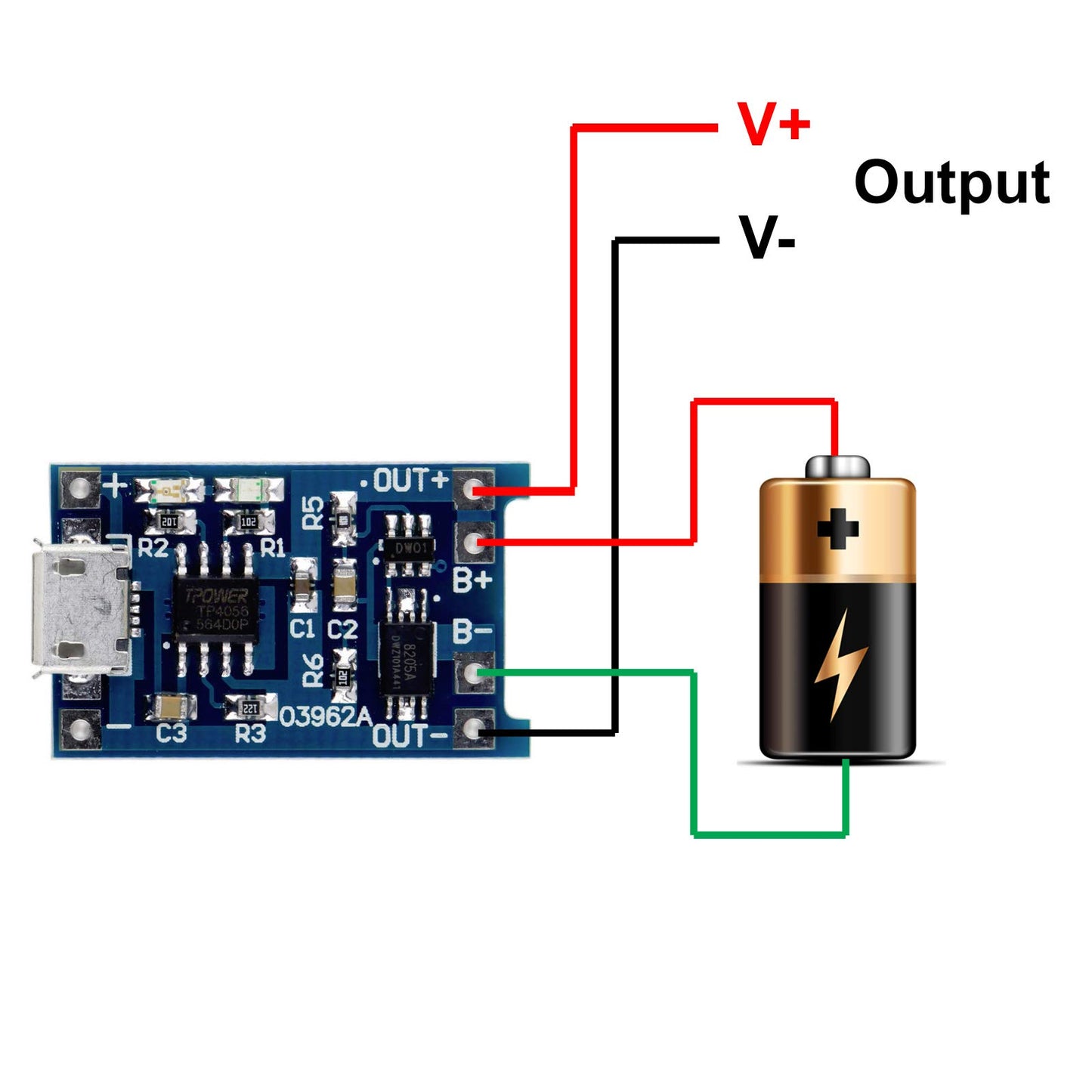

This is an enhanced USB-powered lithium ion polymer battery backup charger that can power a load from USB (load is connected to Out+ and Out-) and also charge a battery (B+ and B-). It will then switch to battery power when the USB connection is removed.

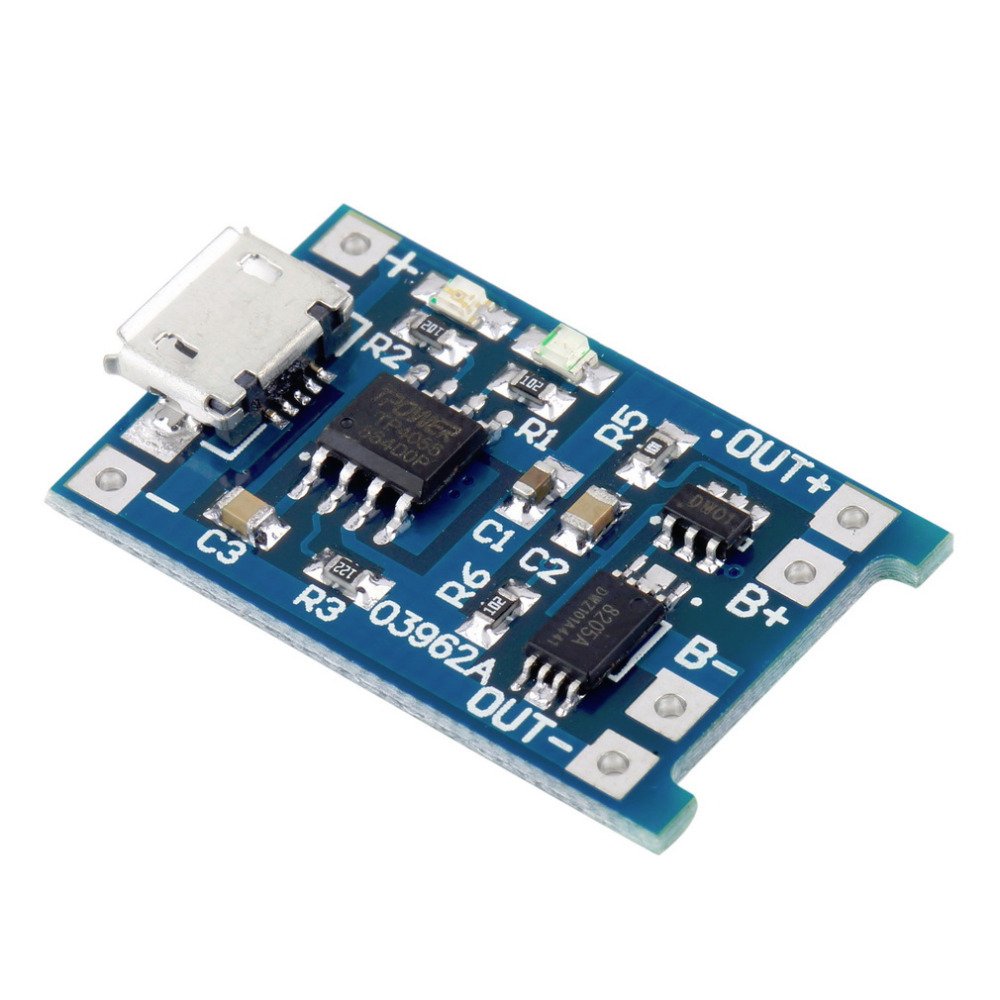

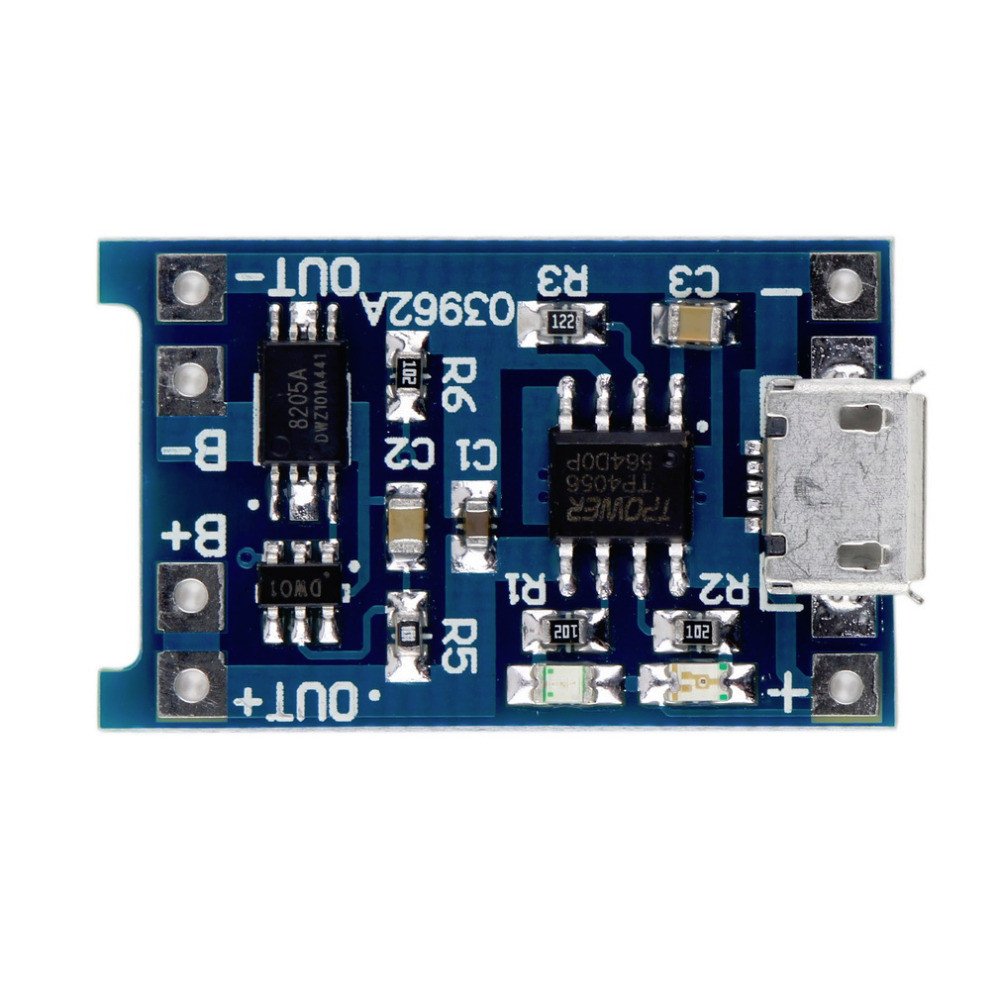

It uses a TP4056 charging controller with a DW01A Lithium-Ion battery protection IC to protect the battery.
It provides 1A charge current then cuts off when the battery is charged. Furthermore when the battery voltage drops below about 2.4V, the protection IC will switch the load off to protect the cell from running at too low of a voltage - and also protects against over-voltage and reverse polarity connection. However please check you have it connected correctly the first time. An LED indicates power/charge/battery status.
This module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s and 18650s that don't have their own protection circuit. It can charge two cells in parallel, however since the two cells share the charging current, they take twice as long to charge as a single cell.
Specifications:
- Input: Micro USB female or + and - solder terminals
- Input voltage: 4.35-6V (recommended voltage 5V)
- Charge cut-off voltage: 4.2V + / - 1% (charges a 1S Lithium Ion Polymer Battery)
- Maximum charging current output: 1000mA
- Battery overcharge protection voltage: 4.3V
- Battery discharge protection voltage: 2.4V
- Battery over-current protection current: 3A
- Board size: 27mm * 17mm (29mm * 17mm including USB connector overhang)
- Indicator LEDs:
- Red/Green LED: Off - not connected or no power; Red - charging; Green - charge complete
- Blue LED: Off - no power; Blue - power on
- Working temperature: -10C - +85C
• Uses both the TP4056 and the DW01A Li-Ion battery protection IC, which together provide constant-current/constant-voltage (CC/CV) charging, along with protection against over-voltage, over-discharge, over-current and short circuits to protect the battery and the device that it is powering
• If the battery voltage drops below about 2.4V (over-discharge), the DW01A protection IC disconnects the battery from the OUT connectors, disabling discharge to protect the battery from running at too low of a voltage
• Powered by a 5V USB power supply using the MicroUSB connector or solder pads
• Perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s and 18650s that don't have their own protection circuit
• Package of 5 Micro-USB TP-4056 modules
