Brand: DTECH

<b>6-Foot FT232RL FTDI chip USB TTL serial adapter cable for 5V logic level serial communication</b></br> It is built with FTDI FT232 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port and D2XX ‘direct’ drivers provide DLL application programming interface; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc. </br></br> <b>NOTE:</b> If any installation or usage issues, please email us or you may download a driver and usage guide on FTDI official website</br></br> The original FTDI chip is embedded in the USB-A end; 6 way 0.1” header connector with VCC (5V power) and GND (ground), as well as RXD, TXD, RTS and CTS at 5 V logic level.</br></br> <b>Applications: </b></br> Upgrading Legacy Peripherals to USB</br> Interface Microcontroller UART or I/O, FPGA / PLD to USB</br> Replace MAX232 type level shifters allowing for direct connection of products to PC</br> Industrial Control / USB Software / Hardware Encryption Dongles</br></br> <b> Features</b></br> - The I/O pins of the FTDI wire are configured to operate at 5.0V logic level - Entire USB protocol handled by the electronics in the cable;</br> - UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;</br> - Data transfer rates from 300 to 3M baud rate at TTL levels;</br> - Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking;</br> - Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;</br> - UHCI / OHCI / EHCI host controller compatible</br></br> <b>Specific</b></br> Interfaces: USB 2.0 type A Male Port ; 6 pin Female Socket Header</br> Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10,11 (32 and 64-bit); Mac OS 8/9 , OS-X; Linux 2.4 and greater</br></br> What’s Included</br> 1 x USB to Serial TTL Level Converter Cable</br> 1 X User Manual

Features:

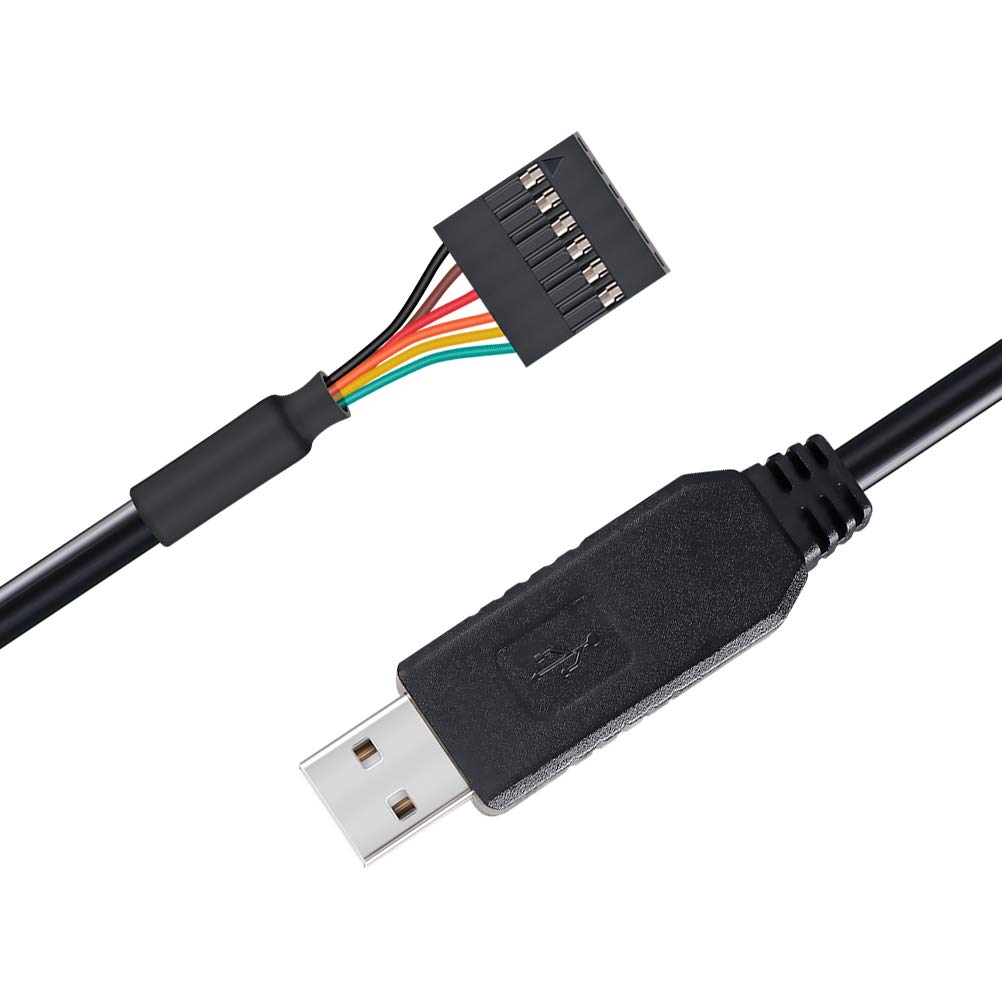

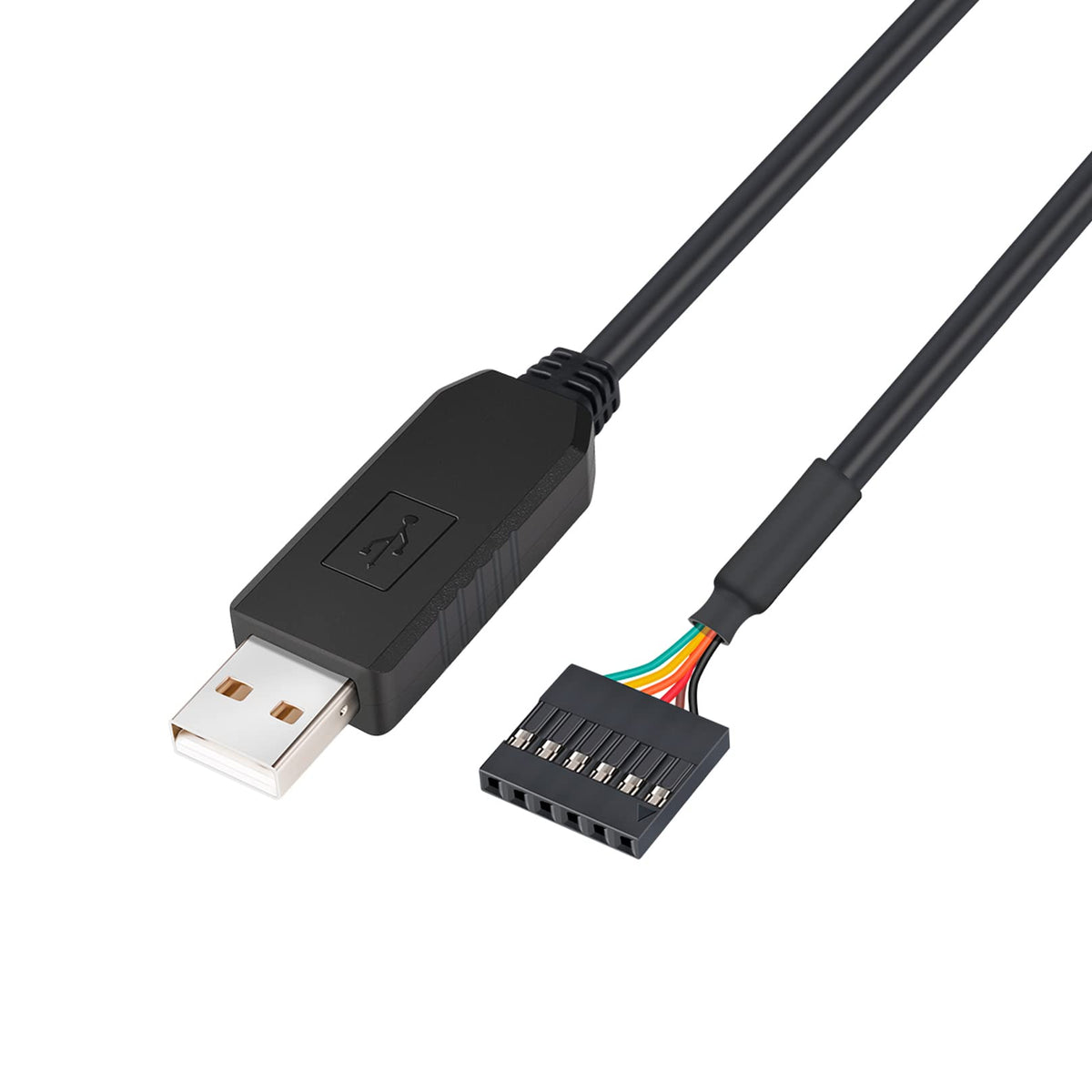

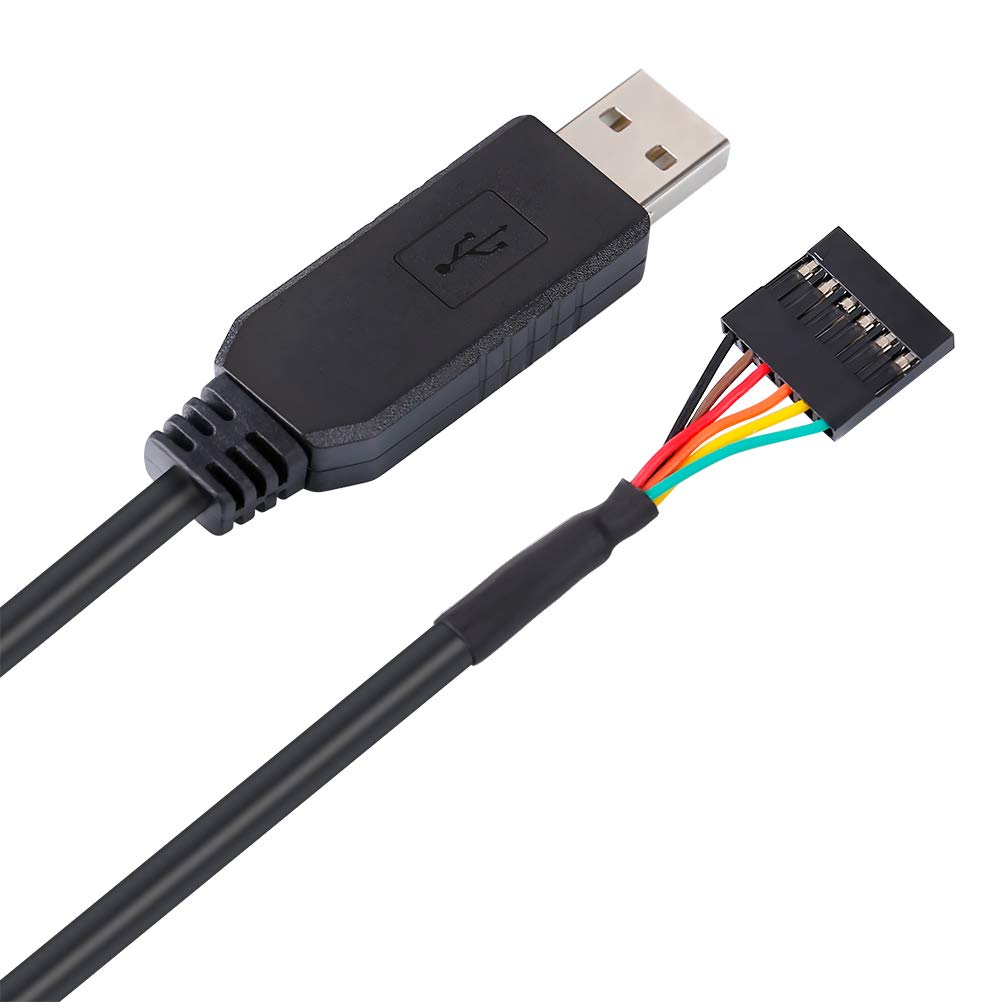

• 6 ft FT232 chip USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port
• A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

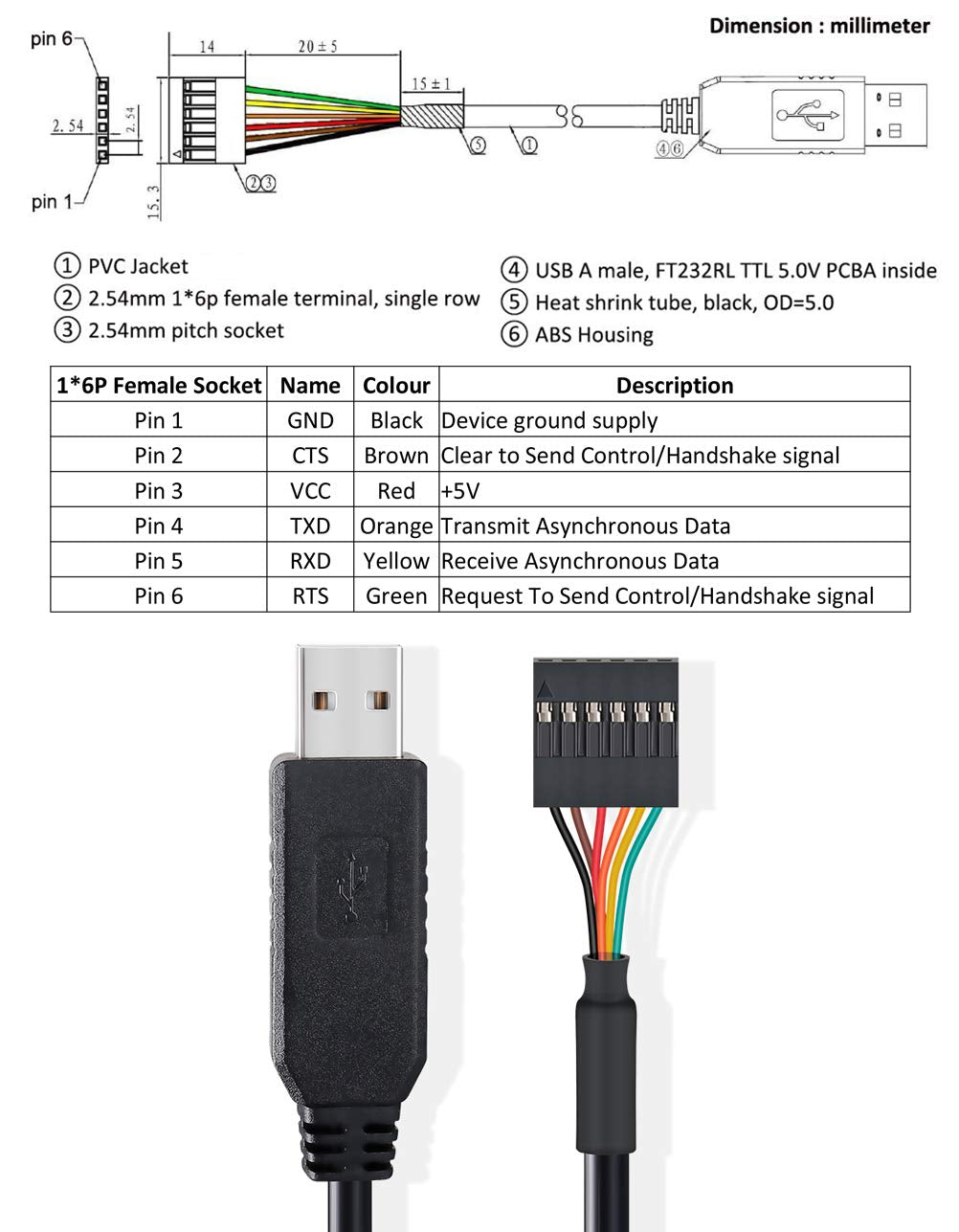

• 6 feet FTDI chip USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND
• FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

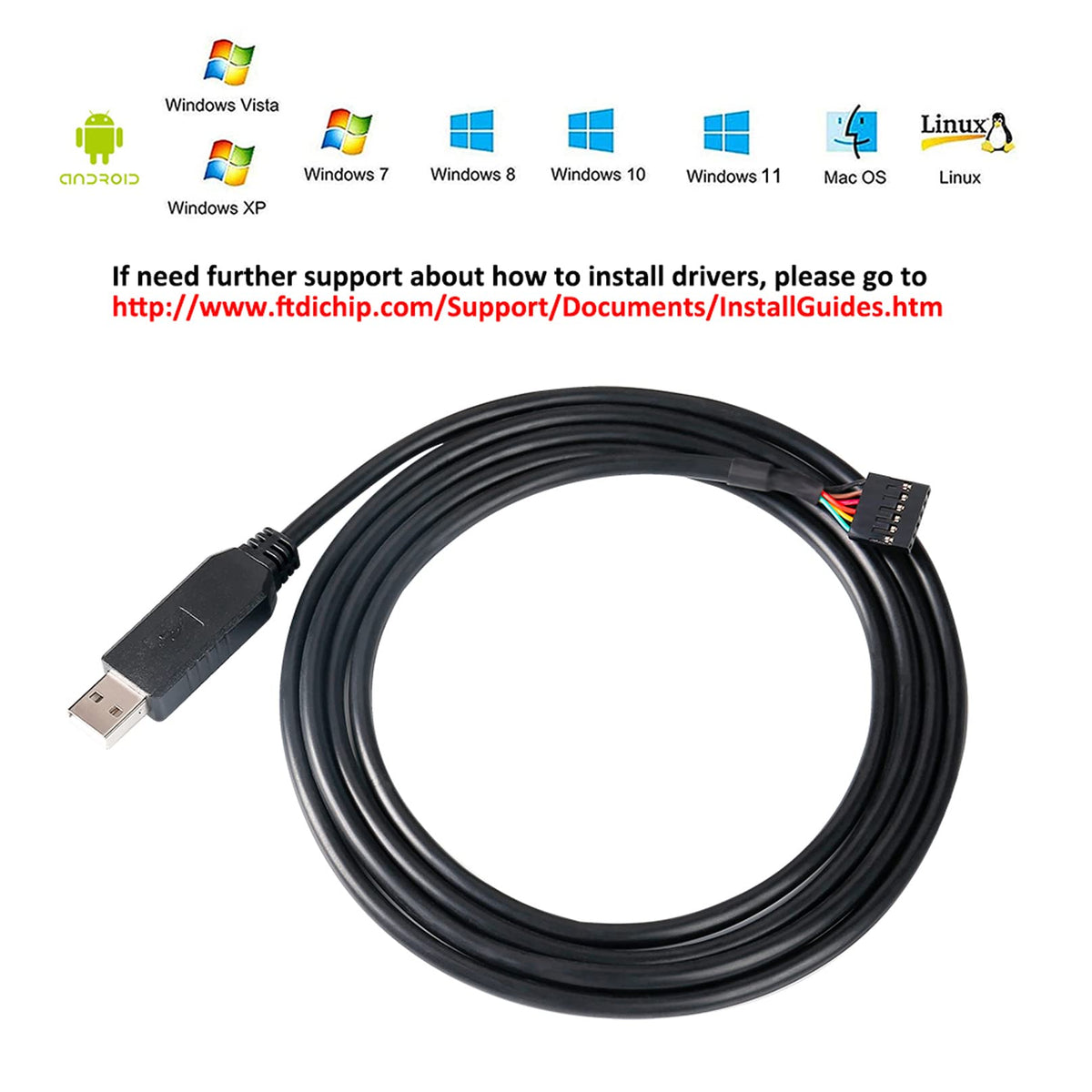

• 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater
• ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

Product Details:

• Color: 6 pin 5V
• Size: 6ft
• Model: DT-6555
• Package Quantity: 1
