Description
Brand: Comidox
Model: CP323

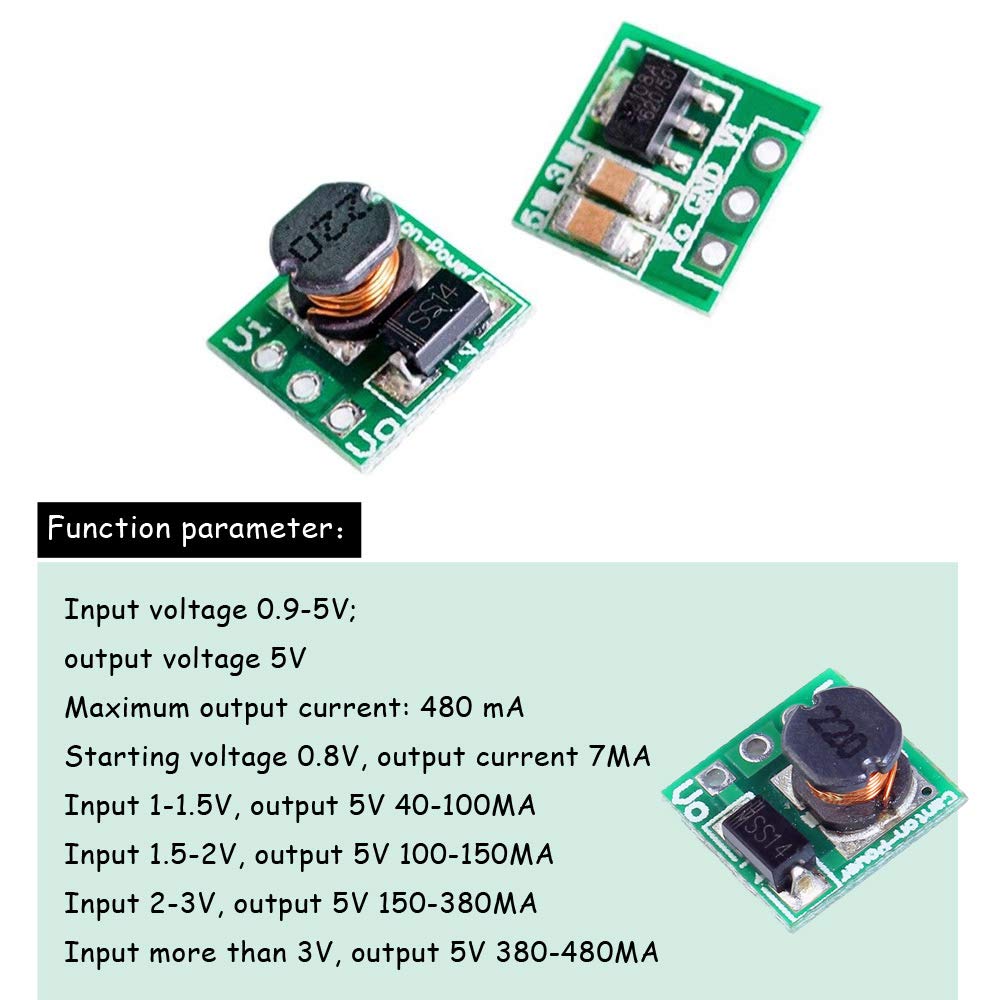

Voltage and current correspondence:
Starting voltage 0.8V, output current 7MA
Input 1-1.5V, output 5V 40-100MA
Input 1.5-2V, output 5V 100-150MA
Input 2-3V, output 5V 150-380MA
Input more than 3V, output 5V 380-480MA

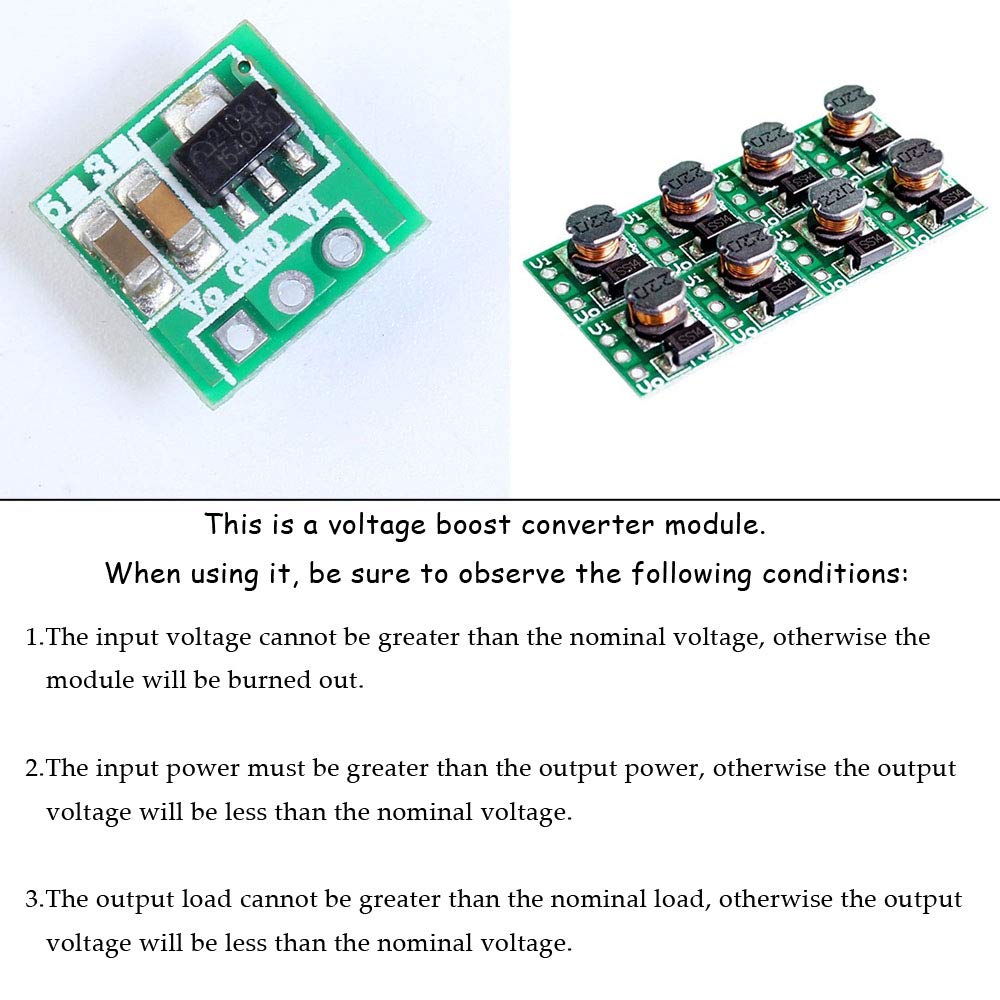

This is a voltage boost converter module. When using it, be sure to observe the following conditions:
The input voltage cannot be greater than the nominal voltage, otherwise the module will burn out
The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage
The output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

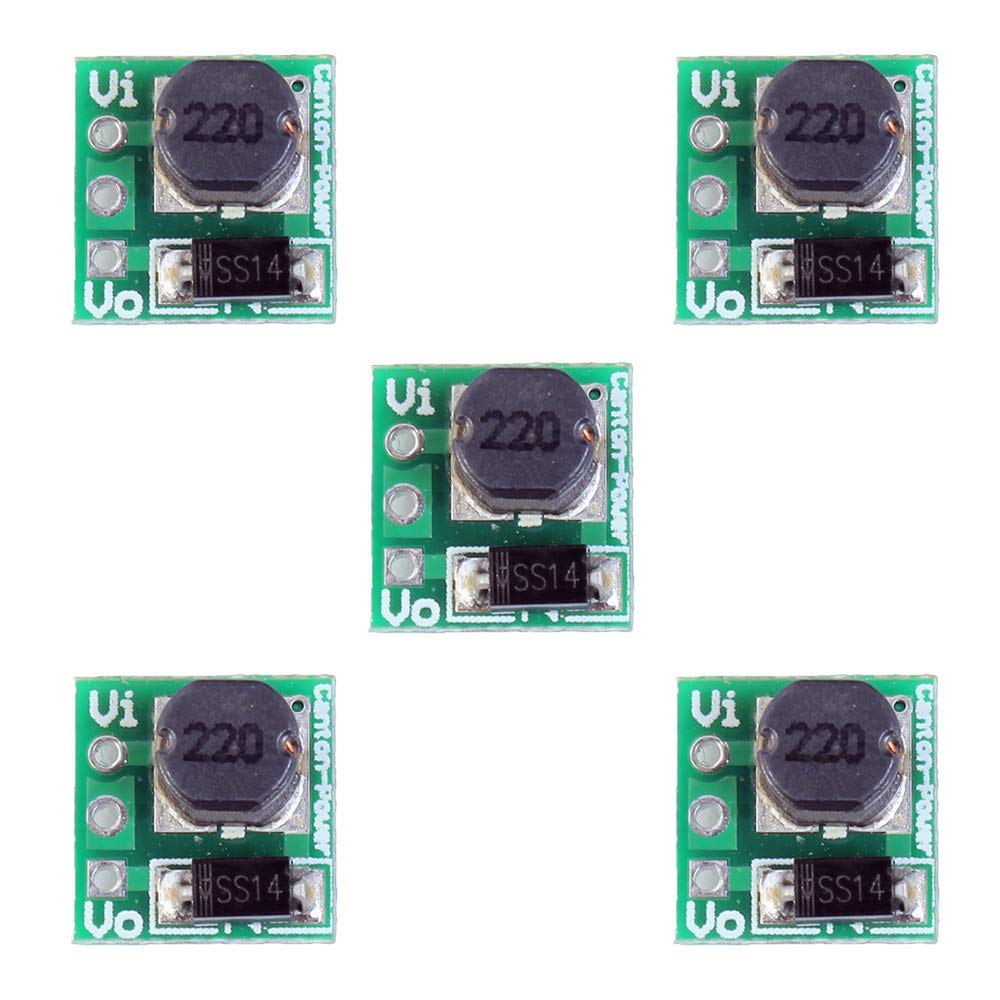

Package Includes: 5Pcs

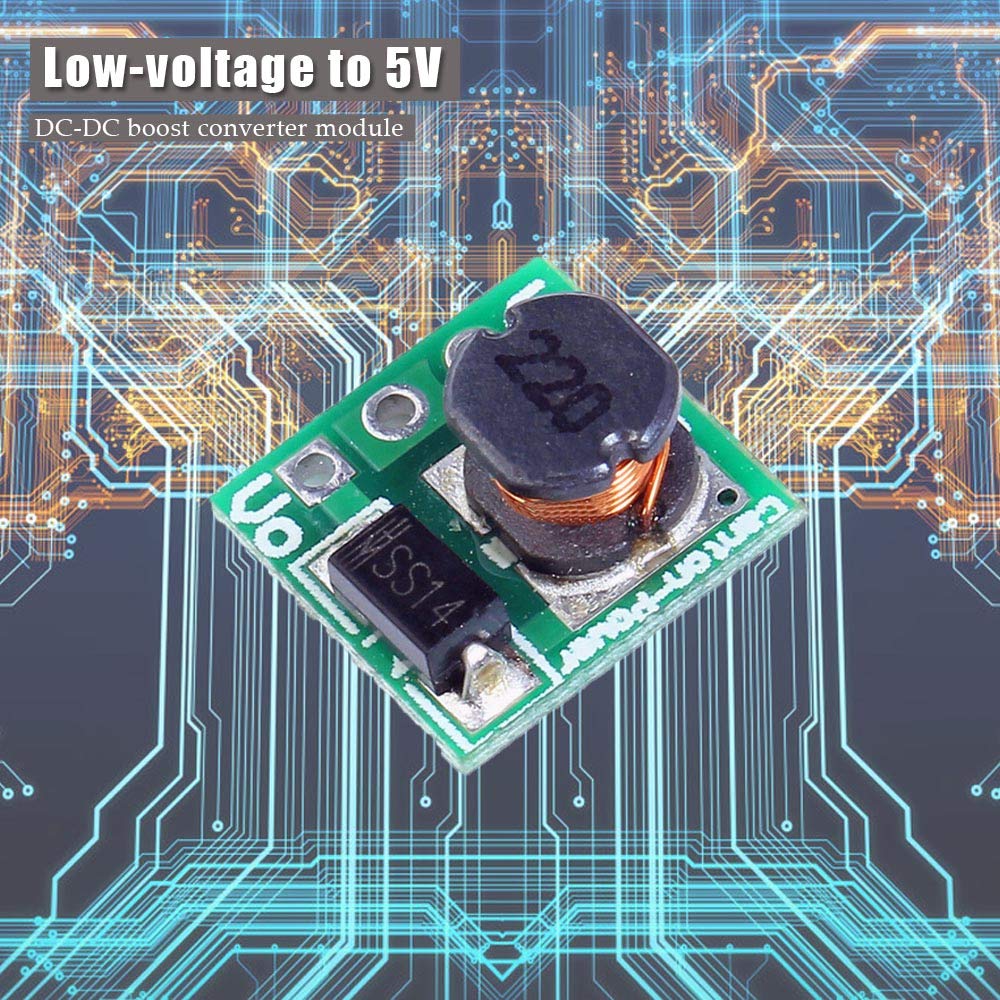

• DC-DC boost converter module, operating frequency 150KHZ, typical conversion efficiency of 85%.
• Pin 2.54MM pitch.

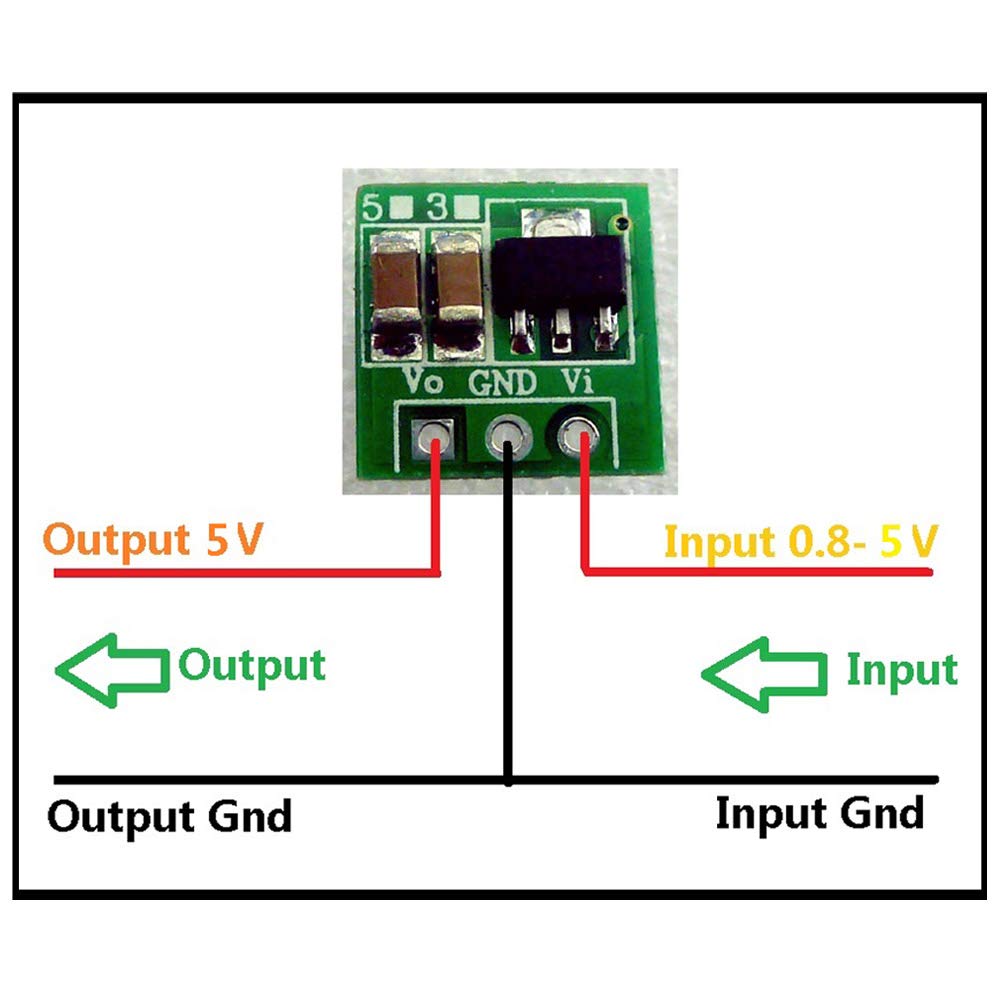

• Input voltage: 0.9-5V, output voltage: 5V, maximum output current: 480 mA.
• Dimensions: 11mm x 10.5mm x 7.5mm (ultra-small module, 1mm=0.0393inch)
• Weight: about 1g
Color: green black
Model: CP323
Voltage and current correspondence:
Starting voltage 0.8V, output current 7MA
Input 1-1.5V, output 5V 40-100MA
Input 1.5-2V, output 5V 100-150MA
Input 2-3V, output 5V 150-380MA
Input more than 3V, output 5V 380-480MA
This is a voltage boost converter module. When using it, be sure to observe the following conditions:
The input voltage cannot be greater than the nominal voltage, otherwise the module will burn out
The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage
The output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 5Pcs
• DC-DC boost converter module, operating frequency 150KHZ, typical conversion efficiency of 85%.
• Pin 2.54MM pitch.
• Input voltage: 0.9-5V, output voltage: 5V, maximum output current: 480 mA.
• Dimensions: 11mm x 10.5mm x 7.5mm (ultra-small module, 1mm=0.0393inch)
• Weight: about 1g
Color: green black
