Description
Brand: BOSYTRO
Model: ES-12V-600W

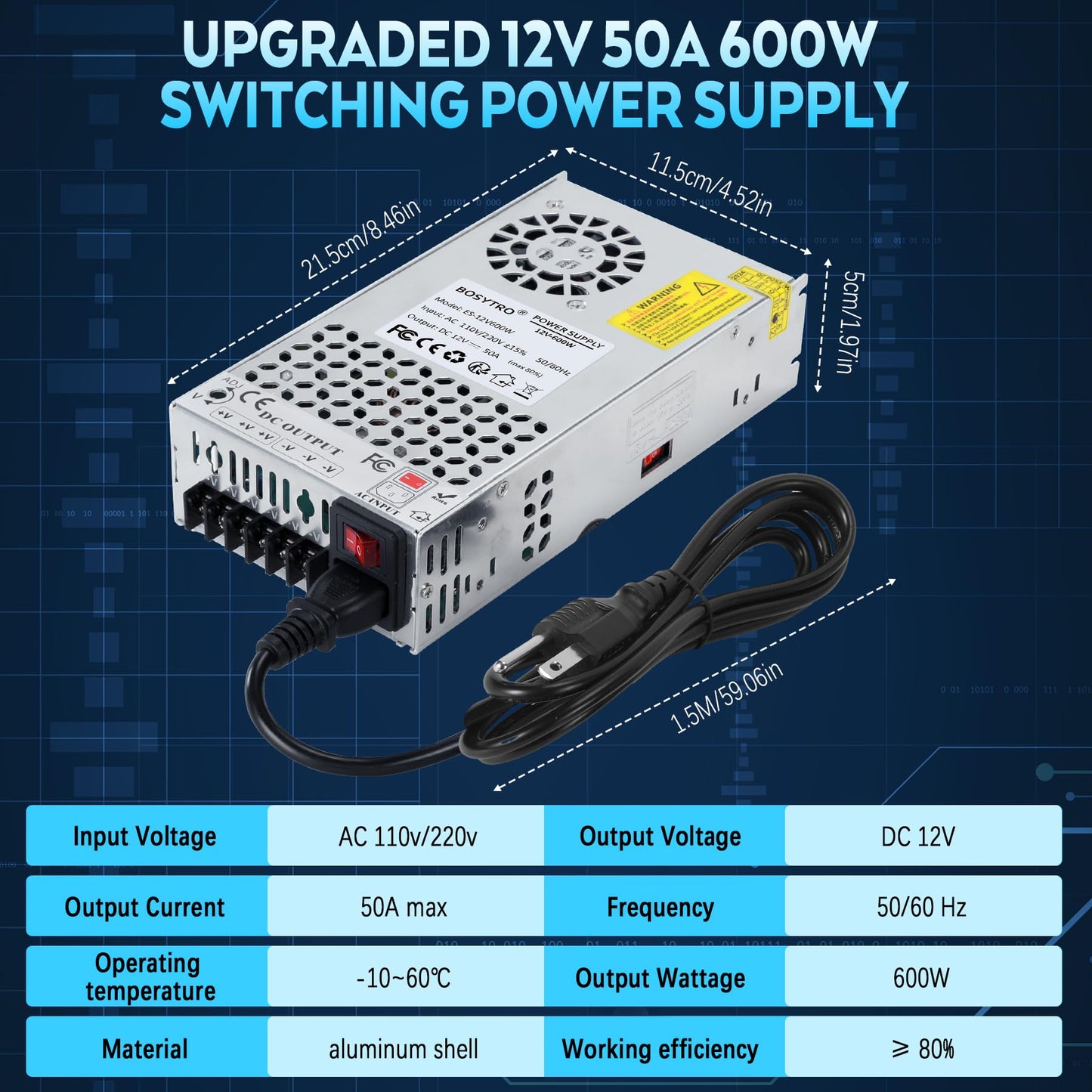

Specification:
Input Voltage: AC110V/240V
Frequency range: 50-60Hz
Output Voltage: DC 12V (±5%)
Output Wattage: 600w max
Output Current: 50a max
Efficiency: ＞ 85%
Working temperature: -10℃~60℃/14F-140F
Storage temperature: -20℃~85℃
Environmental humidity: 10%-95%
Size: 21.5 x 11.5 x 5 cm/8.5×4.5×2 inch
weight: 1.5 lb
Material: Aluminum
Package include:
Switch power supply x 1
Power cord
Attention:
1.Before using, please switching the input voltage to 115V/230V according to your city voltage.115V for US, 230V for EU
2.If use motor, fan and other inductive load, please pay attention to the load's maximum starting current parameter. This parameter shall not be higher than the power supply’s max. current. Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current.
3. High voltage inside, NEVER remove the cover. Not waterproof, indoor use only.
4. Please do not overload the devices in order to avoid damage to the equipment.
5. The max use should be no more than 80% of the full loads，otherwise, the service life of the power supply will be greatly shortened.
If there is any issue with the power supply, Please feel free to contact us. We will solve the problem for you within 24 hours.

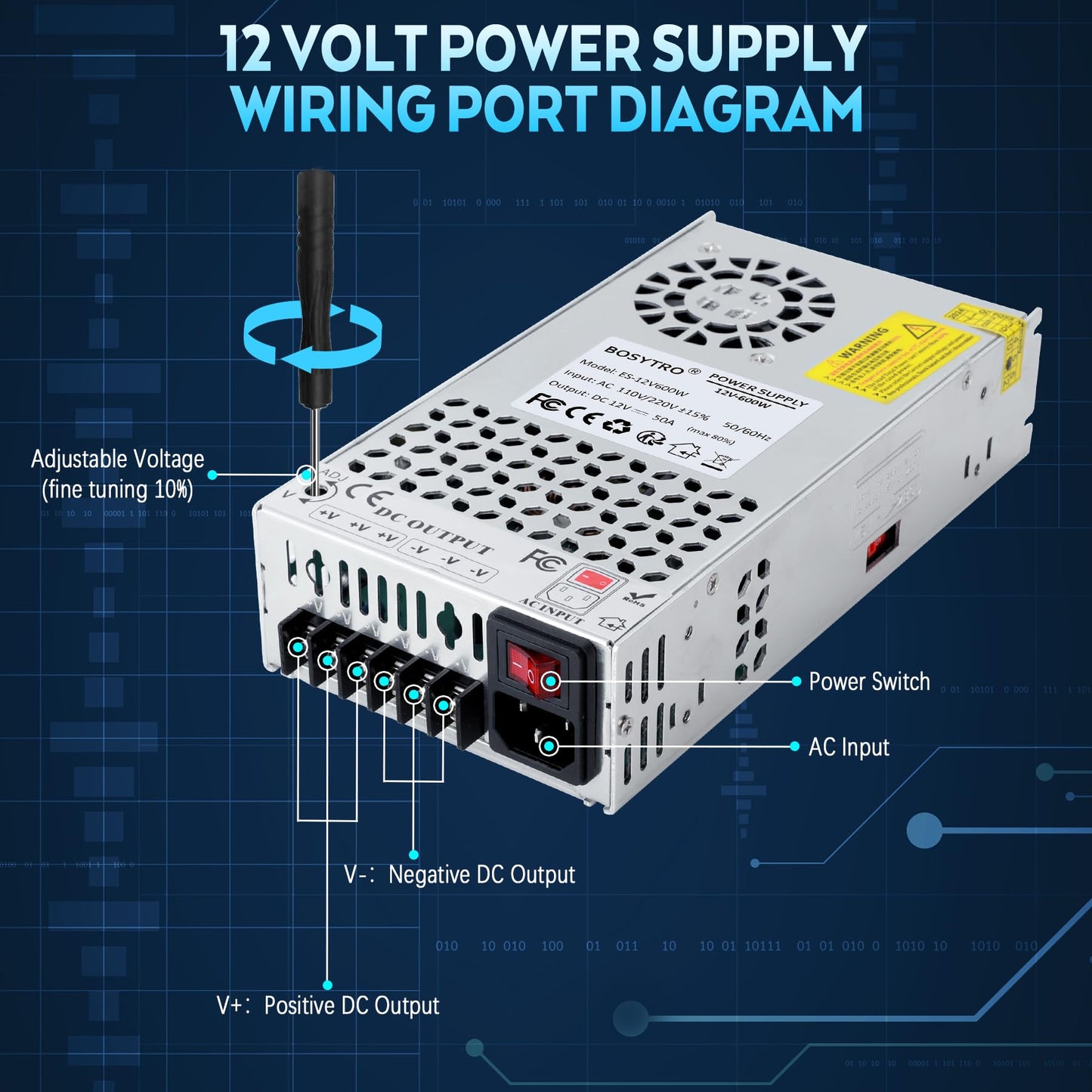

• 【Upgrade ac to dc converter】Compared with the old power supply, we have retained 3 sets of output channels, but upgraded the input channels. The old power supply needs to be connected to the input through wiring. We have upgraded the input method, greatly improving the connection efficiency. In addition, we have added a safety switch, which can more conveniently start or turn off the power supply. On the other hand, the safety switch can also be used to quickly determine whether the power supply is normal
• 【12 Volt Power Supply】Input voltage 110v-240v ac, output voltage 12v dc, adjustable range: ±10%
• Output current Mainly depends on your decive, such as DC 10A/120W, 20A/240W, 40A/480W, 50A/600w, max current up to 50A, max output power 600W, For more efficient and secure use, recommended for equipment below 480w

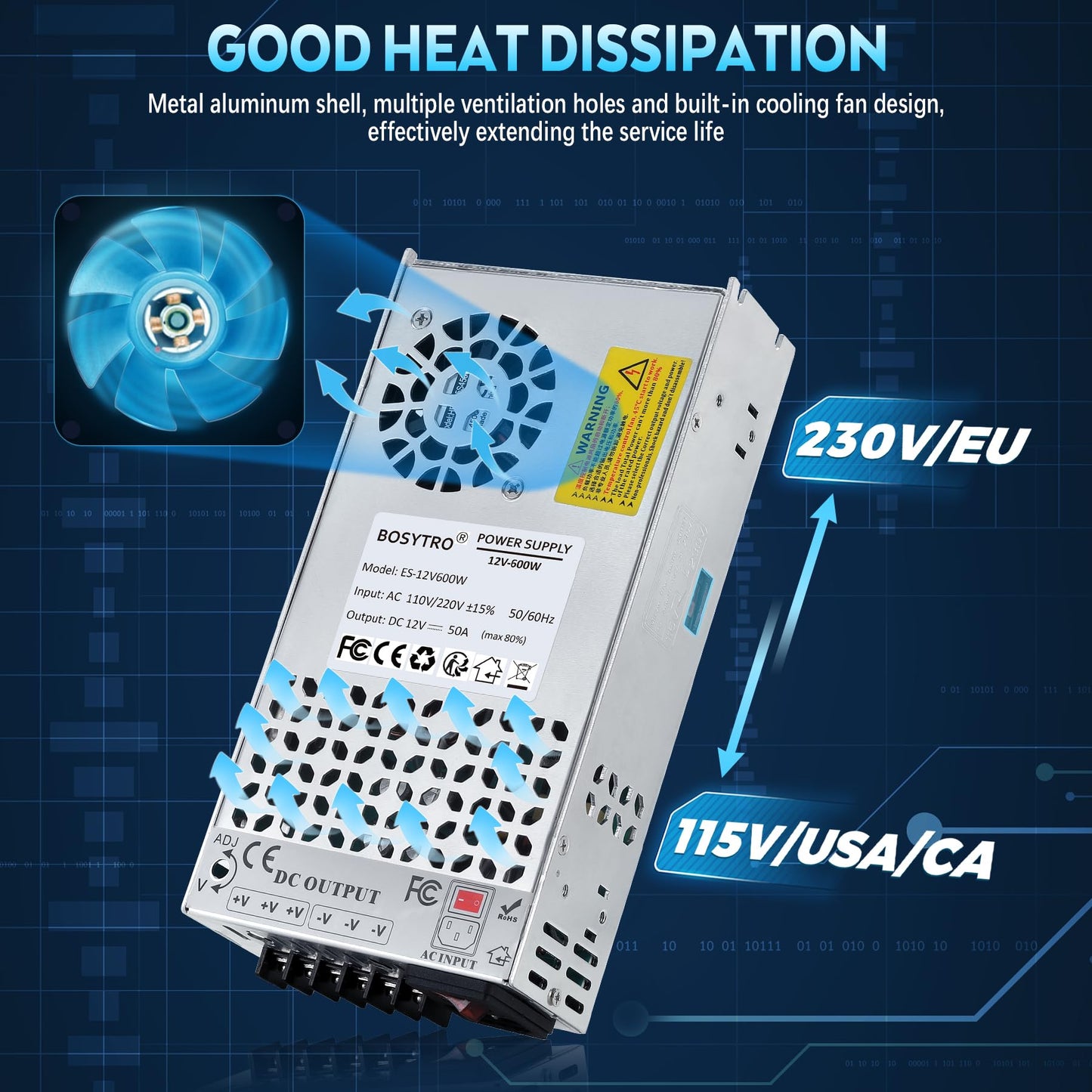

• 【Intelligent Cooling System】The 12v 600w power supply with aluminum alloy shell and designed with multiple holes for better heat dissipation, Built-in intelligent Cooling Fan to prevent overheating and burning of circuit boards, when the working temperature is more than 122℉(45℃), the power supply will automatically run to dissipate

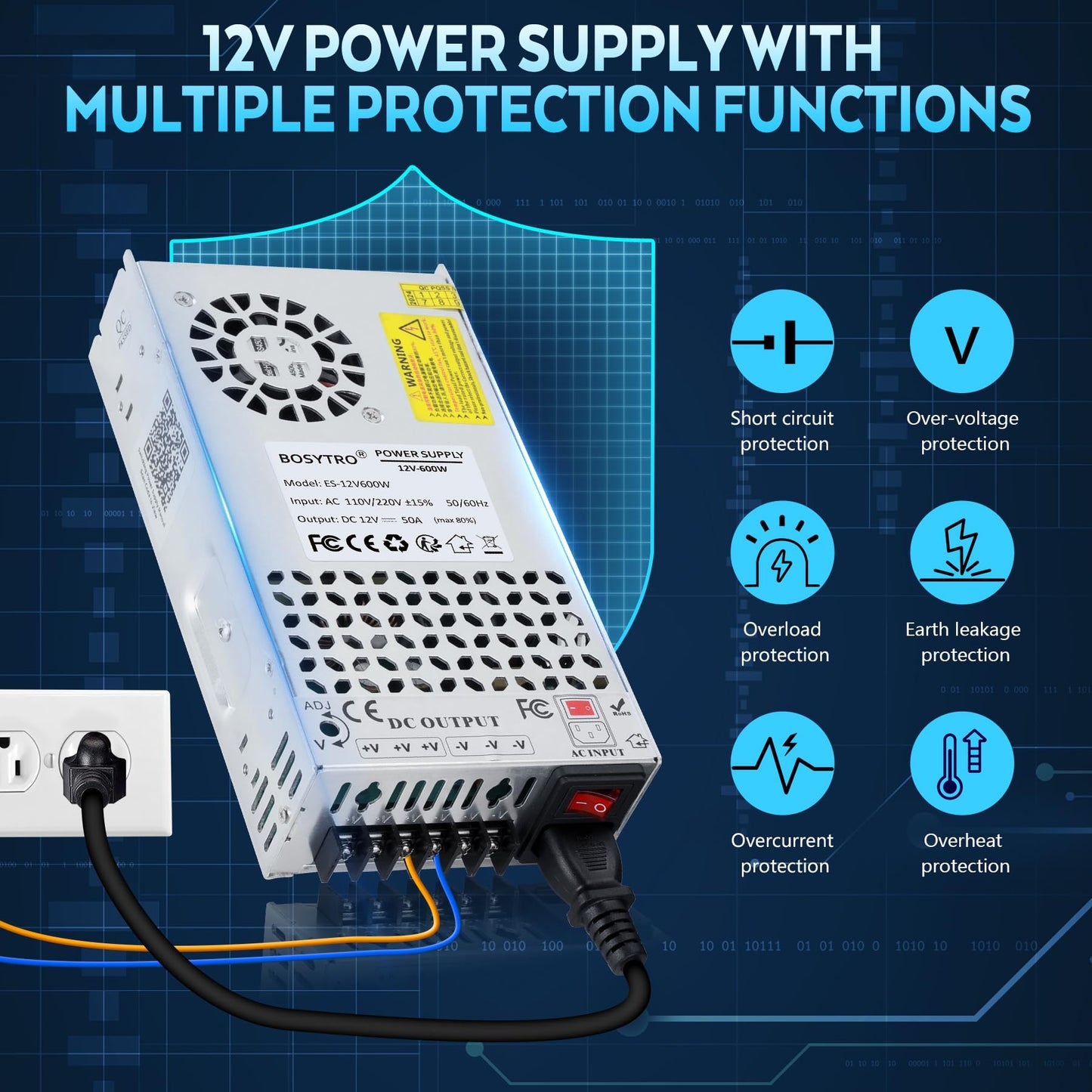

• 【Multiple Protection】BOSYTRO switching power supply features a overload protection, over-current protection, over-temperature protection, short circuit protection which can protect your device from damage. Safe and stable working, suitable for newer and experienced electrician
• 【Wide Application】This 12v power supply widely used in industrial equipment, RV, radio/car stereos, led strip, cctv, computer project, 3d printer, motor pump(for Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor), security camera, lcd monitor, lab computer and more 12 volt device
Color: silver
Model: ES-12V-600W
Specification:
Input Voltage: AC110V/240V
Frequency range: 50-60Hz
Output Voltage: DC 12V (±5%)
Output Wattage: 600w max
Output Current: 50a max
Efficiency: ＞ 85%
Working temperature: -10℃~60℃/14F-140F
Storage temperature: -20℃~85℃
Environmental humidity: 10%-95%
Size: 21.5 x 11.5 x 5 cm/8.5×4.5×2 inch
weight: 1.5 lb
Material: Aluminum
Package include:
Switch power supply x 1
Power cord
Attention:
1.Before using, please switching the input voltage to 115V/230V according to your city voltage.115V for US, 230V for EU
2.If use motor, fan and other inductive load, please pay attention to the load's maximum starting current parameter. This parameter shall not be higher than the power supply’s max. current. Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current.
3. High voltage inside, NEVER remove the cover. Not waterproof, indoor use only.
4. Please do not overload the devices in order to avoid damage to the equipment.
5. The max use should be no more than 80% of the full loads，otherwise, the service life of the power supply will be greatly shortened.
If there is any issue with the power supply, Please feel free to contact us. We will solve the problem for you within 24 hours.
• 【Upgrade ac to dc converter】Compared with the old power supply, we have retained 3 sets of output channels, but upgraded the input channels. The old power supply needs to be connected to the input through wiring. We have upgraded the input method, greatly improving the connection efficiency. In addition, we have added a safety switch, which can more conveniently start or turn off the power supply. On the other hand, the safety switch can also be used to quickly determine whether the power supply is normal
• 【12 Volt Power Supply】Input voltage 110v-240v ac, output voltage 12v dc, adjustable range: ±10%
• Output current Mainly depends on your decive, such as DC 10A/120W, 20A/240W, 40A/480W, 50A/600w, max current up to 50A, max output power 600W, For more efficient and secure use, recommended for equipment below 480w
• 【Intelligent Cooling System】The 12v 600w power supply with aluminum alloy shell and designed with multiple holes for better heat dissipation, Built-in intelligent Cooling Fan to prevent overheating and burning of circuit boards, when the working temperature is more than 122℉(45℃), the power supply will automatically run to dissipate
• 【Multiple Protection】BOSYTRO switching power supply features a overload protection, over-current protection, over-temperature protection, short circuit protection which can protect your device from damage. Safe and stable working, suitable for newer and experienced electrician
• 【Wide Application】This 12v power supply widely used in industrial equipment, RV, radio/car stereos, led strip, cctv, computer project, 3d printer, motor pump(for Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor), security camera, lcd monitor, lab computer and more 12 volt device
Color: silver
