Description
Brand: Aobao
Model: AB3p14577lq

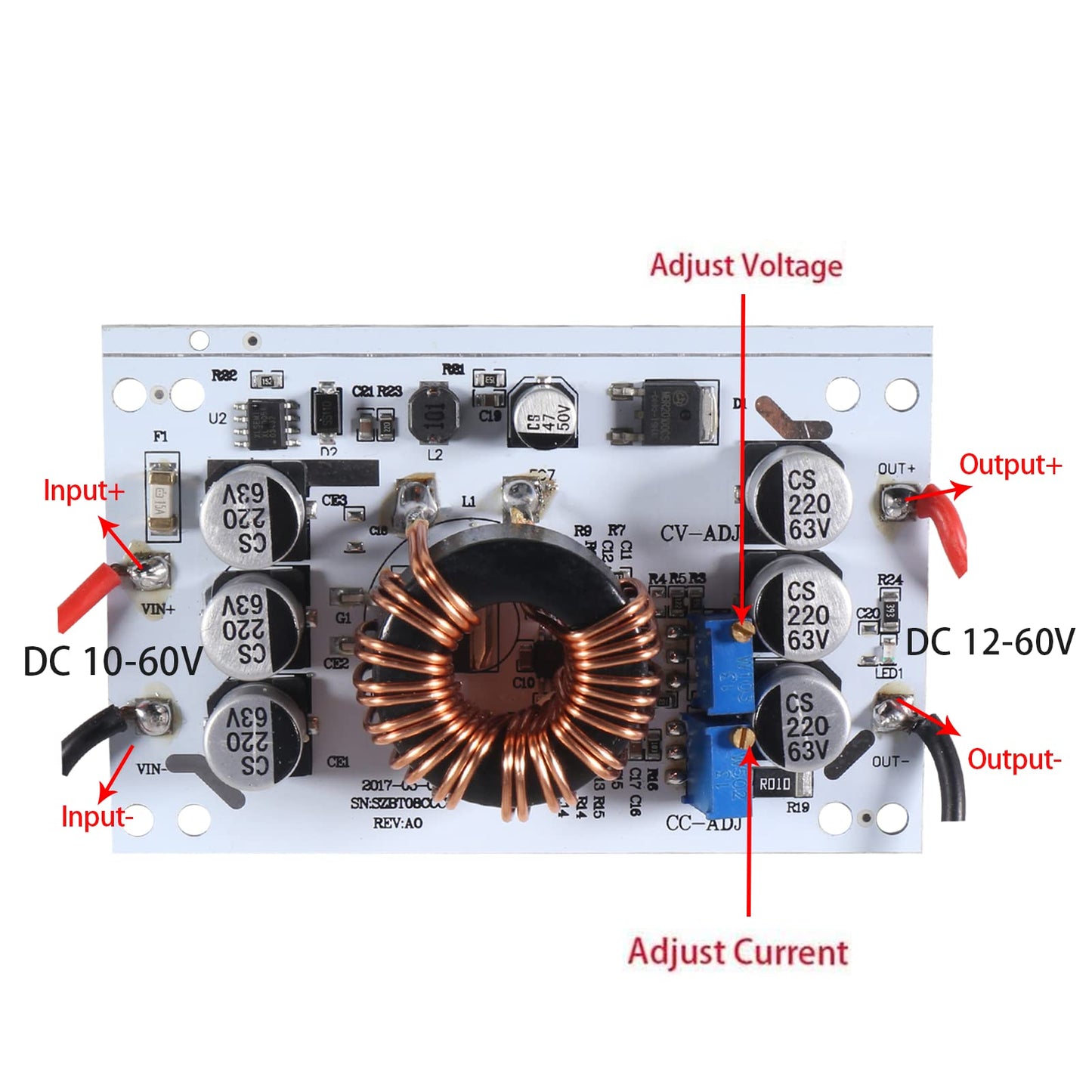

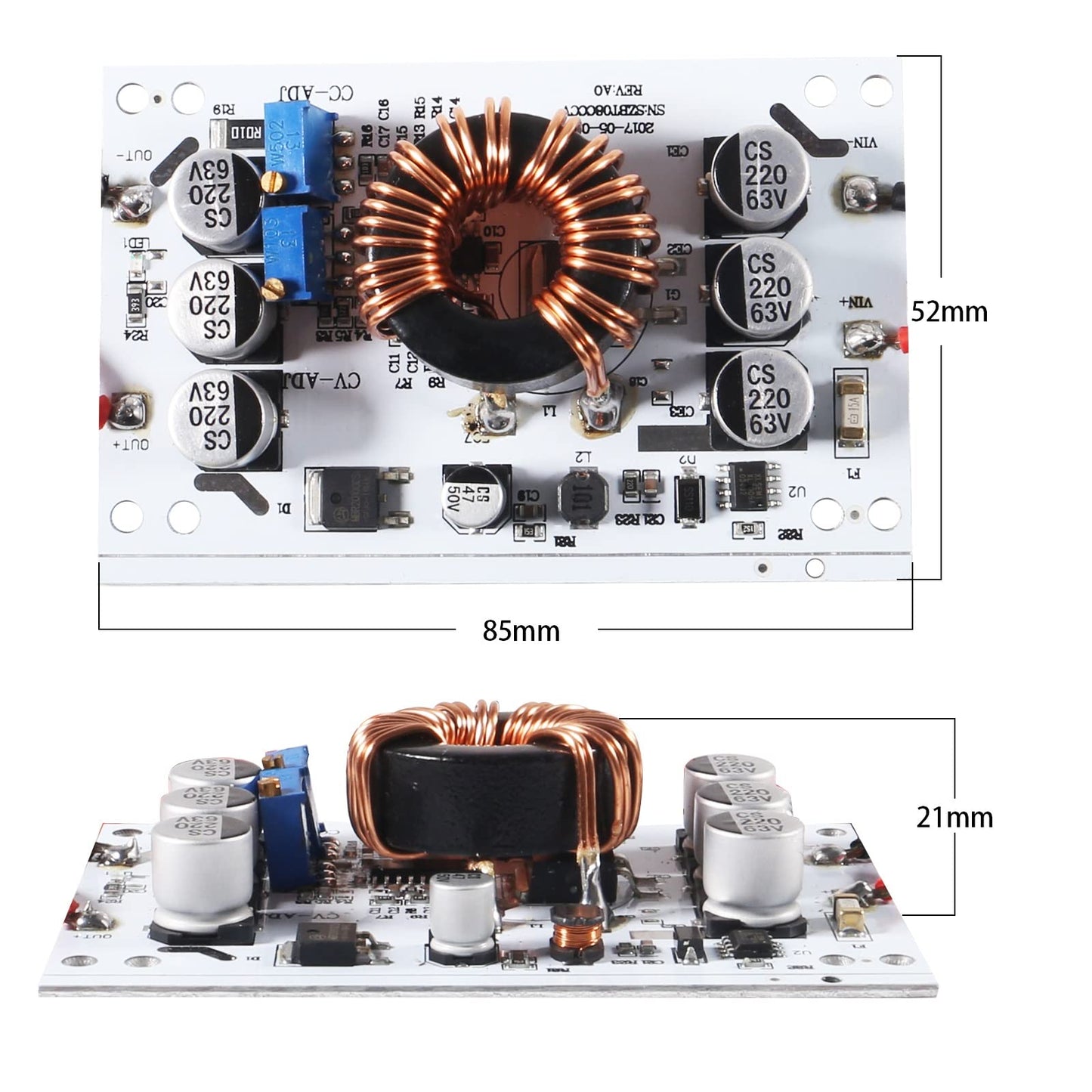

600W constant current boost converter dc-dc 10V-60V to 12-60V 10A adjustable step-up power supply module booster constant voltage constant current power converter module Parameters: Module Type: Non-isolated booster converter module Input Voltage: DC 10V-60V Input Current: 10A (MAX) Static Working Current: 10mA (The higher output voltage, the higher static current) Output Voltage: 12-60V Continuing Adjust Output Current: 10A MAX, Please enhance heat sink if exceed 6A (The larger voltage difference between input and output, the smaller output current) Constant Current Range: 0.2-10A Output Power: 600W (max), suggest to leave some slack for long time work Working Temperature: -40 to +85 degree Celsius (Please enhance heat sink for over-temperature) Operating Frequency: 150KHz Conversion Efficiency: 92%-96% (Efficiency is related to input, output voltage, current and voltage difference) Input Reverse Connection Protection: No (Note that forward and reverse are not reversed) Mounting Type: 4*3mm screw holes Connection Mode: wiring output Module Size: 85x52x21mm Output voltage/current regulation method: 1. Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage based on your battery or LED. Clockwise voltage is very small counterclockwise adjustable the output current regulation: 2. Turn the CC-ADJ potentiometer clockwise for about 20 turns. Set the output current to the minimum value and connect it to the LED CC-ADJ potentiometer to the required current. For charging the battery place the battery after the charge is complete then receive the output and adjust the CC-ADJ to the current you need. (For the full charge of the battery it must be used for charging because the more charge remaining in the battery the smaller the charging current.) Package Include: 3pcs 600W Constant Current Boost Converter
• Module Type: Non-isolated booster converter module
• Input Voltage: DC 10V-60V
• Output Voltage: 12-60V continuing adjust
• Input Current: 10A (MAX)
• Static Working Current: 10mA (The higher output voltage, the higher static current)

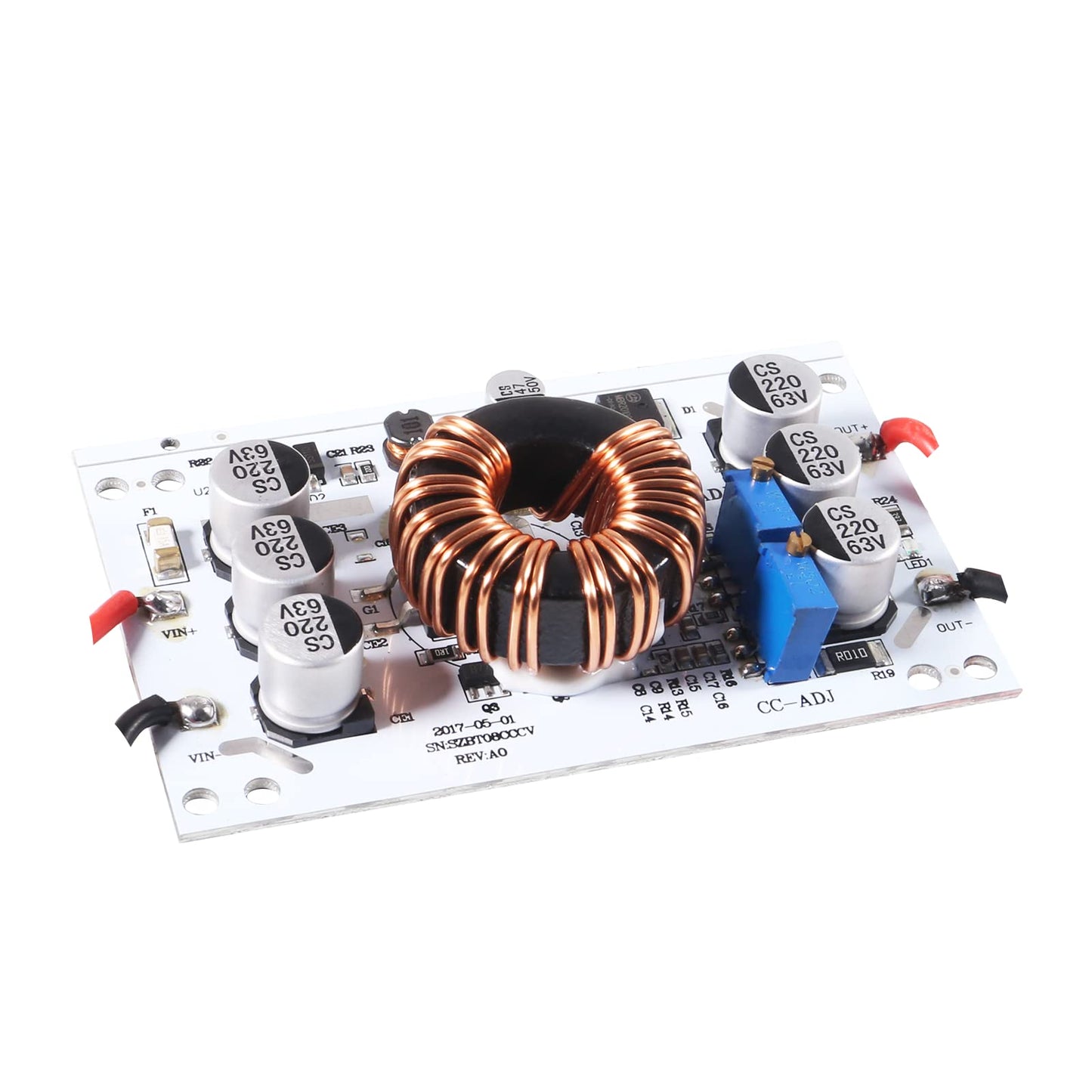

• The booster power module adopts high thermal conductivity aluminum PCB, Working Temperature: -40 to +85 degree Celsius. Can be attached to flat metal for ehancing heat dissipation.
• Suitable for DIY voltage stabilizing power supply, vehicle power supply, high power mobile power supply and so on
• Output wattage: 600.0 watts
Color: White
Model: AB3p14577lq
600W constant current boost converter dc-dc 10V-60V to 12-60V 10A adjustable step-up power supply module booster constant voltage constant current power converter module Parameters: Module Type: Non-isolated booster converter module Input Voltage: DC 10V-60V Input Current: 10A (MAX) Static Working Current: 10mA (The higher output voltage, the higher static current) Output Voltage: 12-60V Continuing Adjust Output Current: 10A MAX, Please enhance heat sink if exceed 6A (The larger voltage difference between input and output, the smaller output current) Constant Current Range: 0.2-10A Output Power: 600W (max), suggest to leave some slack for long time work Working Temperature: -40 to +85 degree Celsius (Please enhance heat sink for over-temperature) Operating Frequency: 150KHz Conversion Efficiency: 92%-96% (Efficiency is related to input, output voltage, current and voltage difference) Input Reverse Connection Protection: No (Note that forward and reverse are not reversed) Mounting Type: 4*3mm screw holes Connection Mode: wiring output Module Size: 85x52x21mm Output voltage/current regulation method: 1. Adjust the CV-ADJ potentiometer and set the output voltage to your desired voltage based on your battery or LED. Clockwise voltage is very small counterclockwise adjustable the output current regulation: 2. Turn the CC-ADJ potentiometer clockwise for about 20 turns. Set the output current to the minimum value and connect it to the LED CC-ADJ potentiometer to the required current. For charging the battery place the battery after the charge is complete then receive the output and adjust the CC-ADJ to the current you need. (For the full charge of the battery it must be used for charging because the more charge remaining in the battery the smaller the charging current.) Package Include: 3pcs 600W Constant Current Boost Converter
• Module Type: Non-isolated booster converter module
• Input Voltage: DC 10V-60V
• Output Voltage: 12-60V continuing adjust
• Input Current: 10A (MAX)
• Static Working Current: 10mA (The higher output voltage, the higher static current)
• The booster power module adopts high thermal conductivity aluminum PCB, Working Temperature: -40 to +85 degree Celsius. Can be attached to flat metal for ehancing heat dissipation.
• Suitable for DIY voltage stabilizing power supply, vehicle power supply, high power mobile power supply and so on
• Output wattage: 600.0 watts
Color: White
