Description
Brand: ALMOCN
Model: DA09092

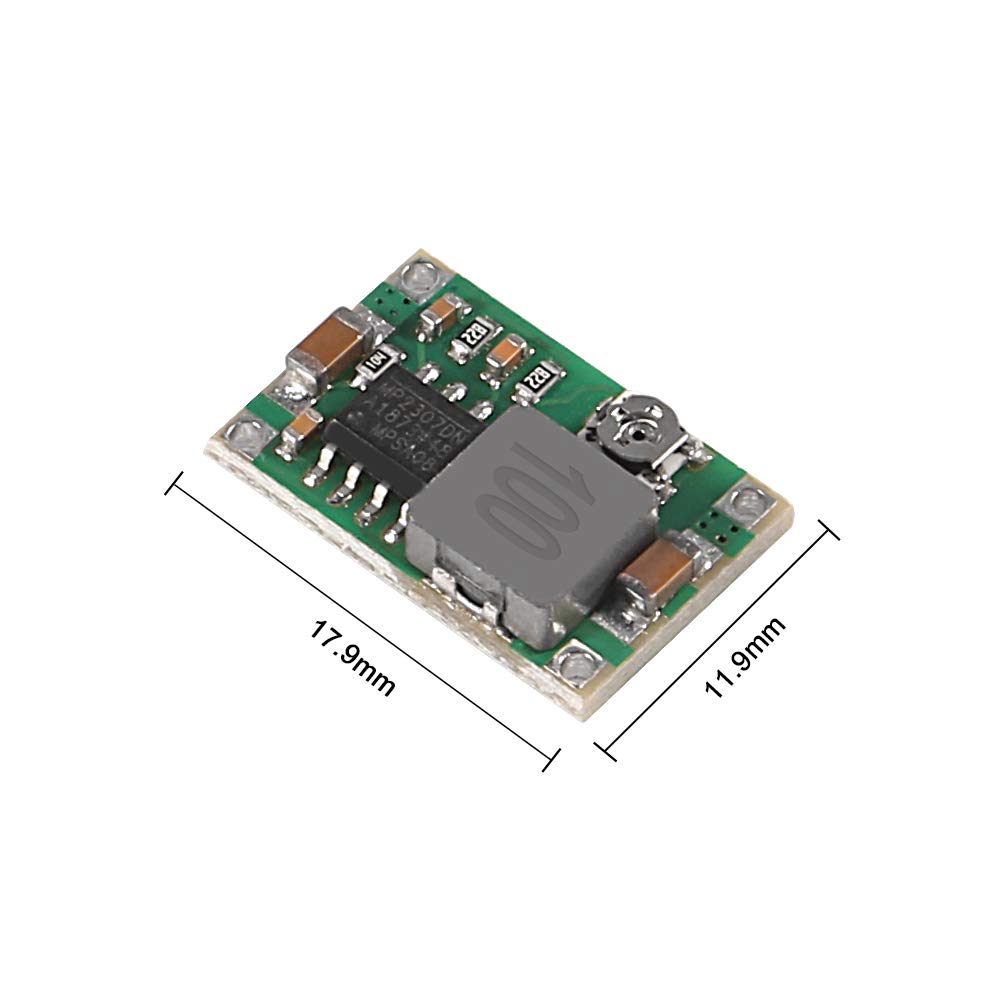

Specification: Module Properties: non-isolated buck Rectification Methods: synchronous rectification Input Voltage: 4.75V-23V Output Voltage: 1.0V-17V Output Current: Peak 3A, long 1.8A Conversion Efficiency: 96% (the highest) Switching Frequency: 340KHz Output Ripple: 340mV (empty cut pm) Load Regulation: +/- 0.5% Voltage Regulation: +/- 2.5% Working Temperature: -40°C - + 85°C Size: 17 * 11 * 3.8 mm/0.67 * 0.43 * 0.15in (L * W * H) Package Include: 10 * Mini 360 DC-DC Step-down Adjustable Module
• The input voltage: 4.75 V - 23 V;The output voltage: 1.0 V - 17 V
• The output current: 3 A (Max)
• Conversion efficiency: 96% (maximum), smaller size, higher efficiency.
• When the temperature is 85 degree, automatic power-off protection, integrated reverse polarity protection.
• Applied to DIY portable sourse, vehicle power supply, communication equipment power supply, aero model.etc
Model: DA09092
Specification: Module Properties: non-isolated buck Rectification Methods: synchronous rectification Input Voltage: 4.75V-23V Output Voltage: 1.0V-17V Output Current: Peak 3A, long 1.8A Conversion Efficiency: 96% (the highest) Switching Frequency: 340KHz Output Ripple: 340mV (empty cut pm) Load Regulation: +/- 0.5% Voltage Regulation: +/- 2.5% Working Temperature: -40°C - + 85°C Size: 17 * 11 * 3.8 mm/0.67 * 0.43 * 0.15in (L * W * H) Package Include: 10 * Mini 360 DC-DC Step-down Adjustable Module
• The input voltage: 4.75 V - 23 V;The output voltage: 1.0 V - 17 V
• The output current: 3 A (Max)
• Conversion efficiency: 96% (maximum), smaller size, higher efficiency.
• When the temperature is 85 degree, automatic power-off protection, integrated reverse polarity protection.
• Applied to DIY portable sourse, vehicle power supply, communication equipment power supply, aero model.etc
