Description
Brand: AITIAO
Model: HX-3S-03
• 3S 8A BMS Module Voltage: 10.8V~12.6V
• LOW STANDBY CURRENT: MOS transistor can control the battery.
• Multiple Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.
• Applications: 10.8V(3.6V*3S) lithium battery & packs
• 11.1V(3.7V*3S) lithium battery & packs
• 12.6V(4.2V*3S) lithium battery & packs.

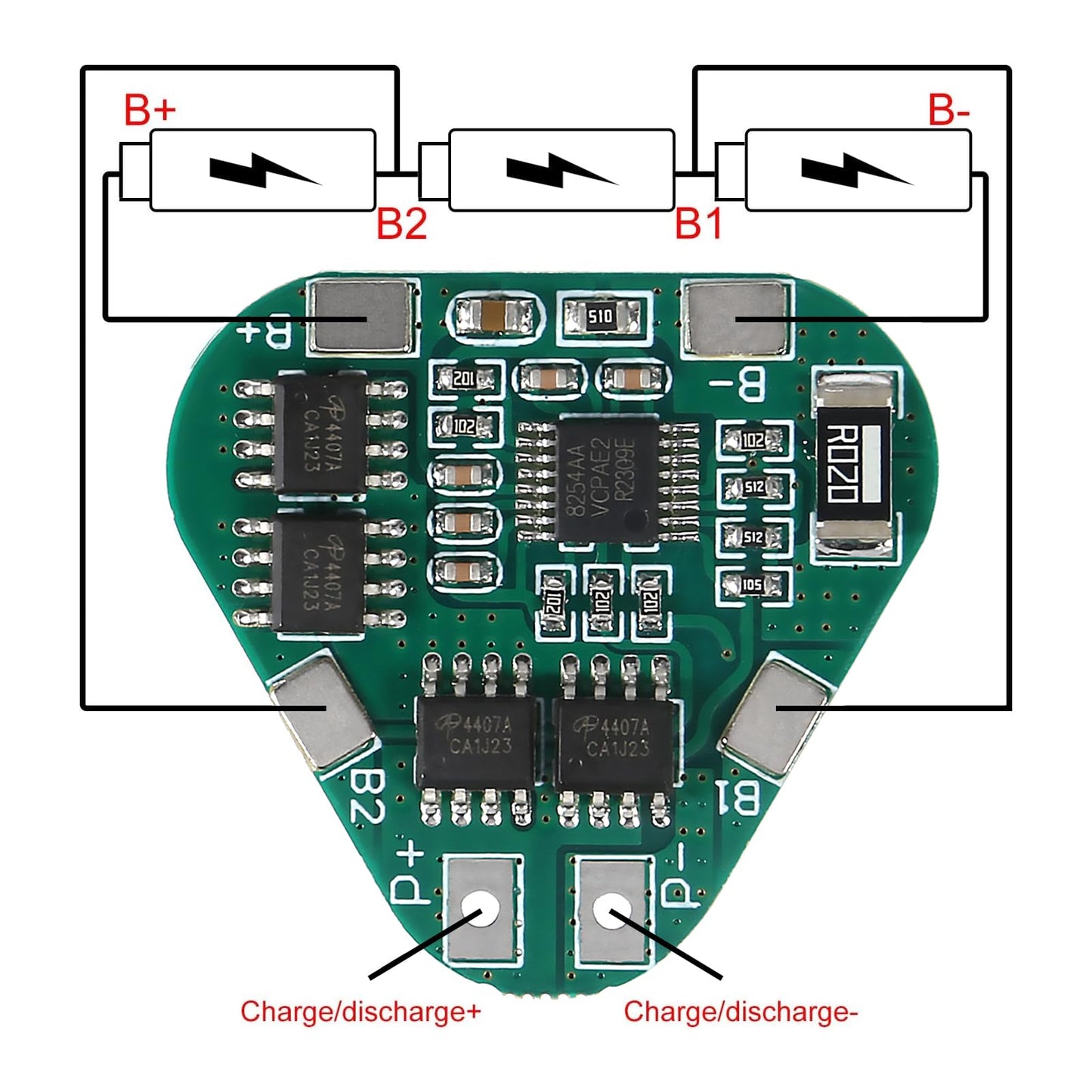

• Notice:Please strictly according to the diagram wiring to avoid possible damage to the chip.(Connect wires refer to the "wiring diagram"(NO.5 picture). After connection, it need to charge activation first, then will have the output.
• High Quality: Compact size and lightweight
• High-accuracy voltage detection circuit
• fine workmanship and durable
• stable performance.
Color: 3S 8A

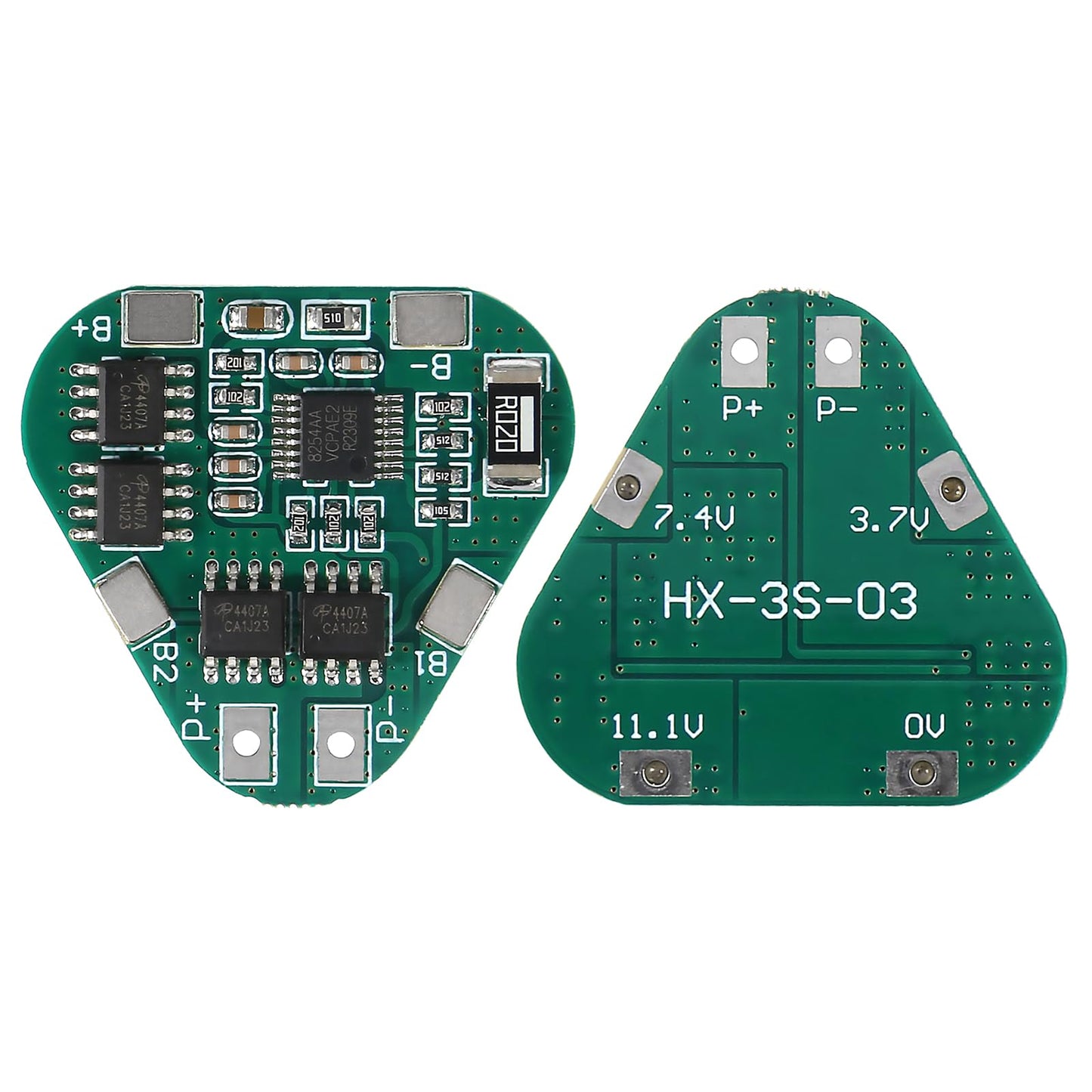

Model: HX-3S-03

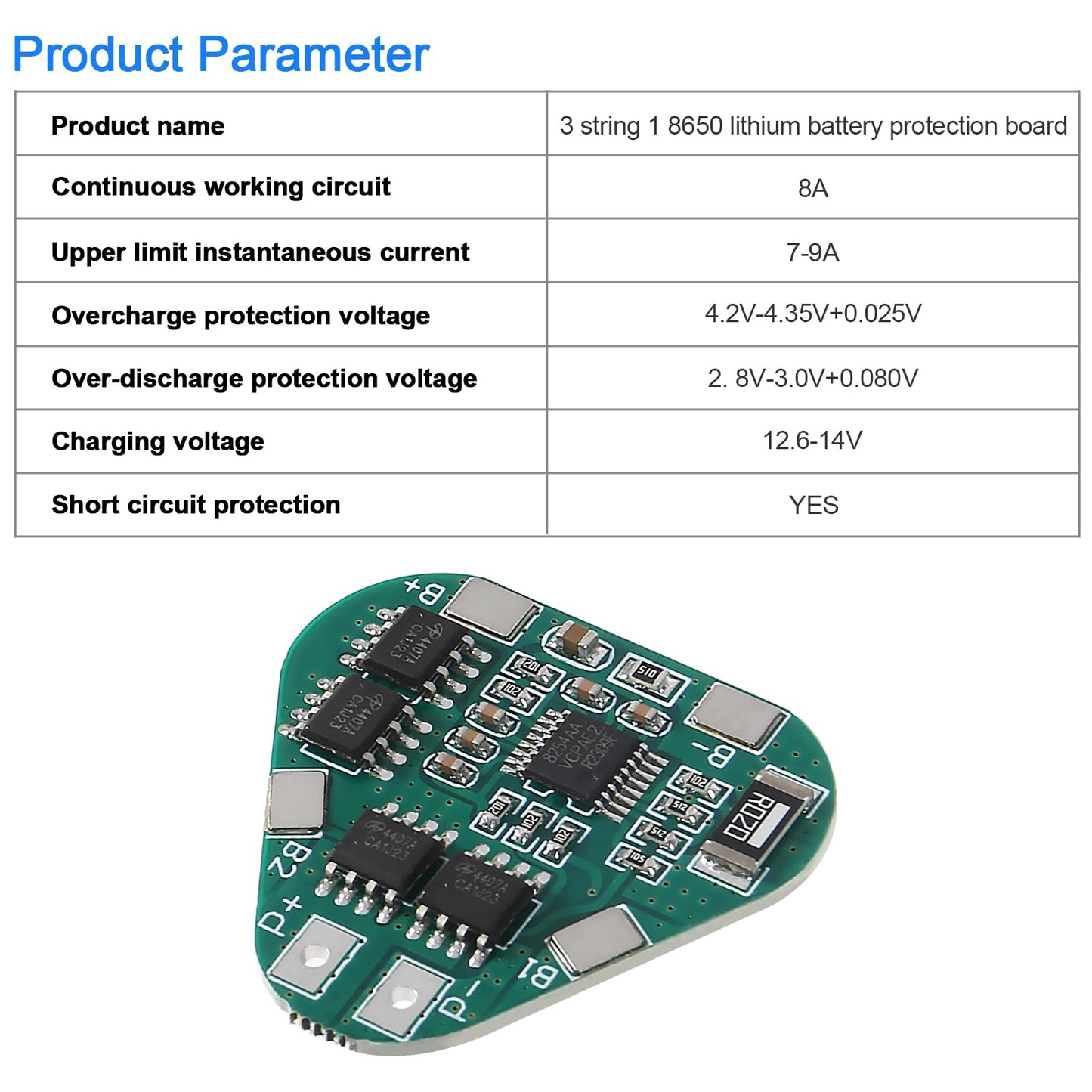

Parameters:
- Model: HX-3S-03
- For lithium battery operating voltage: 10.8V~12.6V
- Overcharge voltage range: 4.25-4.35v±0.05v
- Over-discharge voltage range: 2.3-3.0v±0.05v
- Upper limit working current: 6-8A
- Working temperature: -40---+50 °C
- Upper limit instantaneous current: 9-10A
- Storage conditions: -40-- +80 ° C
- Quiescent current: less than 30uA
- Internal resistance: less than 100mΩ

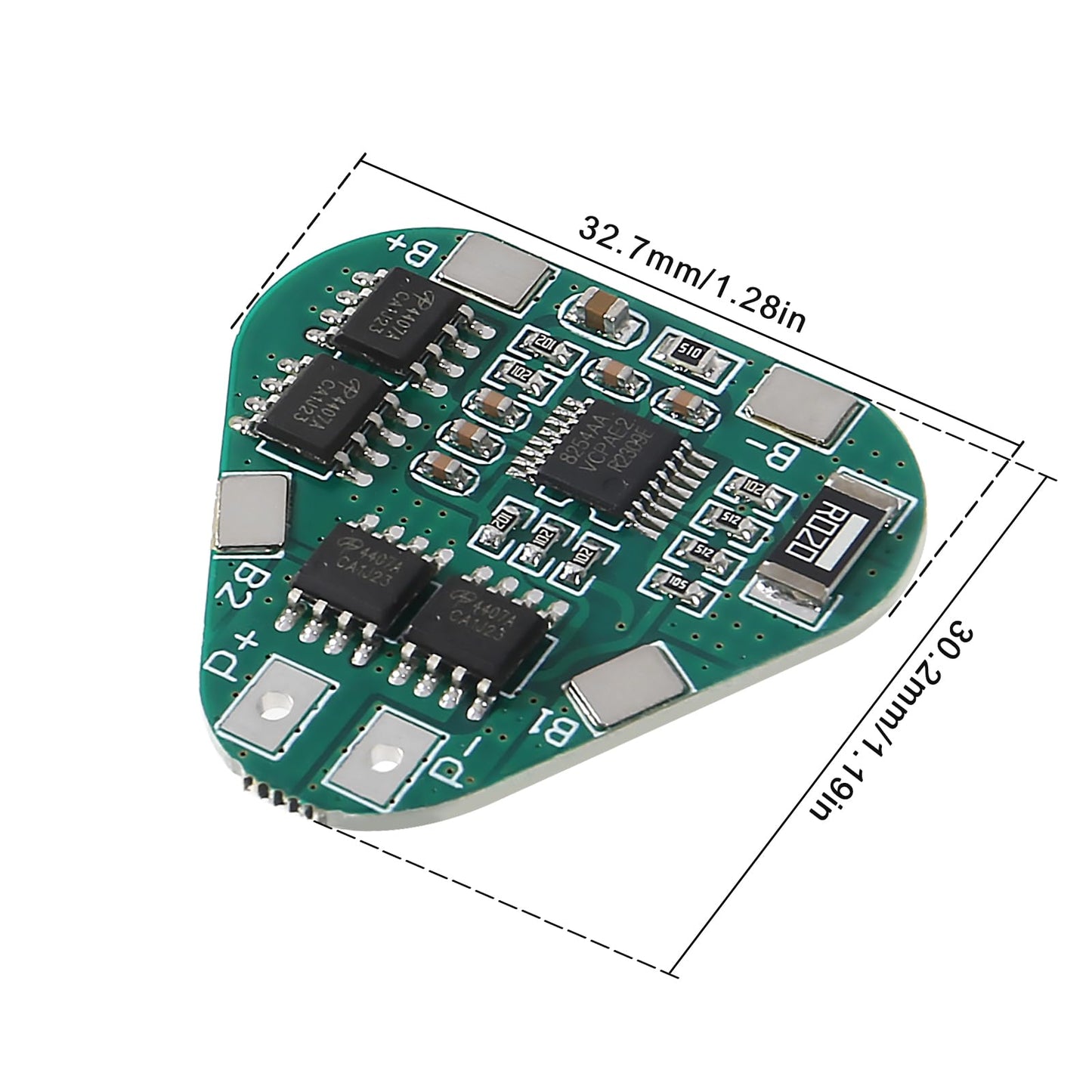

- Size: 30*30*2.8mm
Features:
- Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.
- Short circuit protection: protection, delay self-recovery.
Application:
- 10.8V(3.6V*3S) lithium battery & packs
- 11.1V(3.7V*3S) lithium battery & packs
- 12.6V(4.2V*3S) lithium battery & packs
- Prismatic Lithium polymer battery (Li-Po) could also work for 3S2P(6 cells), 3S3P(9 cells),3S4P(12 cells) etc.
Package Includes:

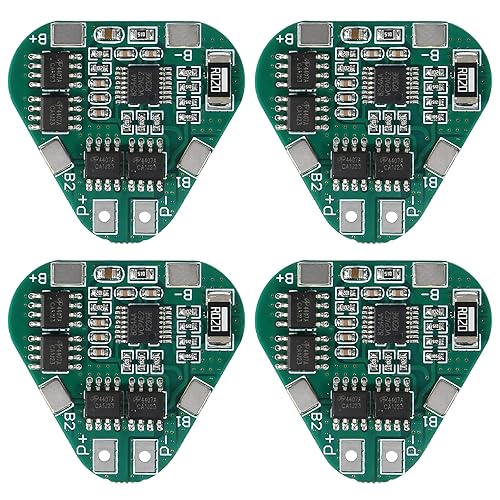

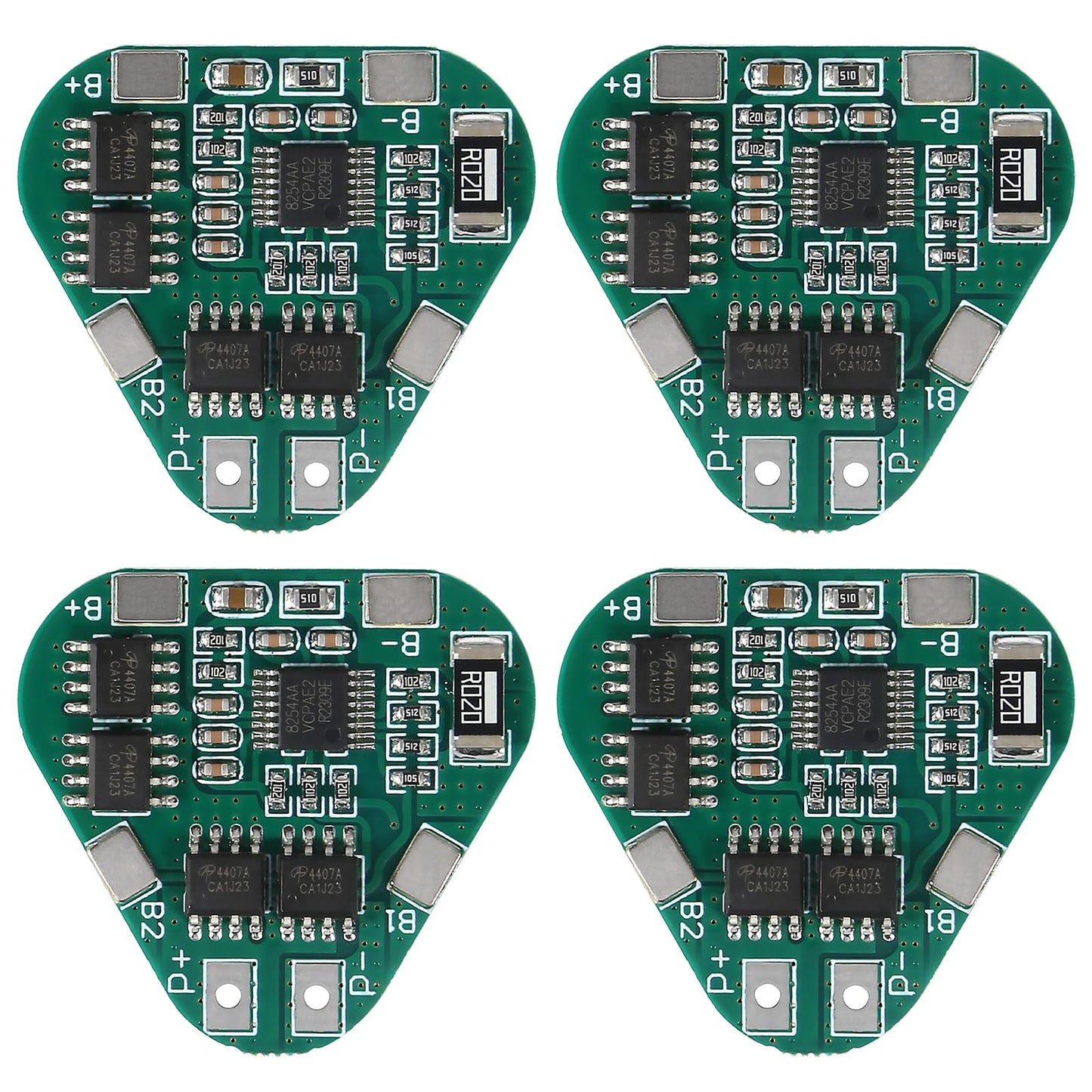

- 4pcs 3S 8A Lithium Battery Protection Board
• 3S 8A BMS Module Voltage: 10.8V~12.6V
• LOW STANDBY CURRENT: MOS transistor can control the battery.
• Multiple Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection.
• Applications: 10.8V(3.6V*3S) lithium battery & packs
• 11.1V(3.7V*3S) lithium battery & packs
• 12.6V(4.2V*3S) lithium battery & packs.
• Notice:Please strictly according to the diagram wiring to avoid possible damage to the chip.(Connect wires refer to the "wiring diagram"(NO.5 picture). After connection, it need to charge activation first, then will have the output.
• High Quality: Compact size and lightweight
• High-accuracy voltage detection circuit
• fine workmanship and durable
• stable performance.
Color: 3S 8A
