Description
Brand: AIR802
Model: PDCPOE1248DR

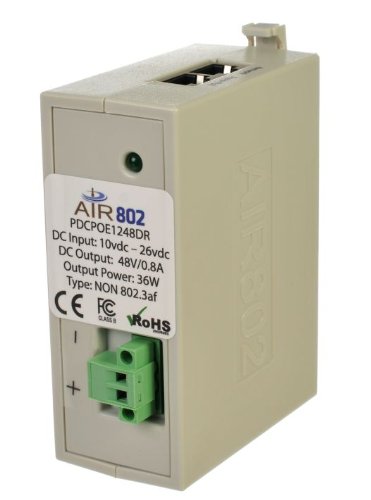

The model PDCPOE1248DR is a DC to DC converter with PoE Injector output. This product was designed for use in applications where 12 or 24 vdc (10 to 26 vdc) voltage input exists and the equipment being installed requires power-over-Ethernet (PoE) with 48 vdc.
• Converts 10-26vdc to 48vdc
• Power-over-Ethernet (PoE) 48vdc Output
• Input through DC Screw Terminal or as PoE
• High Power up to 36 Watts
• DIN Rail Mount
Model: PDCPOE1248DR
The model PDCPOE1248DR is a DC to DC converter with PoE Injector output. This product was designed for use in applications where 12 or 24 vdc (10 to 26 vdc) voltage input exists and the equipment being installed requires power-over-Ethernet (PoE) with 48 vdc.
There are two shielded Ethernet jacks on the top of the device. One jack is labeled, "Network" for network connecivity and will ordinarily connect to a switch, router, computer or other device. The other jack is labeled, "Equip + PoE" and is the output jack with 48vdc. Internally the data pins 1,2,3 and 6 are internally connected together between the two jacks.
Applications
Powering access points requiring 48vdc in autos, trucks. boats and RVs
Powering access points or other devices from 12 or 24 vdc solar systems
Oil & Gas Industry, Automotive, Marine, WISP and other sectors
Any scenario where 48vdc PoE is required from a 10 to 26 vdc supply
SPECIFICATIONS
Input DC Voltage Range: 10 to 26 vdc
Efficiency: 75 to 84% (typical)
Minimum Current: 3 amps @ 10 vdc
Input Options: PoE or Direct Screw Terminal
Output DC Voltage: 48 vdc
Maximum Current: 0.8 amps (0.6 amps typical)
Maximum Power: 36 watts
Voltage Tolerance: +/- 5%
Short Circuit Protection: Yes
Over Current Protection: Yes
Over Voltage Protection: Yes
Operating Temperature: -30ºC to 60ºC (-22º to 140ºF)
Storage Temperature: -30ºC to 70ºC (-22ºF to 158ºF)
Humidity: 5 to 90% RH
Safety Standards: UL 60950-1 (In process)
Mounting: DIN rail
Enclosure: Material PC UL 94 V-0
Dimensions - Height: 10cm (3.9 inches)
Dimensions - Depth: 9cm (3.5 inches) *from DIN rail mount to edge of DC connector
Dimensions - Width: 4cm (1.5 inches)
Weight: 224 grams (7.9 ounces)
• Converts 10-26vdc to 48vdc
• Power-over-Ethernet (PoE) 48vdc Output
• Input through DC Screw Terminal or as PoE
• High Power up to 36 Watts
• DIN Rail Mount
