Description
Brand: Azuocn
Model: ZY-114
• Ultra-wide Input Voltage: The XL6009 module has an ultra-wide input voltage range of 3V32V, with an optimal operating voltage range of 532V
• ultra-wide output voltage range of 5V~35V
• maximum current of 4A, and a no-load current of 18mA.
• High Efficiency: The XL6009 module integrates a 4A MOSFET switch, achieving a maximum efficiency of 94%.
• Heat Dissipation: When using the XL6009 module, if the ambient temperature exceeds 40℃ or when outputting high power, please enhance heat dissipation.
• Continuously Adjustable Voltage: The XL6009 module allows continuous voltage adjustment, Rotate clockwise to increase the voltage , and rotate counterclockwise to decrease the voltage .
• High Switching Frequency: The XL6009 module has a switching frequency of 400KHz. With small-capacity filter capacitors, you can achieve good results, with lower ripple and a more compact size.
Model: ZY-114

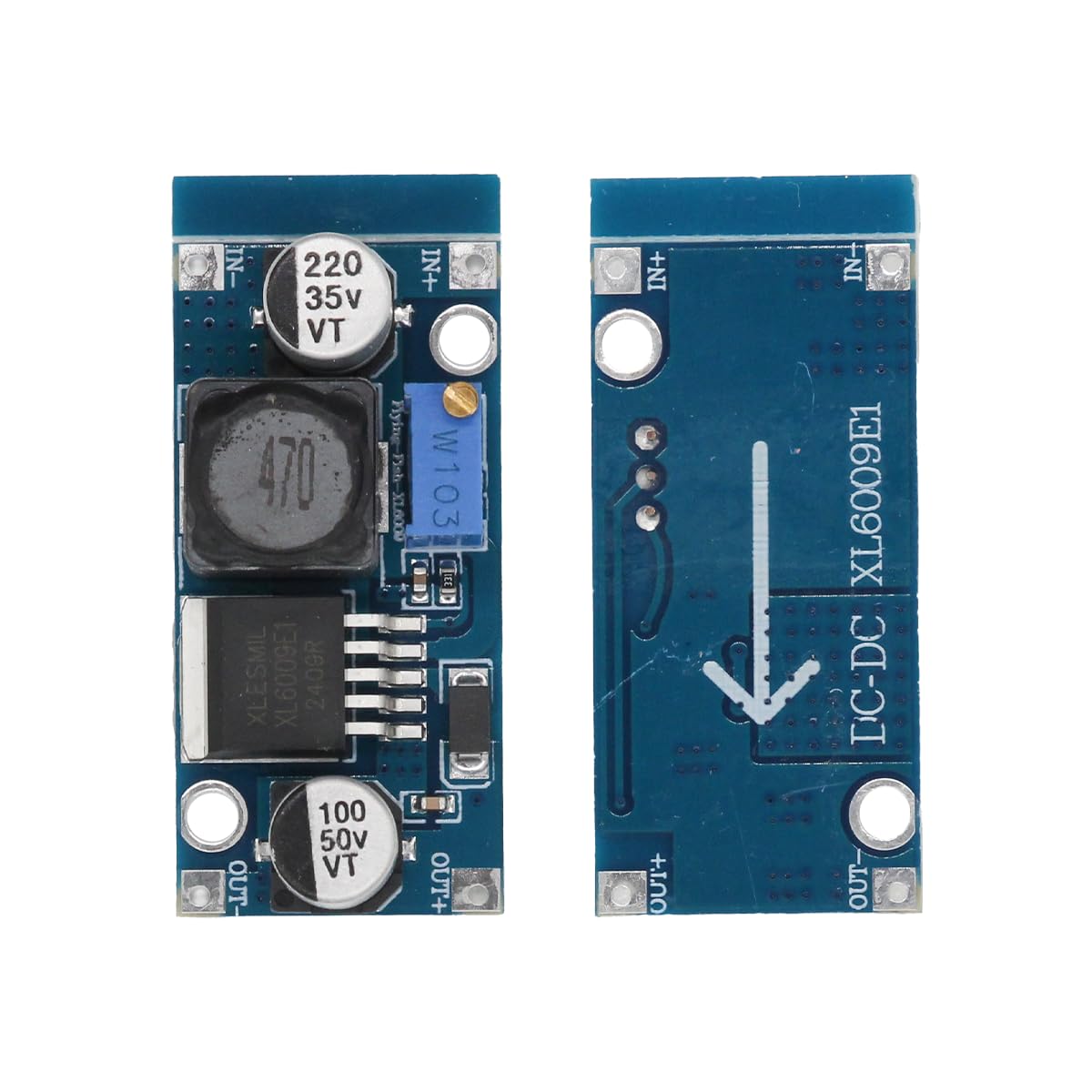

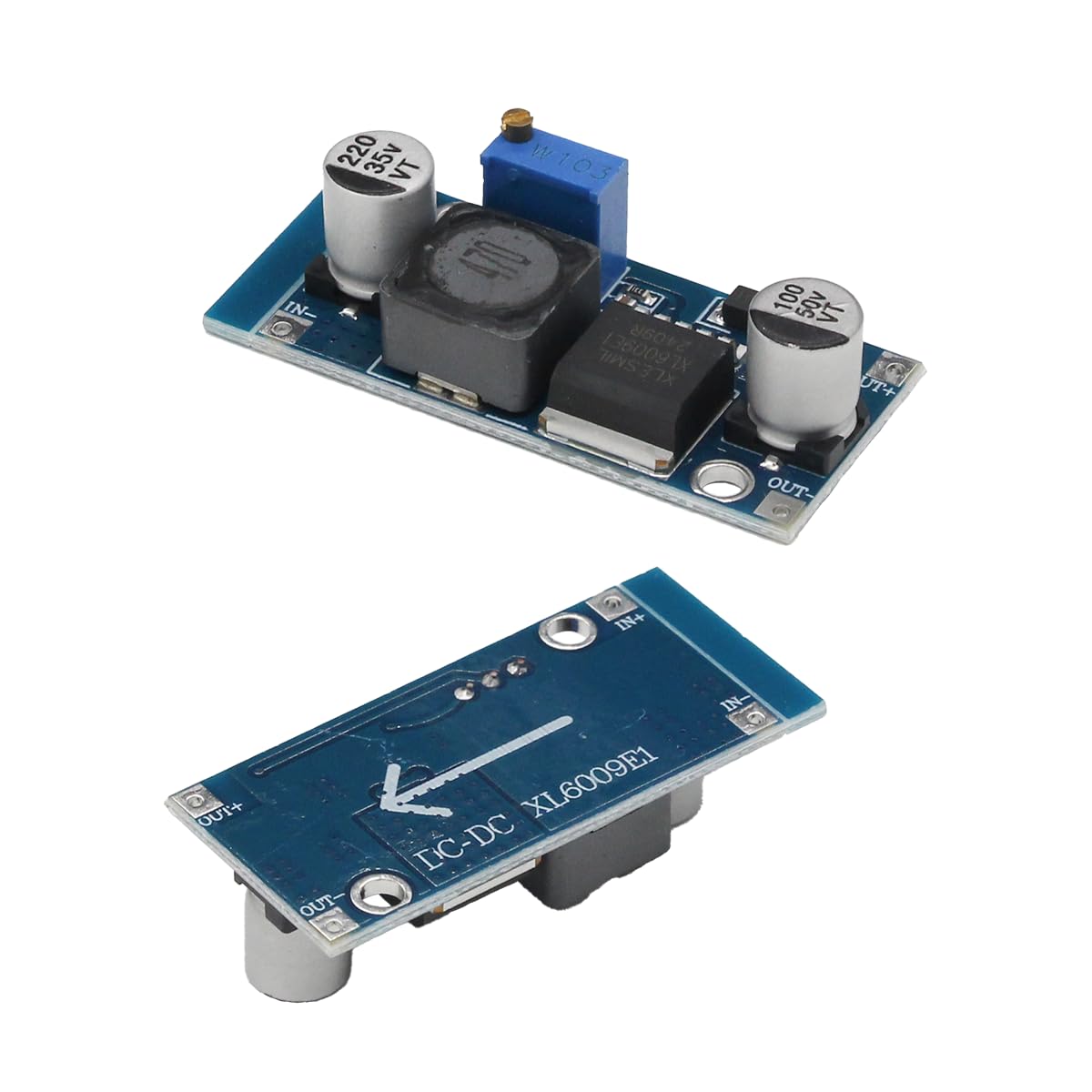

Name: XL6009 Boost Module

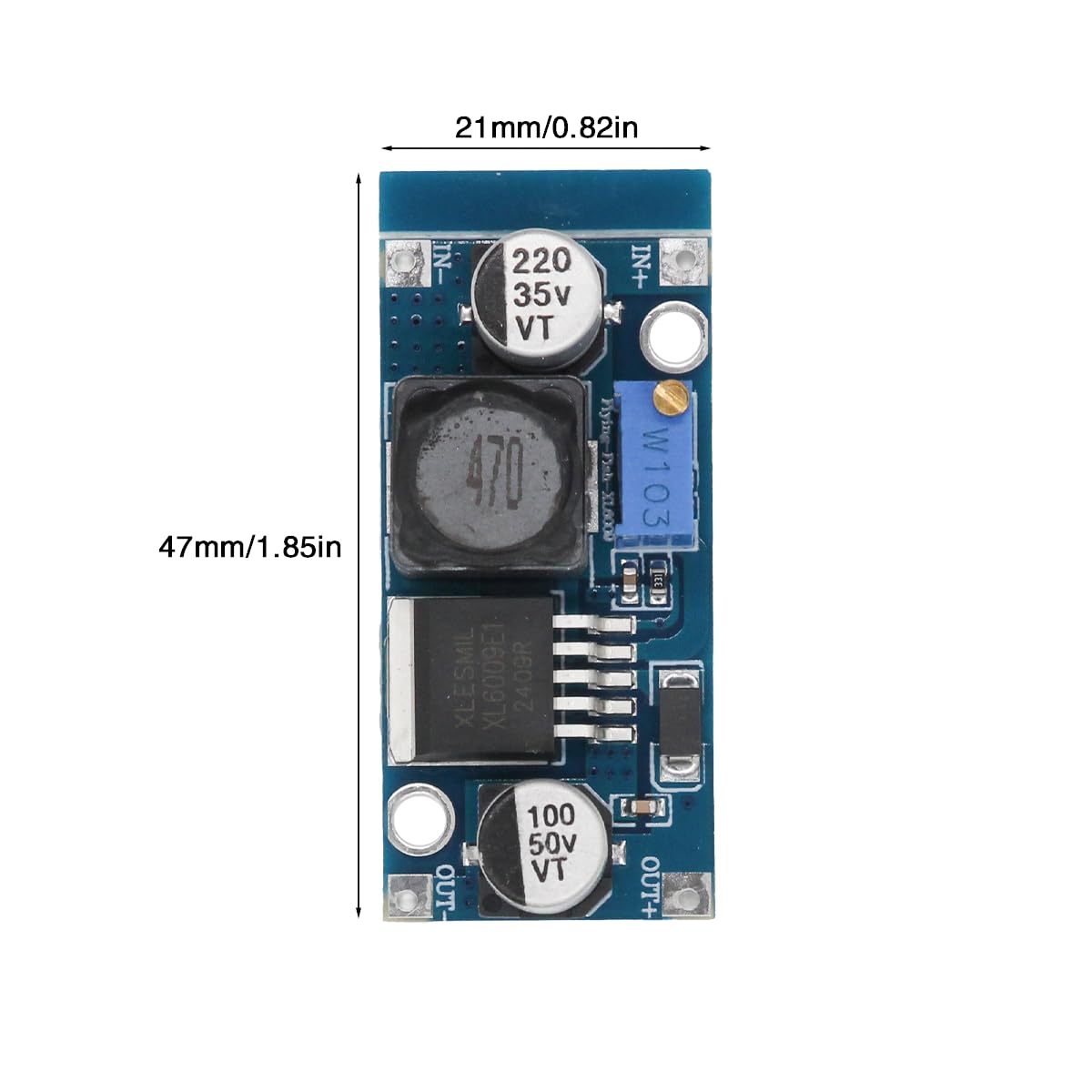

Module Dimensions: 43mm (L) × 21mm (W) × 14mm (H) / 1.70in × 0.83in × 0.55in
Module Weight: 11g / 0.39oz
Module Type: Non-isolated Boost (BOOST)
Rectification Method: Non-synchronous rectification
Input Range: 3V-32V
Output Range: 5V-35V
Input Current: 4A (max), No-load current 18mA (5V input, 8V output, no-load current less than 18mA. The higher the voltage, the higher the no-load current.)
Conversion Efficiency: <94% (The greater the voltage difference, the lower the efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (The higher the voltage, the greater the current, and the larger the ripple)
Load Regulation: ±0.5%
Voltage Regulation: ±0.5%
Operating Temperature: -40℃~+85℃

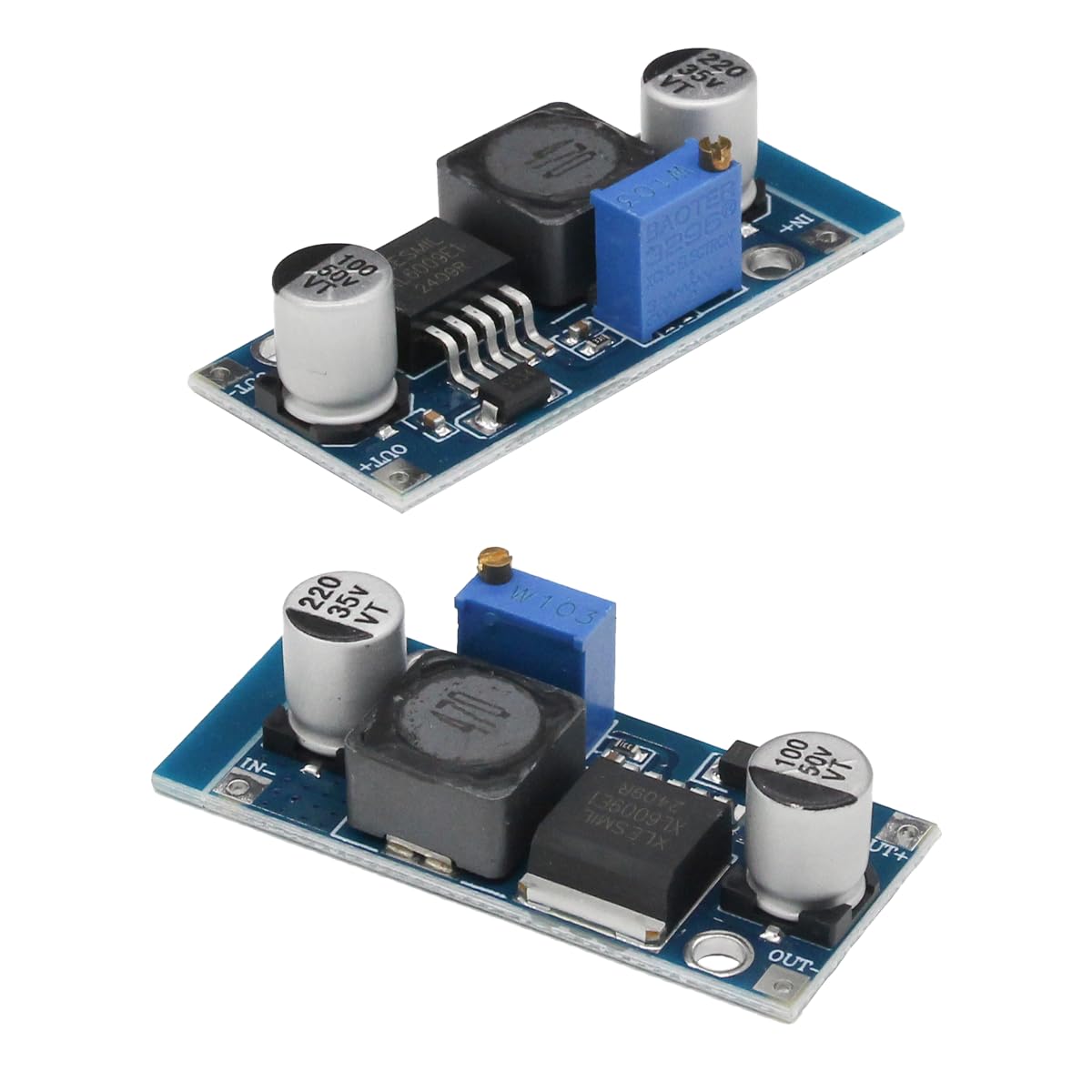

IN+: Input Positive
IN-: Input Negative
OUT+: Output Positive
OUT-: Output Negative
Test Comparison Sample Reference:
Input 3V, Output 12V 0.4A, 4.8W
Input 5V, Output 12V 0.8A, 9.6W
Input 7.4V, Output 12V 1A, 18W
Input 12V, Output 15V 2A, 30W
Input 12V, Output 16V 2A, 32W
Input 12V, Output 18V 1.6A, 28.8W
Input 12V, Output 19V 1.5A, 28.5W
Input 12V, Output 24V 1A, 24W
• Ultra-wide Input Voltage: The XL6009 module has an ultra-wide input voltage range of 3V32V, with an optimal operating voltage range of 532V
• ultra-wide output voltage range of 5V~35V
• maximum current of 4A, and a no-load current of 18mA.
• High Efficiency: The XL6009 module integrates a 4A MOSFET switch, achieving a maximum efficiency of 94%.
• Heat Dissipation: When using the XL6009 module, if the ambient temperature exceeds 40℃ or when outputting high power, please enhance heat dissipation.
• Continuously Adjustable Voltage: The XL6009 module allows continuous voltage adjustment, Rotate clockwise to increase the voltage , and rotate counterclockwise to decrease the voltage .
• High Switching Frequency: The XL6009 module has a switching frequency of 400KHz. With small-capacity filter capacitors, you can achieve good results, with lower ripple and a more compact size.
