Overview:

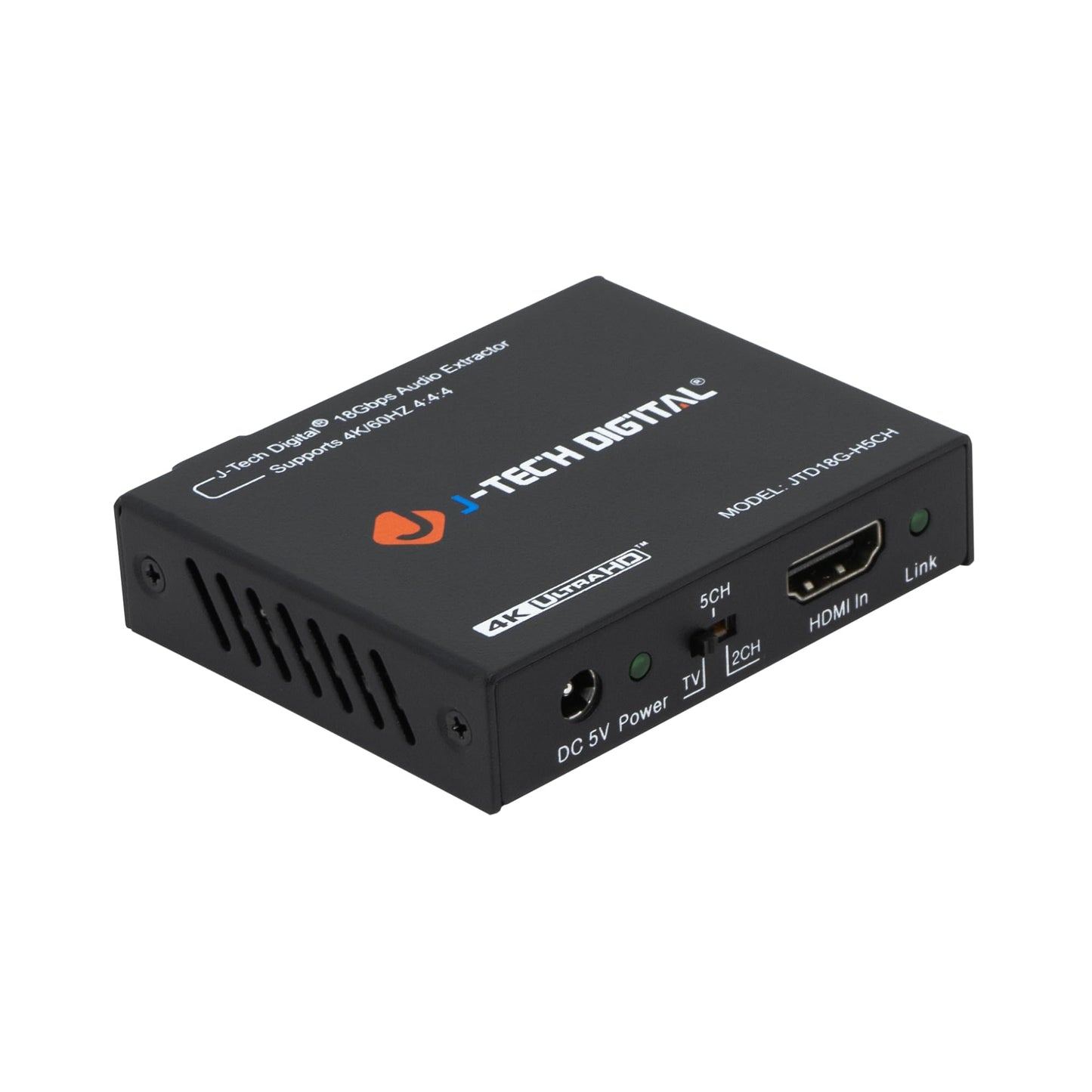

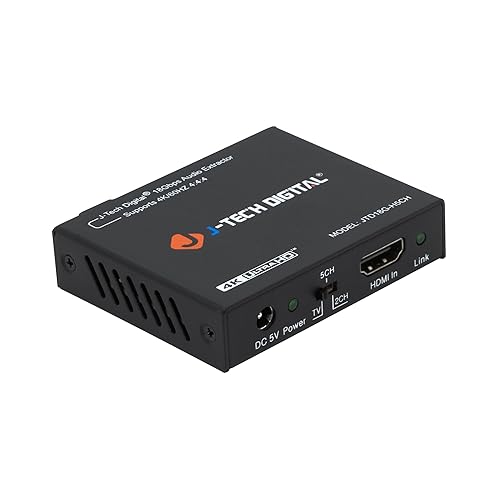

TheJTD18G-H5CH Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 1080p, 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 KHz. HDCP 2.2 and CEC bypass are supported. This unit has the capability to extract digital HDMI audio signals from an HDMI compliant source, such as the new console systems, Xbox Series X/S, and the Playstation 5.**Note** This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.

Features

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 1080P 144Hz, 1080P 120Hz, 4K2K@50/60Hz (YUV444)

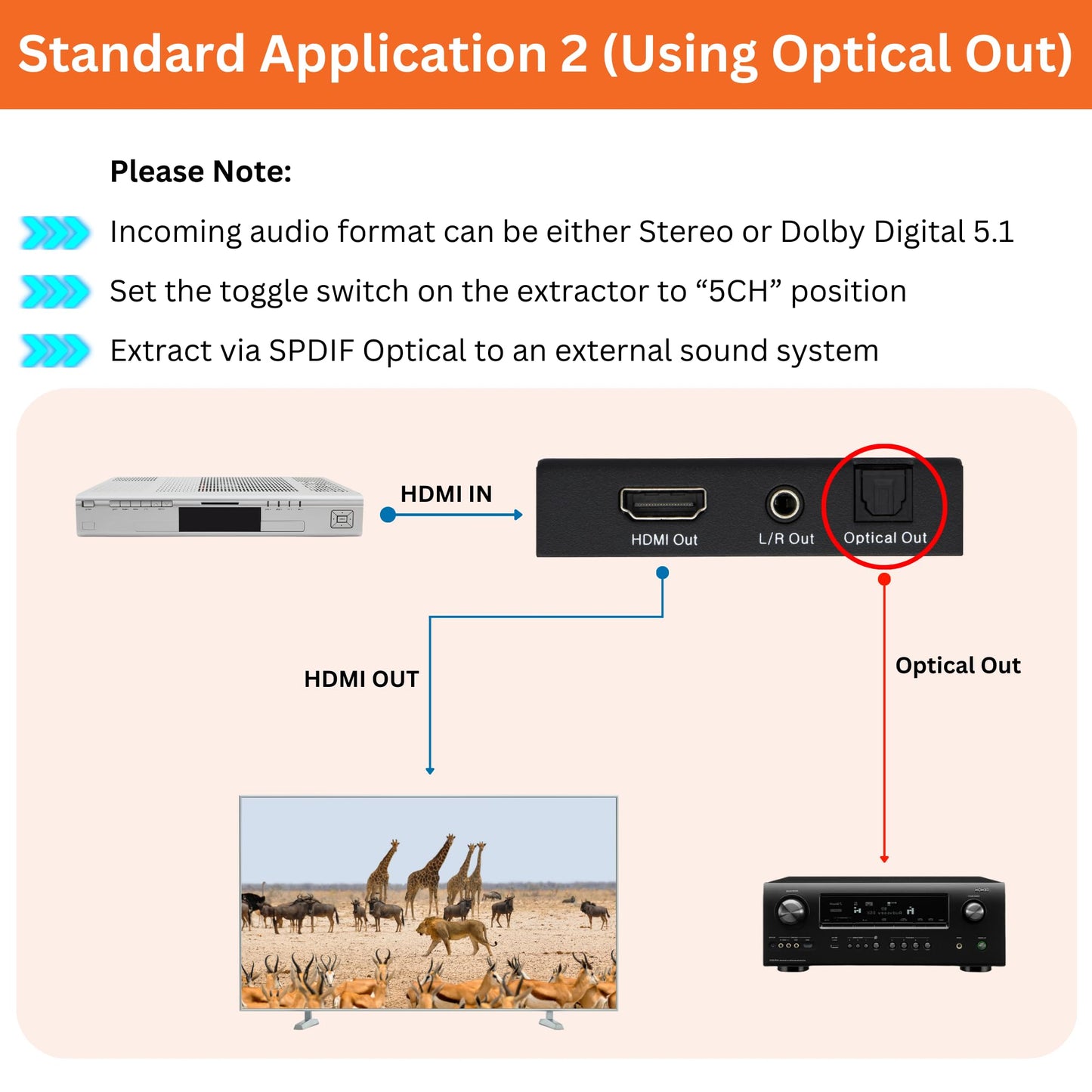

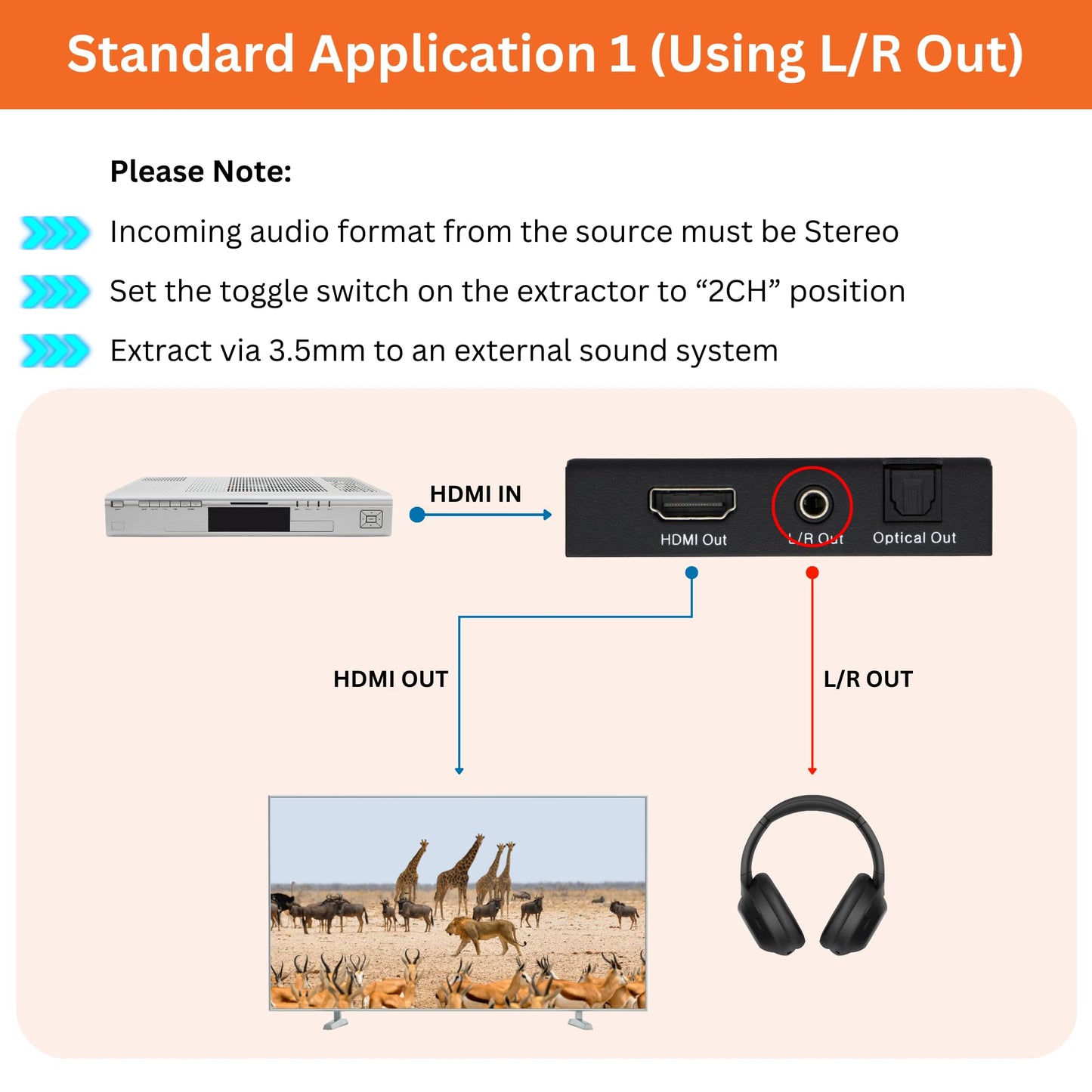

• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH• Supports HDMI High Bit Rate(HBR) audio pass through
• Audio sample rates up to 192kHz
• 10bits HDR (High Dynamic Range) pass through
• Supports CEC bypass

Package Includes:

• 1 x Audio Extractor
• 1 x Power adapters
• 1 x User Manual

Trouble Shooting?
1.Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode on

• Please Note: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio. This unit is not compatible with Apple TV 3rd Generation (Model: A2843) and certain Comcast Xfinity boxes, and not compatible with HDMI 1.2 sources or monitors made before 2005.
• ?????????? ???????????????????? - Extract the digital HDMI audio signal from the HDMI input and convert it to 2 channel analog stereo output or multi-channel Audio (SPDIF) output. **NOTE: This unit will only pass Dolby Digital/DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio. This unit is not compatible with Apple TV 3rd Generation (Model: A2843) and certain Comcast Xfinity boxes
• ???? ?????????? ???? ???????? ???????? ??.??
• ?????????? ??????????
• ?????????? ????????? - Supports the highest video resolution to 1080P@144Hz, 1080P@120Hz, 4K 50/60HZ (YUV444). Supports HDMI 2.0b (18Gbps) HDCP 2.2 and DVI compliant; Supports HDR10(We suggest using HDMI 2.0 certified cable to get HDR10 compatibility)
• ?????????? ???????? ???????????????? - 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports DTS Digital / Dolby Digital pass through (Our device does not decode the digital audio, you will still need an end display that is compatible with those formats) ; DOES NOT SUPPORT ARC FUNCTION.
• ???????????????? ???????????????? - Supports HDMI HIGH Bit Rate(HBR) audio pass through; Audio sample rates up to 192kHZ;10 Bit HDR pass through.; Supports CEC bypass
