Brand: JUZITAO
Model: JU-1039-2P

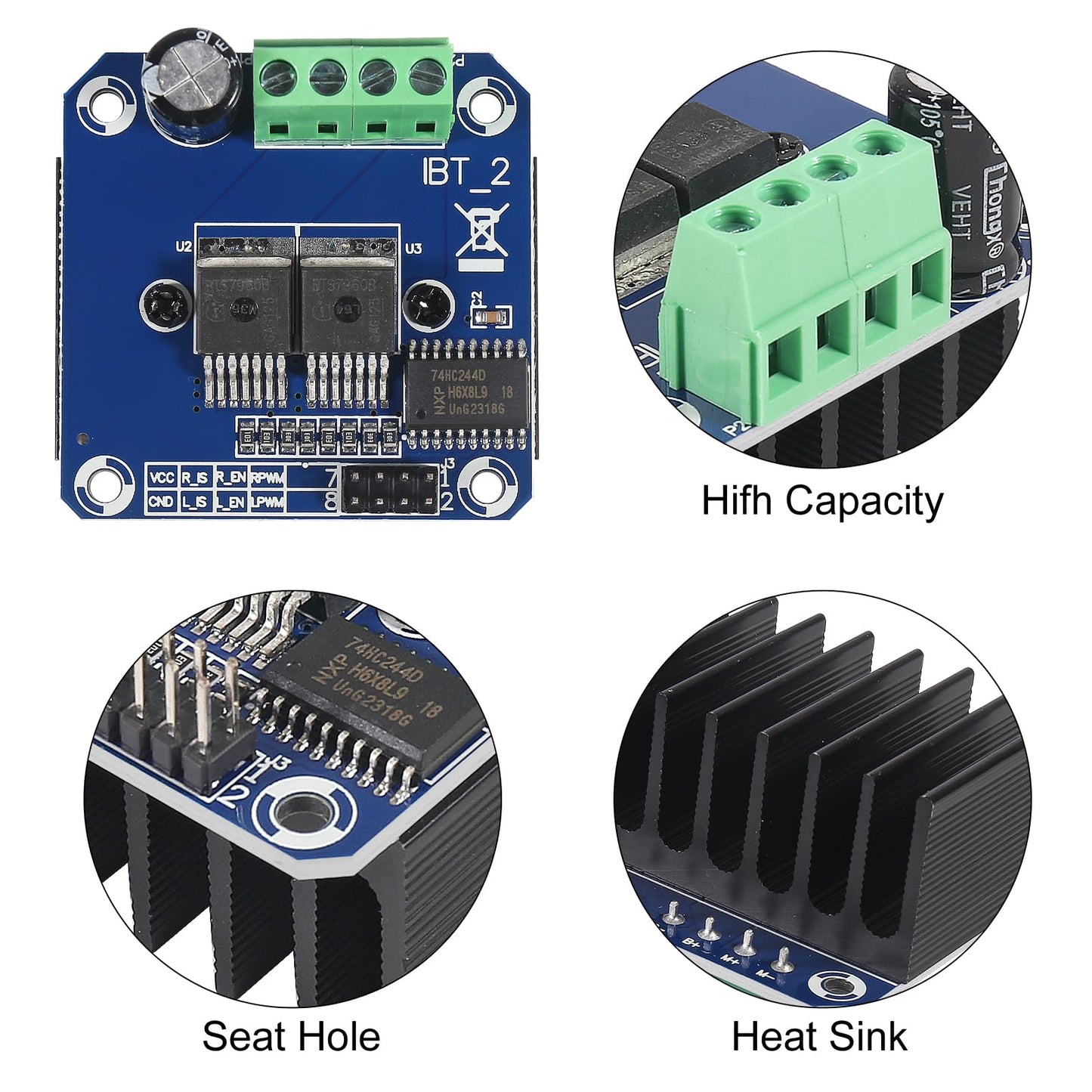

• High-current 43A Features: Double BTS7960 large current (43 A) H bridge driver
• 5V isolate with MCU, and effectively protect MCU
• This driver uses chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection.
• 5V isolate with MCU, and effectively protect MCU
• 5V power indicator on board.
• Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
• isolation chip 5 V power supply (can share with MCU 5 V).
• Voltage indication of motor driver output end
• can solder heat sink.

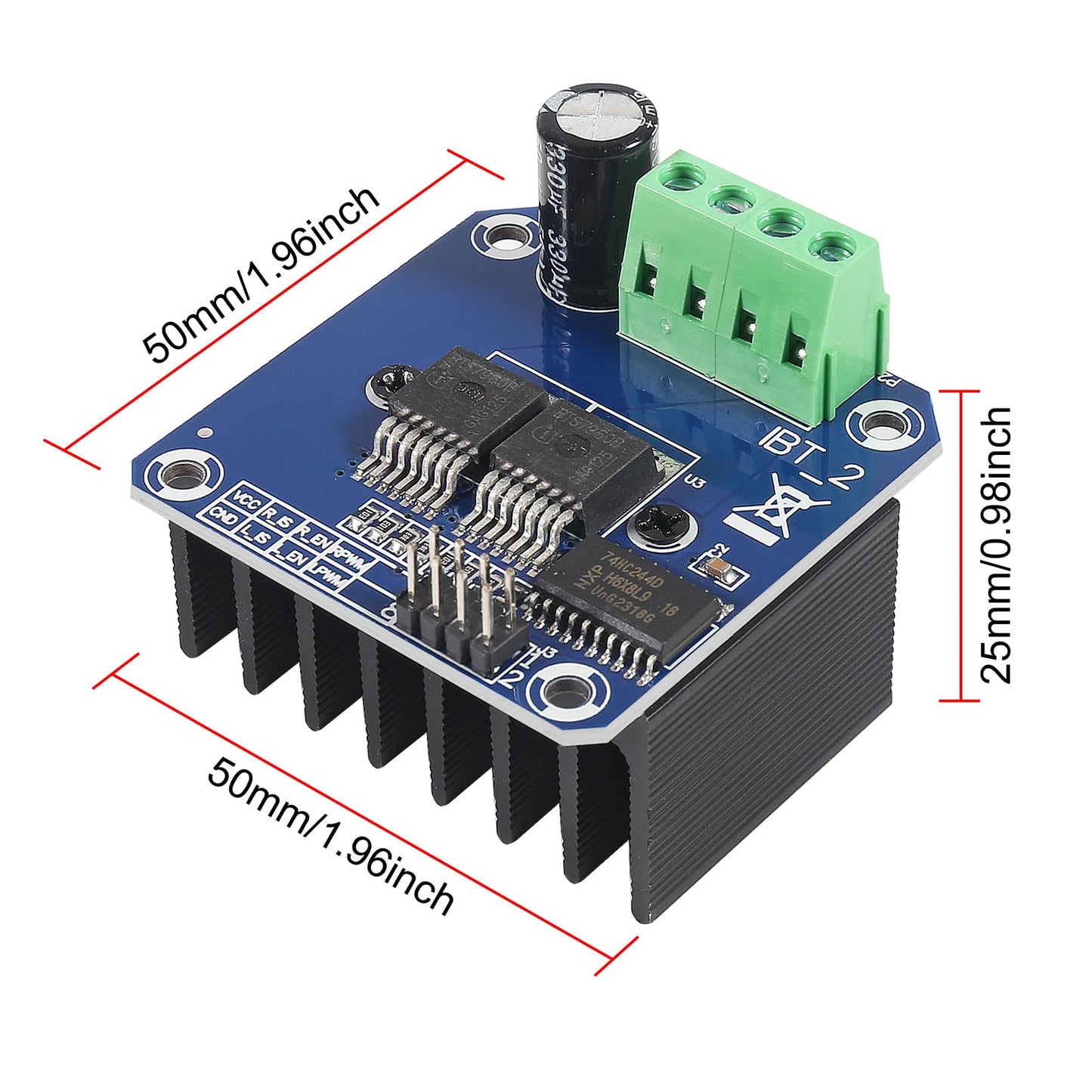

Model: JU-1039-2P

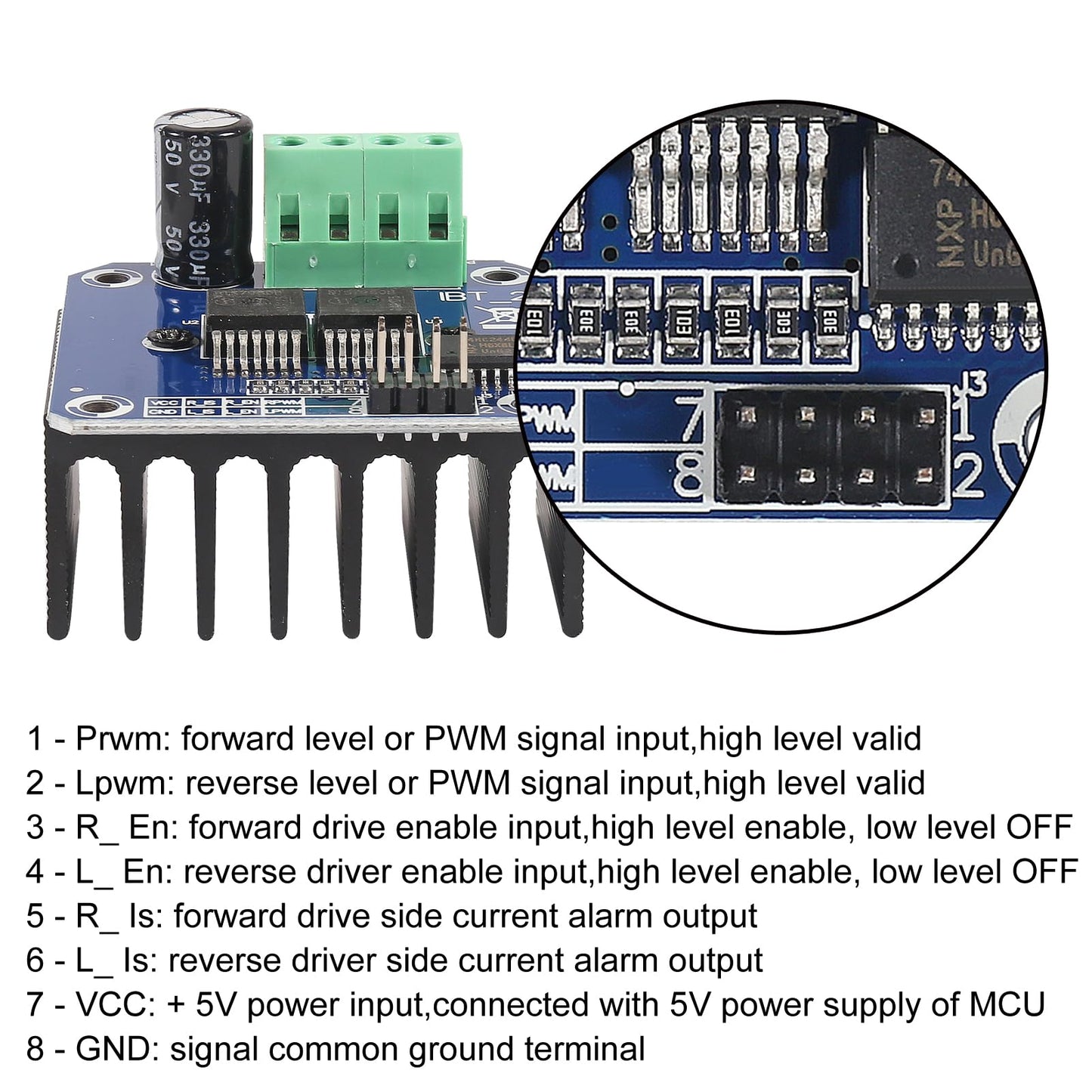

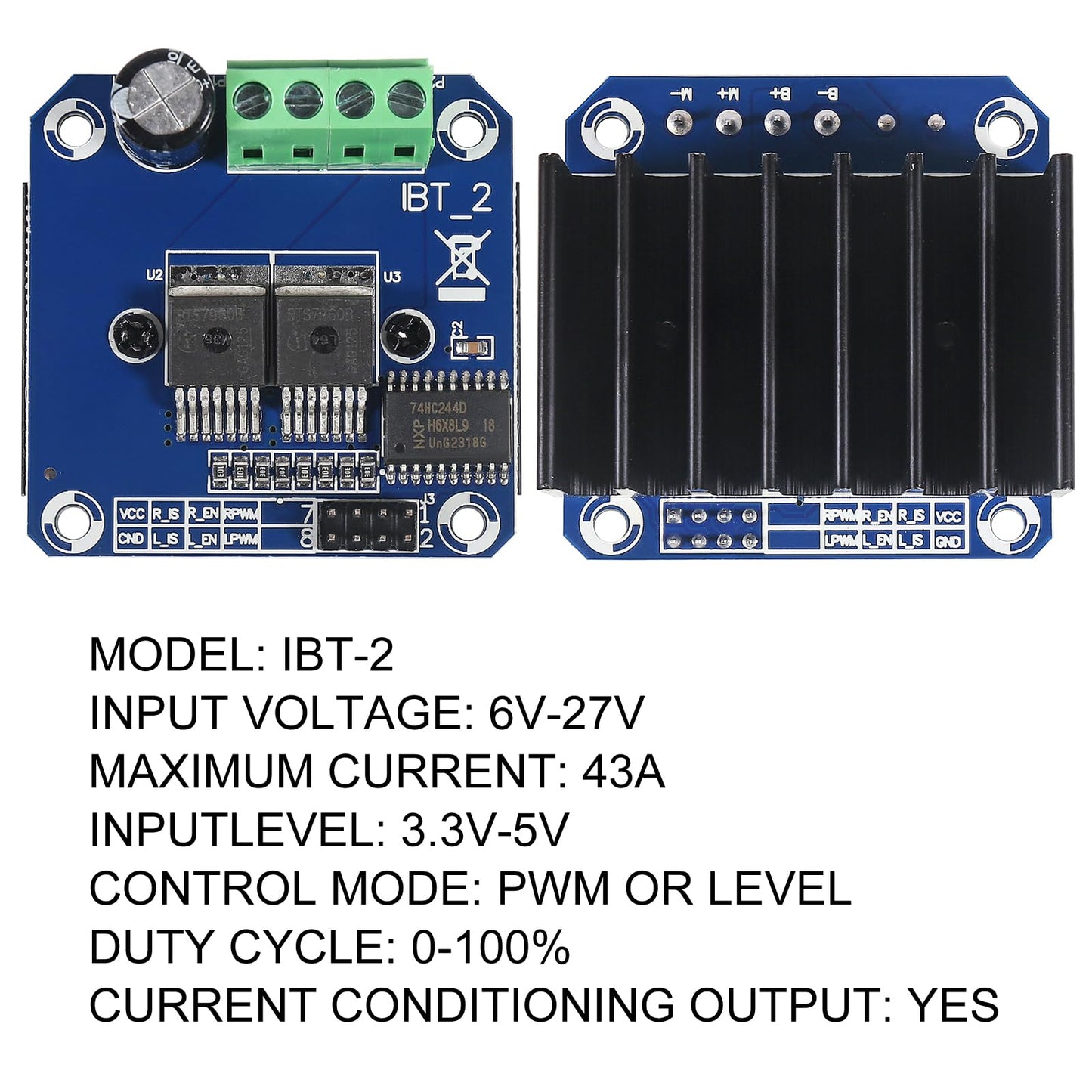

Definition:
- RPWM: Right Turn PWM
- LPWM: Left Turn PWM
- R_EN: Right Turn Enable (High Active)
- L_EN: Left Turn Enable (High Active)
- R_IS: Right Turn Current Warning (May Leave Floating)
- L_IS: Left Turn Current Warning (May Leave Floating)
- VCC: (5V)
- GND
Connections:
Method 1:
- VCC: 5V from Microcontroller(MCU)
- GND: GND from Microcontroller(MCU)
- L_PWM: PWM or 5V from Microcontroller(MCU) for CCW(CW) Turns
- R_PWM: PWM or 5V from Microcontroller(MCU) for CW(CCW) Turns
- R_EN and L_EN: 5V from Microcontroller(MCU)
Method 2:
- VCC: 5V from Microcontroller(MCU)
- GND: GND from Microcontroller(MCU)
- L_PWM: 5V from Microcontroller(MCU) for CCW(CW) Turns
- R_PWM: 5V from Microcontroller(MCU) for CW(CCW) Turns
- R_EN and L_EN: PWM from Microcontroller(MCU)
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
- isolation chip 5V power supply (can share with MCU 5V);
- Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
- two heat flow passing through an error signal output;
- isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
- the supply voltage 5.5V to 27V;
Package include:

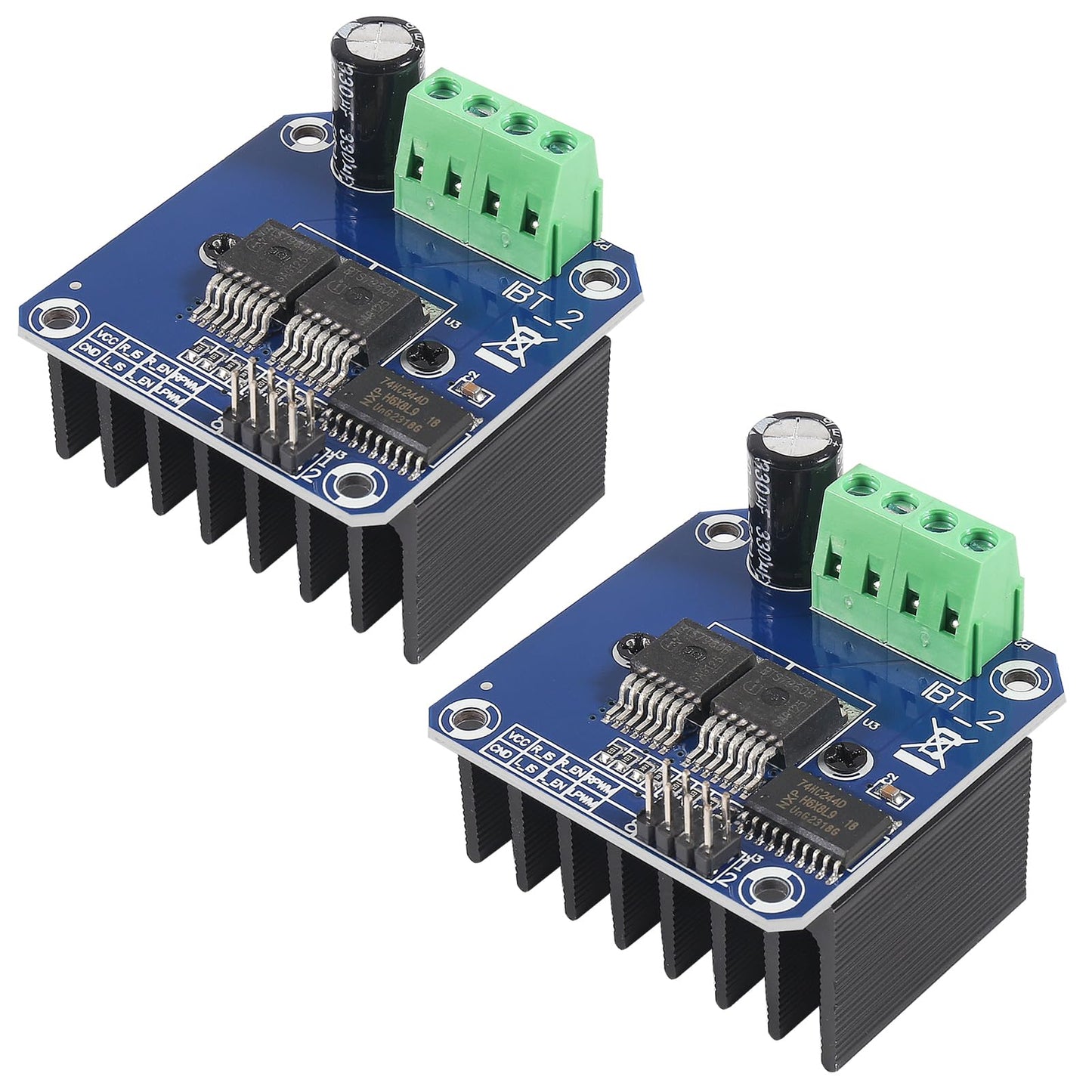

- 2x BTS7960 motor driver module
• High-current 43A Features: Double BTS7960 large current (43 A) H bridge driver
• 5V isolate with MCU, and effectively protect MCU
• This driver uses chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection.
• 5V isolate with MCU, and effectively protect MCU
• 5V power indicator on board.
• Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2)
• isolation chip 5 V power supply (can share with MCU 5 V).
• Voltage indication of motor driver output end
• can solder heat sink.
