Power Regulator Safety Instructional Manual
1. The load connected to the output end of the step down transformer should not be more than max listed load power, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. If your device's load is close to MAX power, please select a higher power converter.
3. Please connect the converter and your device according to the wiring diagram provided.

Features:
-Fuse installed, protect electrical appliances and reduce the risk of fire and explosion. More security.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high temperature resistance and super stability.

Power Adapter Converter Specifications:
Material: Plastic, Electronic Parts
Input: DC 8V - 40V
Output: DC 5V 10A 50W
Fuse: 10A
Conversion Efficiency: More Than 96%
Overtemperature Protection: 150℃
Waterproof Grade: IP67
Connection Wire Length: 13cm(5.1 inches)
Body Size: 65mm x 60mm x 20mm(L*W*H)
Net Weight: 264g

DC Transformer Connection:
Input: red(+) black(-)
Output: yellow(+) black(-)
Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection.
(please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)

Package Includes:

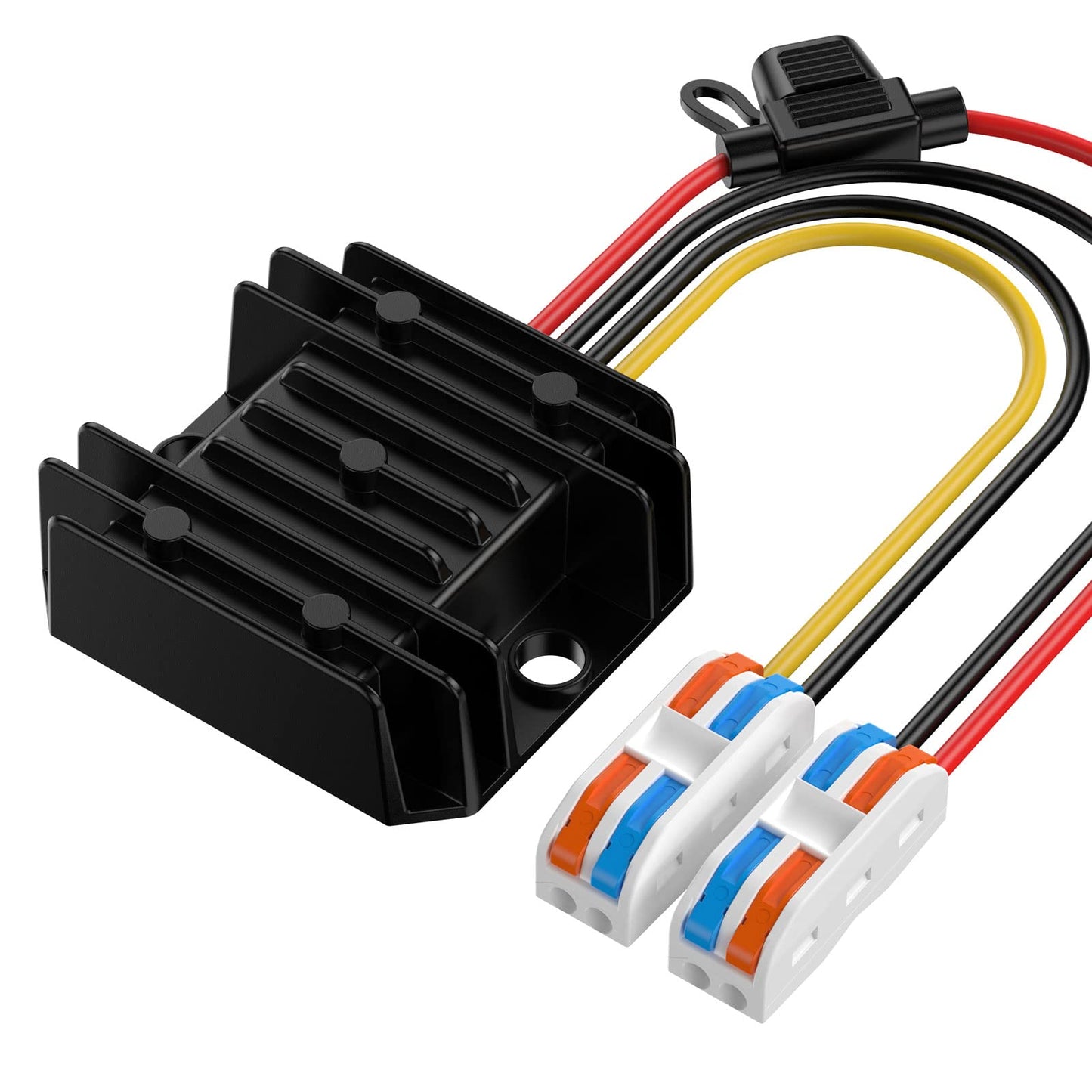

1 x 8-40V to 5V Buck Converter 10A 50W 2 x Wire Terminal Block

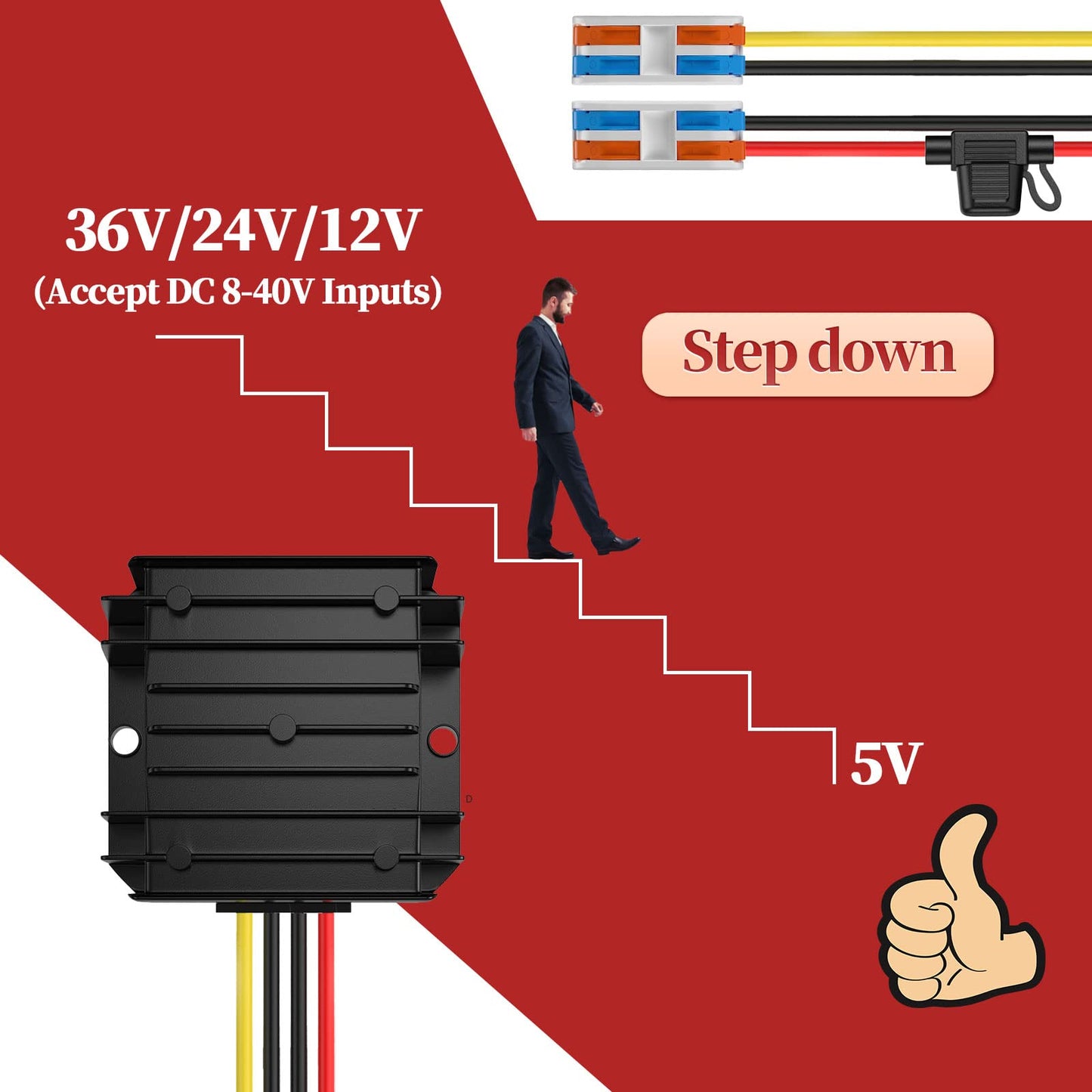

• [12V to 5V Converter] This buck converter 24v to 5v converts the DC 8-40V into DC 5V. Low power consumption. Voltage input: DC 8-40V, output: DC 5V. Max Current: 10A 50W. WARNING: WARNING: 1.Please test whether the output voltage is correct before use
• 2.Please confirm the positive and negative polarity of the power before wiring
• 3.Must hook the negative wire to GND before use, or the output volts will not change!

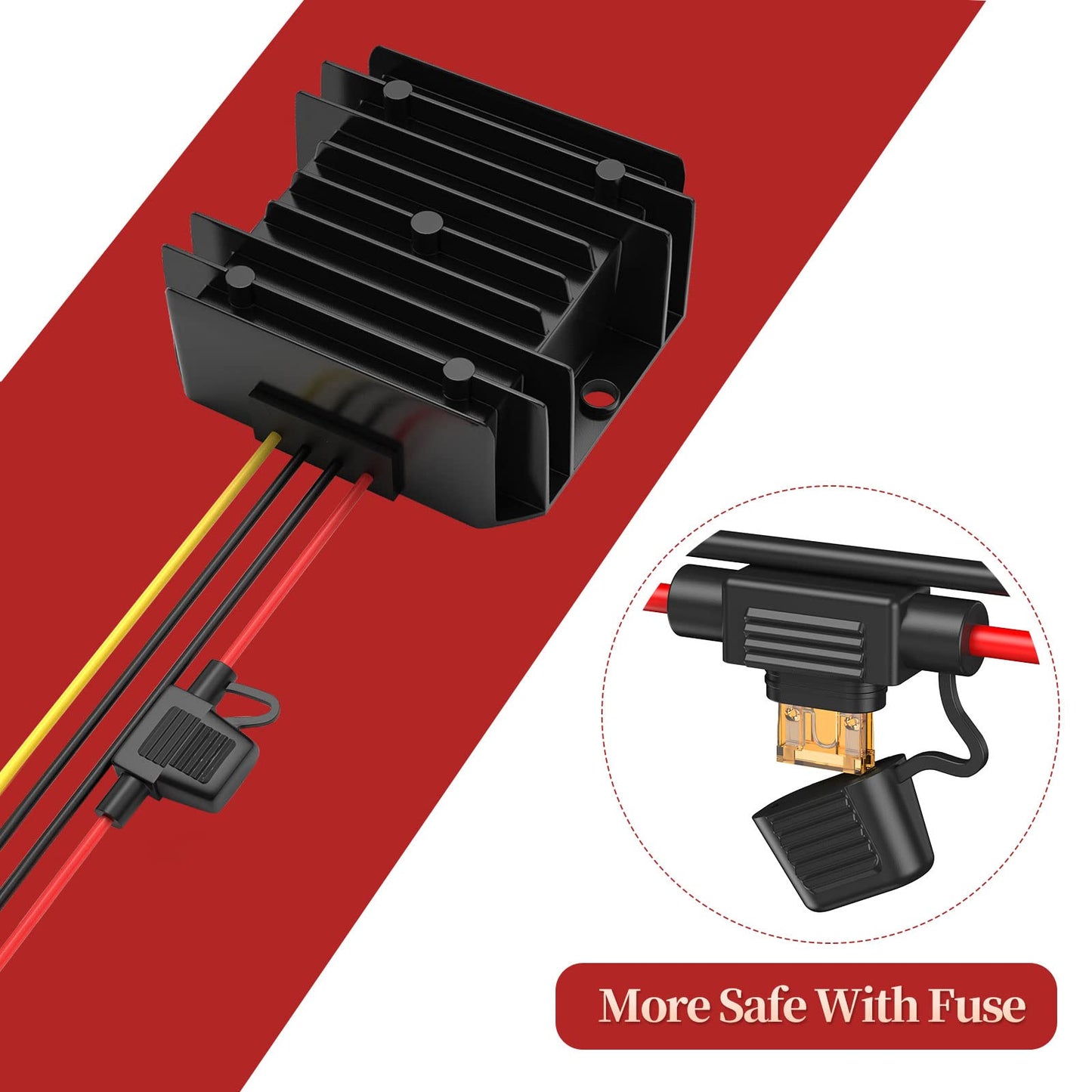

• [With Fuse More Safer] For the safety of devices, our 24v to 5v converter are equipped with fuses. When the voltage is too high, the circuit breaks down or is abnormal, the fuse will blow and the transformer will stop working, thereby protecting the electrical appliances. In addition, this can reduce the risk of fire or explosion. Comparing with other ordinary transformers, our products are more advanced and safer. High conversion rate over 96%. High quality and performance, longer service life.

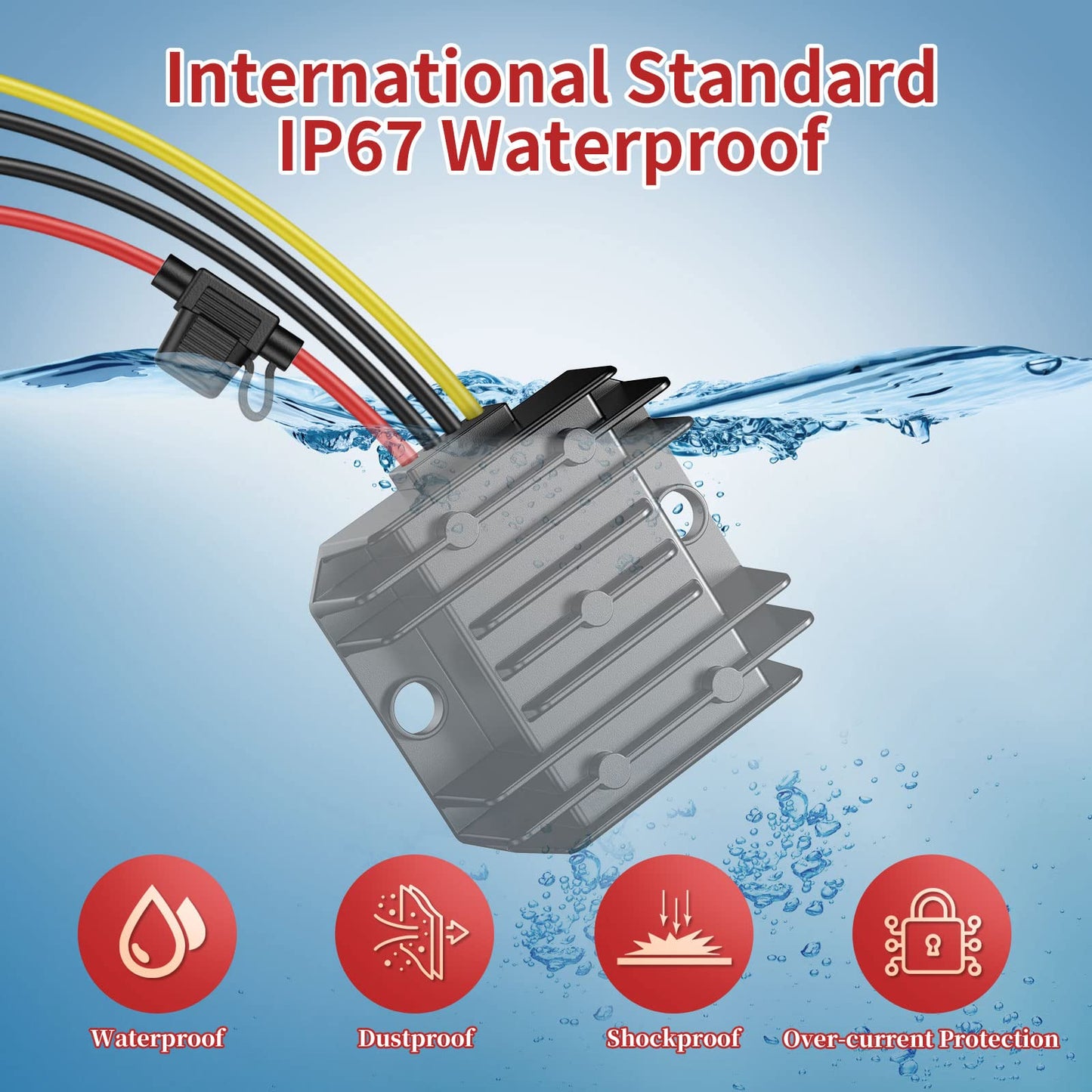

• [IP67 Waterproof] This buck converter 24v to 5v adopted heat conduction organic silica gel filling and sealing technology, waterproof, anti-shock, anti-humidity and dust-proof. Which make it can be used outdoors with standing heavy rains or bad weathers. It is widely used on golf cart, led strip light, bus, car truck vehicle, motor, gps, bus display, taxi advertising screen, car audio, LCD TV, intercom and monitoring system etc.

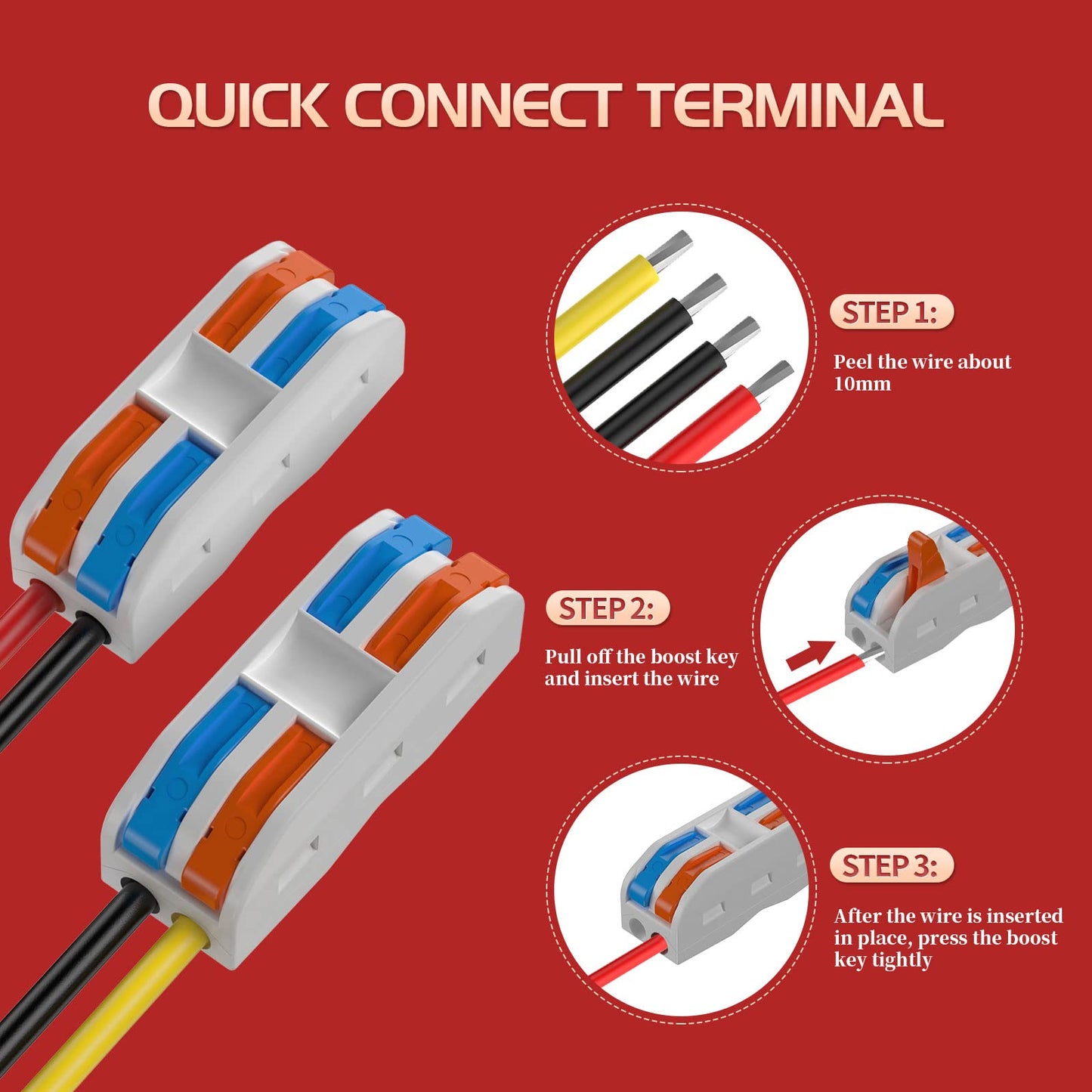

• [Wire Terminal Block Easy to Install] This 12v to 5v converter comes with quick release terminals which is very easy to install. The 24V 12V to 5V step down converter is equipped with quick cable connectors for quick connection. You can save a lot of trouble without taping wires. Note: strip the wire 0.4" (10mm or so) and insert it into the connector.
• [Best Service] Our company provide 12 months warranty. If the step down transformer has any problems, please feel free to contact us for free replacement or 100% money back. We always stand behind the products

Color: 10A

Power/Wattage: 10A
